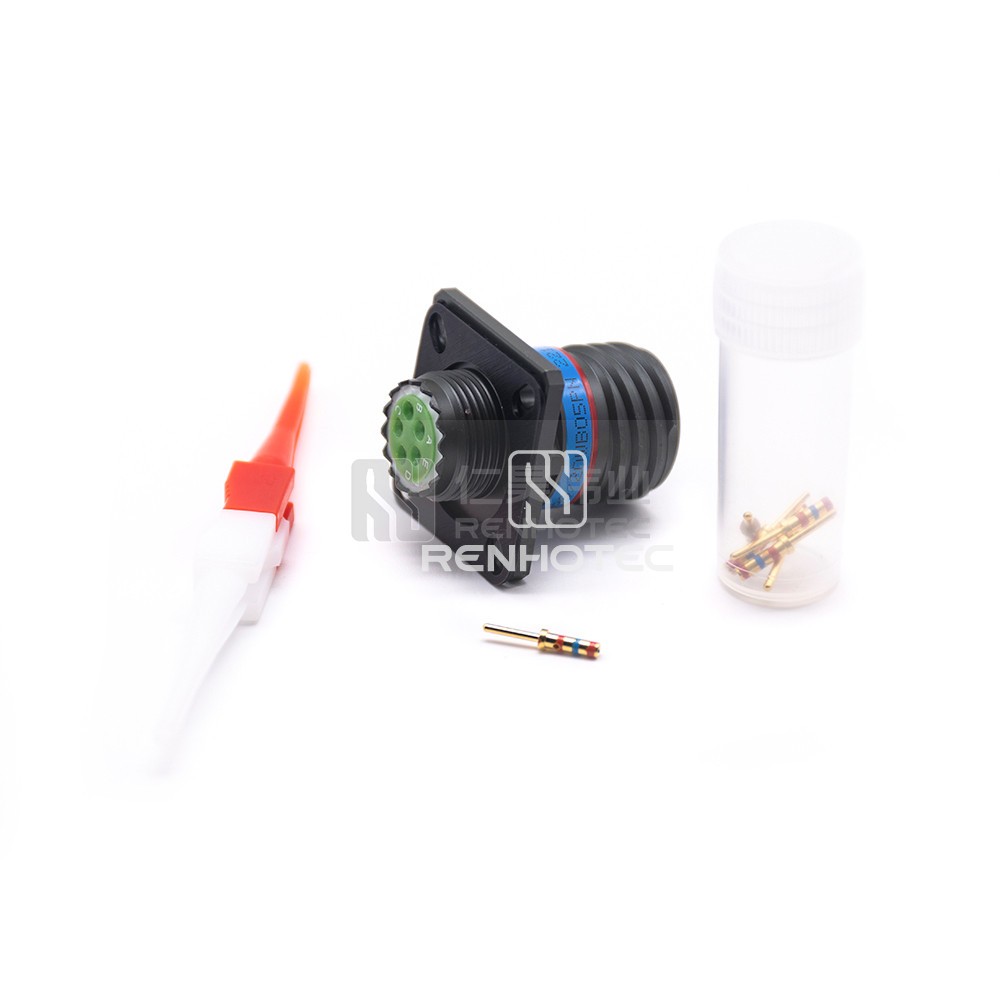

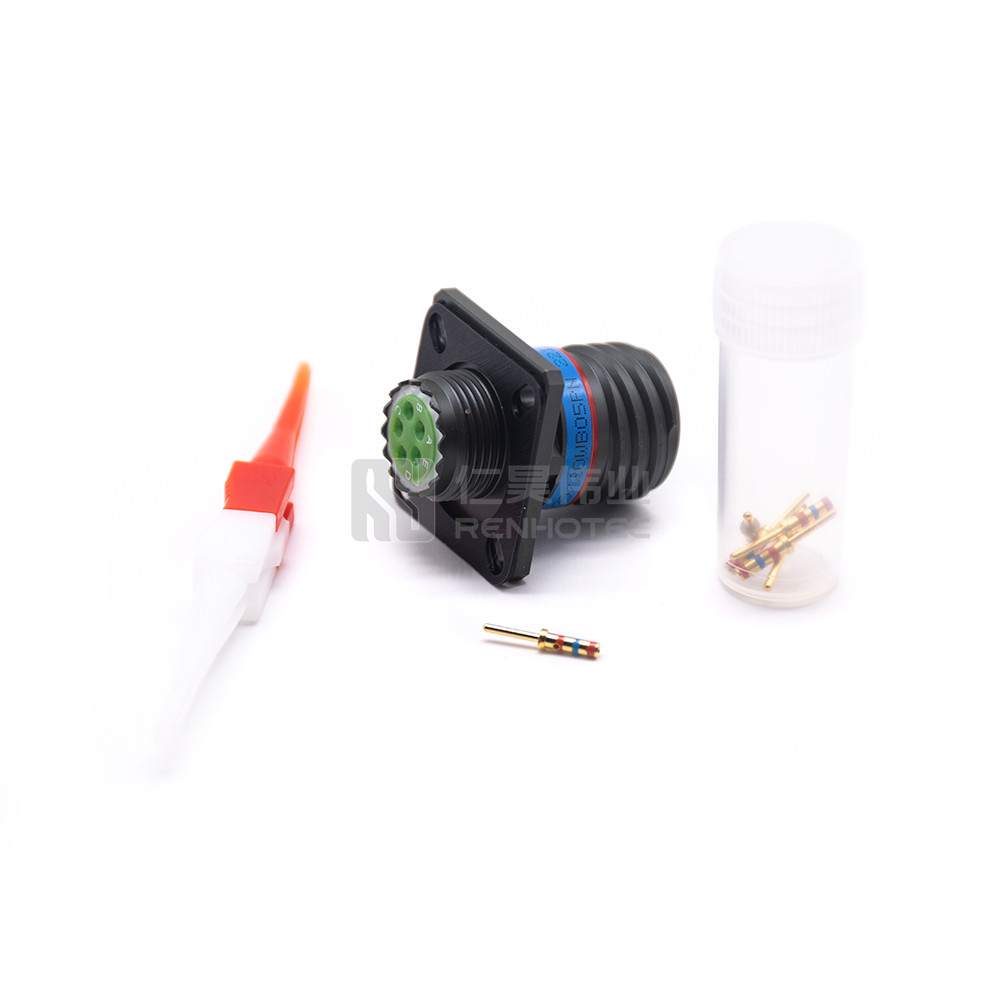

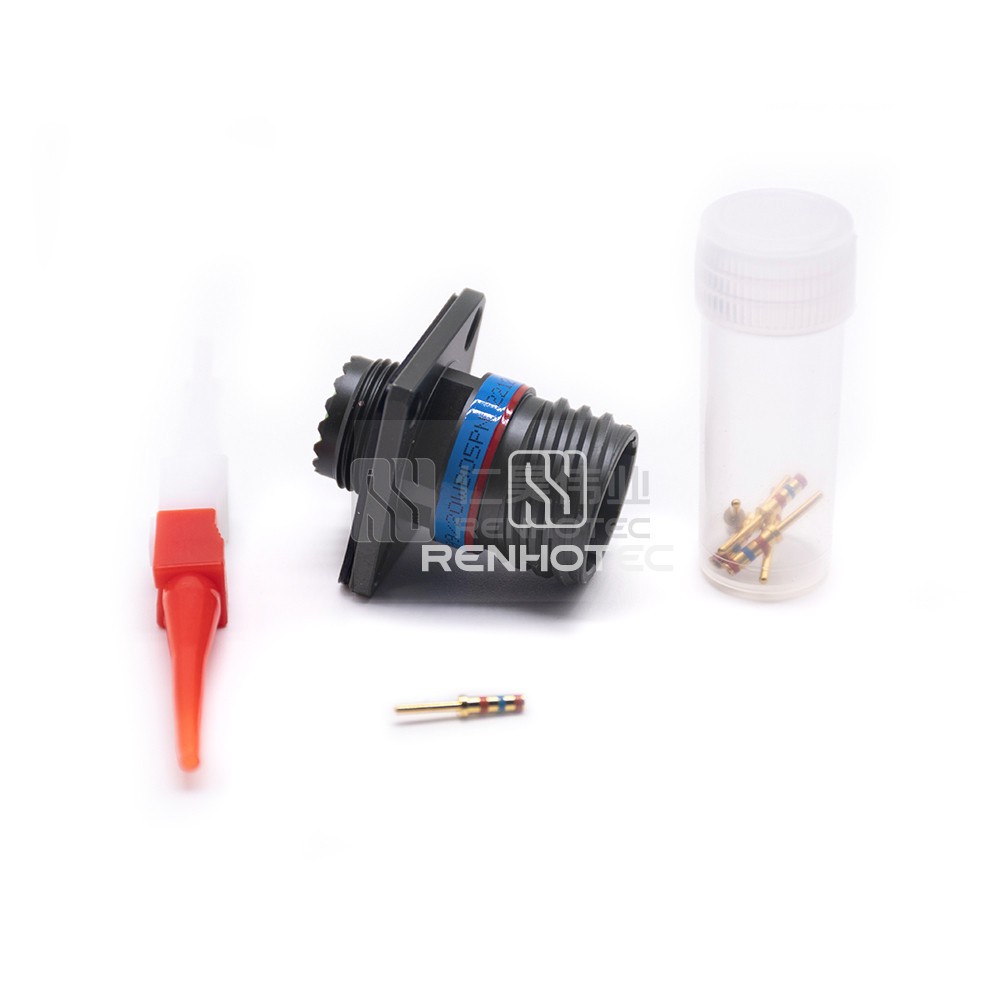

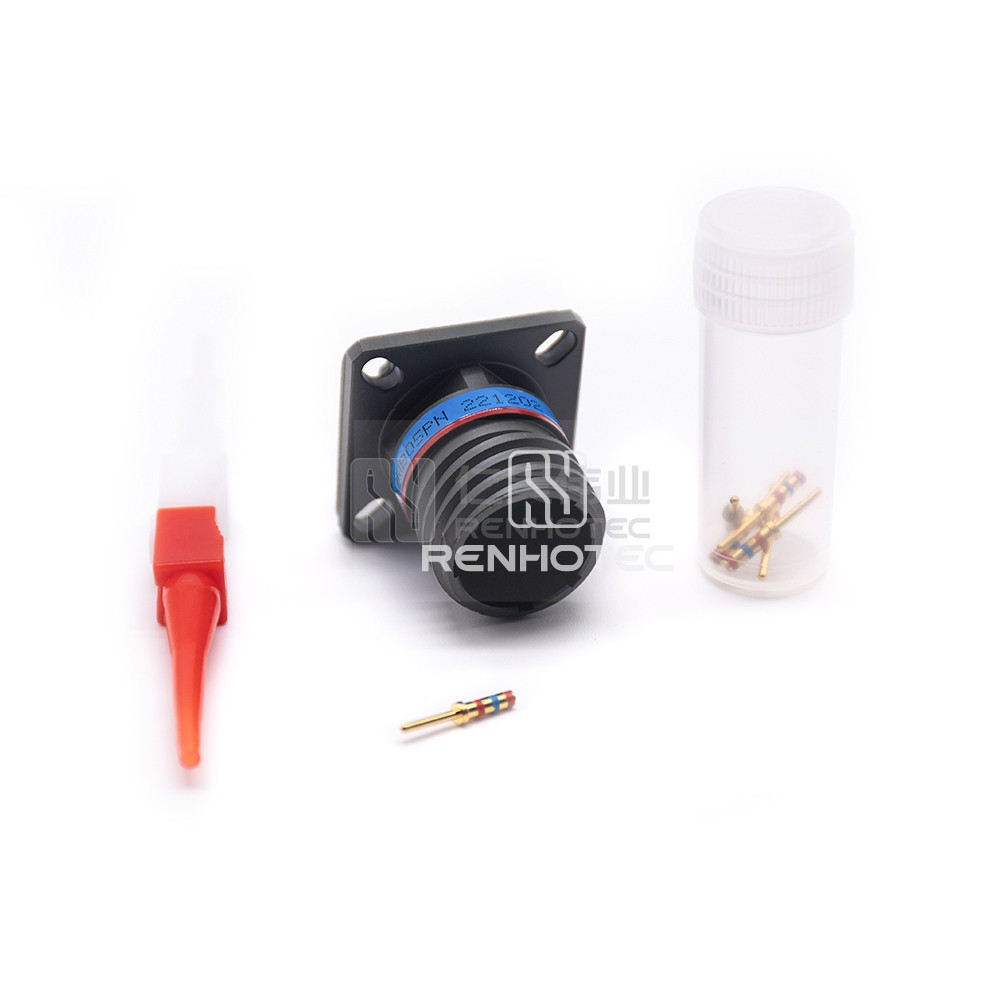

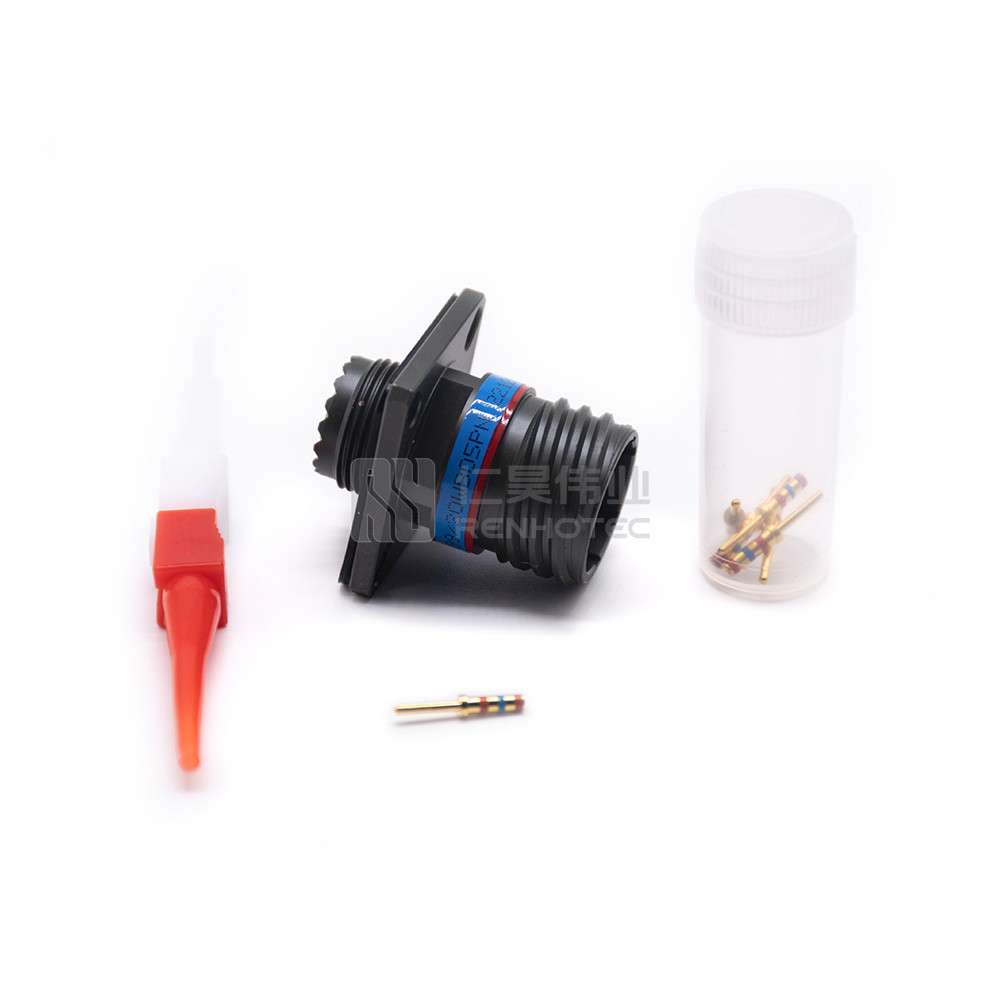

High-quality MIL-DTL-38999 connector with a 5-pin male square flange receptacle. D38999/20WB5PN model for reliable and secure connections in various applications.
General
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 5 |
Contact Arrangements | 11-05 |
Contact Termination | Crimp |
Series | MIL-DTL-38999 Series Ⅲ |
Key | N |
Color | Olive Green |
Shell
Shell Size | B |
Mechanical
Fastening Type | Threaded |
Mounting Type | Panel Mount |
Mounting Feature | Flange |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Insulating Material | Thermoplastic |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -65°C ~ + 175°C |
Electrical
Shielding | Shielded |
Rated Current | 7.5A |
