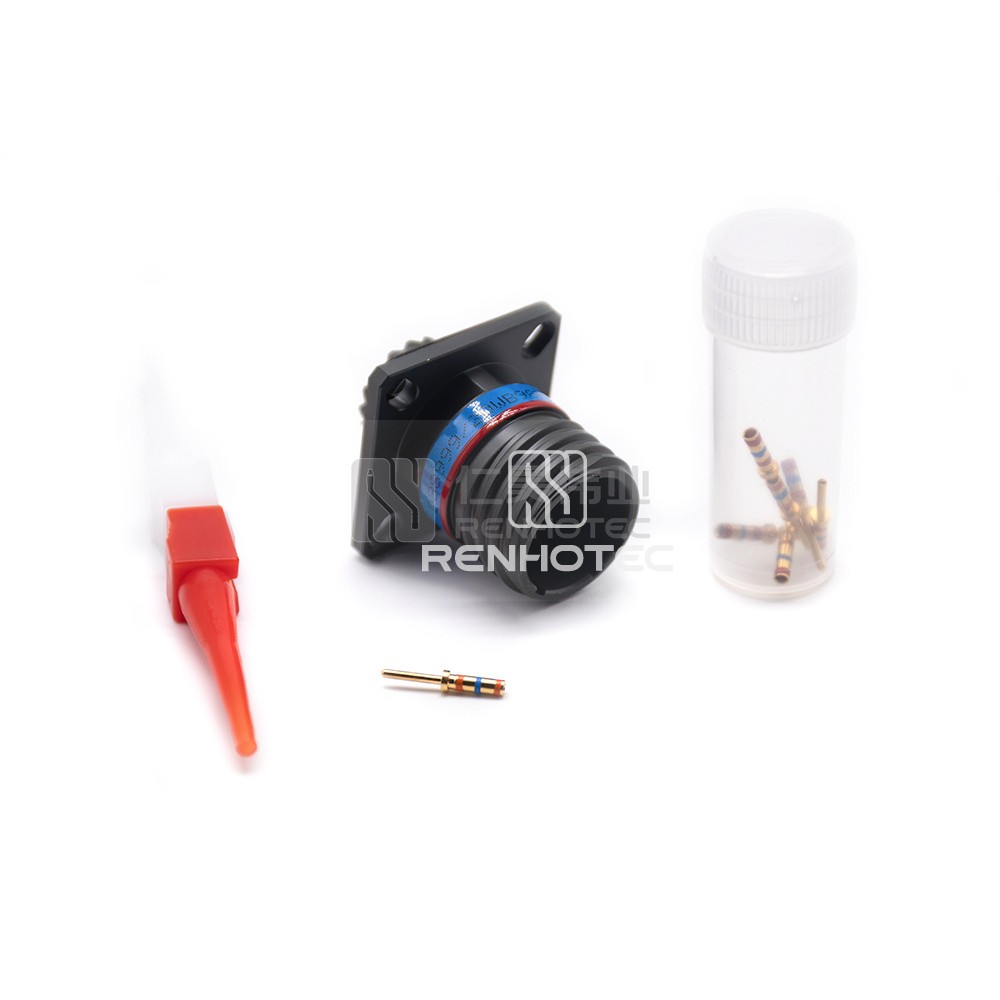

product image

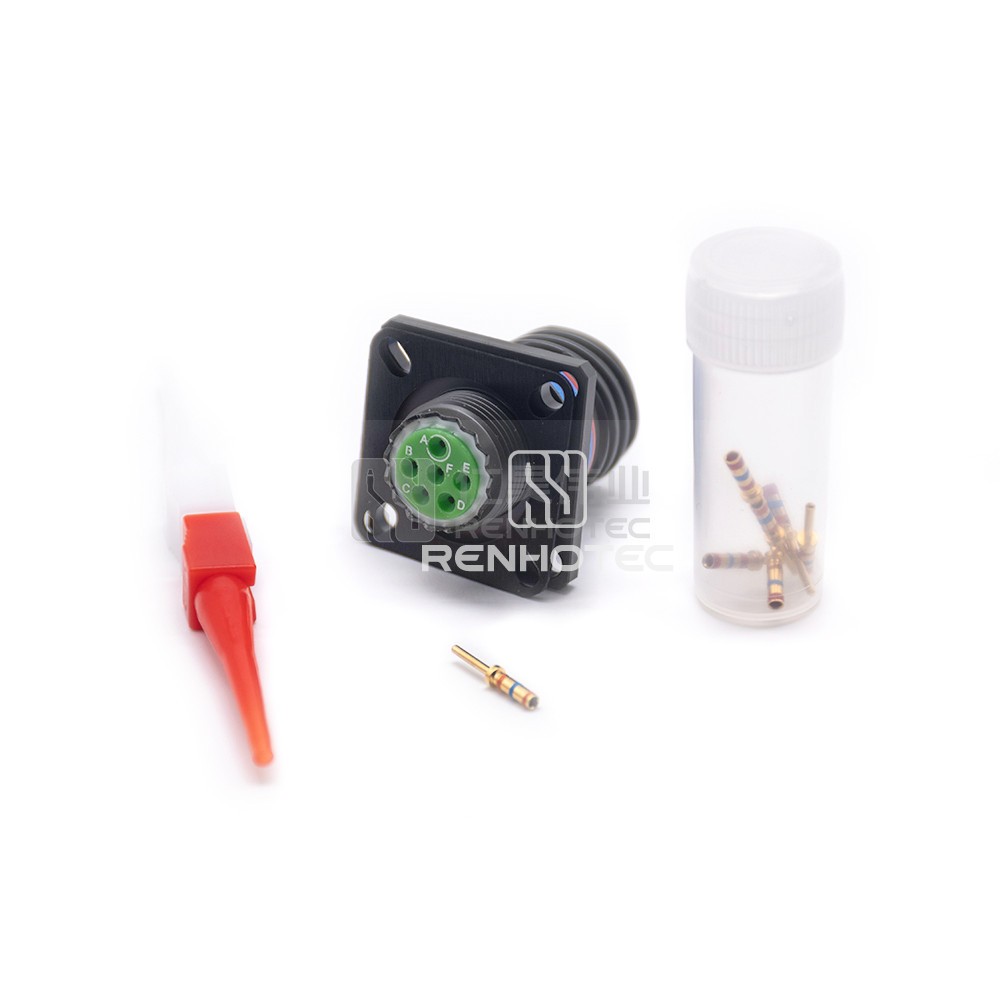

product image

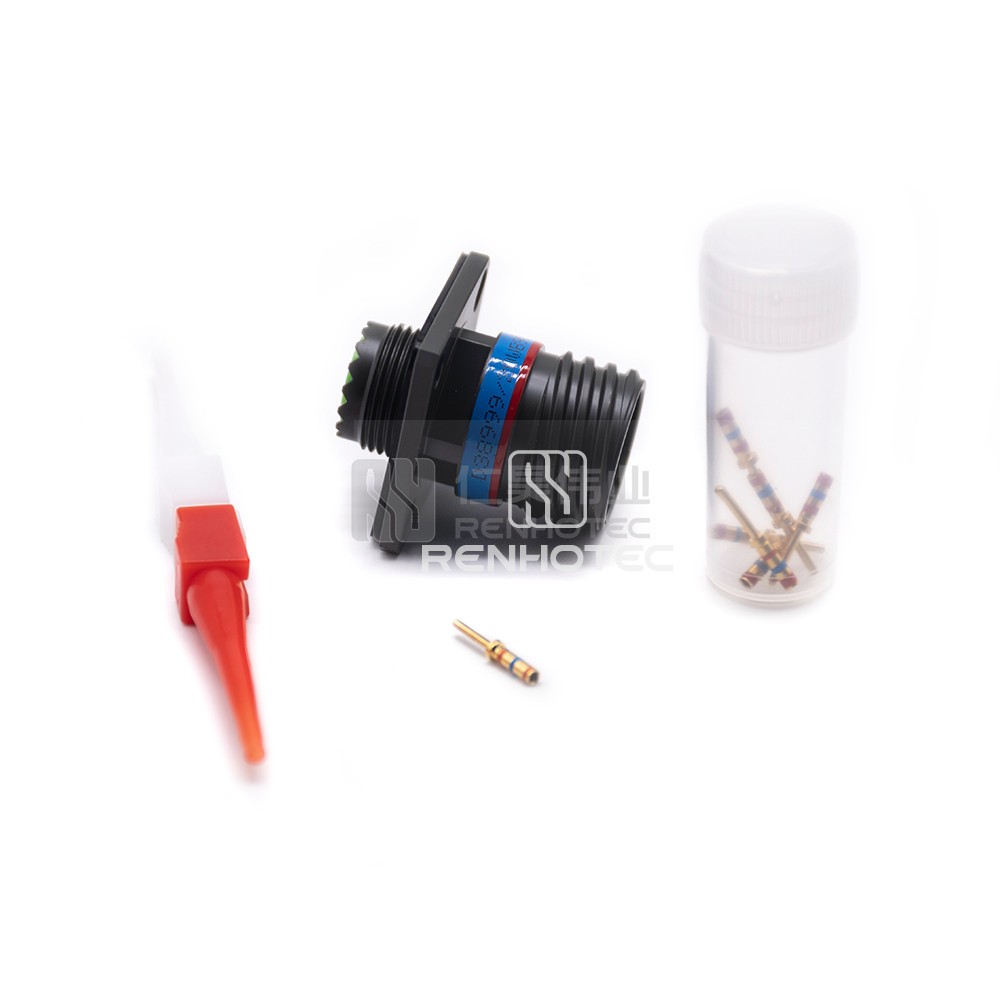

product image

D38999/20WB98PN

MIL-DTL-38999 Connector D38999/20WB98PN Male Square Flange Receptacle 6 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality MIL-DTL-38999 connector with D38999/20WB98PN Male Square Flange Receptacle design. Features 6 pins for reliable electrical connections. Ideal for various industrial and aerospace applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeMale Pin
Number of Positions6
Contact Arrangements11-98
Contact TerminationCrimp
SeriesMIL-DTL-38999 Series Ⅲ
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishGold
Mechanical
Fastening TypeThreaded
Mounting TypePanel Mount
Mounting FeatureFlange
Environmental
Ingress ProtectionIP67
Operating Temperature-65°C ~ + 175°C
Shell
Shell SizeB
Electrical
ShieldingShielded
Rated Current5A
