Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/20WD97PN Male Square Flange Receptacle 12 Pin

D38999/20WD97PN

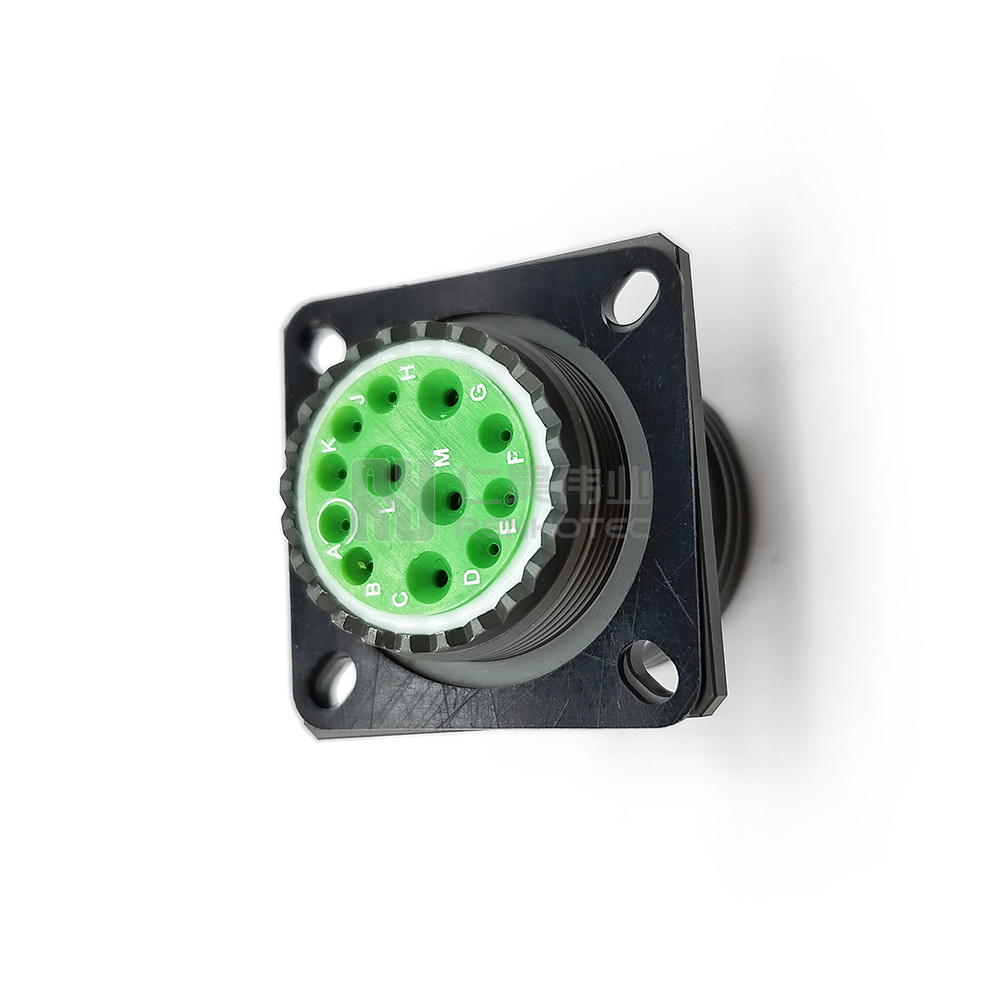

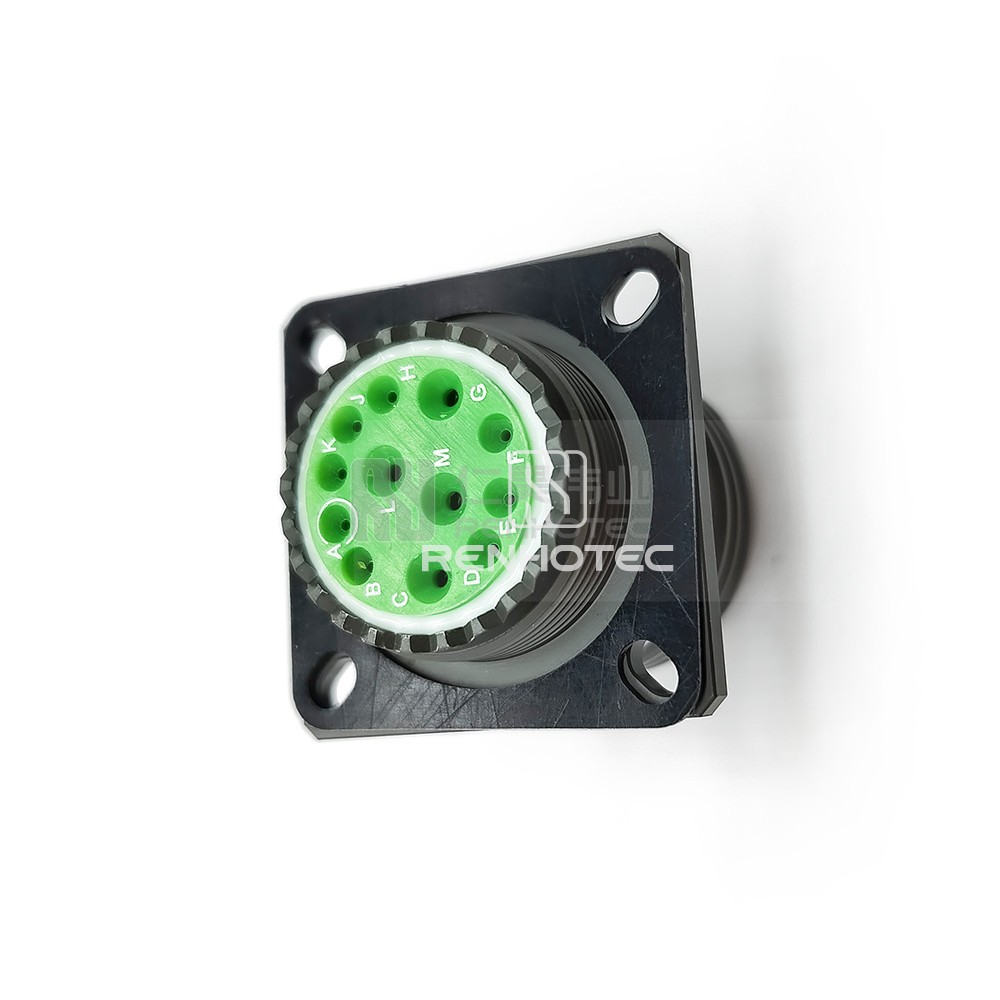

MIL-DTL-38999 Connector D38999/20WD97PN Male Square Flange Receptacle 12 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Buy the MIL-DTL-38999 12-pin male square flange receptacle connector, part number D38999/20WD97PN. This high-quality connector ensures secure and reliable connections for your electrical applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions12
    Contact Arrangements15-97
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyN
    ColorOlive Green

    Shell

    Shell SizeD

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current7.5A
