Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/20WE6PN Male Square Flange Receptacle 6 Pin

D38999/20WE6PN

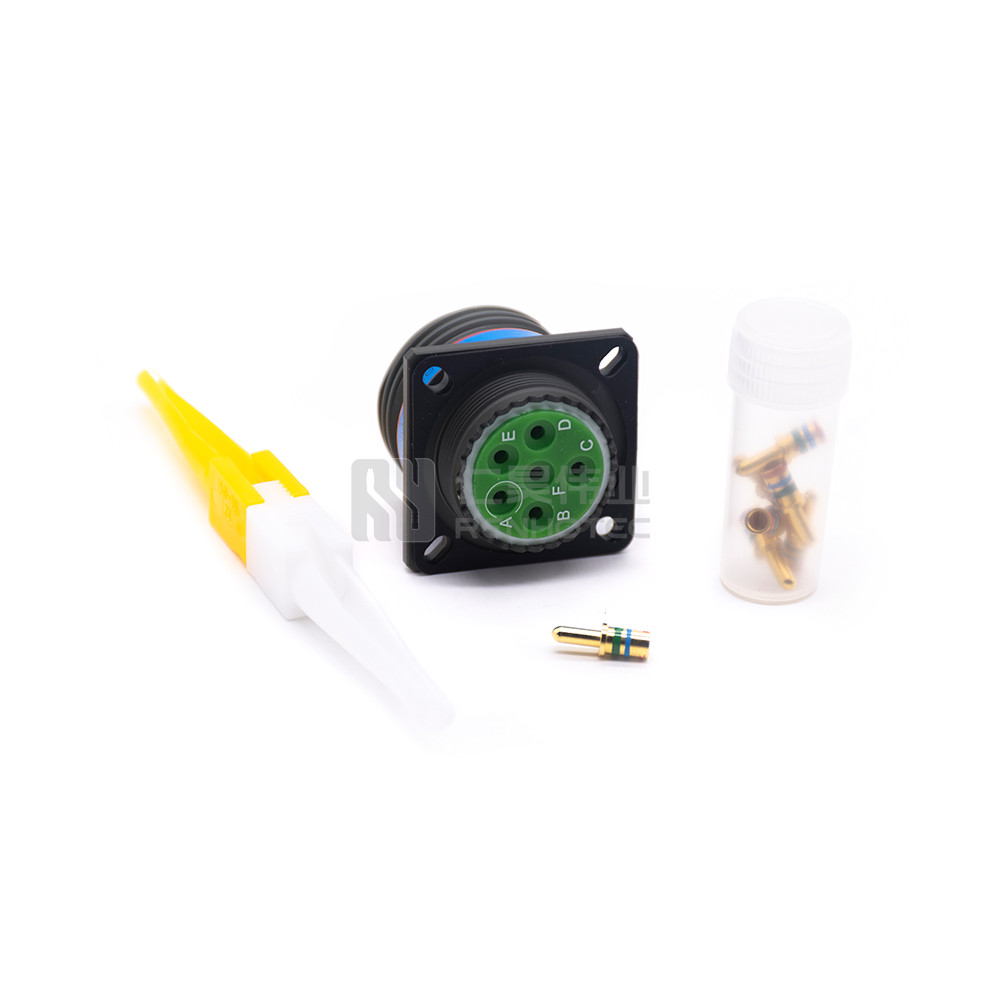

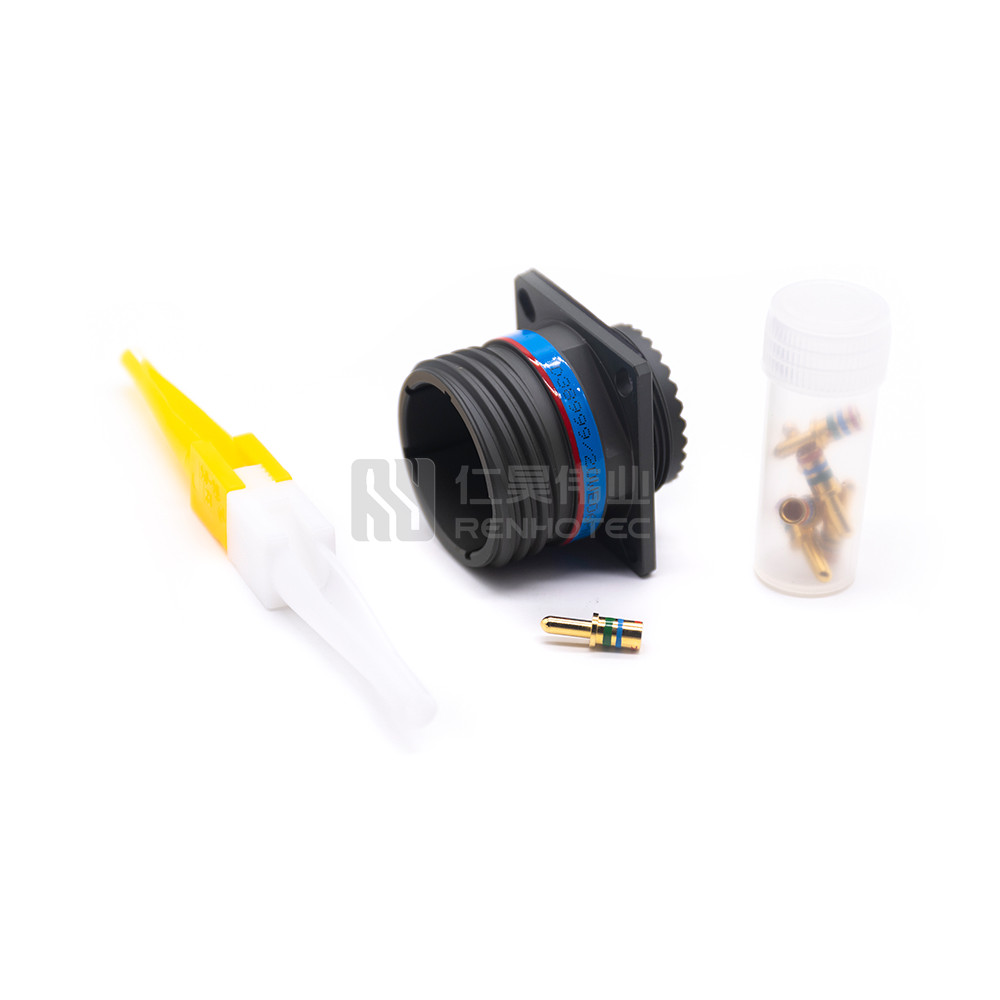

MIL-DTL-38999 Connector D38999/20WE6PN Male Square Flange Receptacle 6 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 connector with D38999/20WE6PN male square flange receptacle and 6 pins. Reliable and durable for various industrial and military applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions6
    Contact Arrangements17-06
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyN
    ColorOlive Green

    Shell

    Shell SizeE

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold
    Insulating MaterialThermoplastic

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current23A
