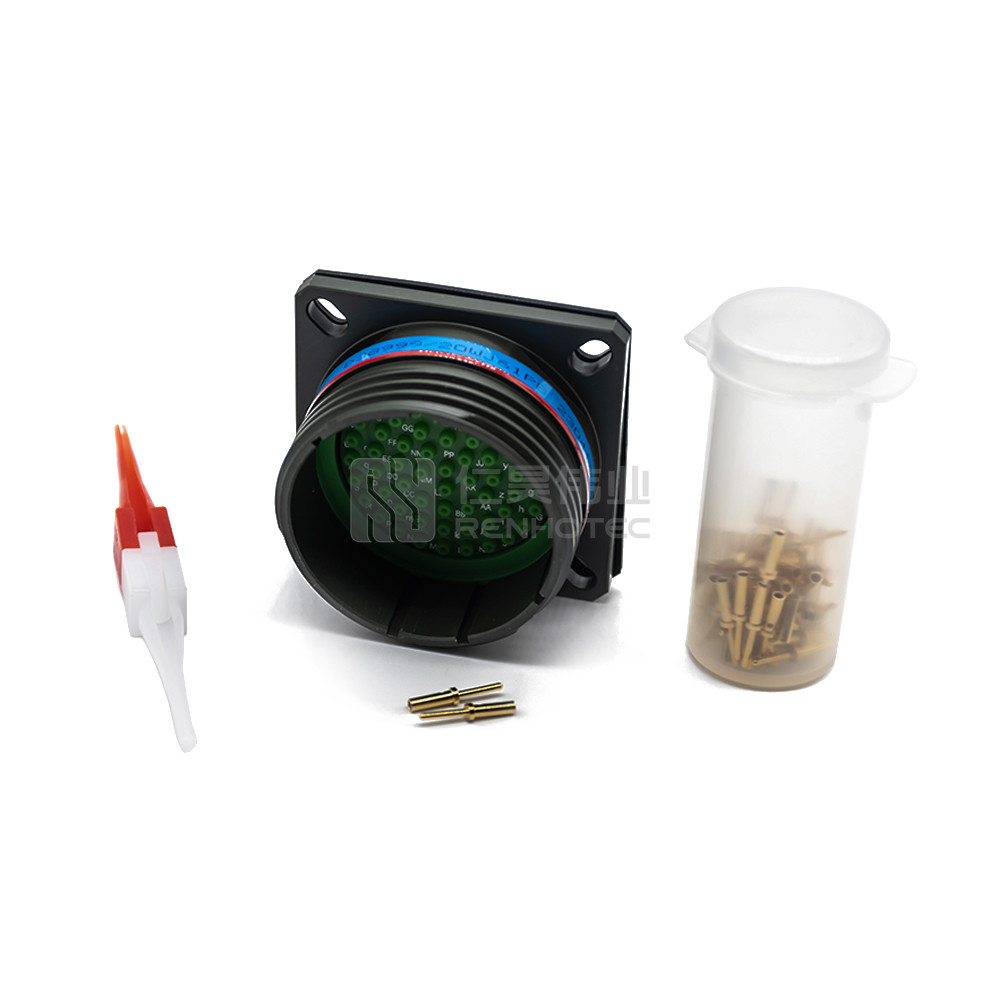

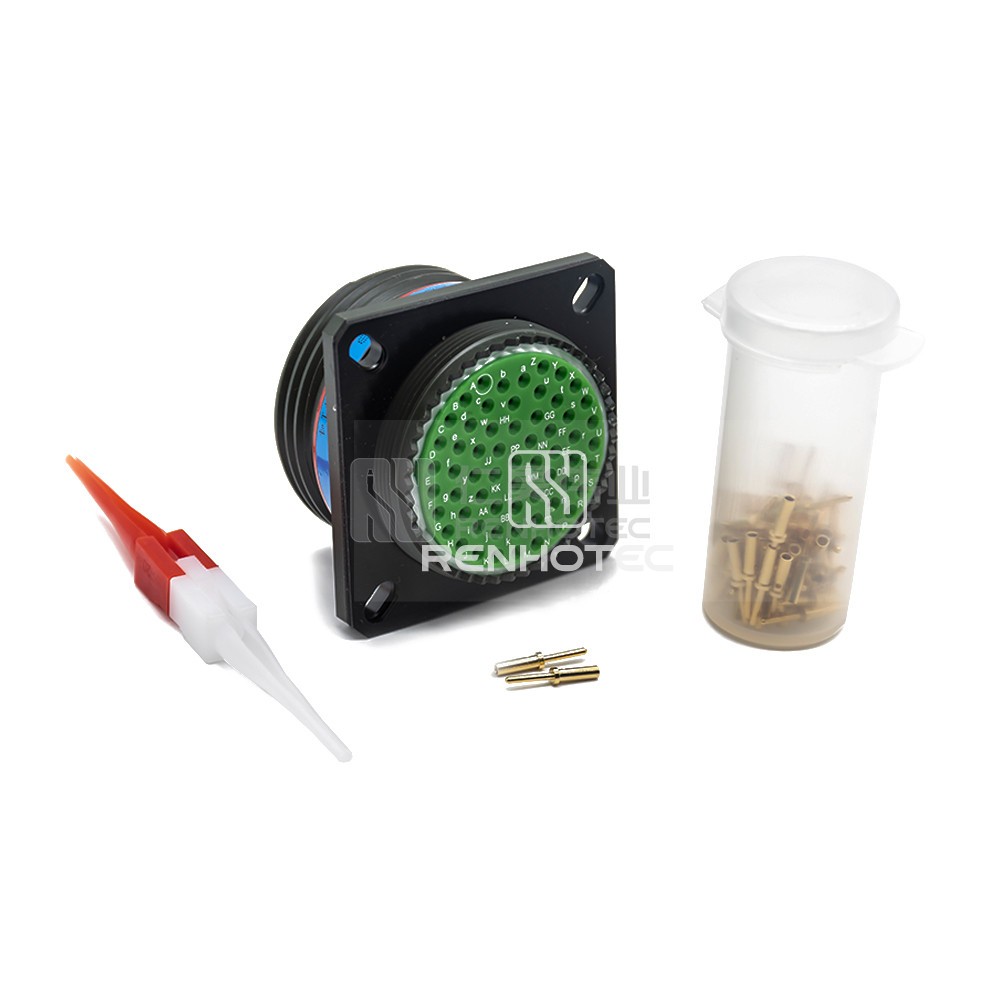

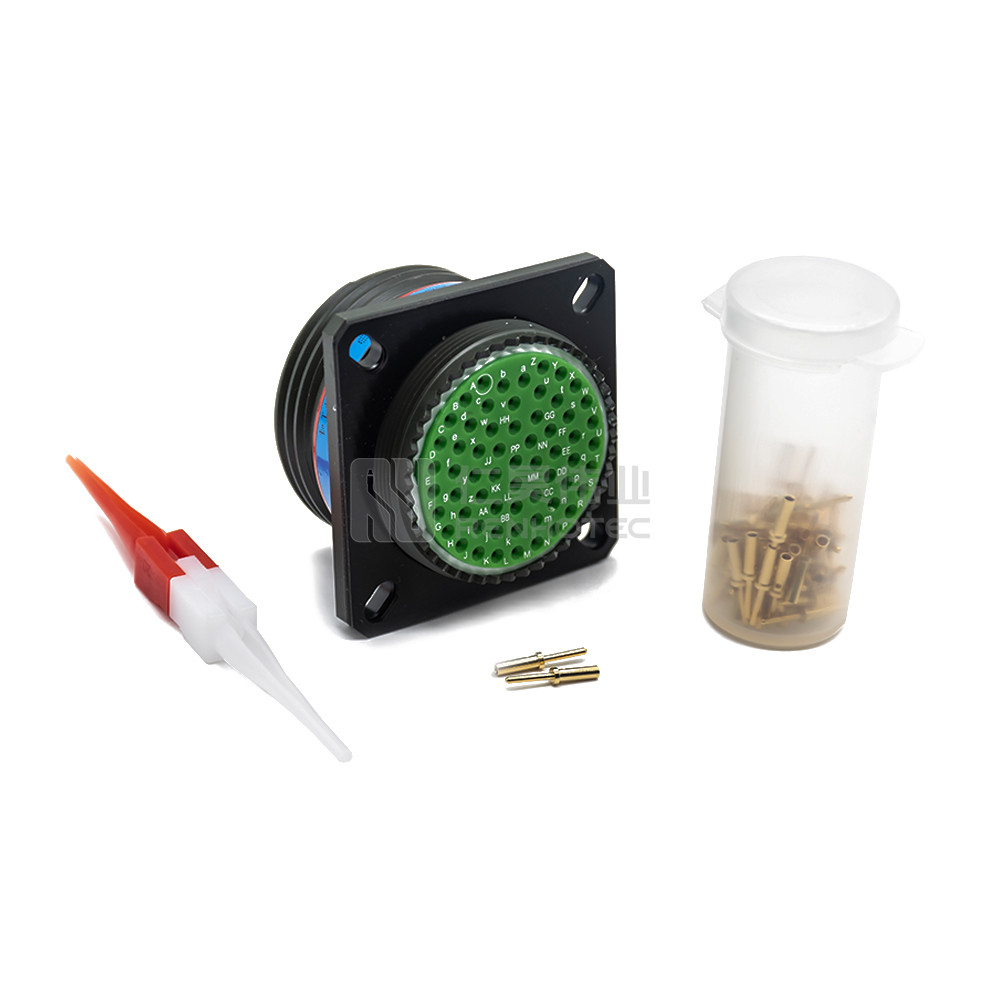

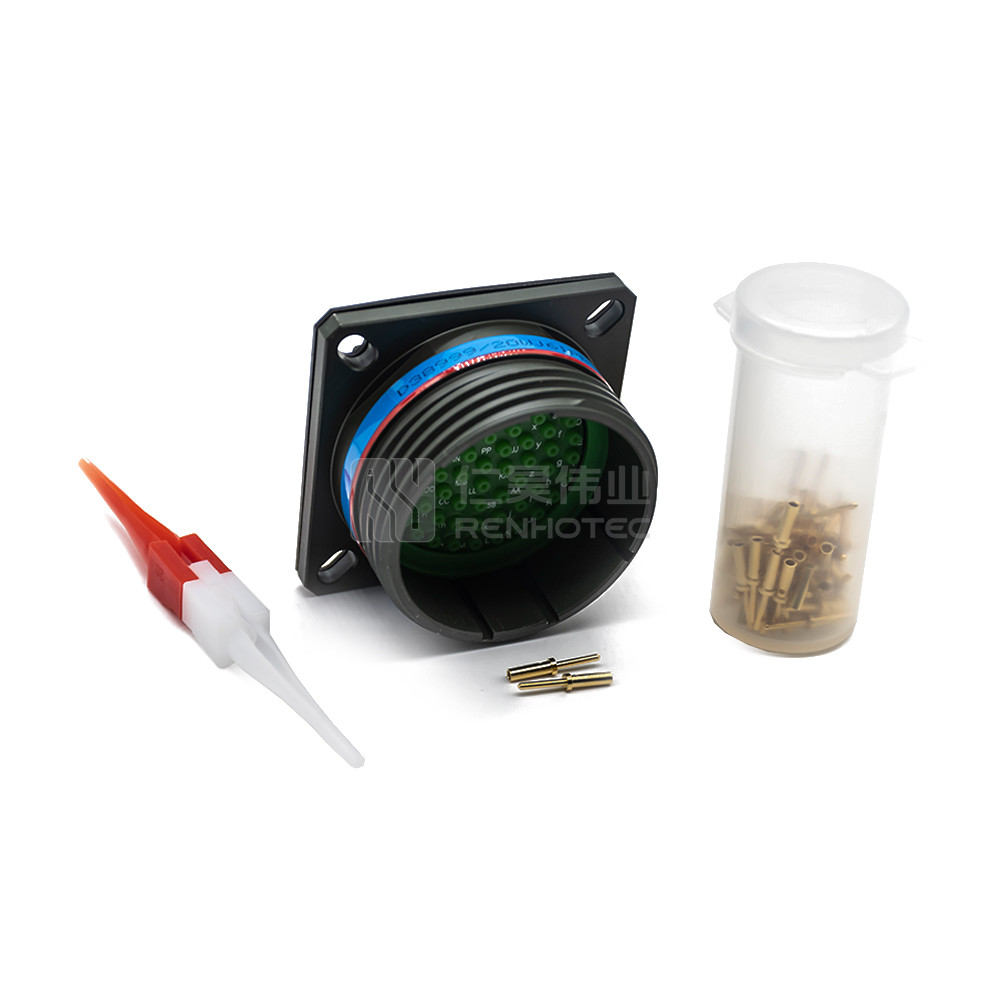

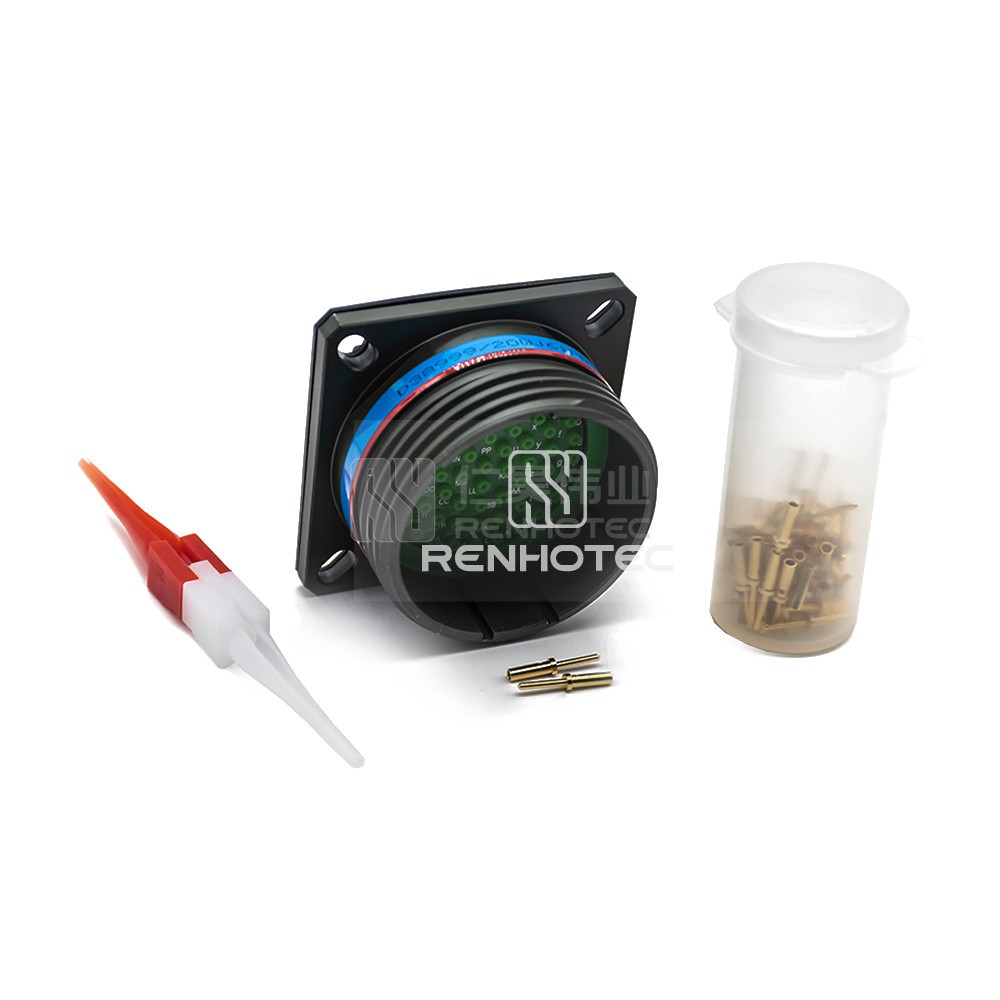

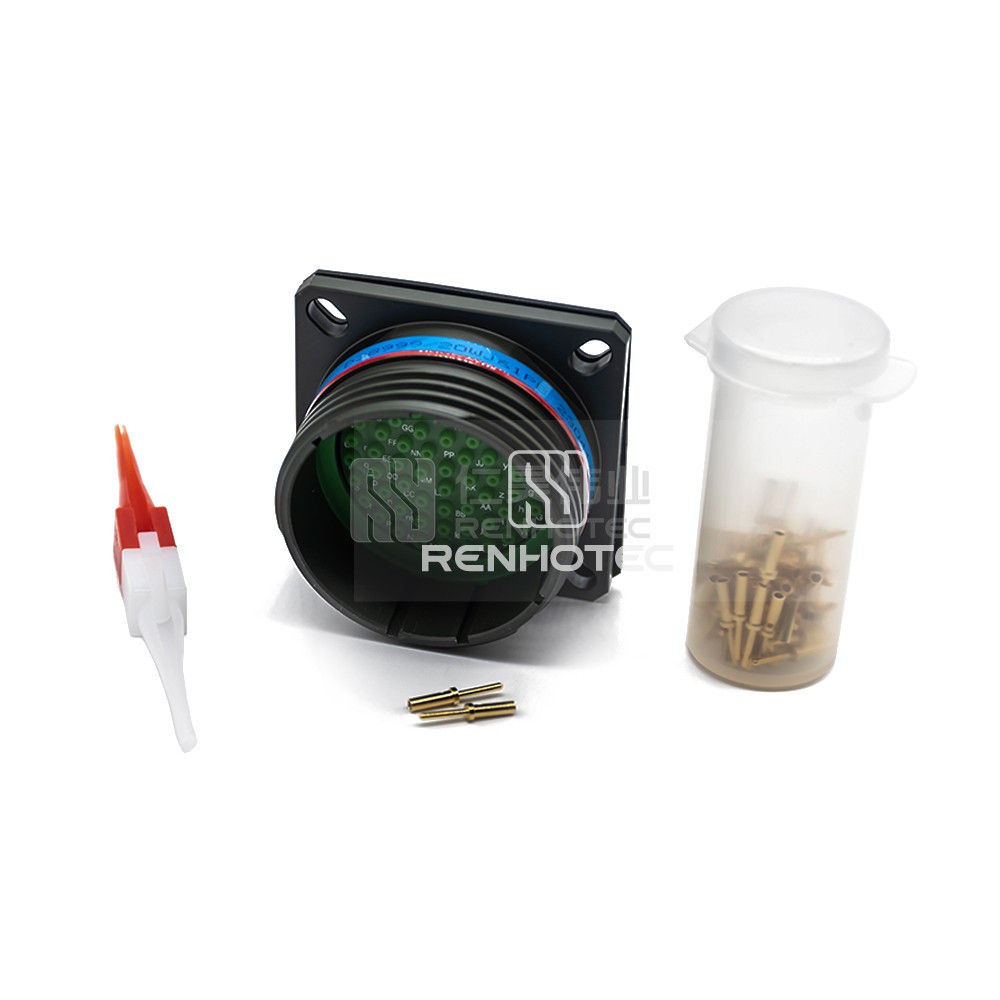

Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/20WJ61PB Female Square Flange Receptacle 61 Pin
- Overview
- Technical data
- Catalog
Check now for the MIL-DTL-38999 Connector D38999/20WJ61PB Female Square Flange Receptacle with 61 Pins. High-quality and reliable connector for your electronic applications.
General
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 61 |
Contact Arrangements | 25-61 |
Contact Termination | Crimp |
Series | MIL-DTL-38999 Series Ⅲ |
Key | N |
Color | Olive Green |
Shell
Shell Size | J |
Mechanical
Fastening Type | Threaded |
Mounting Type | Panel Mount |
Mounting Feature | Flange |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Insulating Material | Thermoplastic |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -65°C ~ + 175°C |
Electrical
Shielding | Shielded |
Rated Current | 5A |
