D38999/24WA35PN

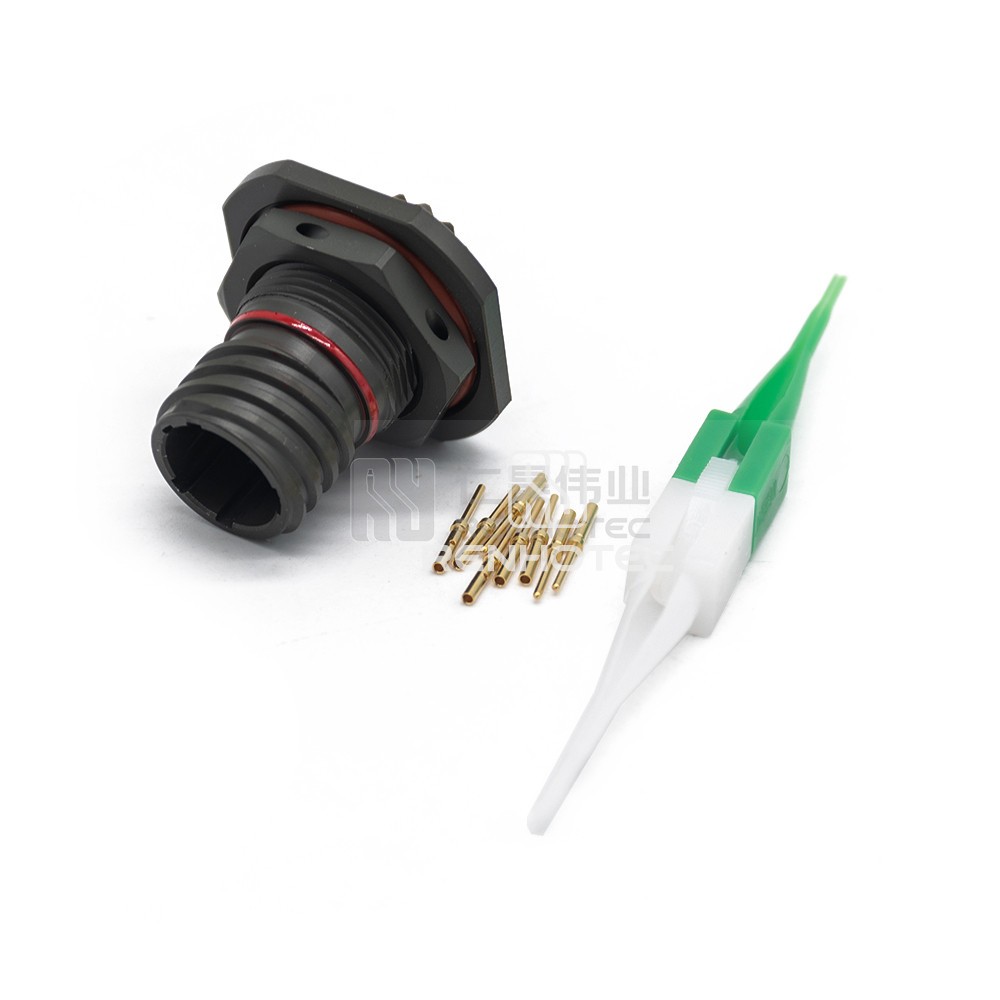

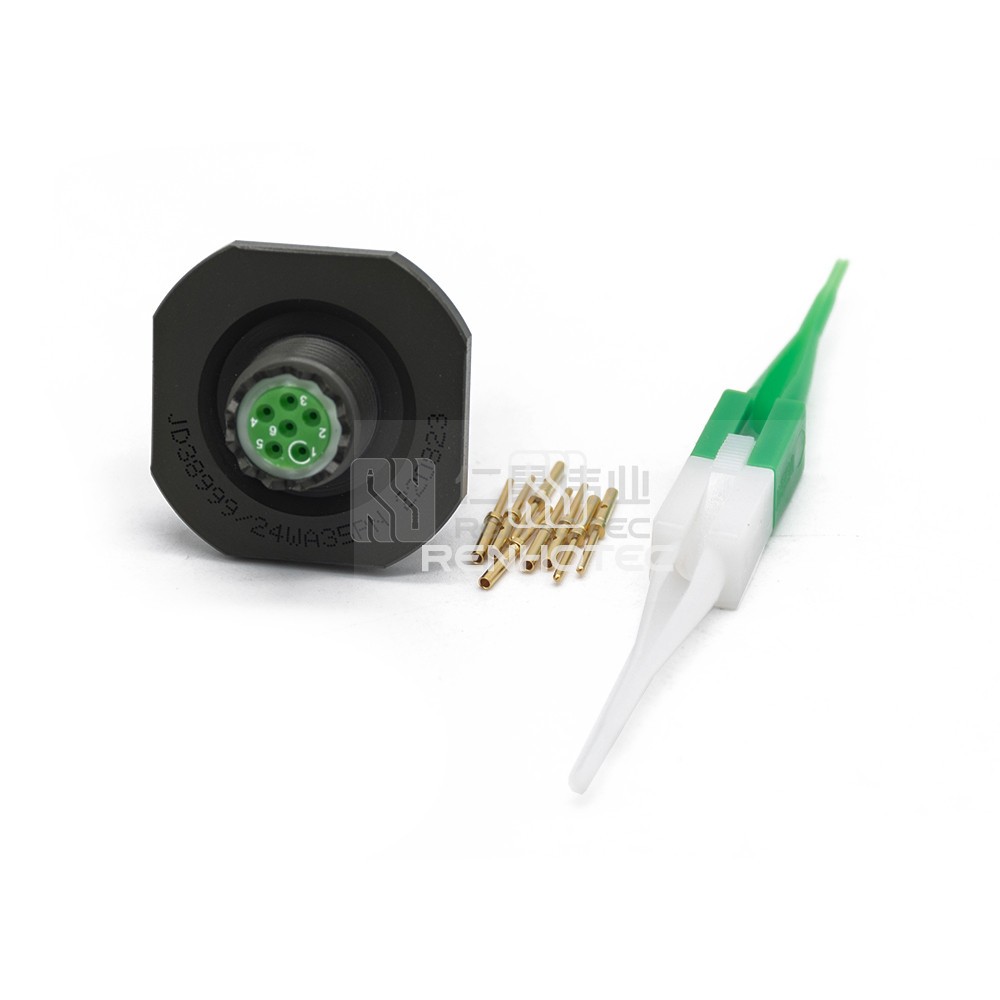

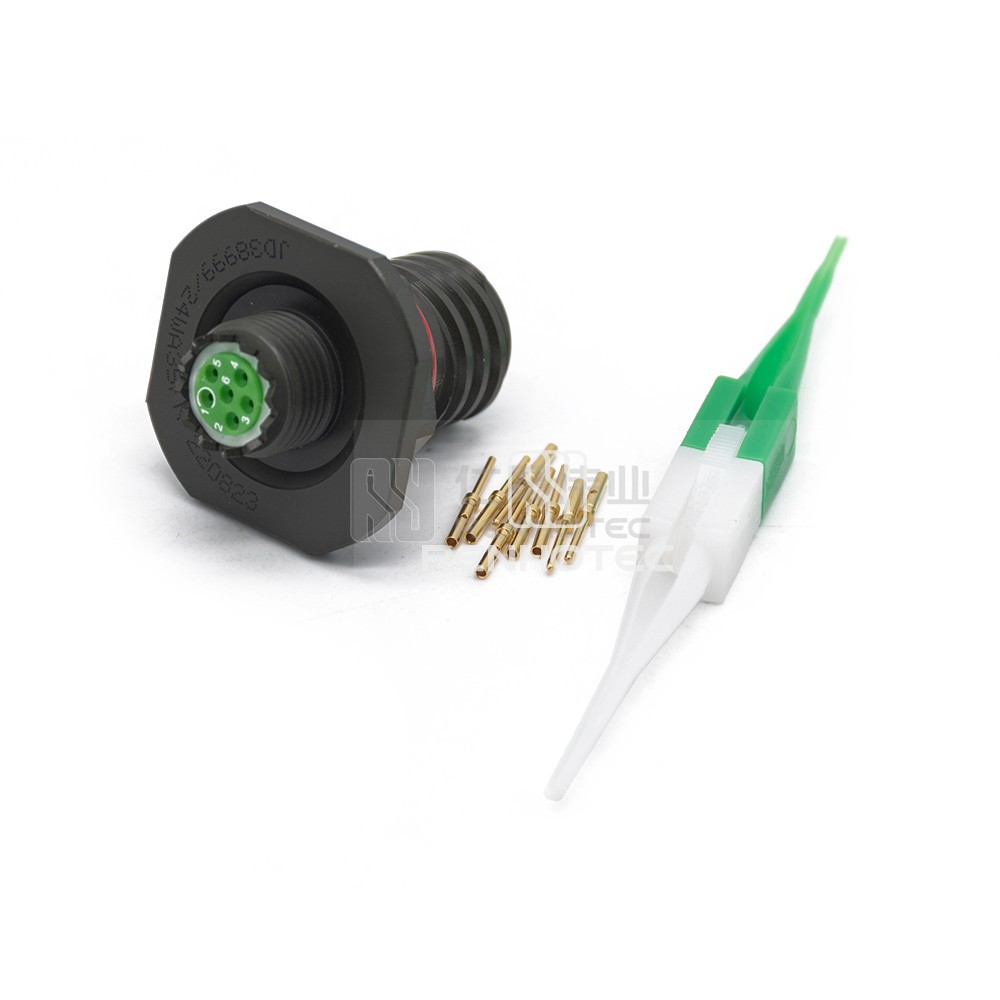

MIL-DTL-38999 Connector D38999/24WA35PN Male Jamnut Receptacle 6 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 connector with D38999/24WA35PN male jamnut receptacle featuring 6 pins. Sturdy and reliable for various electrical applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions6
    Contact Arrangements9-35
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyN
    ColorOlive Green

    Shell

    Shell SizeA

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
