Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/26WB5SN Female EMI Shielding Plug 5 Pin

D38999/26WB5SN

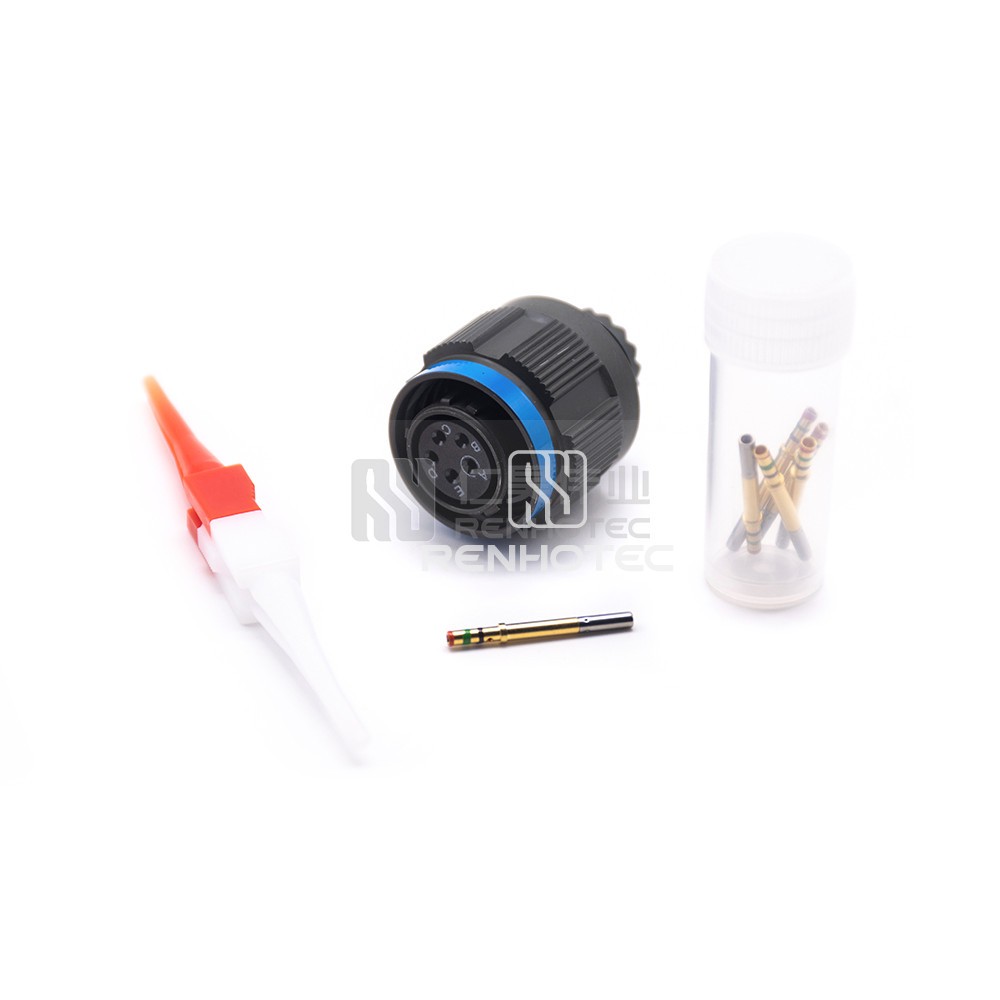

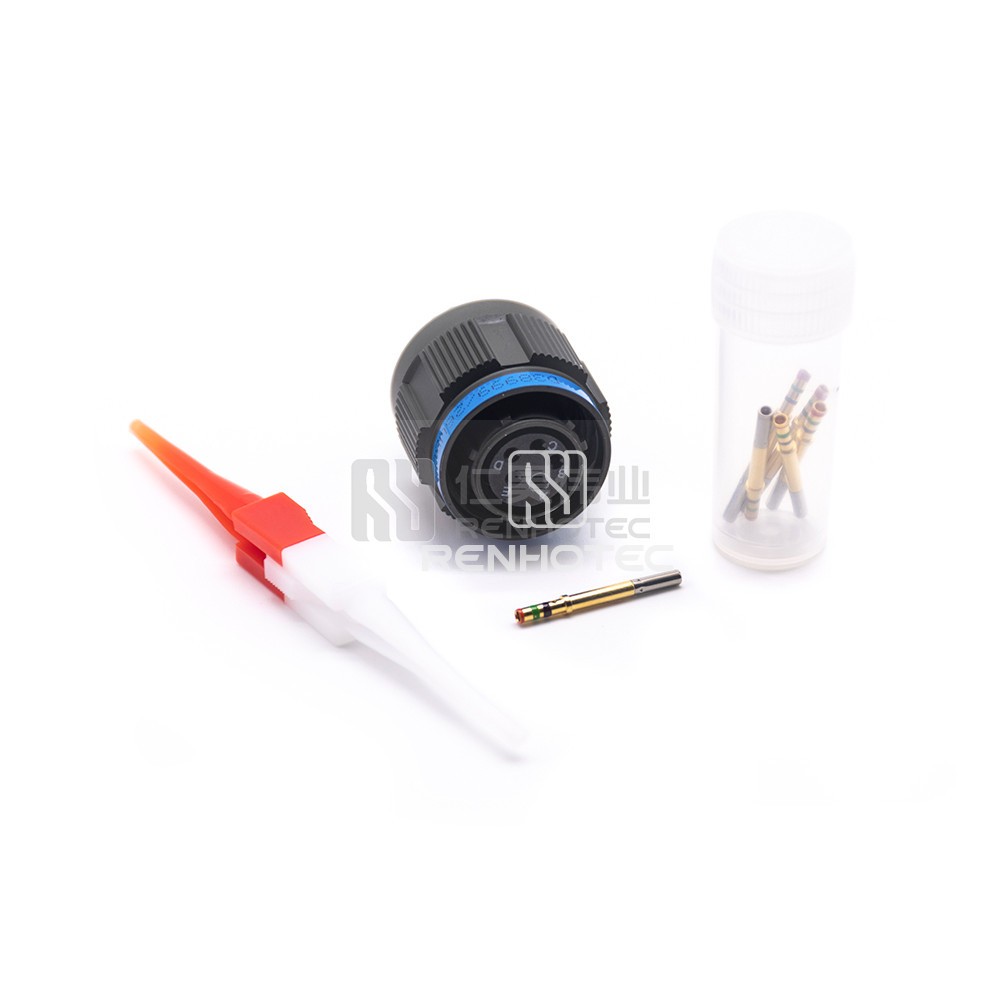

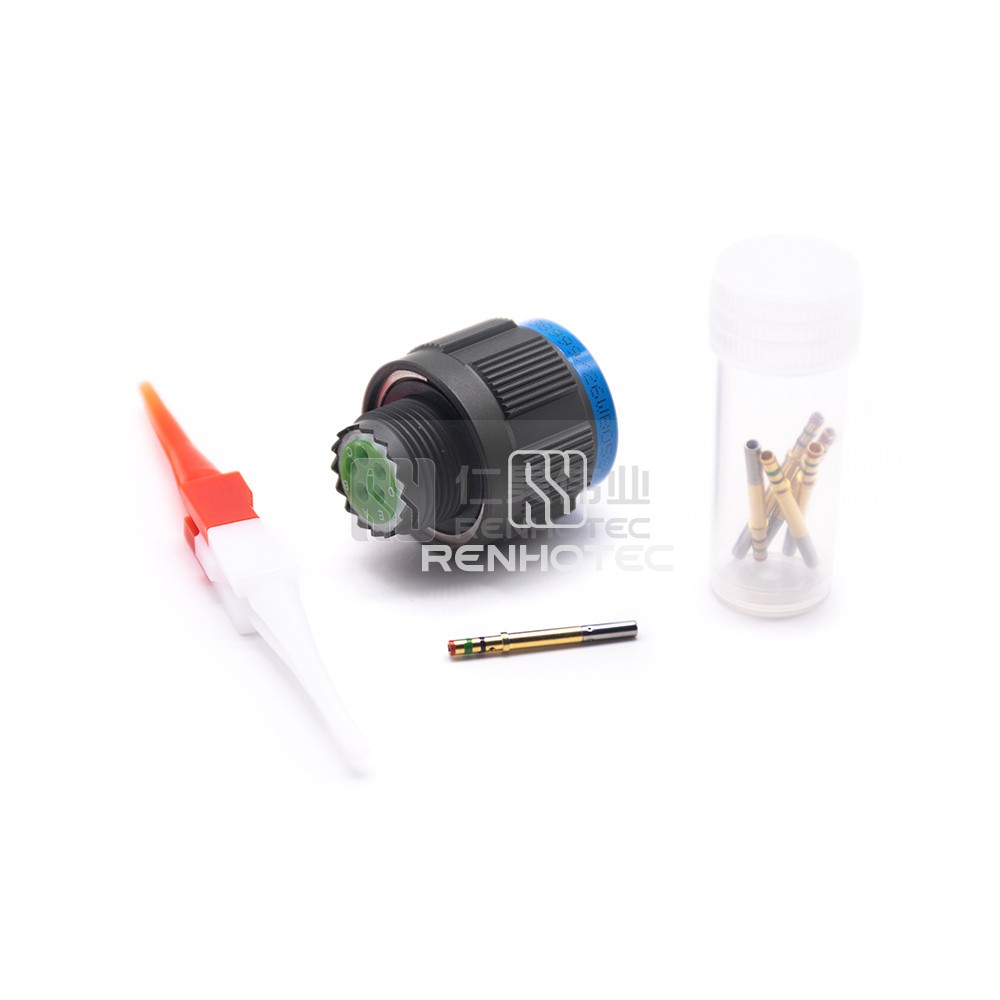

MIL-DTL-38999 Connector D38999/26WB5SN Female EMI Shielding Plug 5 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 connector plug featuring female EMI shielding with 5 pins. Ensures secure and reliable connections for your electronic devices.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions5
    Contact Arrangements11-05
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyN
    ColorOlive Green

    Shell

    Shell SizeB

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold
    Insulating MaterialThermoplastic

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current7.5A
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC D38999 Connetor [EN] Download
