Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/26WD97SN Female EMI Shielding Plug 12 Pin

D38999/26WD97SN

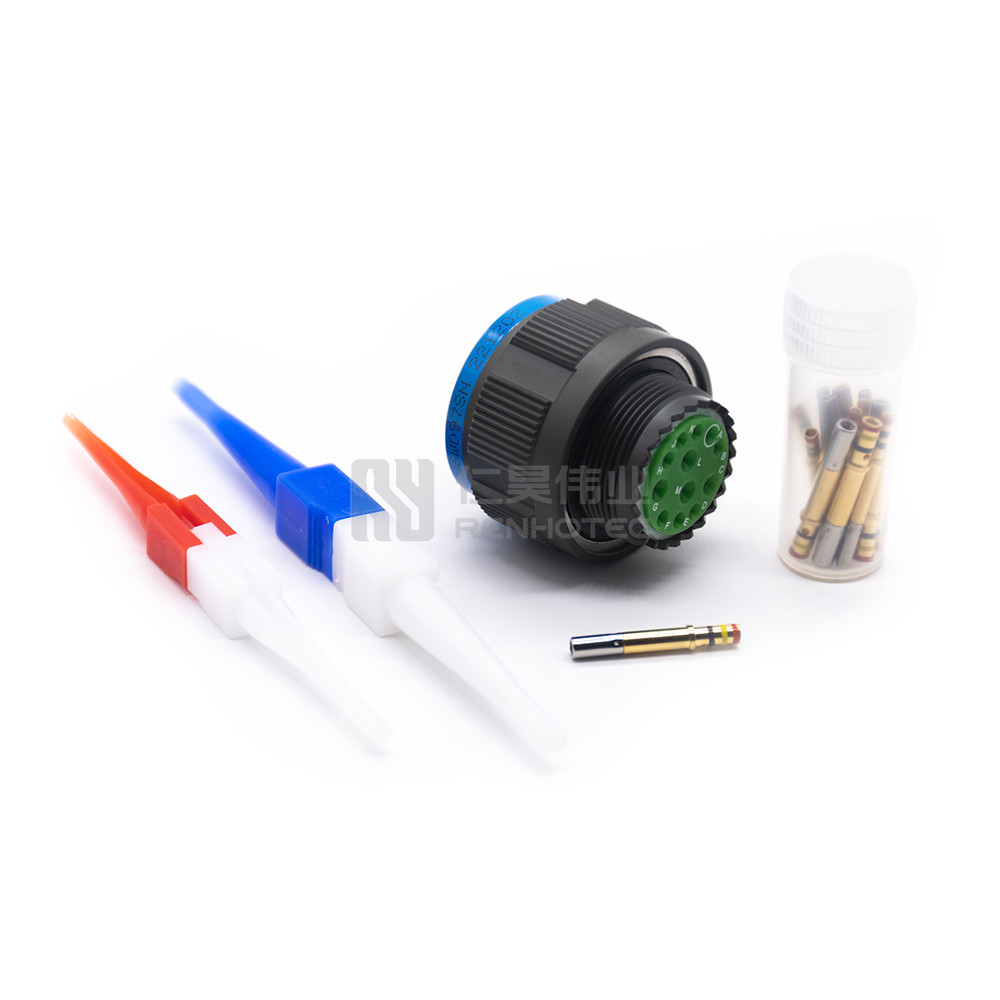

MIL-DTL-38999 Connector D38999/26WD97SN Female EMI Shielding Plug 12 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 connector featuring D38999/26WD97SN female EMI shielding plug with 12 pins for reliable and secure connections. Ideal for applications requiring EMI protection.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions12
    Contact Arrangements15-97
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyN
    ColorOlive Green

    Shell

    Shell SizeD

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current7.5A
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC D38999 Connetor [EN] Download
