Products > MIL Spec Connector > MIL-DTL-38999 Connector D38999/26WJ61SB Female Socket Flange 61 Pin

D38999/26WJ61SB

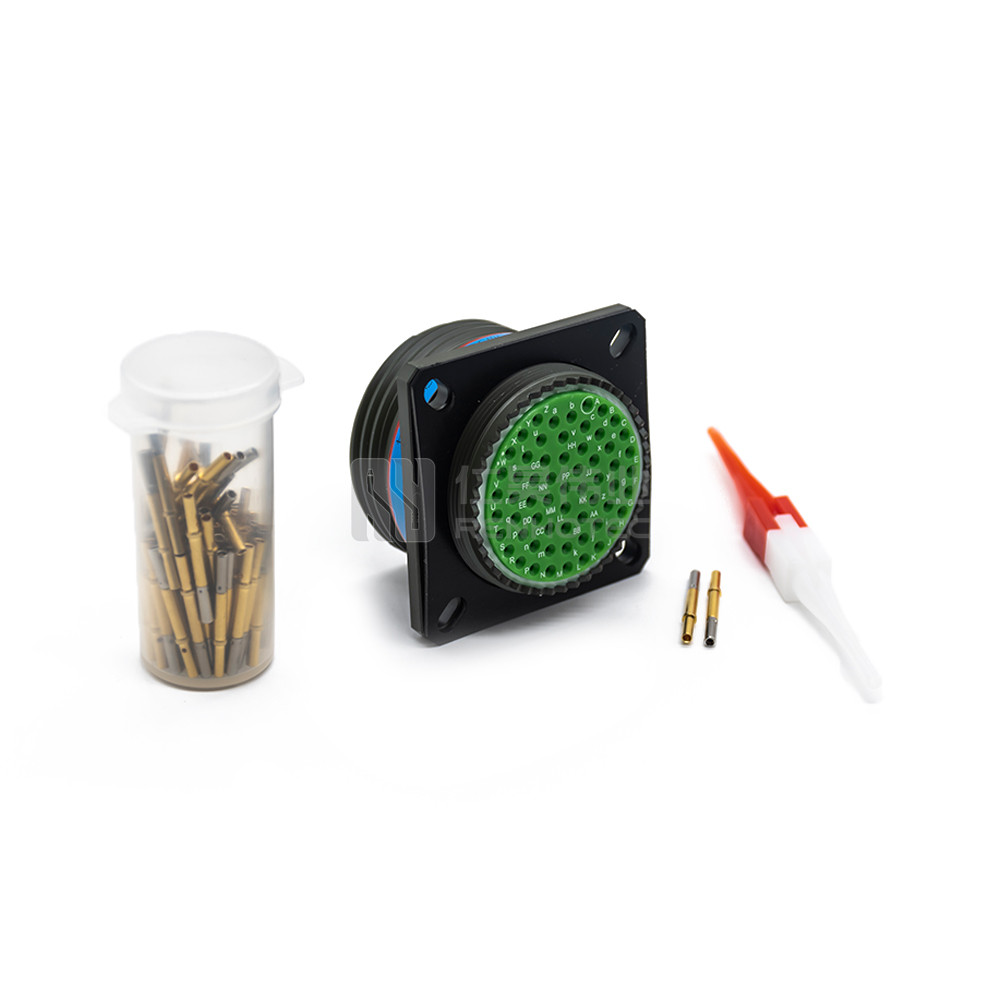

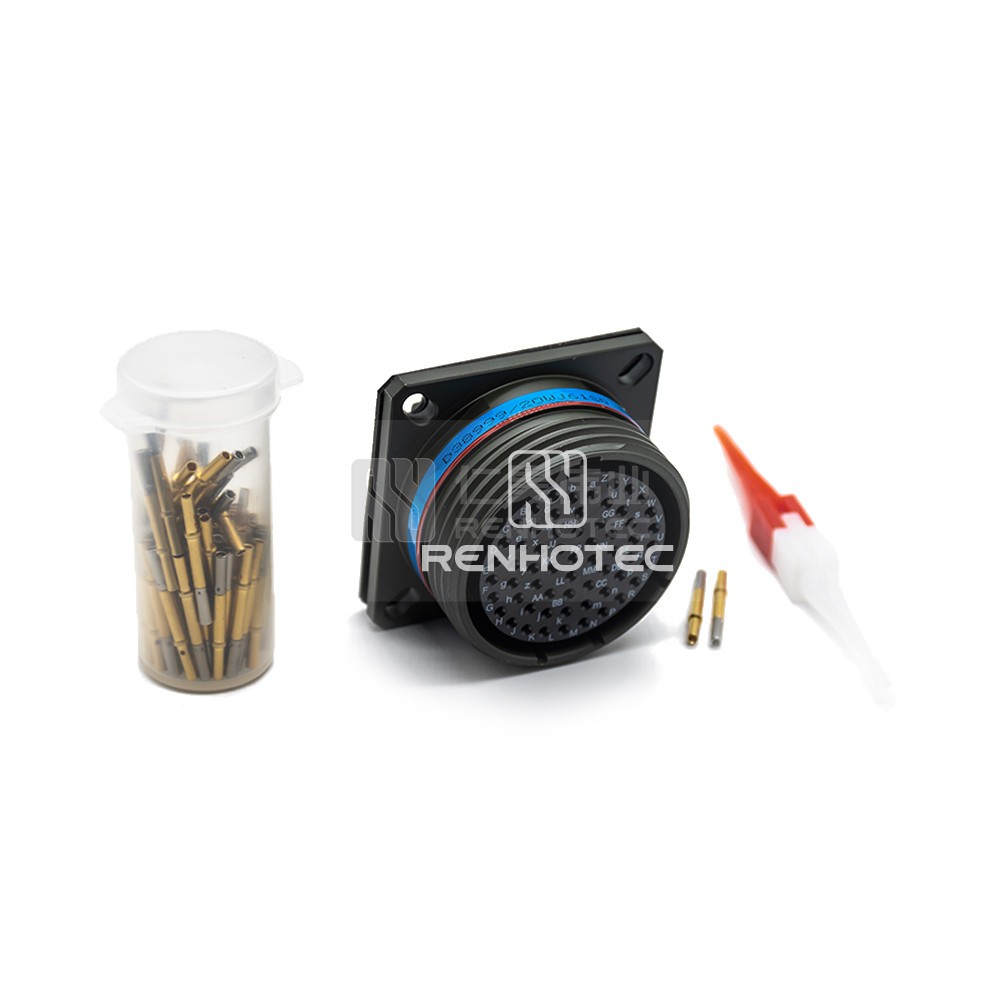

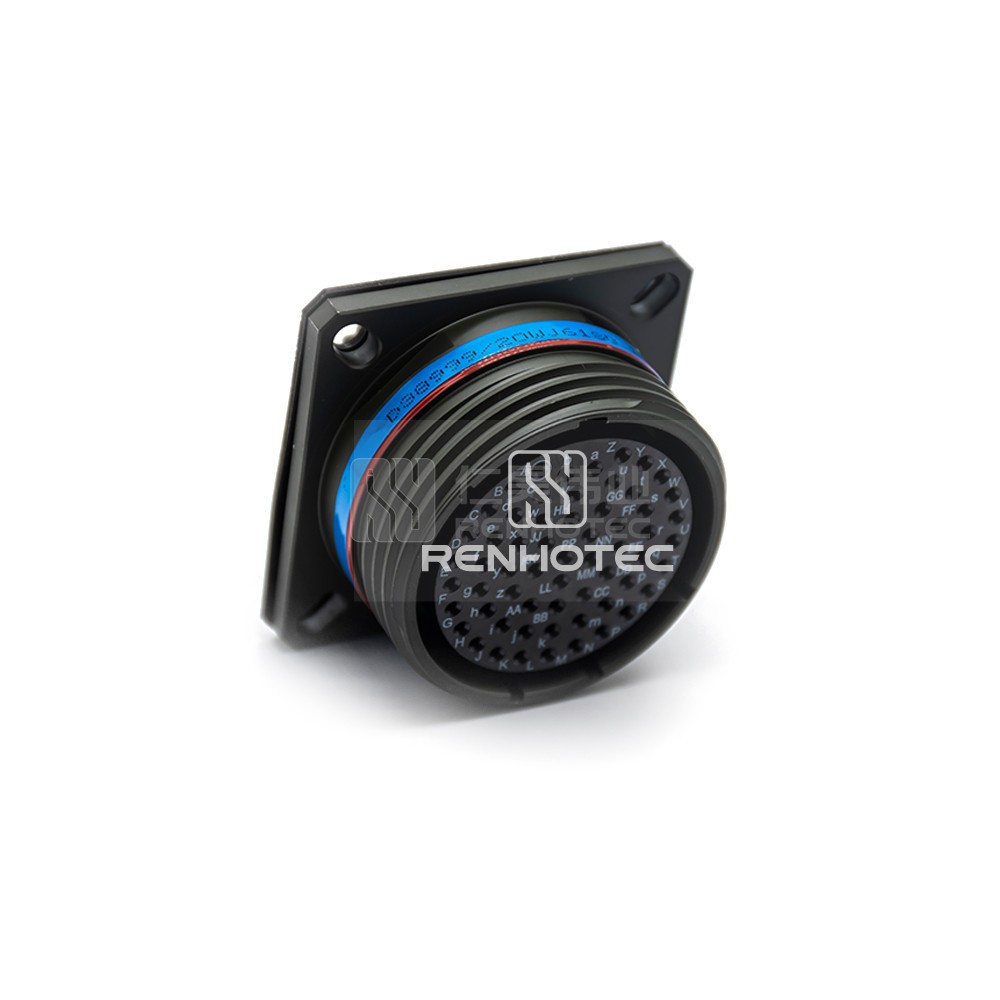

MIL-DTL-38999 Connector D38999/26WJ61SB Female Socket Flange 61 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Get the MIL-DTL-38999 Connector D38999/26WJ61SB Female Socket Flange 61 Pin for high-quality and reliable connection in your electronic applications. This female socket with 61 pins ensures secure and efficient electrical connections.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions61
    Contact Arrangements25-61
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅲ
    KeyB
    ColorOlive Green

    Shell

    Shell SizeJ

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold
    Insulating MaterialThermoplastic

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
