HE30806T1135SN7

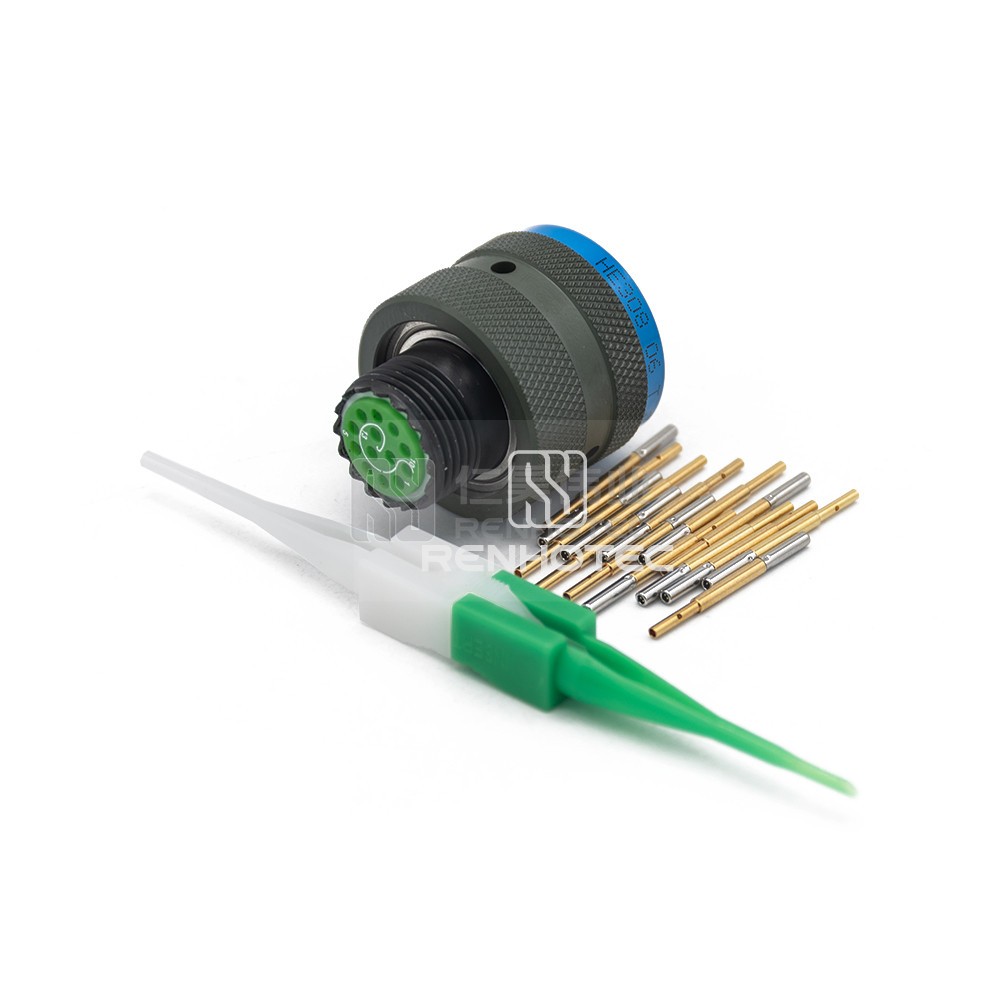

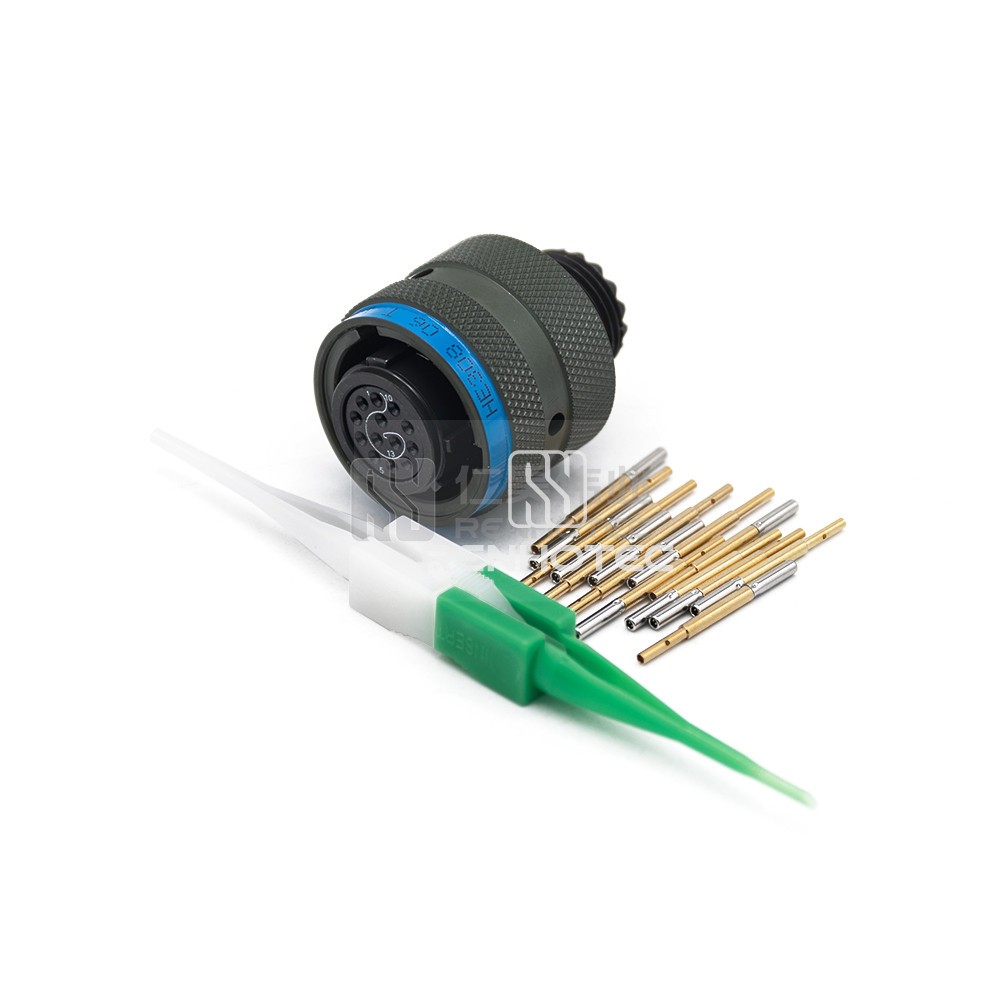

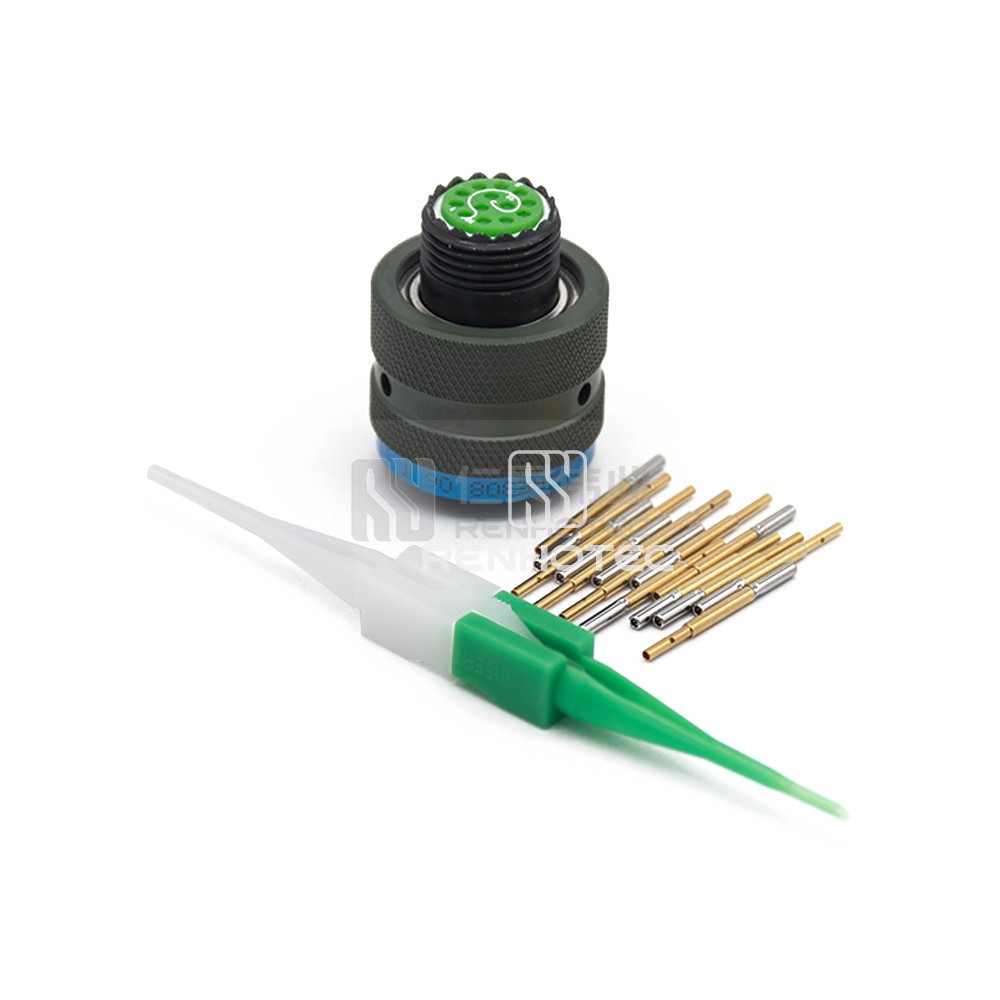

MIL-DTL-38999 Connector HE30806T1135SN7 Female Plug with RFI Shielding 13 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 female plug connector with 13 pins and RFI shielding for reliable and secure connections in demanding environments.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions13
    Contact Arrangements11-35
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅰ
    KeyN
    ColorOlive Green

    Shell

    Shell Size11

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
