Products > MIL Spec Connector > MIL-DTL-38999 Connector MS27484T12B35S Female RFI Grounding Plug 22 Pin

MS27484T12B35S

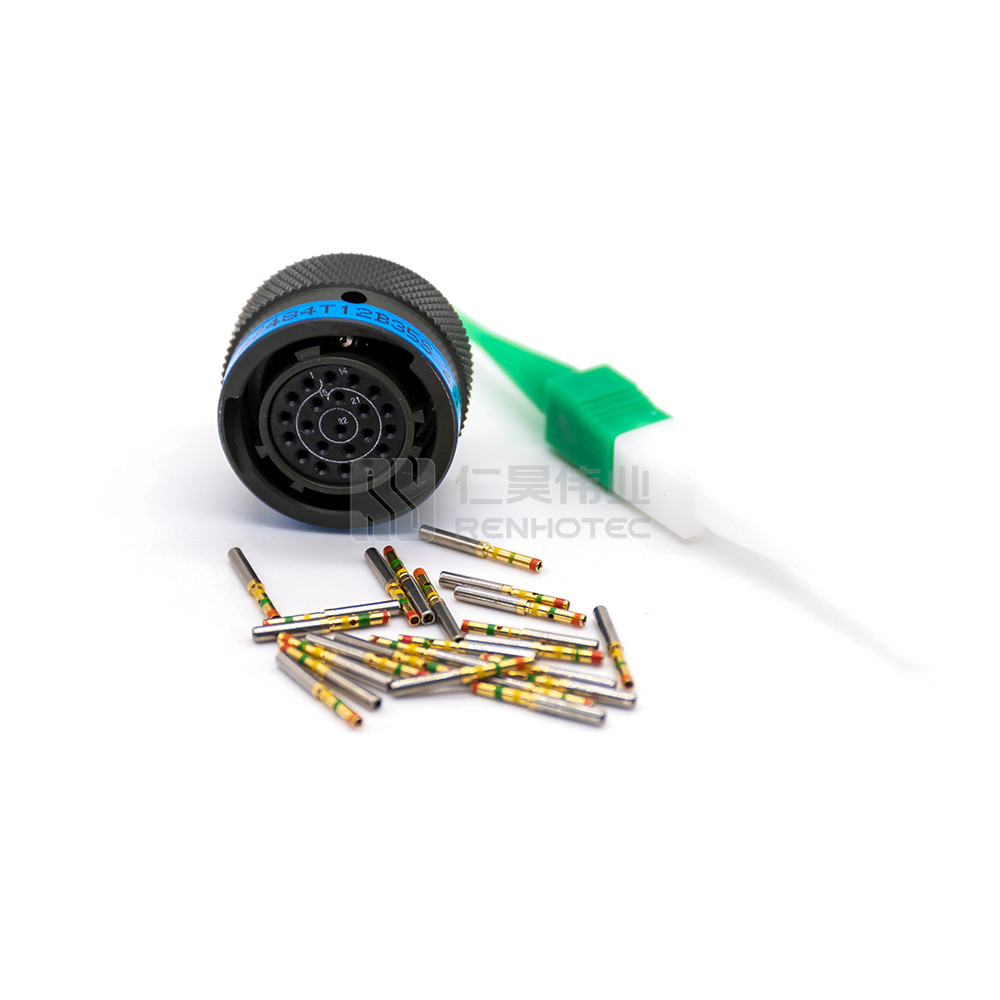

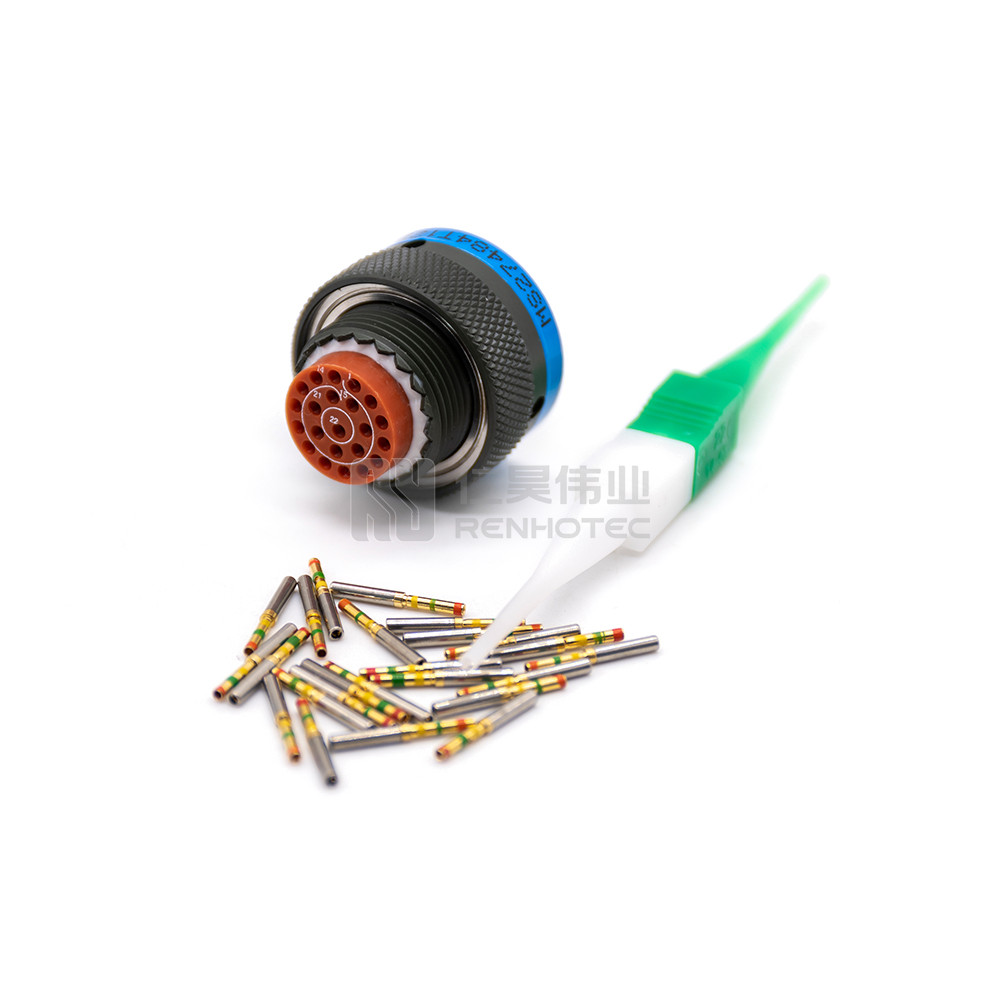

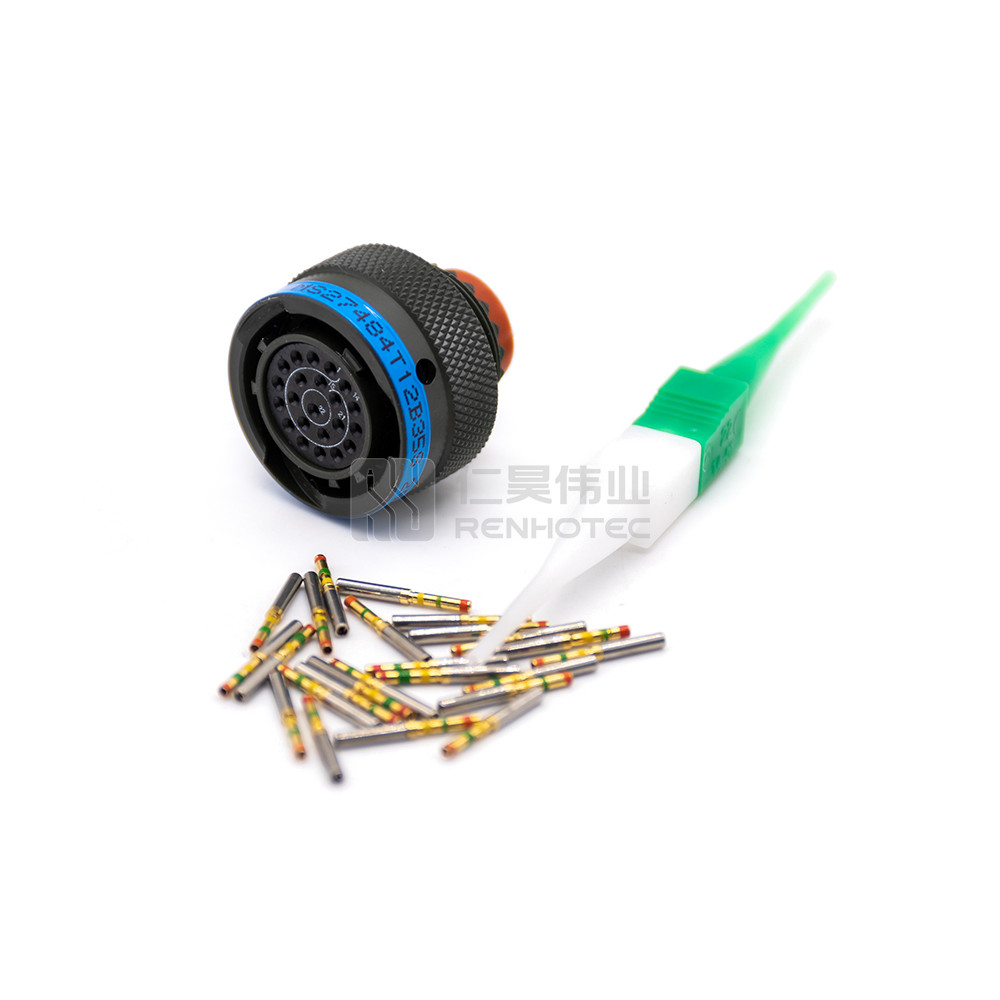

MIL-DTL-38999 Connector MS27484T12B35S Female RFI Grounding Plug 22 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 connector featuring MS27484T12B35S Female RFI Grounding Plug with 22 pin configuration.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions22
    Contact Arrangements12-35
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅱ
    KeyN
    ColorOlive Green

    Shell

    Shell Size12

    Mechanical

    Fastening TypeBayonet
    Mounting TypeCable Type

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
