Products > MIL Spec Connector > MIL-DTL-38999 Connector MS27508E10B35S Female Box-mount Receptacle 13 Pin

MS27508E10B35S

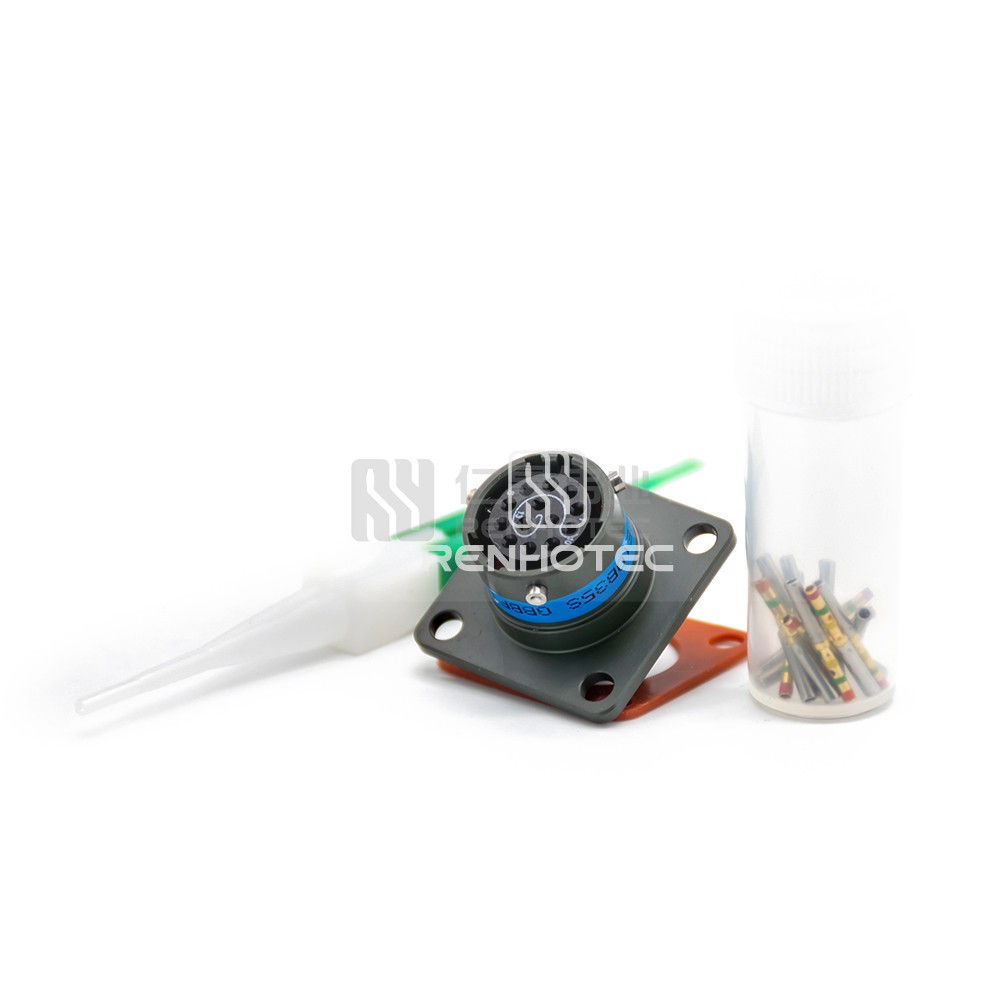

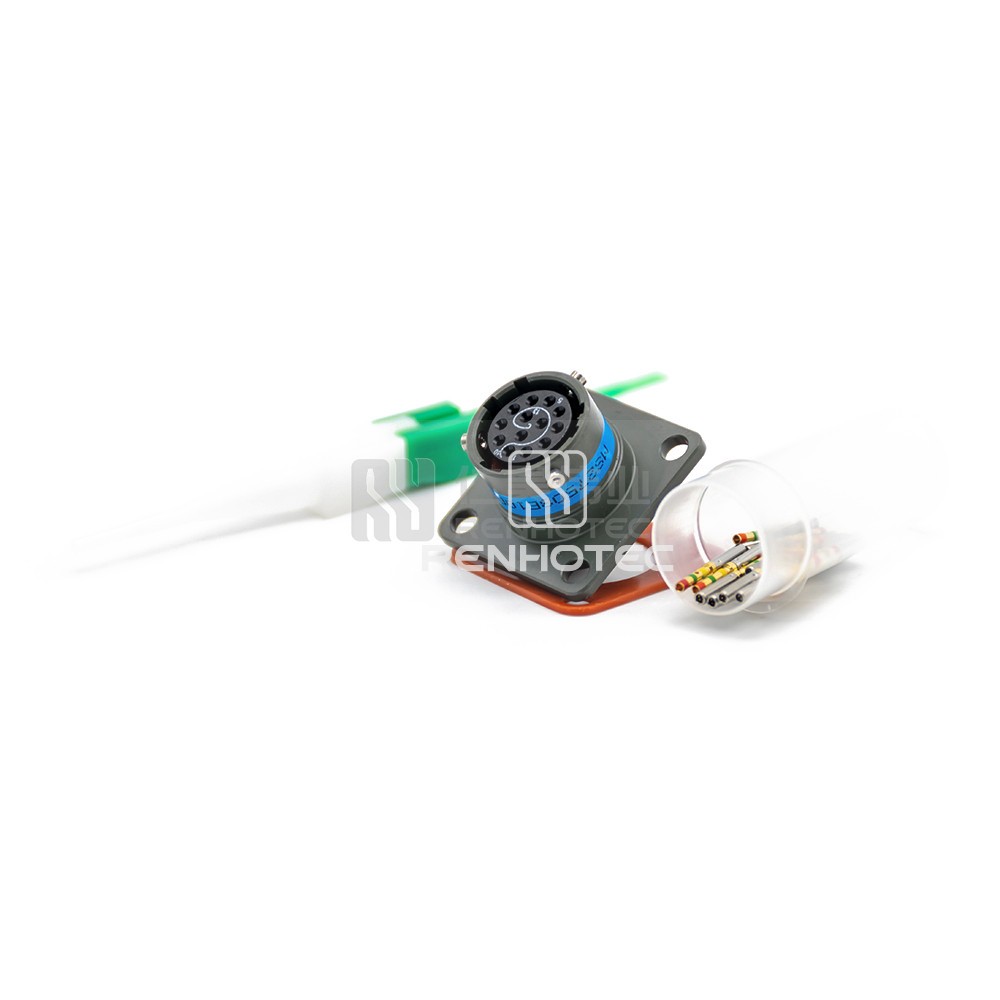

MIL-DTL-38999 Connector MS27508E10B35S Female Box-mount Receptacle 13 Pin

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality MIL-DTL-38999 connector with 13 pins, designed as a female box-mount receptacle. Ensure reliable connections with this top-performing connector.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions13
    Contact Arrangements10-35
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅱ
    KeyN
    ColorOlive Green

    Shell

    Shell Size10

    Mechanical

    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
