MS27508E12B35P

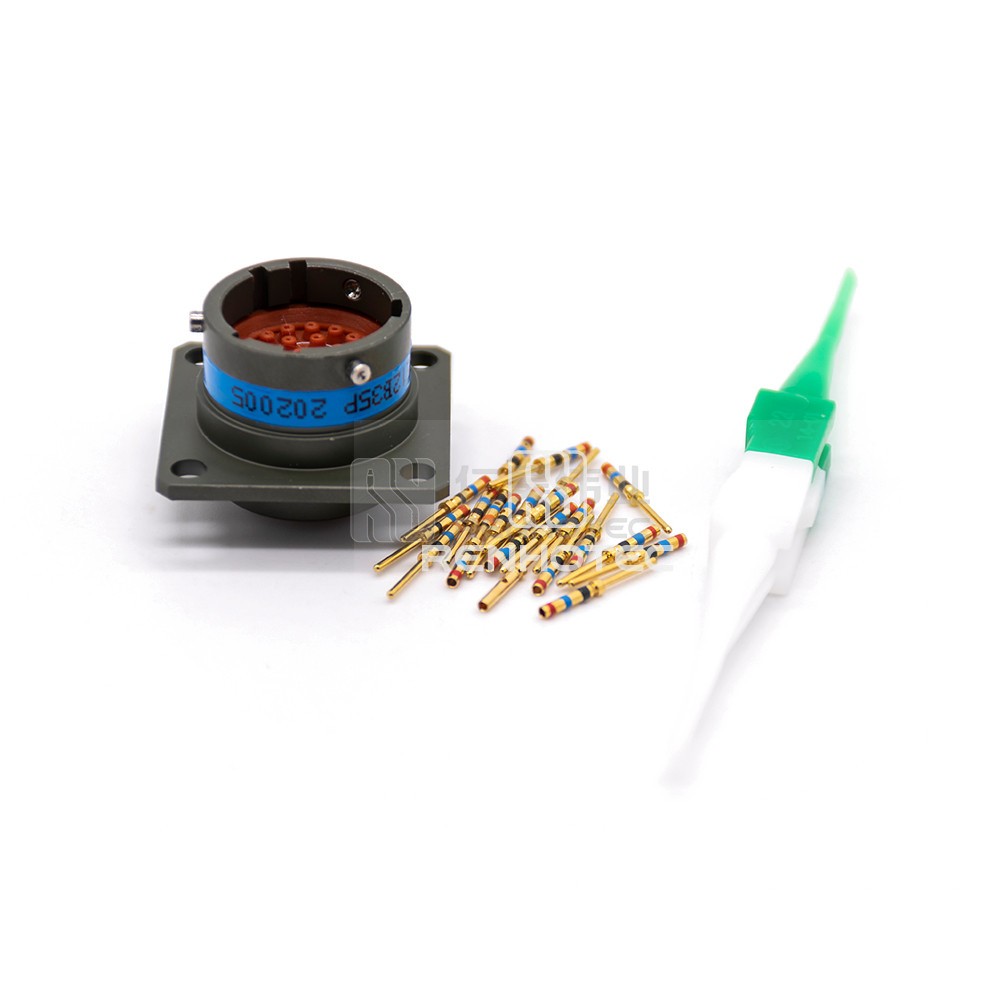

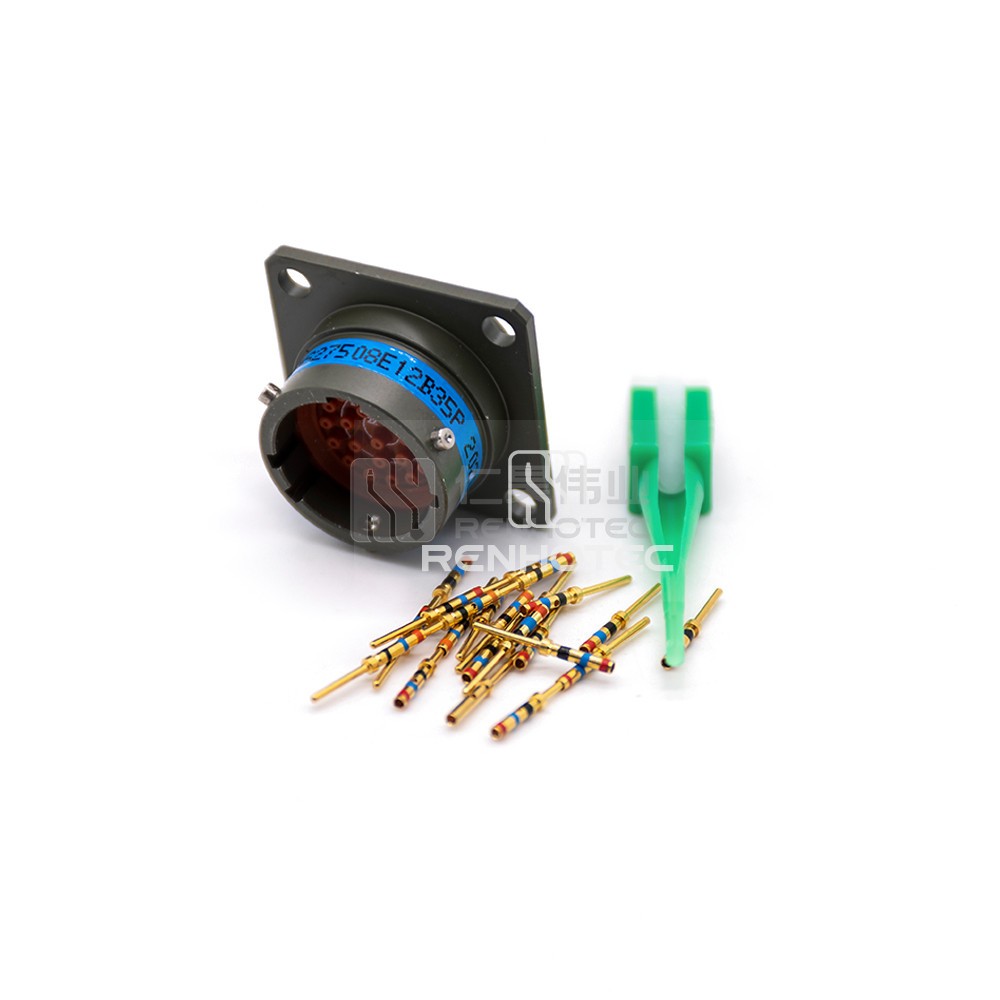

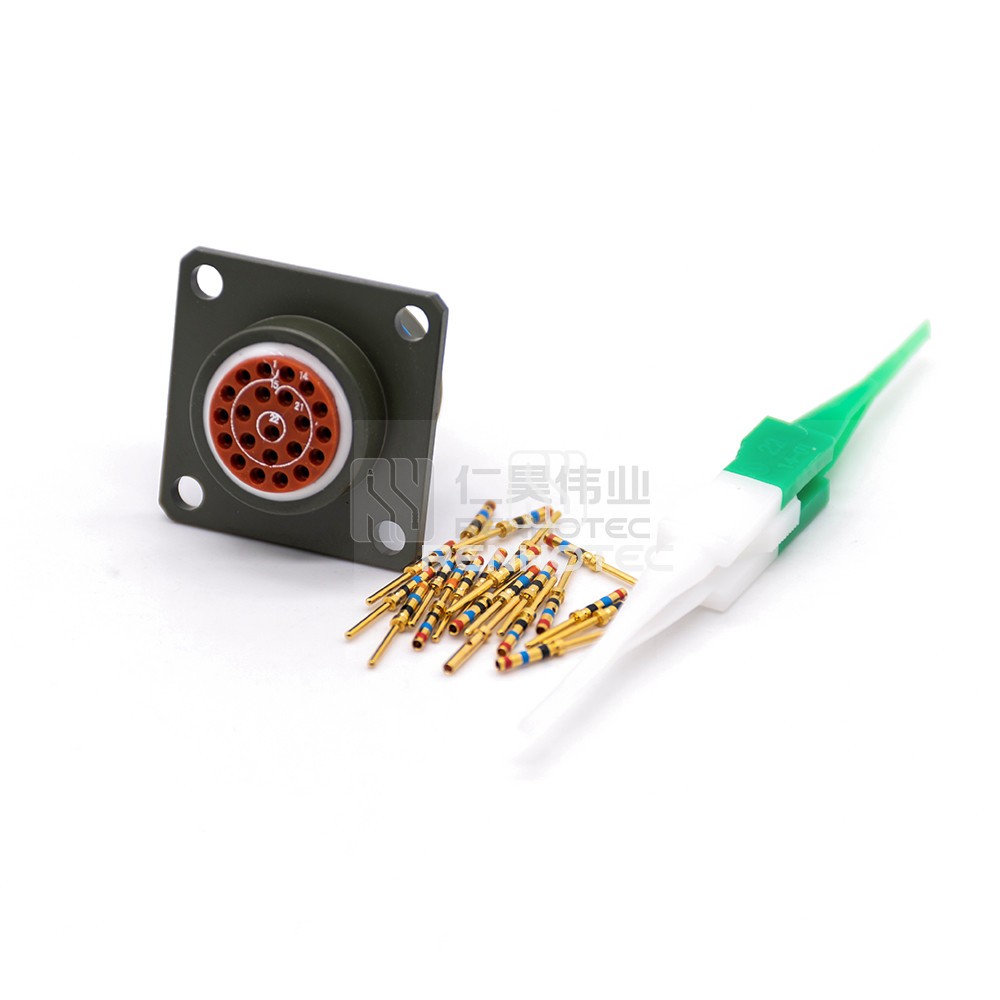

MIL-DTL-38999 Connector MS27508E12B35P Male Box-mount Receptacle 22 Pin

High-quality MIL-DTL-38999 male box-mount receptacle with 22 pins, designed to meet stringent military specifications. Ideal for use in demanding environments where reliability is key.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Environmental
    5. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions22
    Contact Arrangements12-35
    Fastening TypeBayonet
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationCrimp
    SeriesMIL-DTL-38999 Series Ⅱ
    KeyN
    ColorOlive Green

    Shell

    Shell Size12

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-65°C ~ + 175°C

    Electrical

    ShieldingShielded
    Rated Current5A
