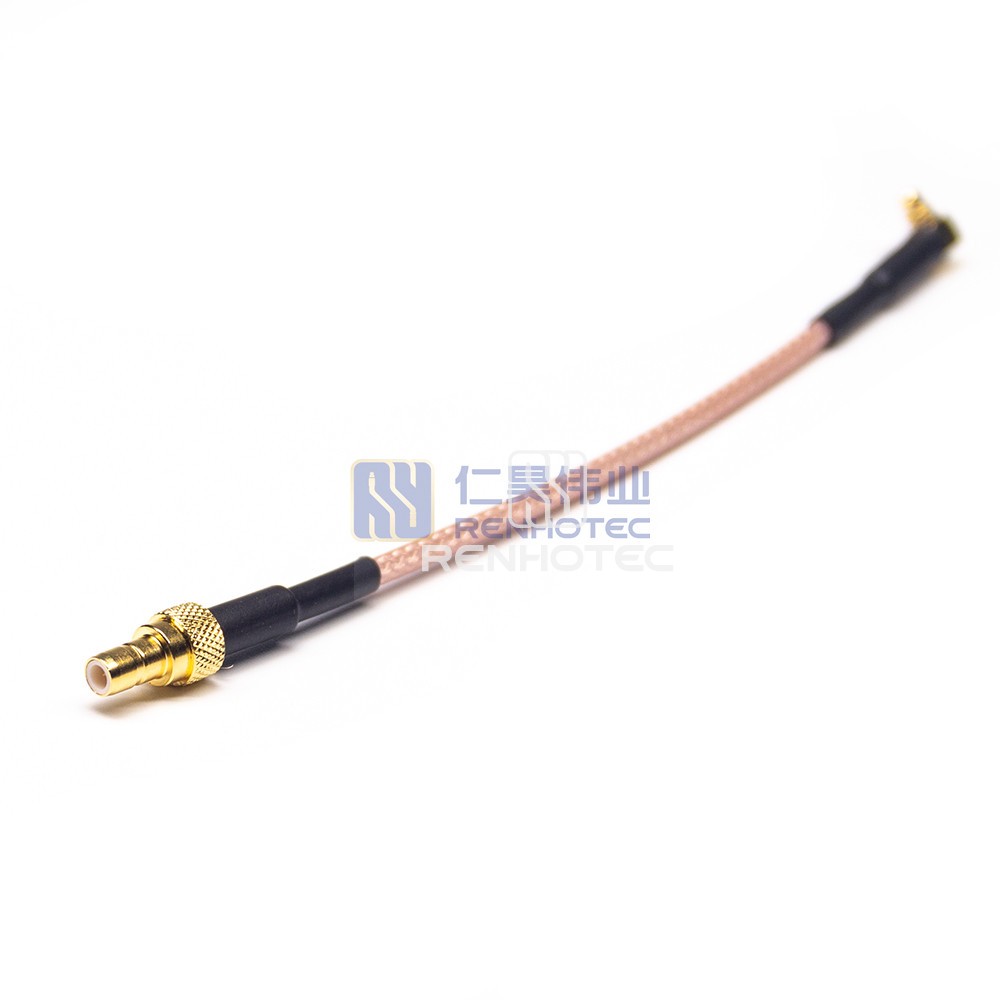

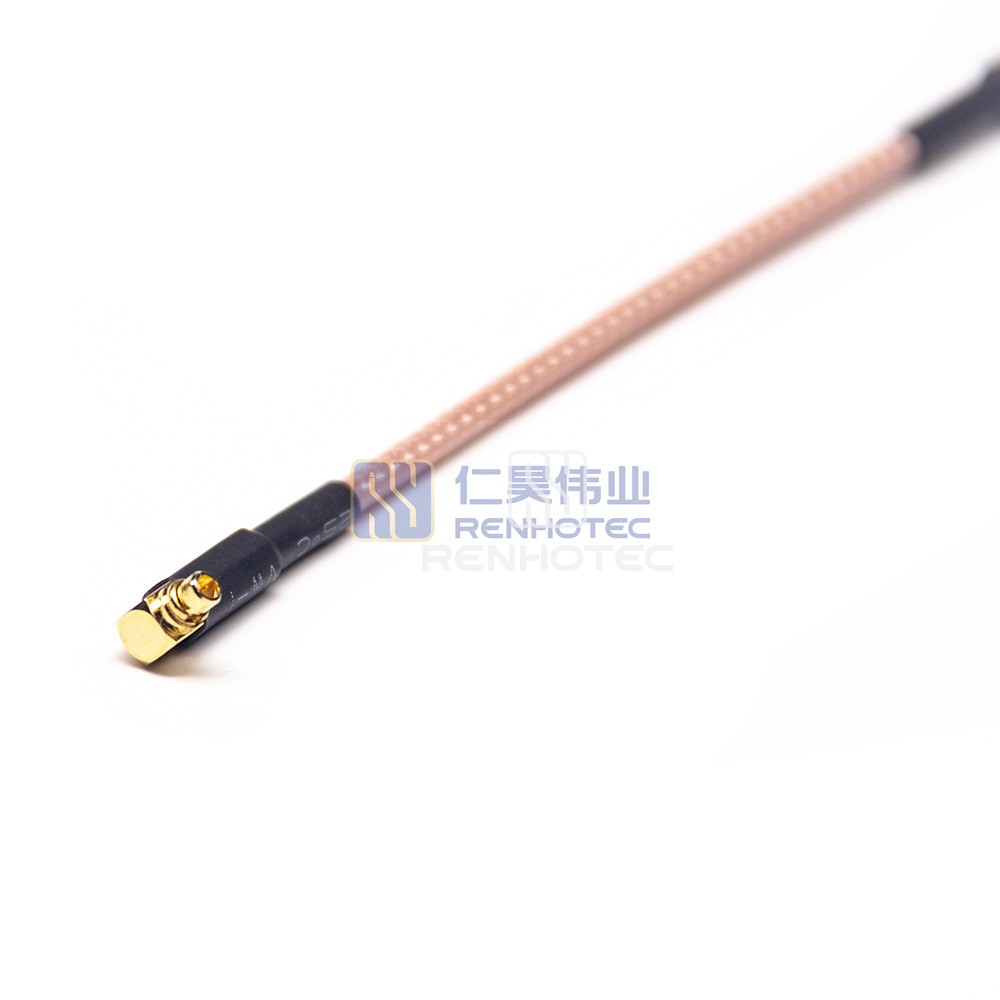

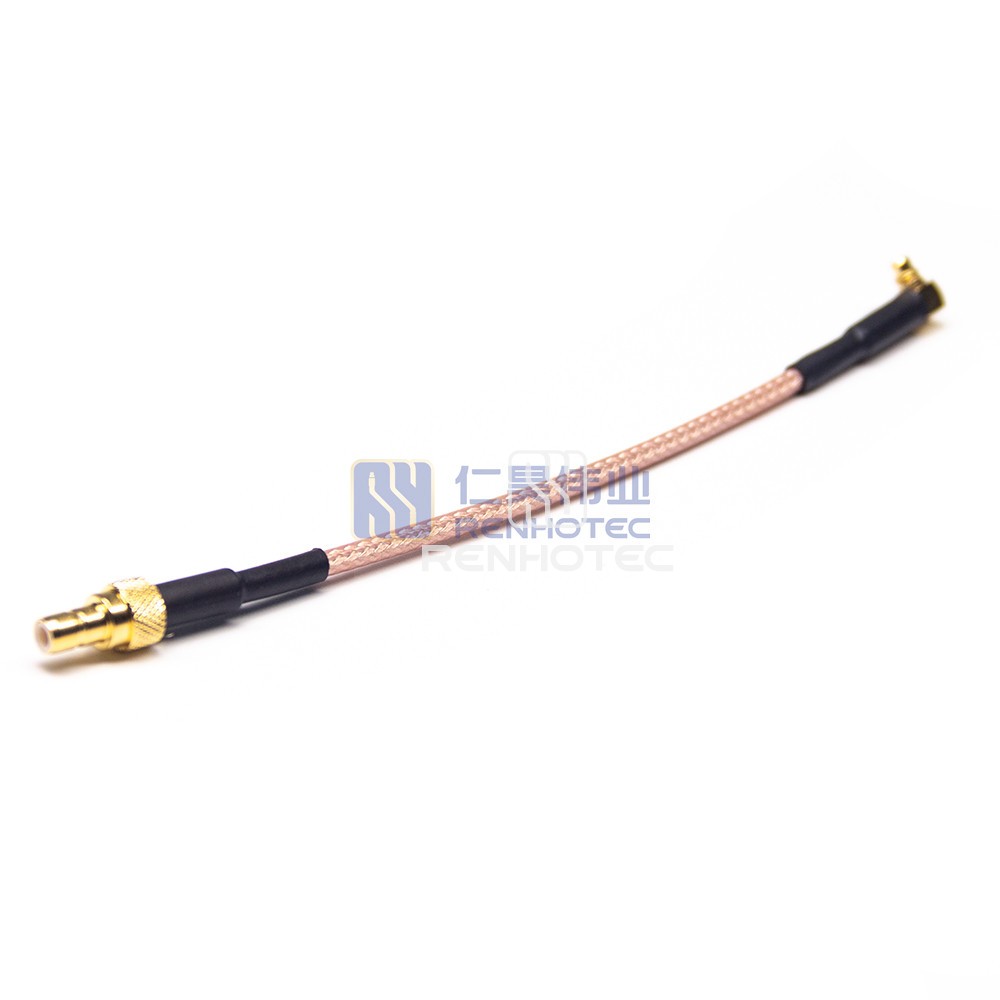

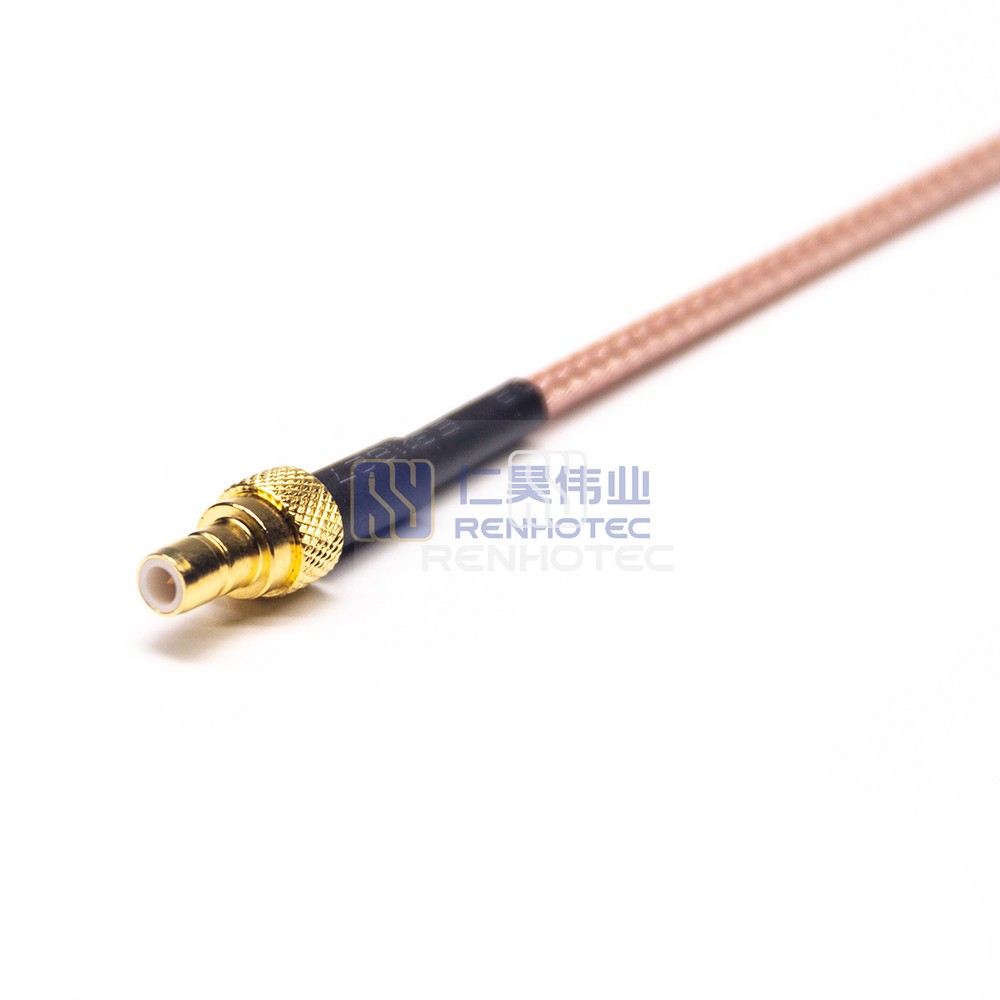

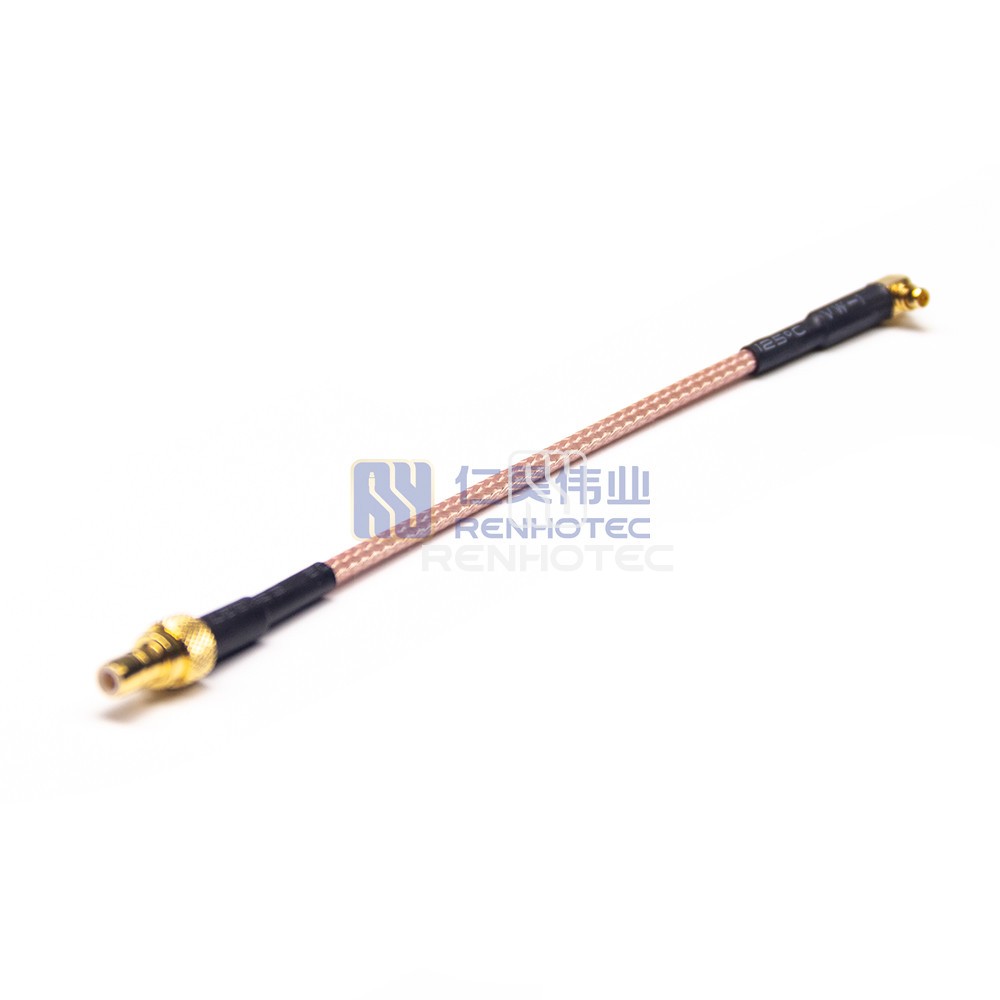

Products > RF Cable Assembly > MMCX Male Right Angle to SMB Female RF Cable Assemblies with 50Ohm RG316 Cable
R02-M01-10030-10
MMCX Male Right Angle to SMB Female RF Cable Assemblies with 50Ohm RG316 Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MMCX Male Right Angle to SMB Female RF Cable Assemblies with 50Ohm RG316 Cable. Perfect for reliable and efficient RF signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | MMCX to SMB |
| 1st Connector Series | MMCX Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Right Angle |
| 2nd Connector Series | SMB Jack |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Straight |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
