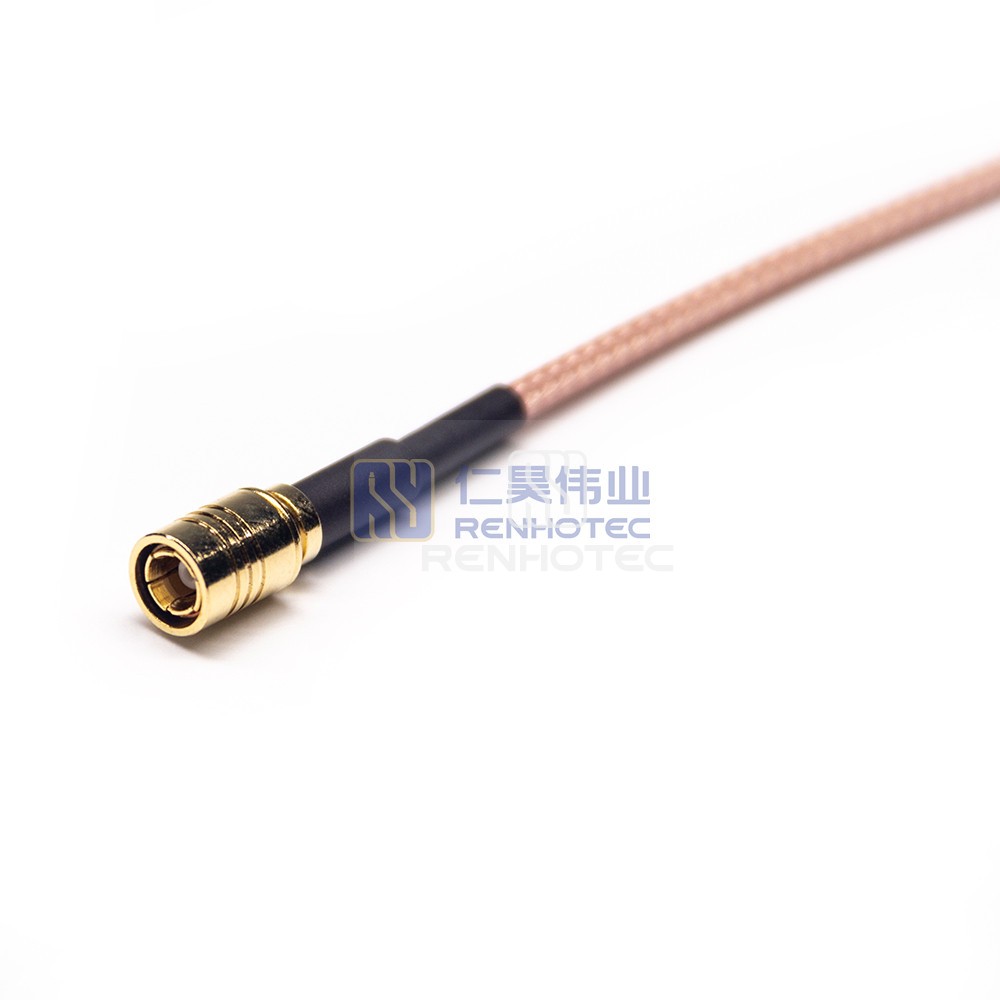

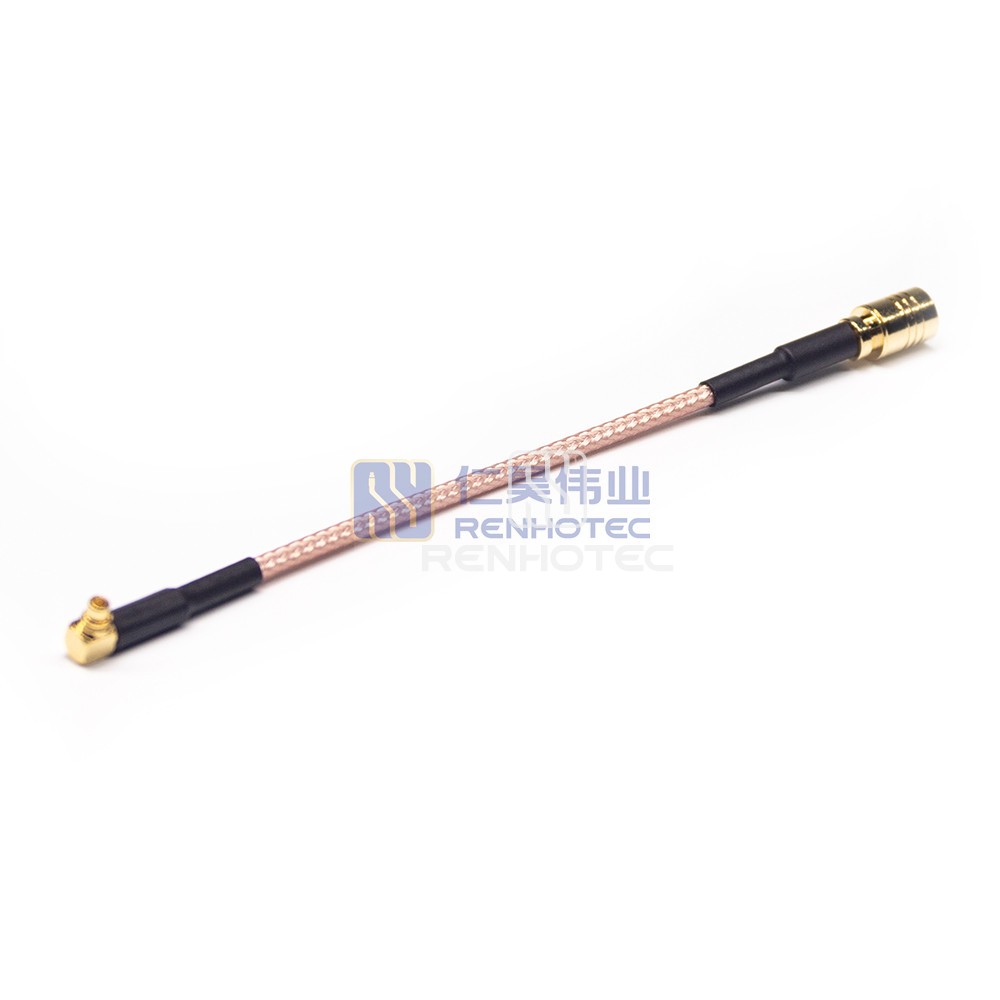

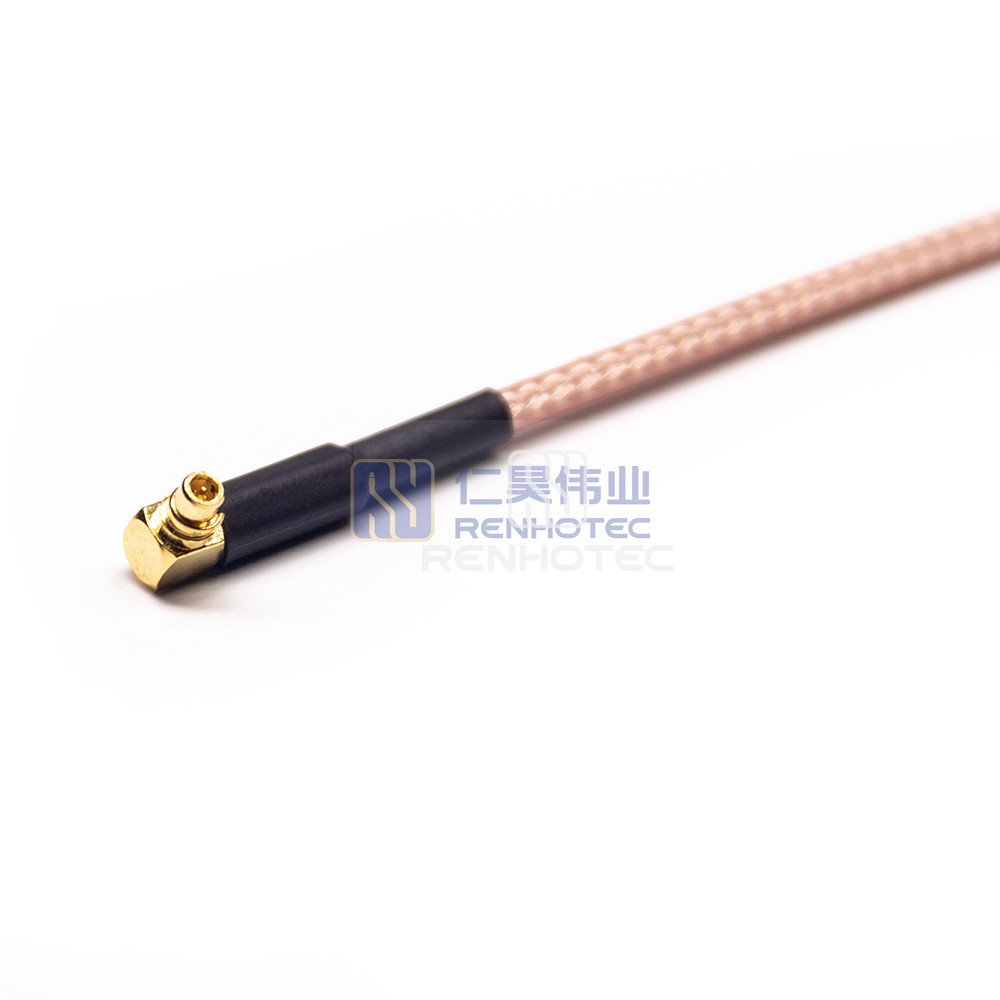

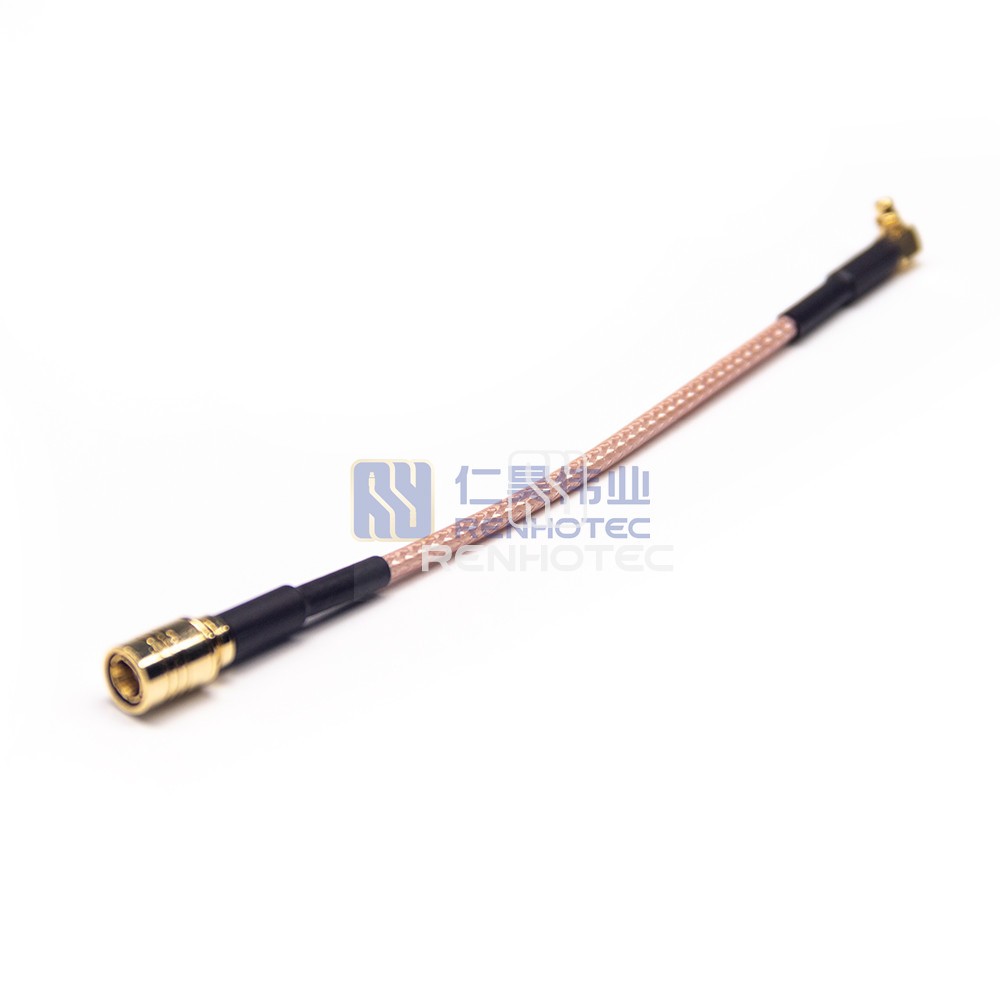

Products > RF Cable Assembly > MMCX Male Right Angle to SMB Male RF Cable Assemblies with 50Ohm RG316 Cable
R02-M01-10031-10
MMCX Male Right Angle to SMB Male RF Cable Assemblies with 50Ohm RG316 Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure seamless RF signal transmission with our MMCX Male Right Angle to SMB Male RF Cable Assemblies featuring 50Ohm RG316 cable. Ideal for reliable connections in diverse RF applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | MMCX to SMB |
| 1st Connector Series | MMCX Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Right Angle |
| 2nd Connector Series | SMB Plug |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
