Products > RF Cable Assembly > N Female Bulkhead to QMA Female Right Angle RF Cable Assembly with 50Ohm LMR195 Cable
R02-N01-10029-20

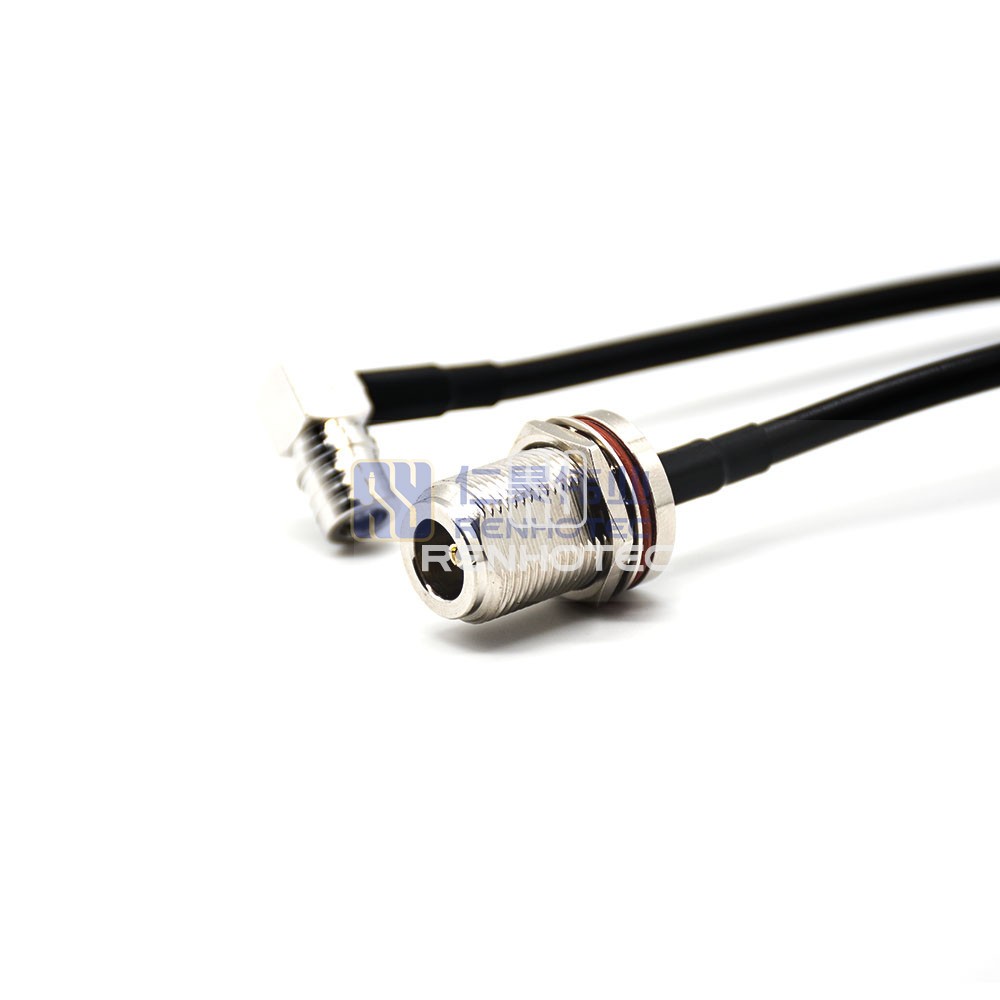

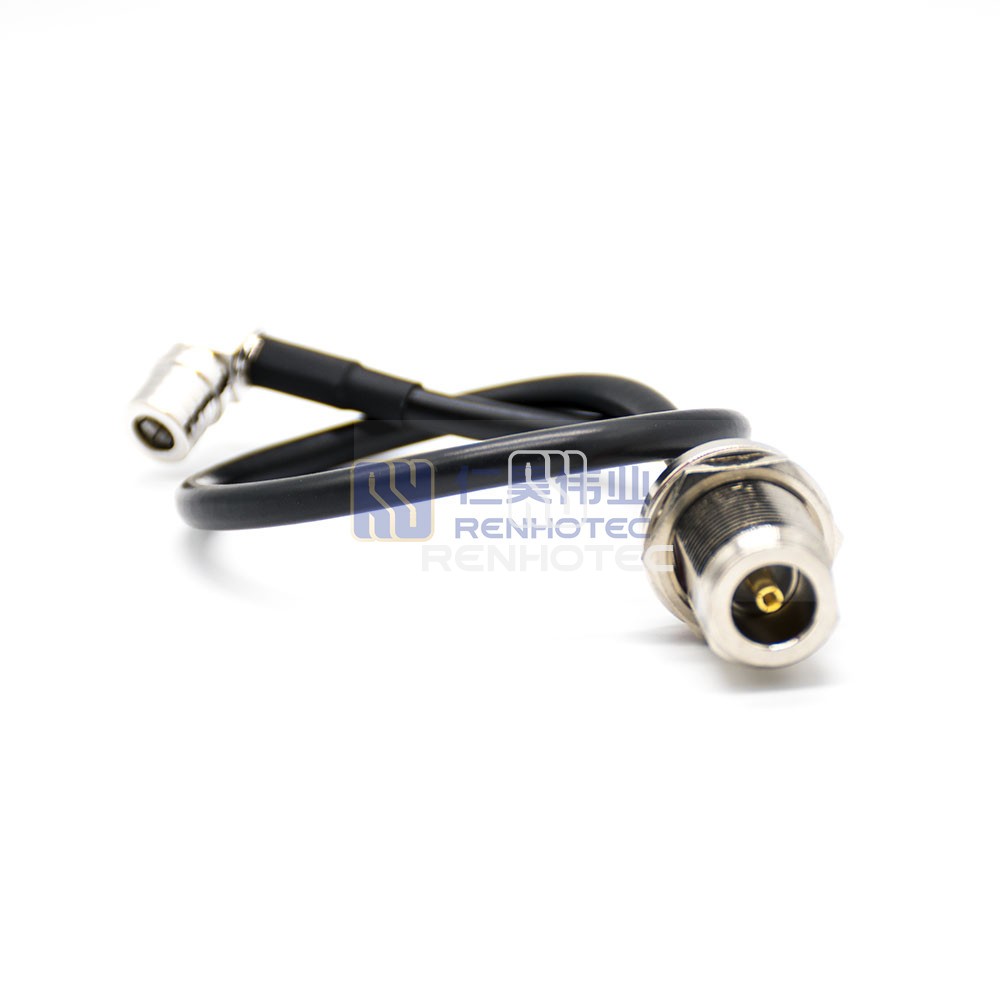

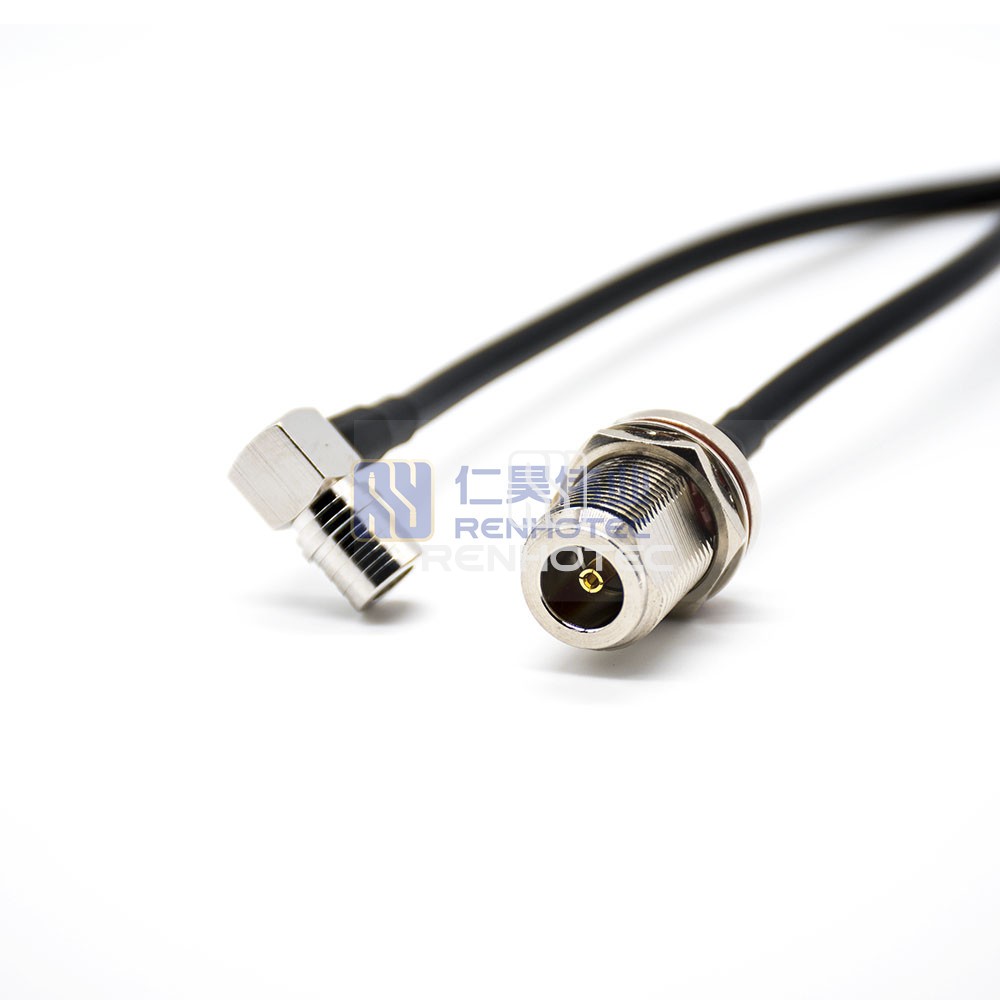

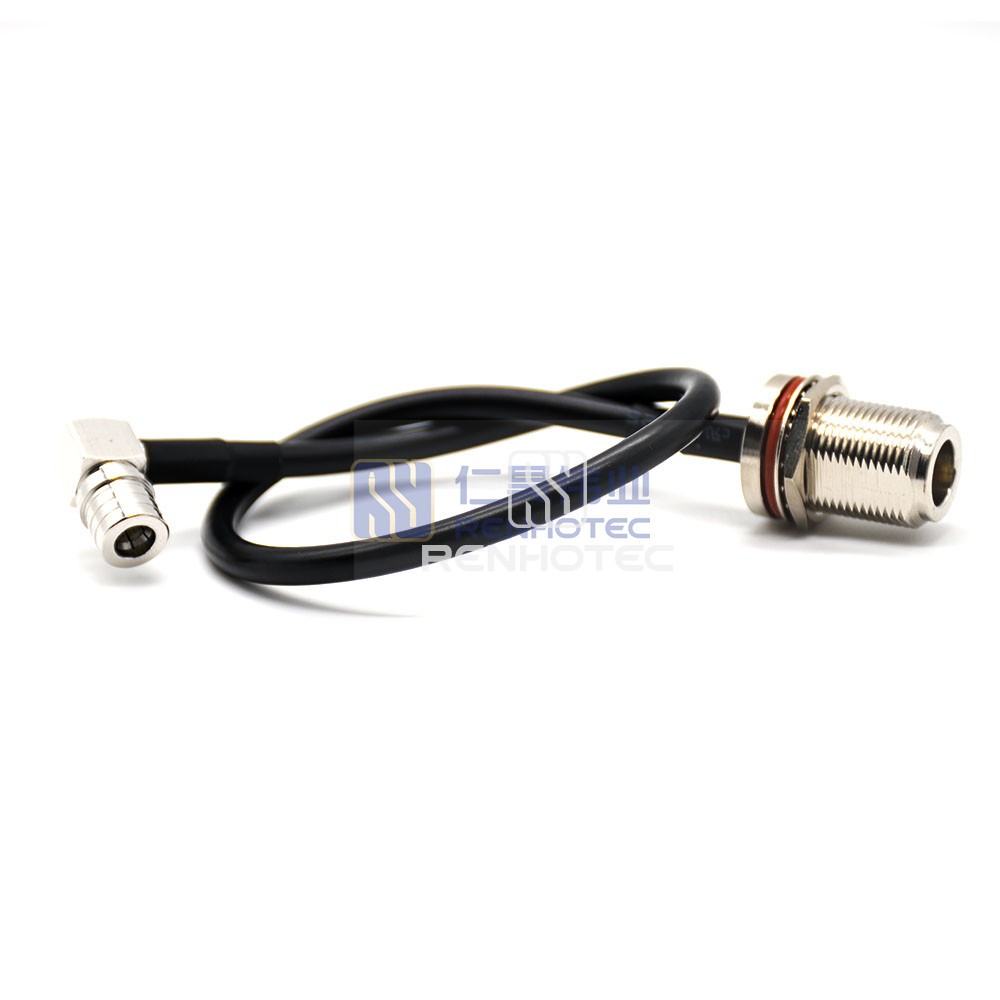

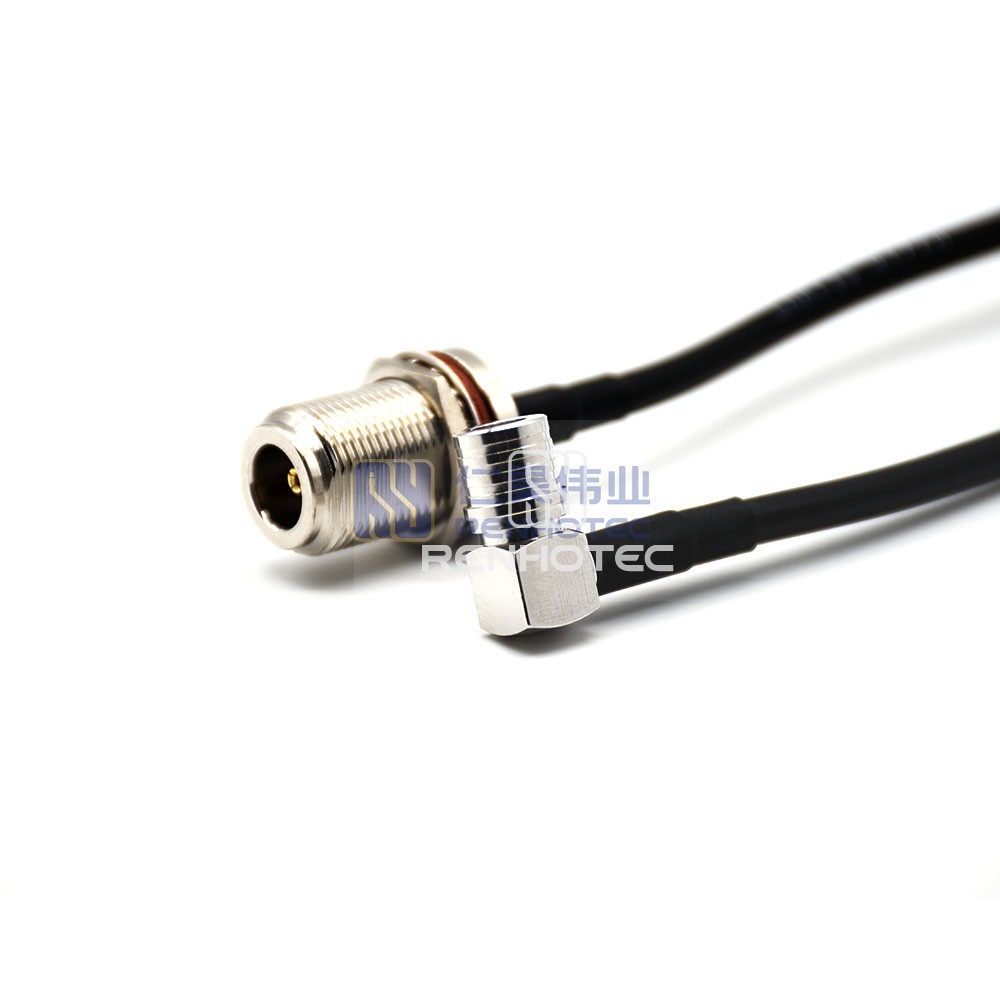

N Female Bulkhead to QMA Female Right Angle RF Cable Assembly with 50Ohm LMR195 Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality N Female Bulkhead to QMA Female Right Angle RF Cable Assembly featuring 50Ohm LMR195 cable. Perfect for reliable RF signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | N to QMA |
| 1st Connector Series | N Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | QMA Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | LMR195 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
