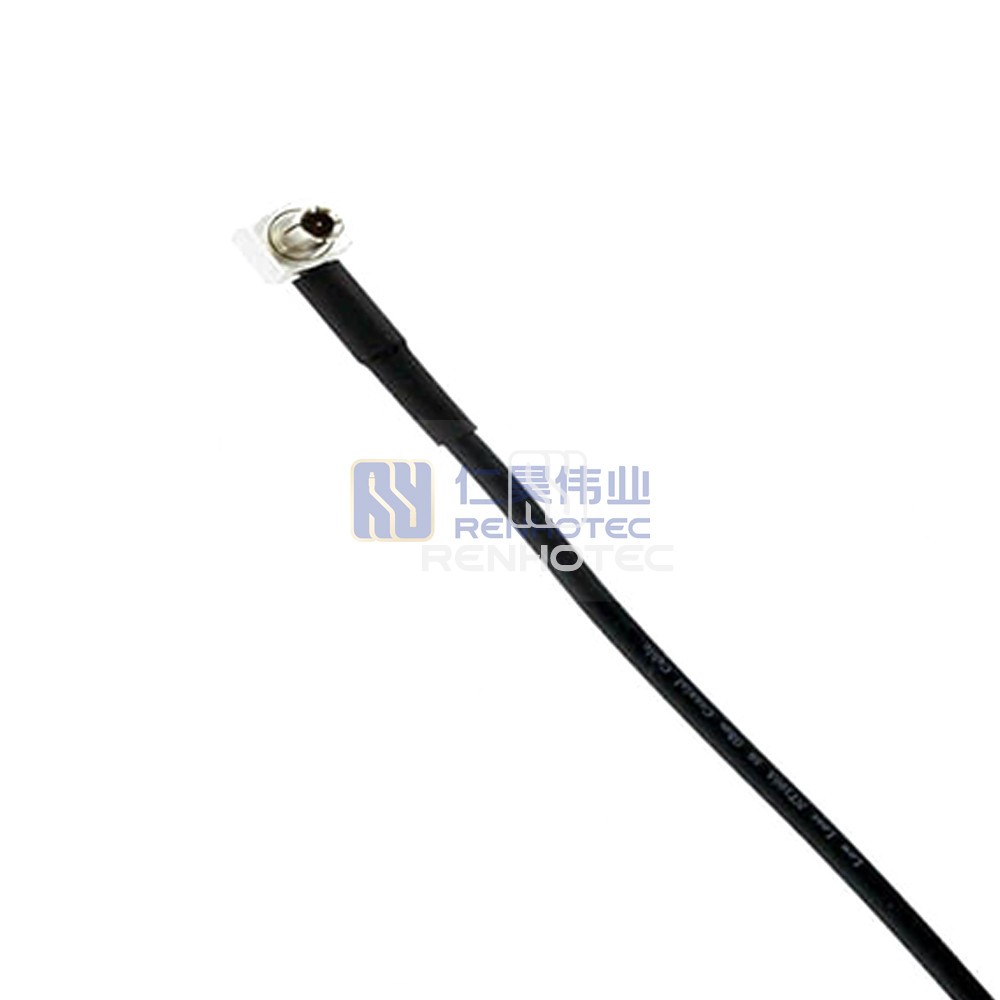

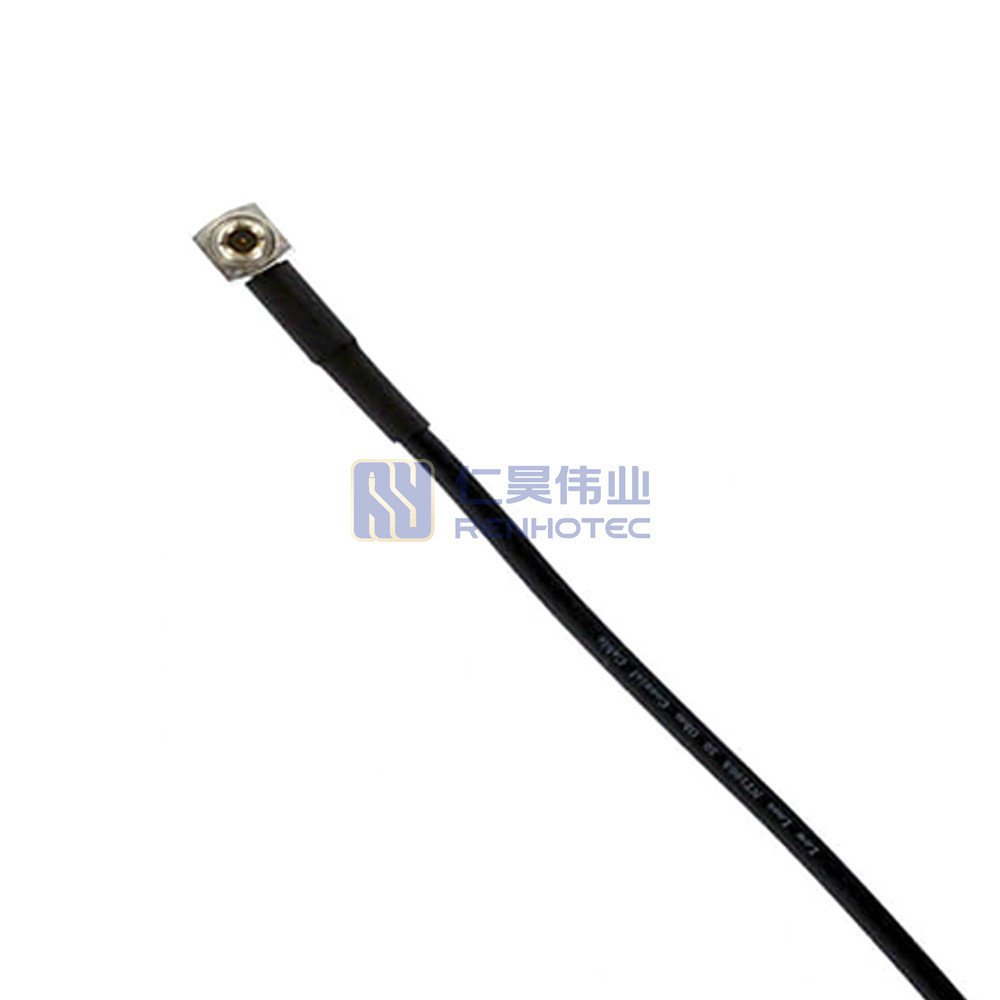

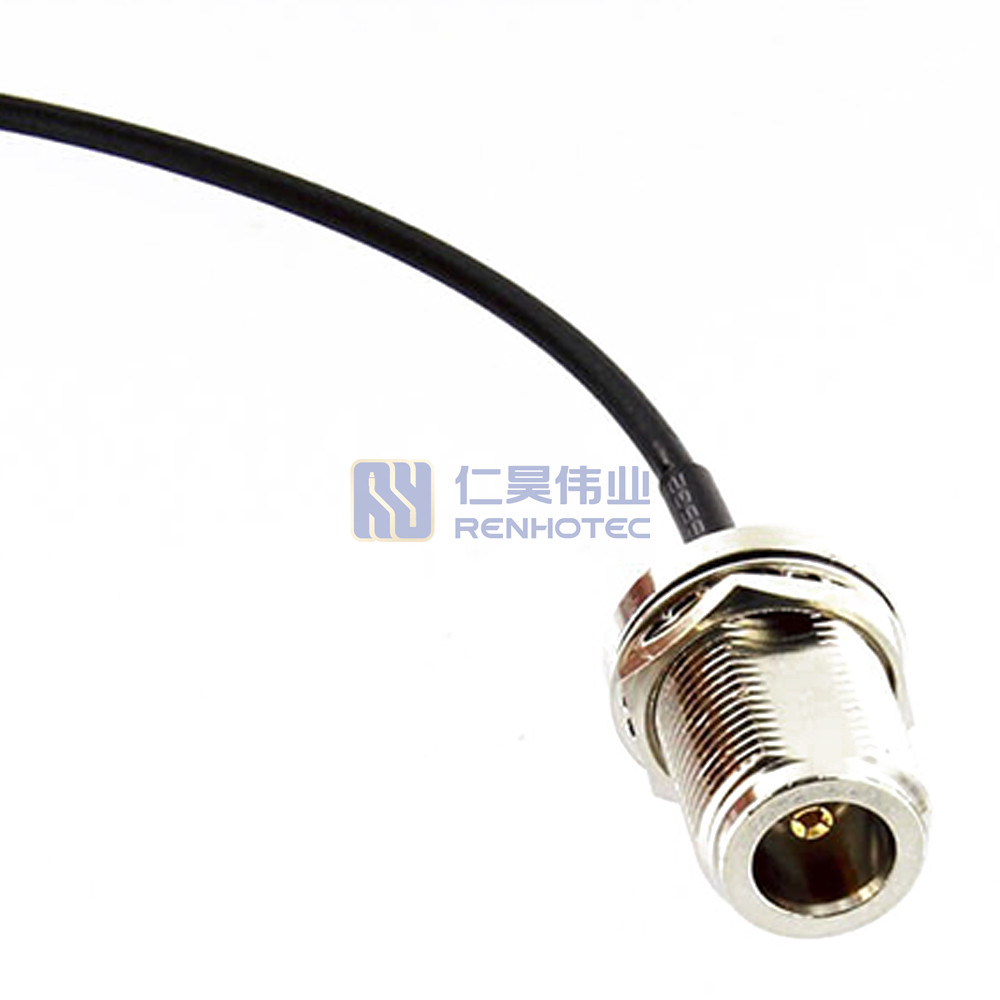

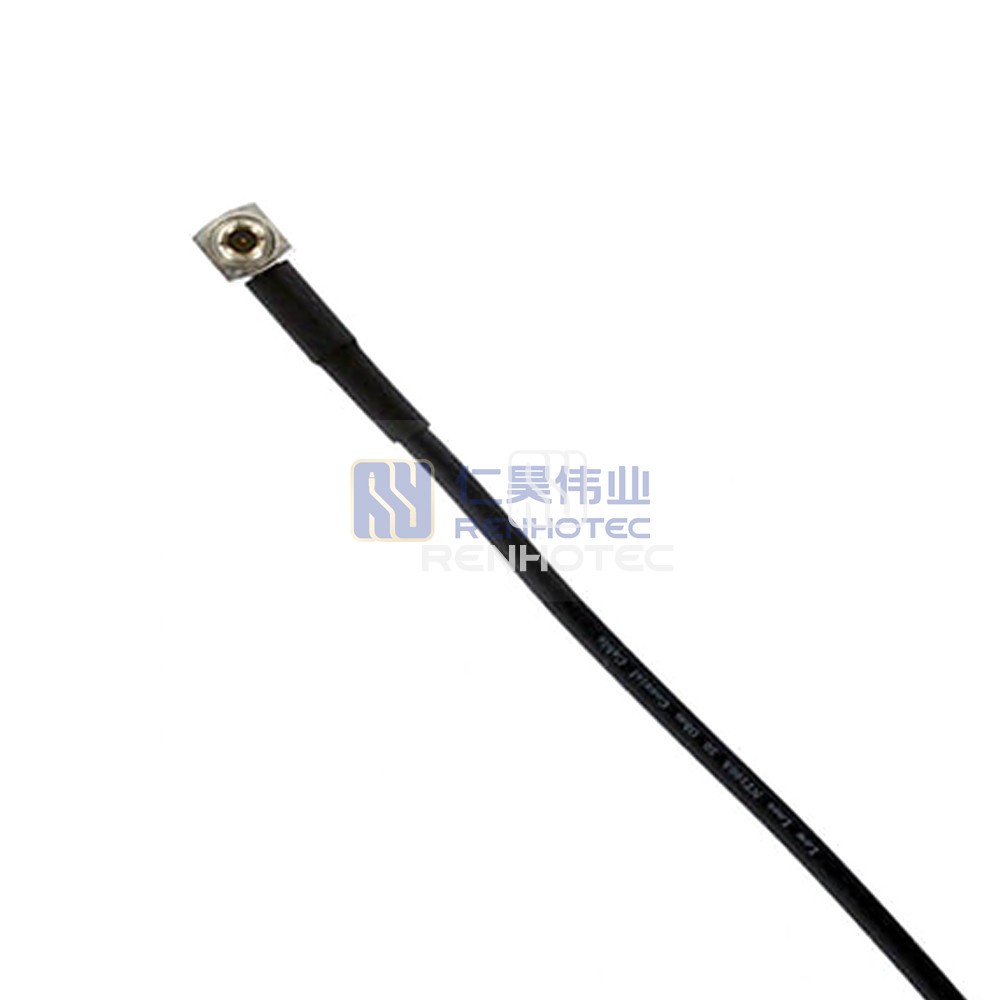

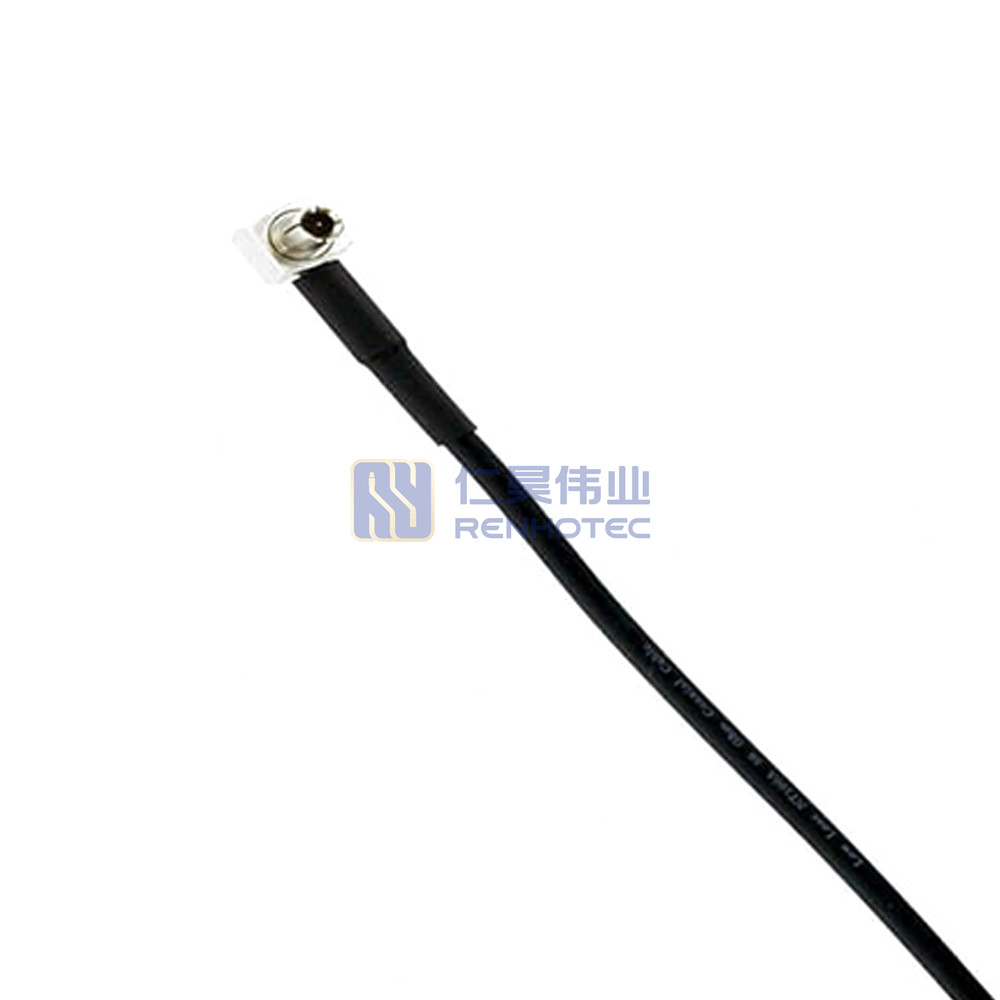

Products > RF Cable Assembly > N Female Bulkhead to TS9 Male Right Angle RF Cable Assembly with 50Ohm LMR100 Cable
R02-N01-10011-20
N Female Bulkhead to TS9 Male Right Angle RF Cable Assembly with 50Ohm LMR100 Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality N Female Bulkhead to TS9 Male Right Angle RF Cable Assembly with 50Ohm LMR100 Cable. Ensure reliable connections for your RF components. Ideal for various telecommunications applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | N to TS9 |
| 1st Connector Series | N Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | TS9 Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | LMR100 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
