Products > RF Cable Assembly > Right Angle BNC Male to Bulkhead IP65 BNC Female RF Cable Assembly with 50ohm RG174 Coax
R02-B01-10011-50

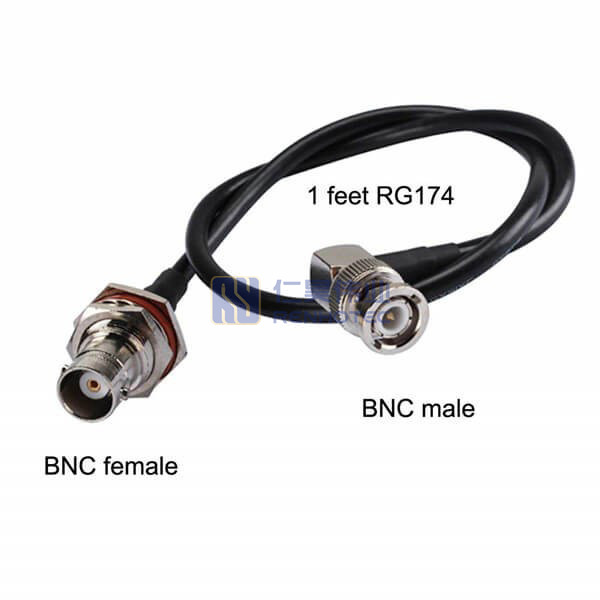

Right Angle BNC Male to Bulkhead IP65 BNC Female RF Cable Assembly with 50ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality Right Angle BNC Male to Bulkhead IP65 BNC Female RF Cable Assembly with 50ohm RG174 Coax. Ideal for reliable and secure RF signal connections in various applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to BNC |
| 1st Connector Series | BNC Plug |
| 1st Contact Type | Male Pin |

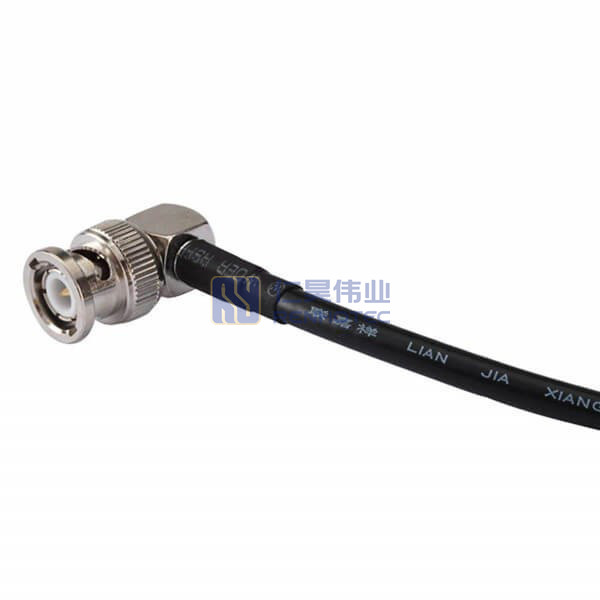

| 1st Connector Orientation | Right Angle |

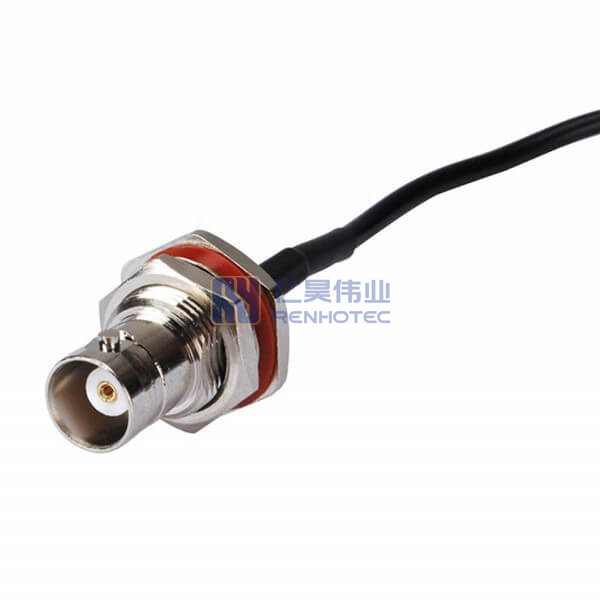

| 2nd Connector Series | BNC Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Features | Waterproof |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
