Products > RF Cable Assembly > Right Angle N Plug to Right Angle MCX Plug RF Pigtail Cable Assemblies RG316 Cable 50ohm
R02-N01-10016-20

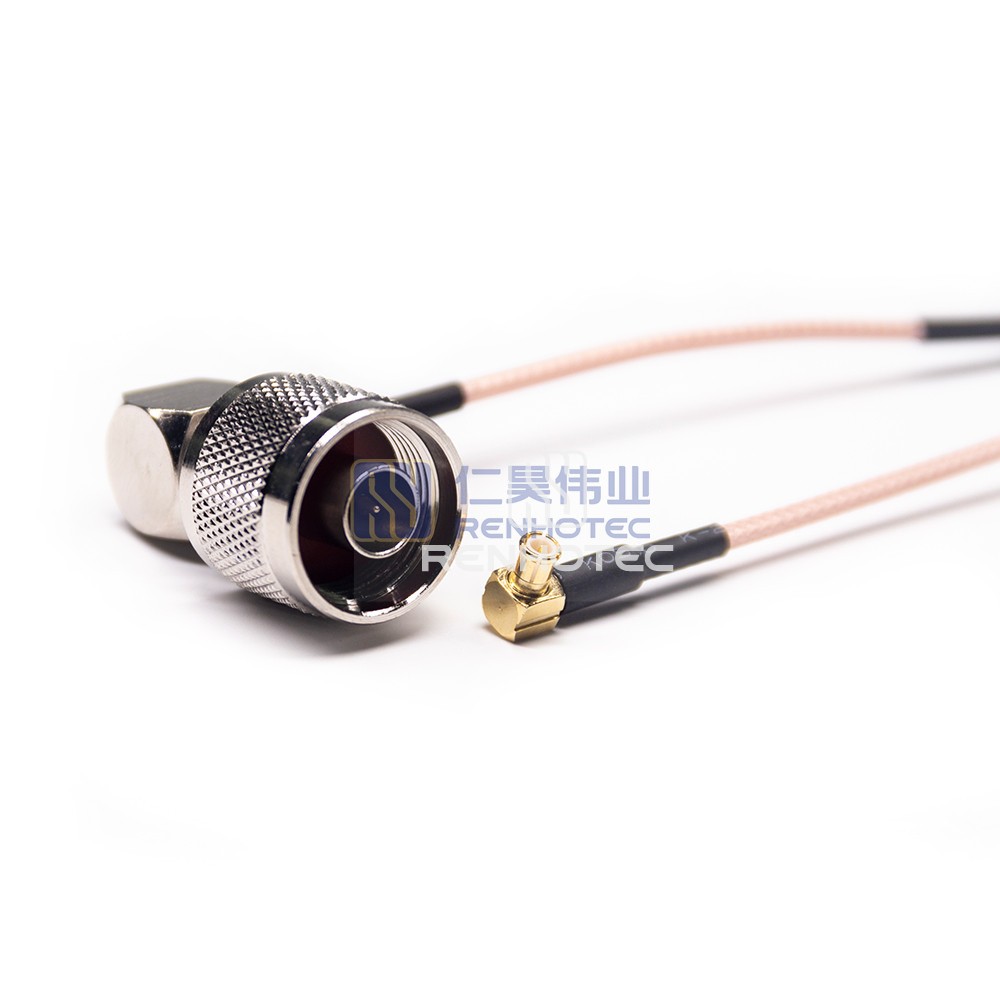

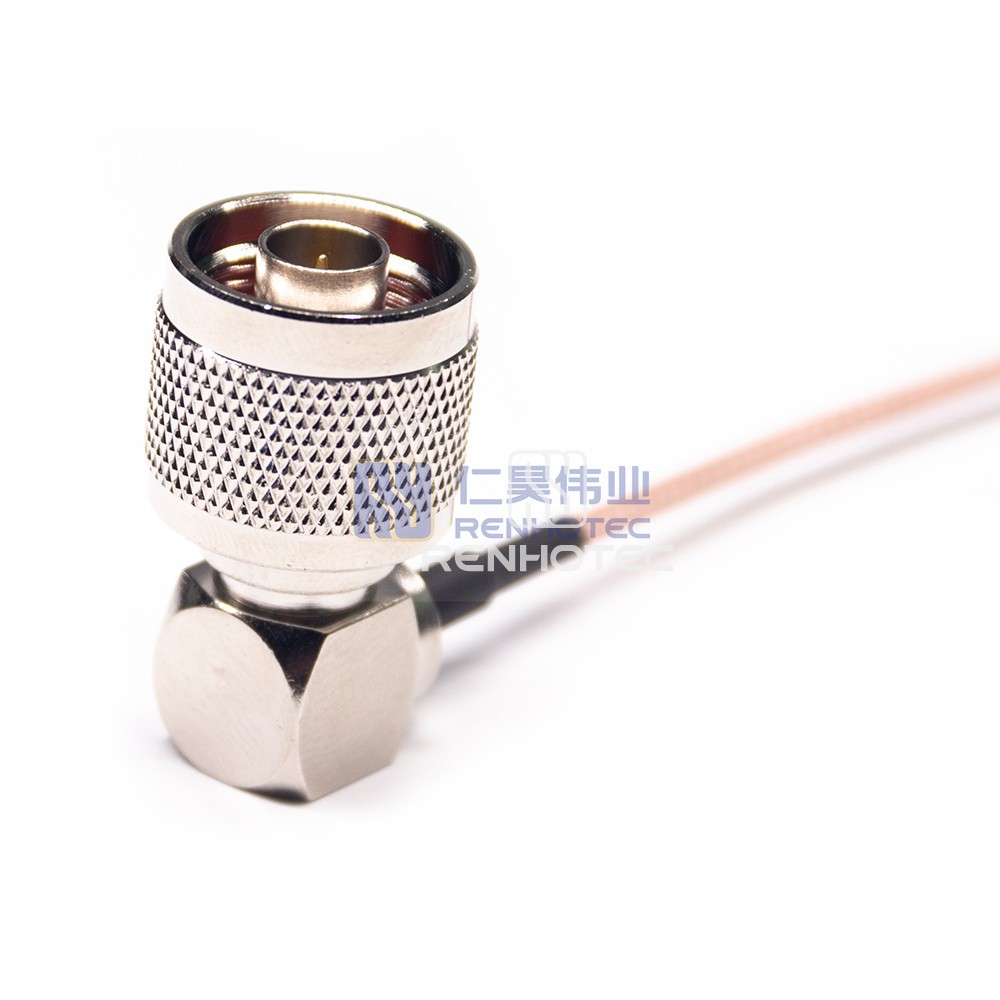

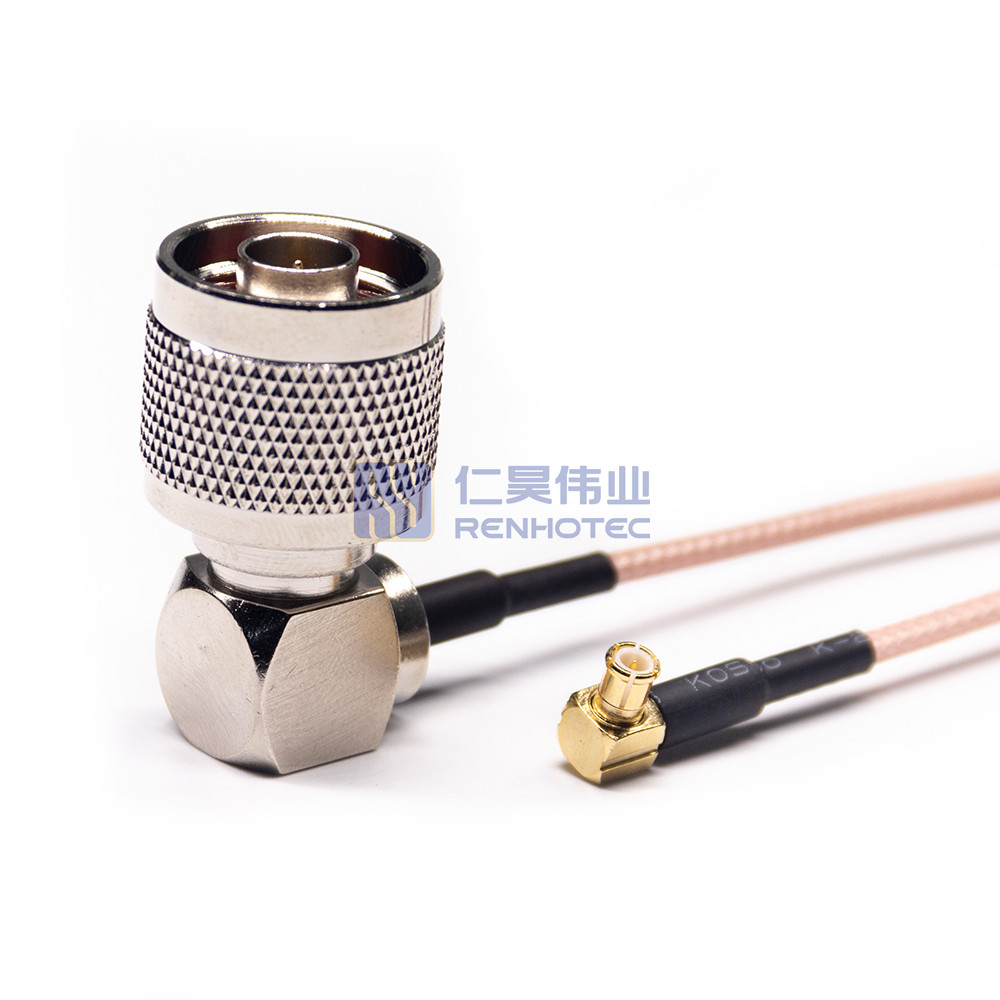

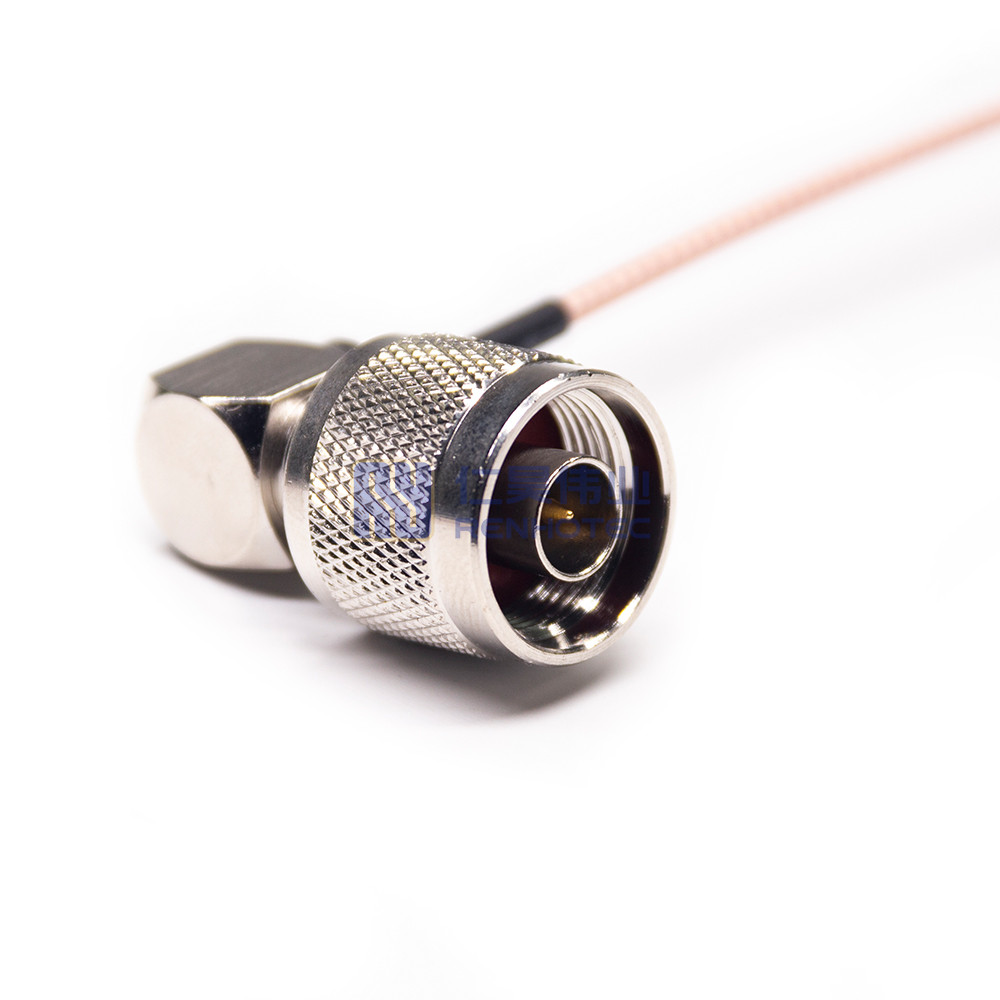

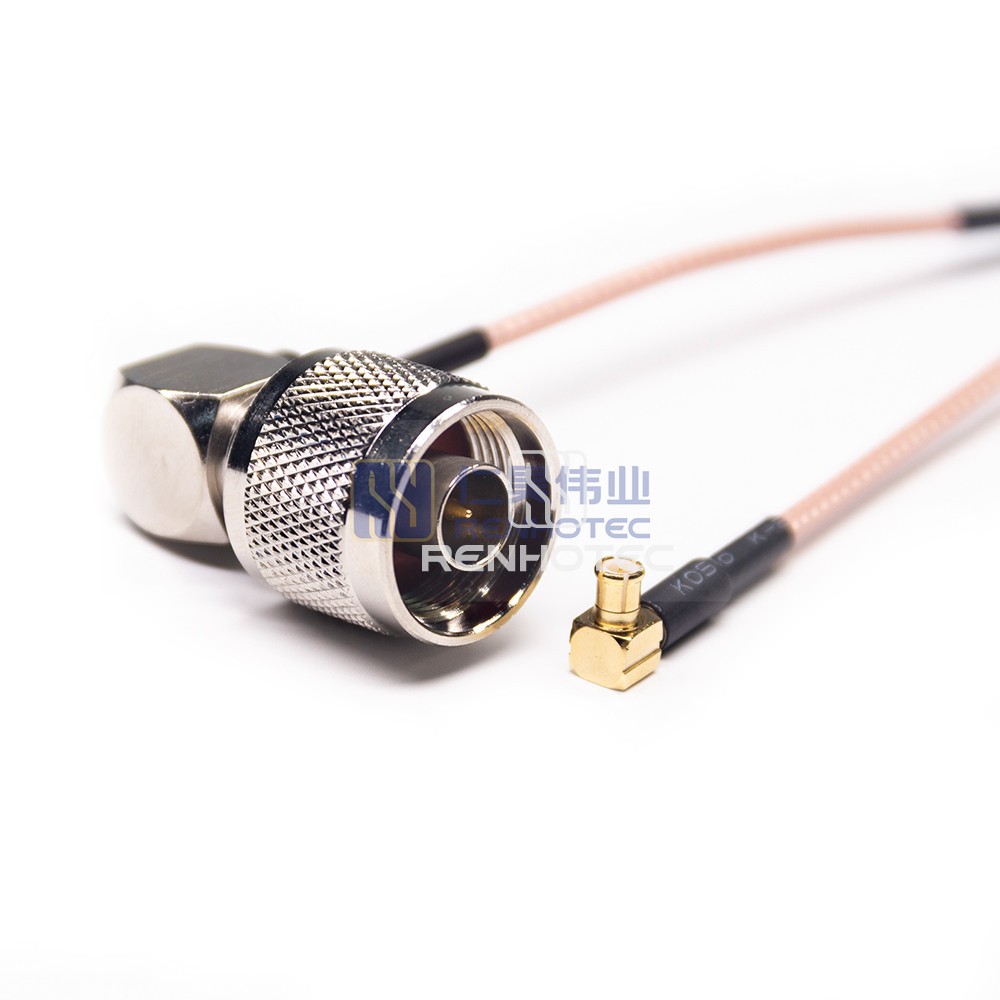

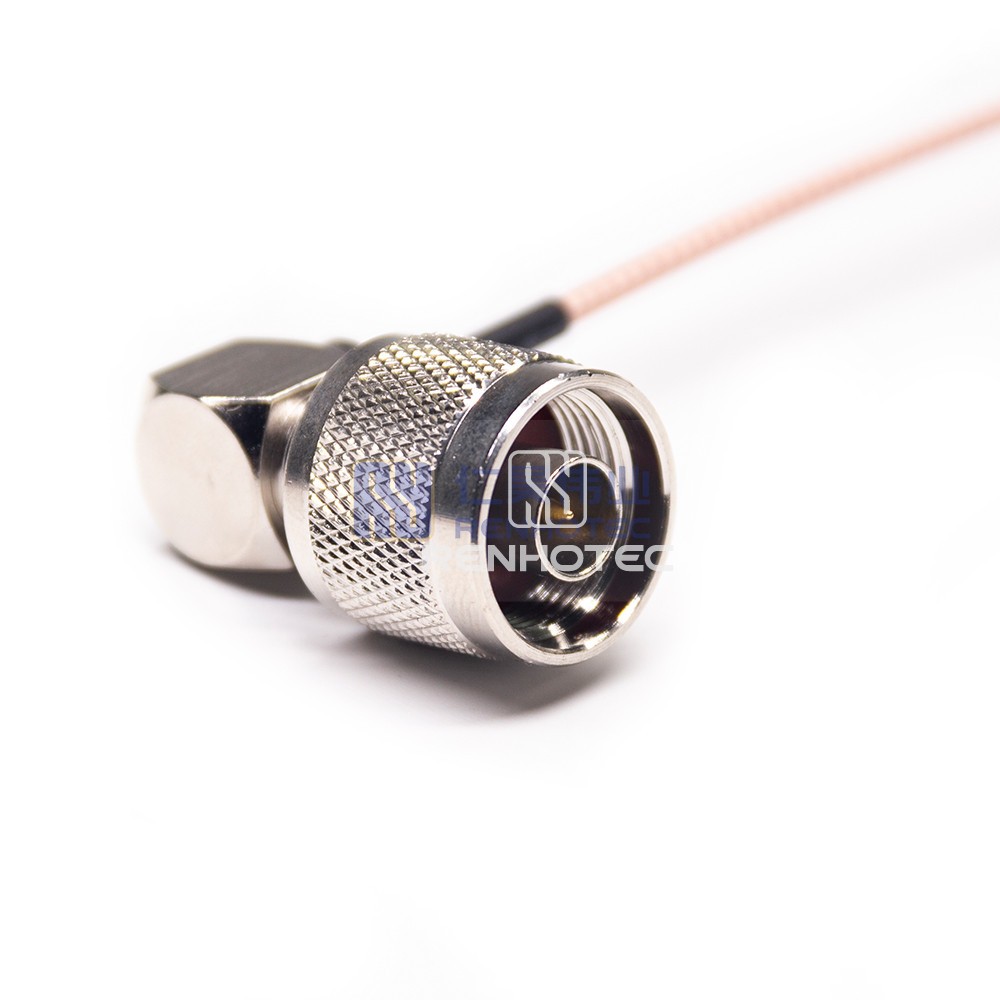

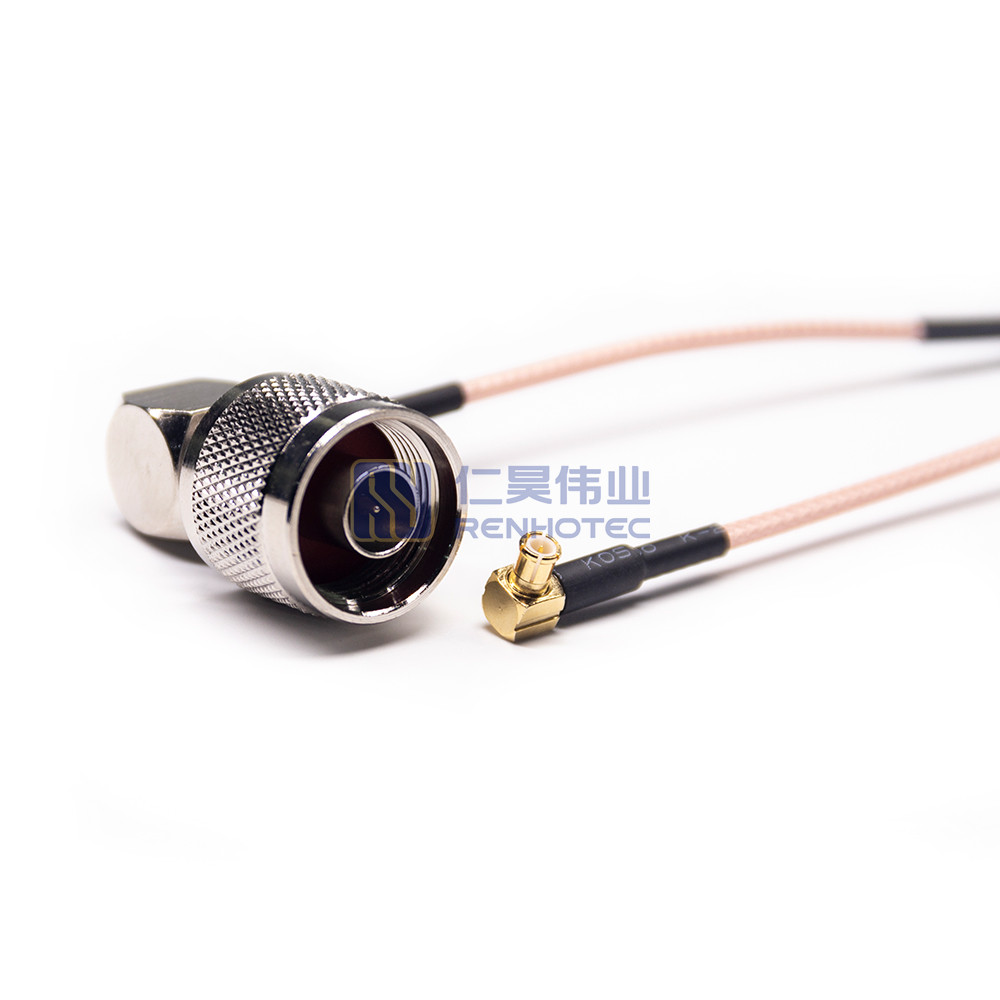

Right Angle N Plug to Right Angle MCX Plug RF Pigtail Cable Assemblies RG316 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality RG316 50ohm RF pigtail cable with a Right Angle N Plug to Right Angle MCX Plug. SKU: R02-N01-10016-20.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | N to MCX |
| 1st Connector Series | N Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Right Angle |
| 2nd Connector Series | MCX Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
