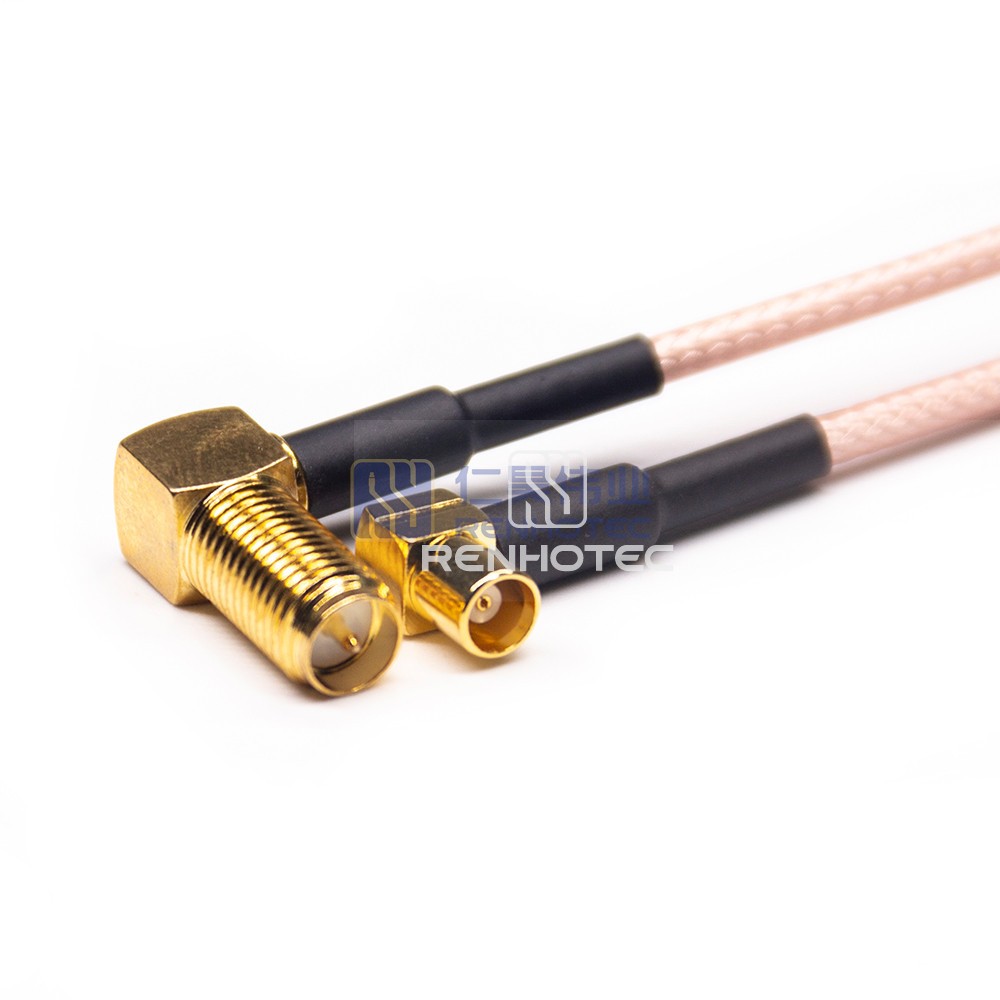

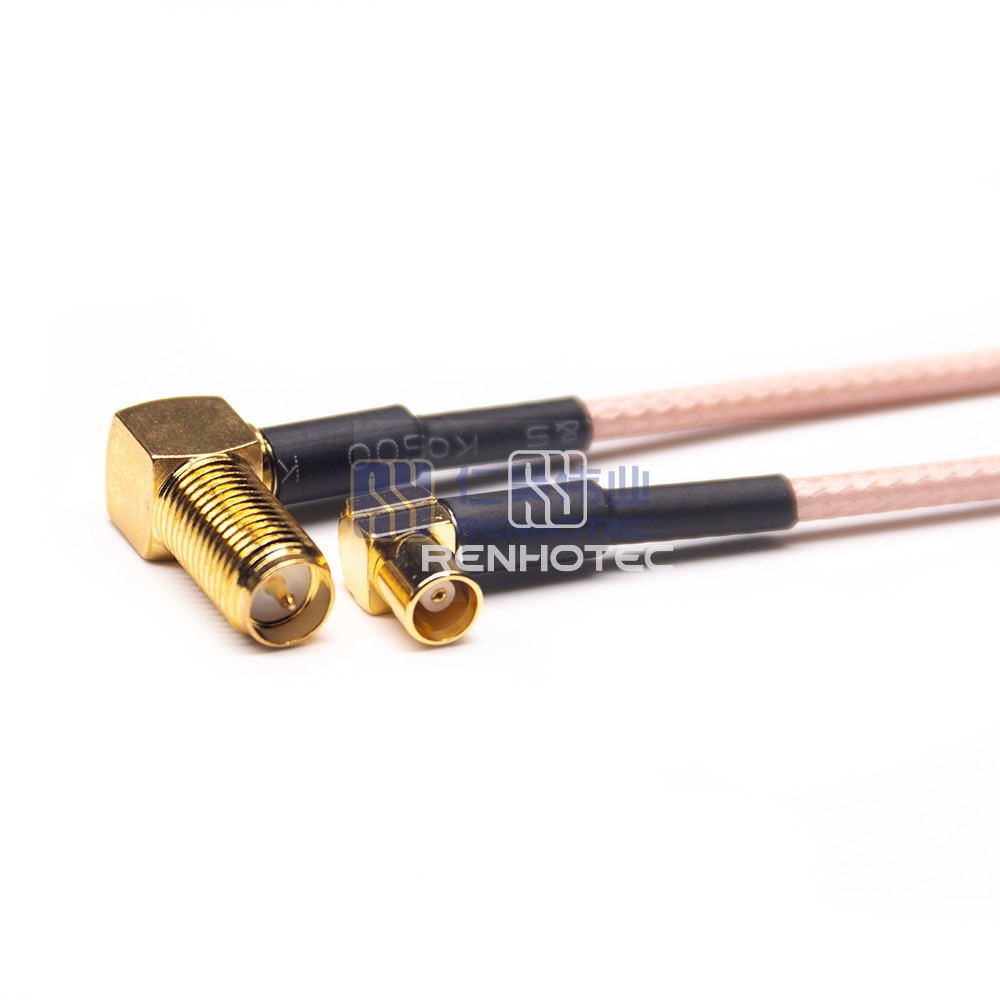

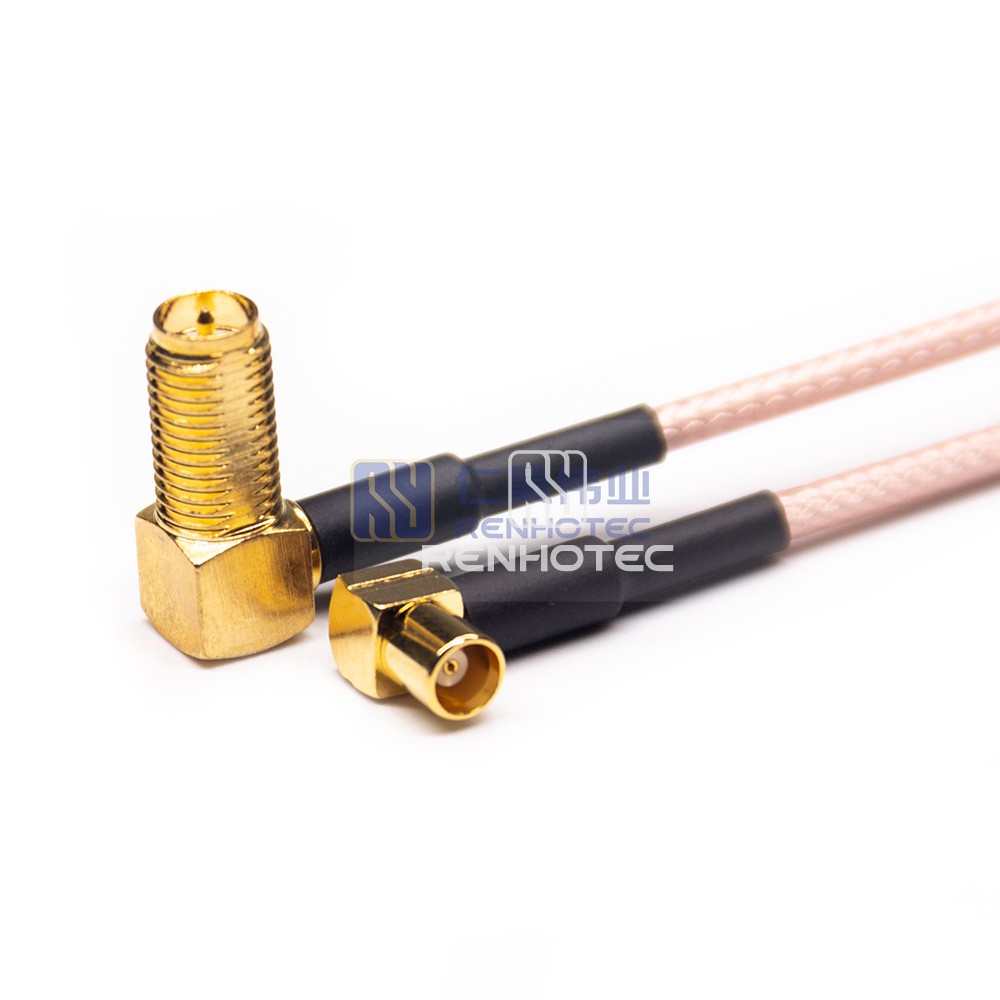

Products > RF Cable Assembly > Right Angle RP SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm
R02-S01-10112-20
Right Angle RP SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality Right Angle RP SMA Jack to Right Angle MCX Jack RF Cable Assemblies with RG316 Cable. 50 ohm impedance for optimal signal transfer. Ideal for RF communication applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | SMA to MCX |
| 1st Connector Series | SMA Jack |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Right Angle |
| 2nd Connector Series | MCX Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
