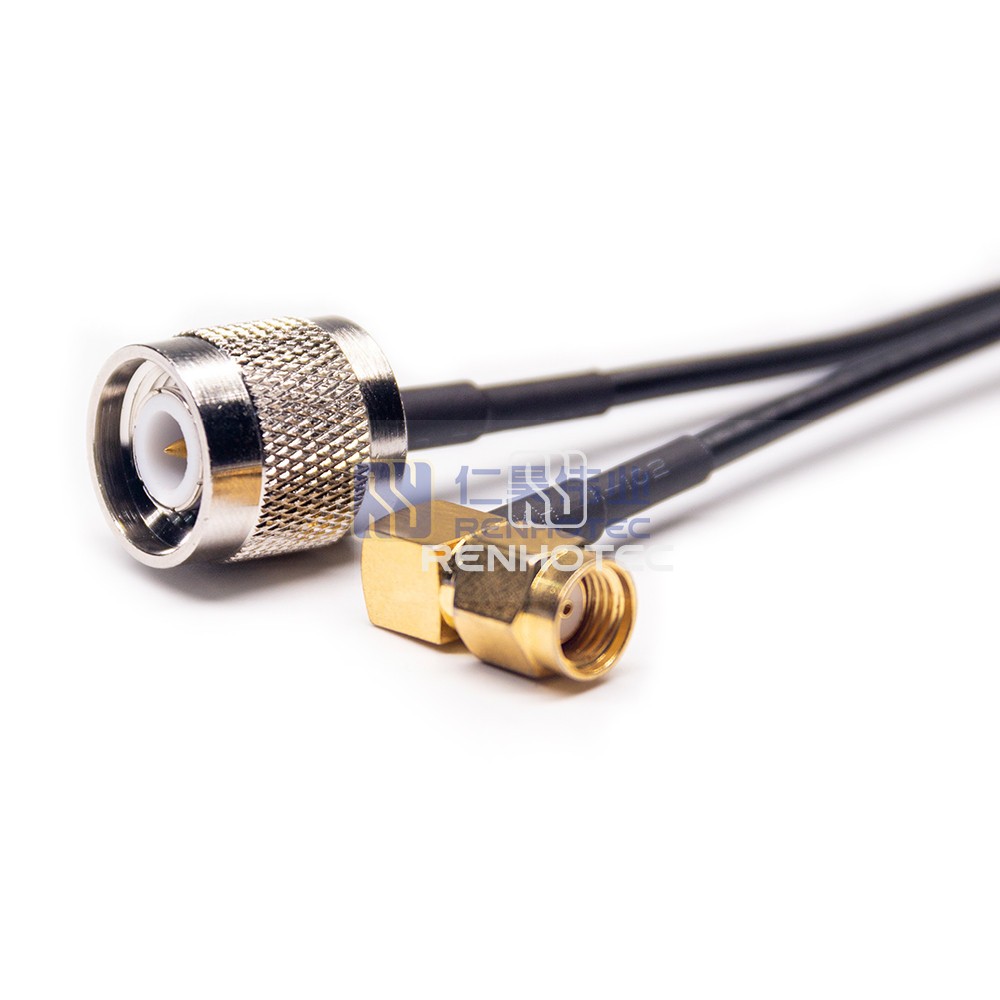

product image

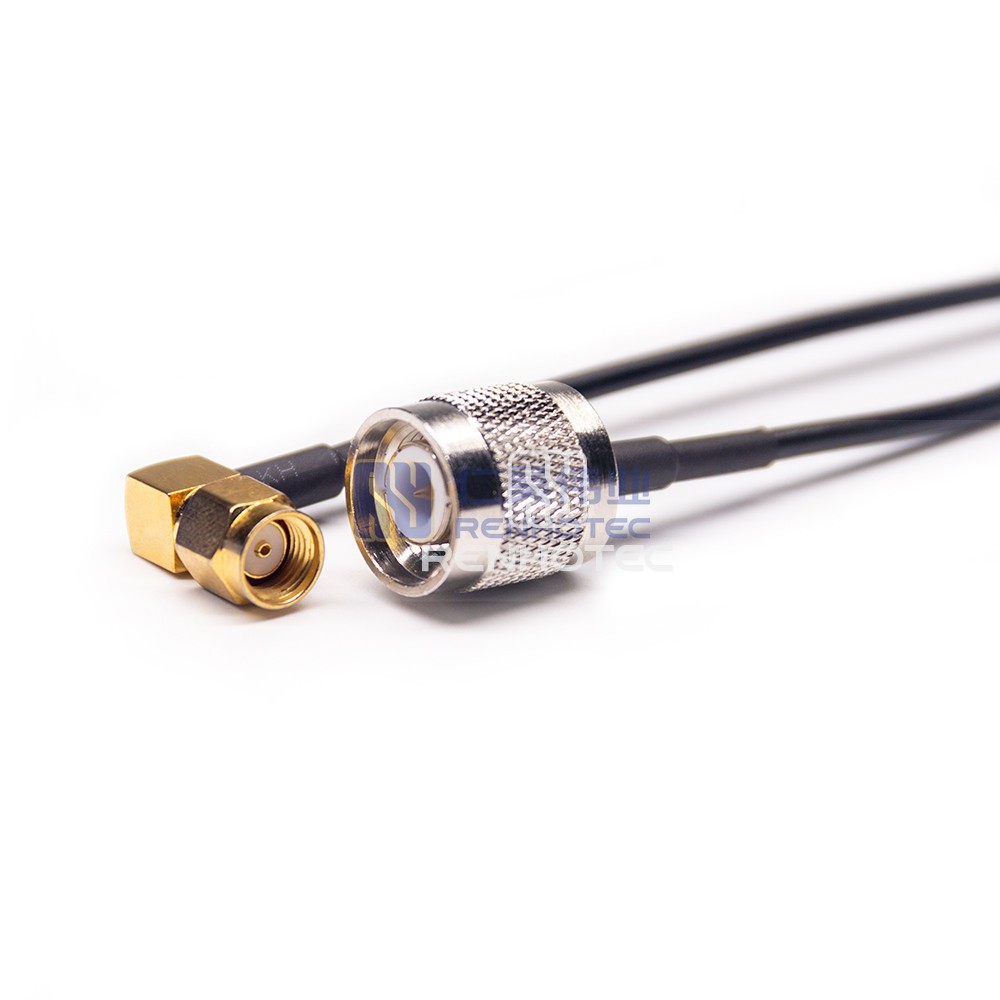

product image

R02-S01-10116-20

RP-SMA Male Right Angle to TNC Male RF Cable Assembly with 50 Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Ensure reliable connectivity with the RP-SMA Male Right Angle to TNC Male RF Cable Assembly. Built with 50 Ohm RG174 Coax for optimal signal transmission.
GeneralMechanicalElectricalEnvironmental
General
Conversion StyleSMA to TNC
1st Connector SeriesSMA Plug
1st Contact TypeFemale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesTNC Plug
2nd Contact TypeMale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG174
Electrical
Impedance50 Ohms
Frequency Range0-6Ghz
Environmental
Operating Temperature-40°C ~ + 85°C
