Products > Terminal Blocks > Single Stud Type Junction Blocks 120A Internal Screw (M6) Busbar with M6 Flange Mounting With Cap Red
Single Stud Type Junction Blocks 120A Internal Screw (M6) Busbar with M6 Flange Mounting With Cap Red - IF-FM6-3037-120A-C-R
Single Stud Type Junction Blocks 120A Internal Screw (M6) Busbar with M6 Flange Mounting With Cap Red - IF-FM6-3037-120A-C-R

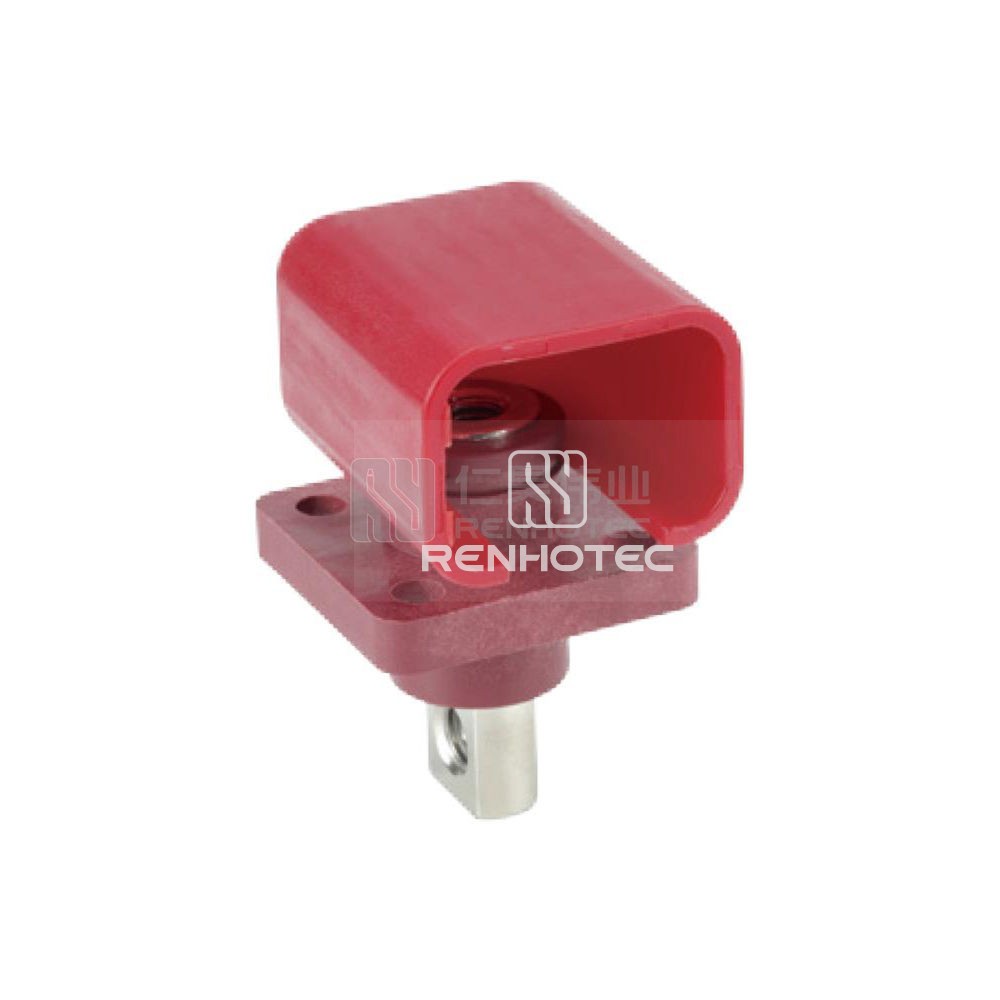

Single Stud Type Junction Blocks 120A Internal Screw (M6) Busbar with M6 Flange Mounting With Cap Red product image

IF-FM6-3037-120A-C-R

Single Stud Type Junction Blocks 120A Internal Screw (M6) Busbar with M6 Flange Mounting With Cap Red

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Body StyleStudded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead
    Contact TerminationBusbar/Screw
    Termination ThreadM6
    ColorRed
    FeaturesWith Cover
    Materials
    Insulating MaterialPA66
    Contact MaterialBrass
    Contact FinishNickel
    Electrical
    Rated Voltage600V
    Rated Current120A
    Environmental
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0

    Product excerpt

    Explore our Single Stud Type Junction Blocks featuring 120A internal screw (M6) busbar with secure M6 flange mounting and a protective red cap. Ideal for efficient electrical connections and installations.
