Products > Terminal Blocks > Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Flange Mounting Red With Cap

IF-FM8M6-3356-150A-CB-R
Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Flange Mounting Red With Cap

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

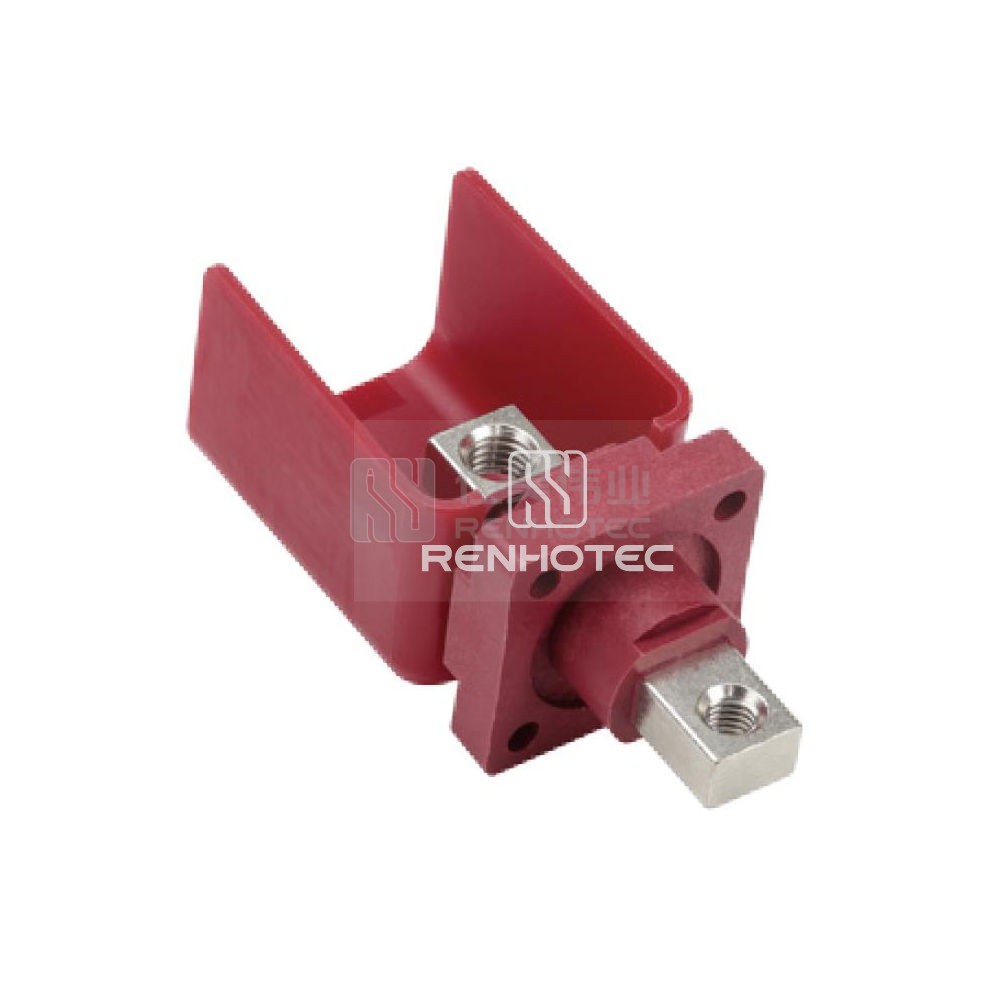

    This high-quality junction block features a single stud design capable of handling 150A, comes with an M8 busbar, and M6 flange for convenient mounting. Ideal for industrial applications, this red junction block includes a protective cap for added safety.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Body StyleStudded
    Contact TerminationBusbar
    ColorRed
    FeaturesWith Cover

    Mechanical

    Termination ThreadM8/M6
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Electrical

    Rated Voltage600V
    Rated Current150A

    Material

    Contact MaterialBrass
    Contact FinishTin
    Insulating MaterialPA66

    Environmental

    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
