Products > Terminal Blocks > Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Red With Cap Flange Mounting
Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Red With Cap Flange Mounting - IF-FM8M6-3356-150A-CA-R
Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Red With Cap Flange Mounting - IF-FM8M6-3356-150A-CA-R

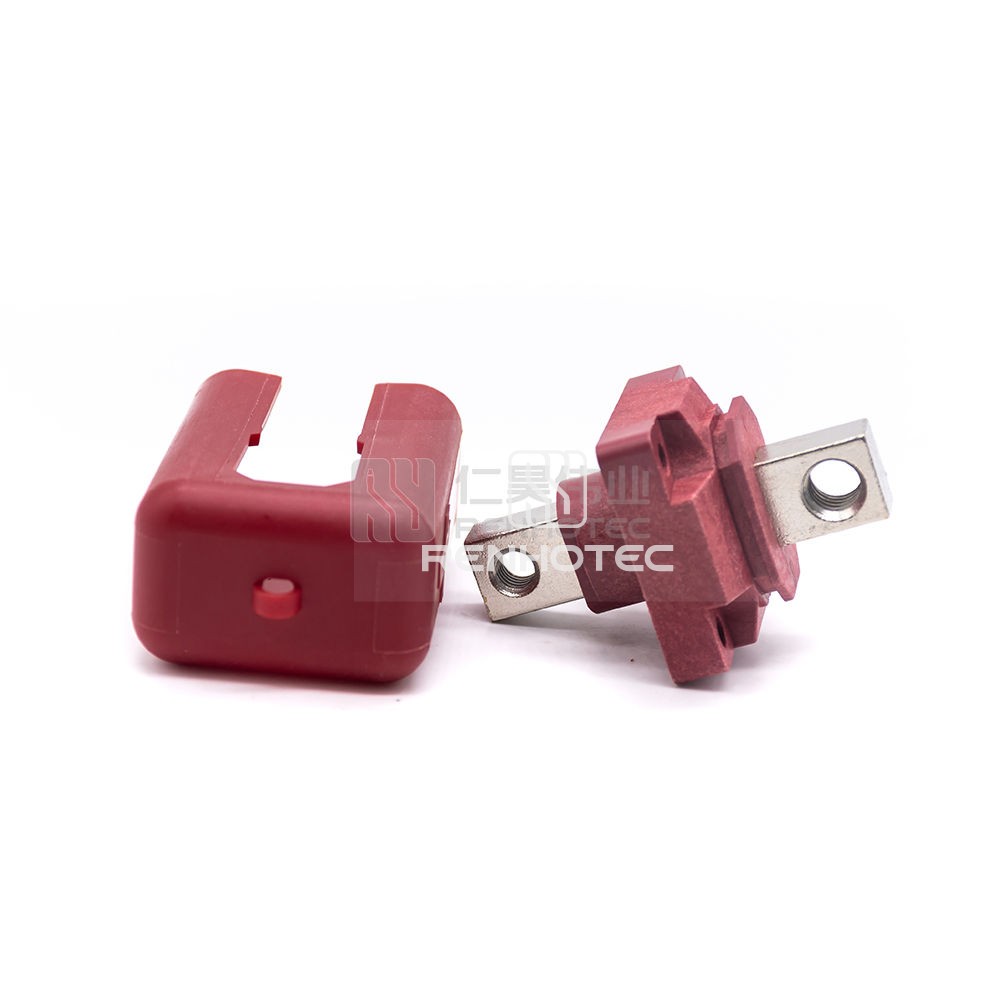

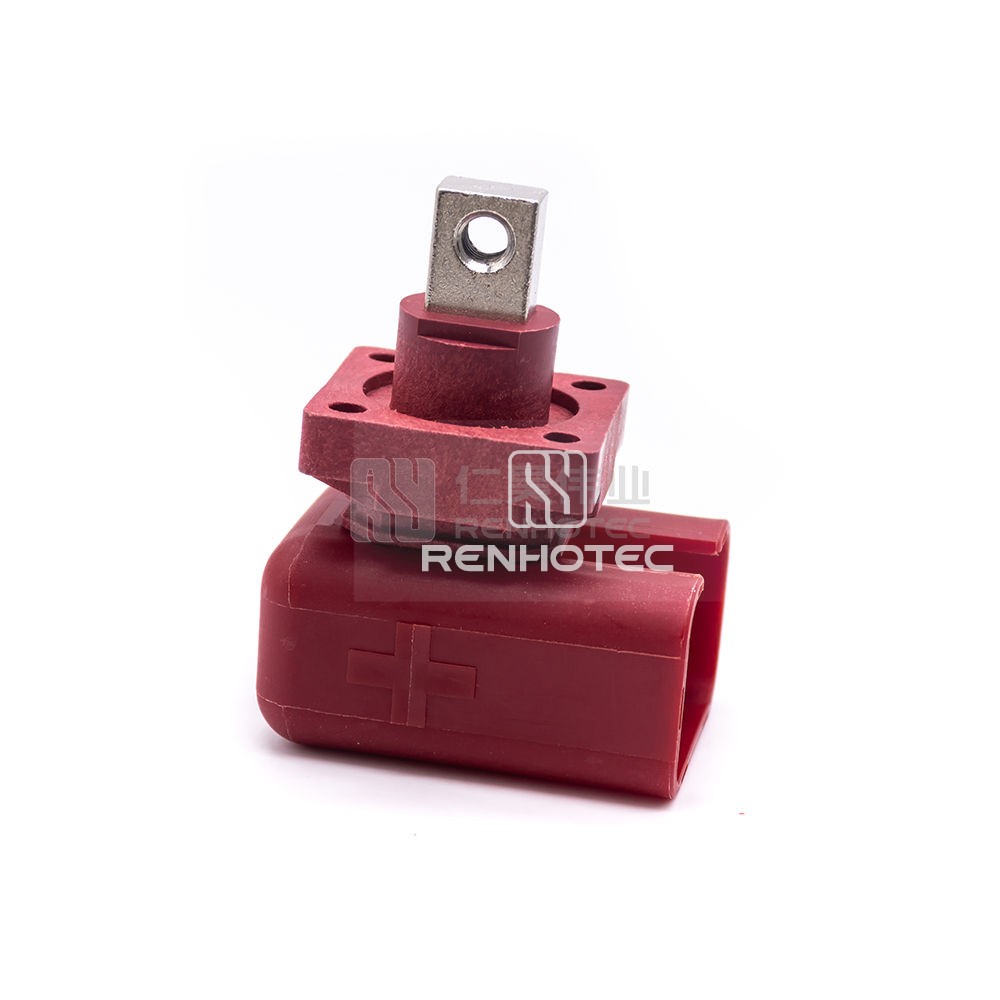

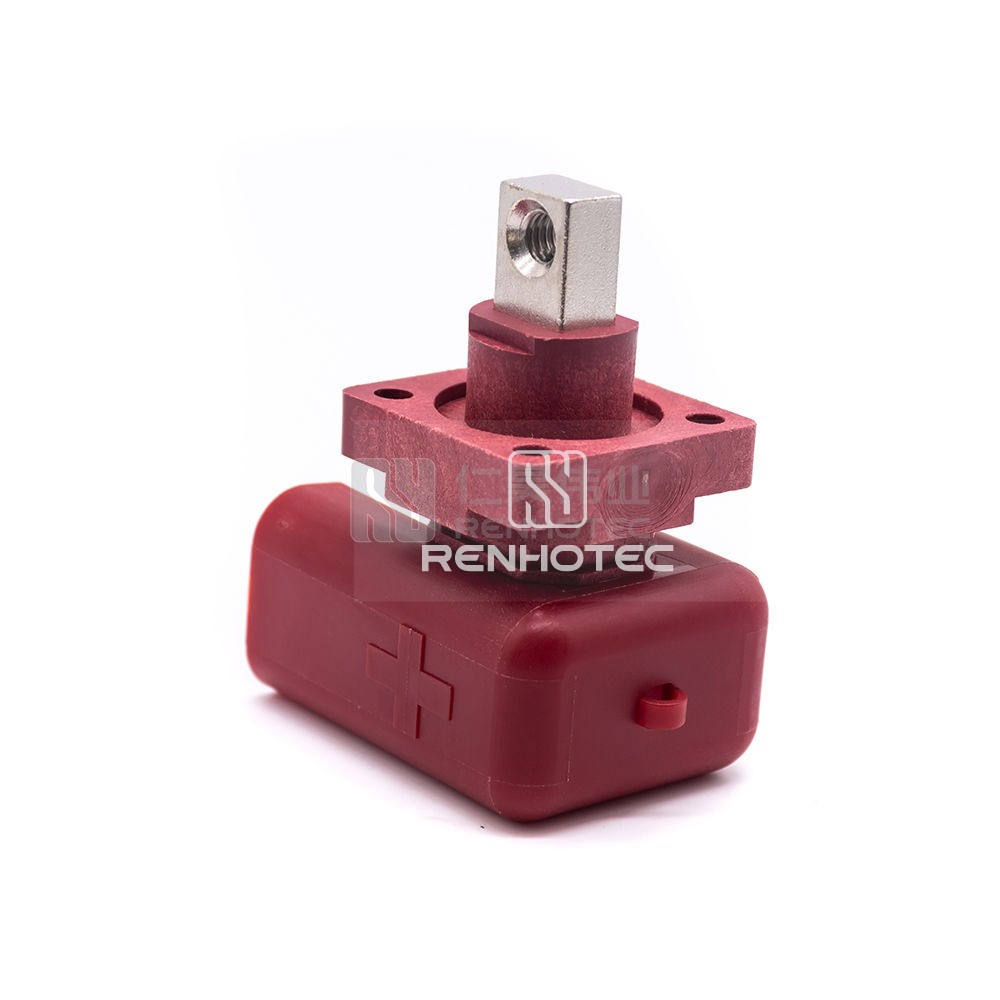

Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Red With Cap Flange Mounting product image
Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Red With Cap Flange Mounting product image
Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Red With Cap Flange Mounting product image

IF-FM8M6-3356-150A-CA-R

Single Stud Type Junction Blocks 150A Busbar with M8 Busbar with M6 Red With Cap Flange Mounting

  • Technical data
  • Overview
  • Certification
  • Download
General
Body StyleStudded
Mounting TypePanel Mount
Mounting FeatureBulkhead
Contact TerminationBusbar
Termination ThreadM6/M8
ColorRed
FeaturesWith Cover
Materials
Insulating MaterialPA66
Contact MaterialBrass
Contact FinishTin
Electrical
Rated Voltage600V
Rated Current150A
Environmental
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0

Product excerpt

This single stud type junction block features a 150A busbar with M8 and M6 connections, red caps, and flange mounting. Ideal for efficient power distribution in various applications.
