Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Black - IF-FM8M5-3543-150A-B
Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Black - IF-FM8M5-3543-150A-B

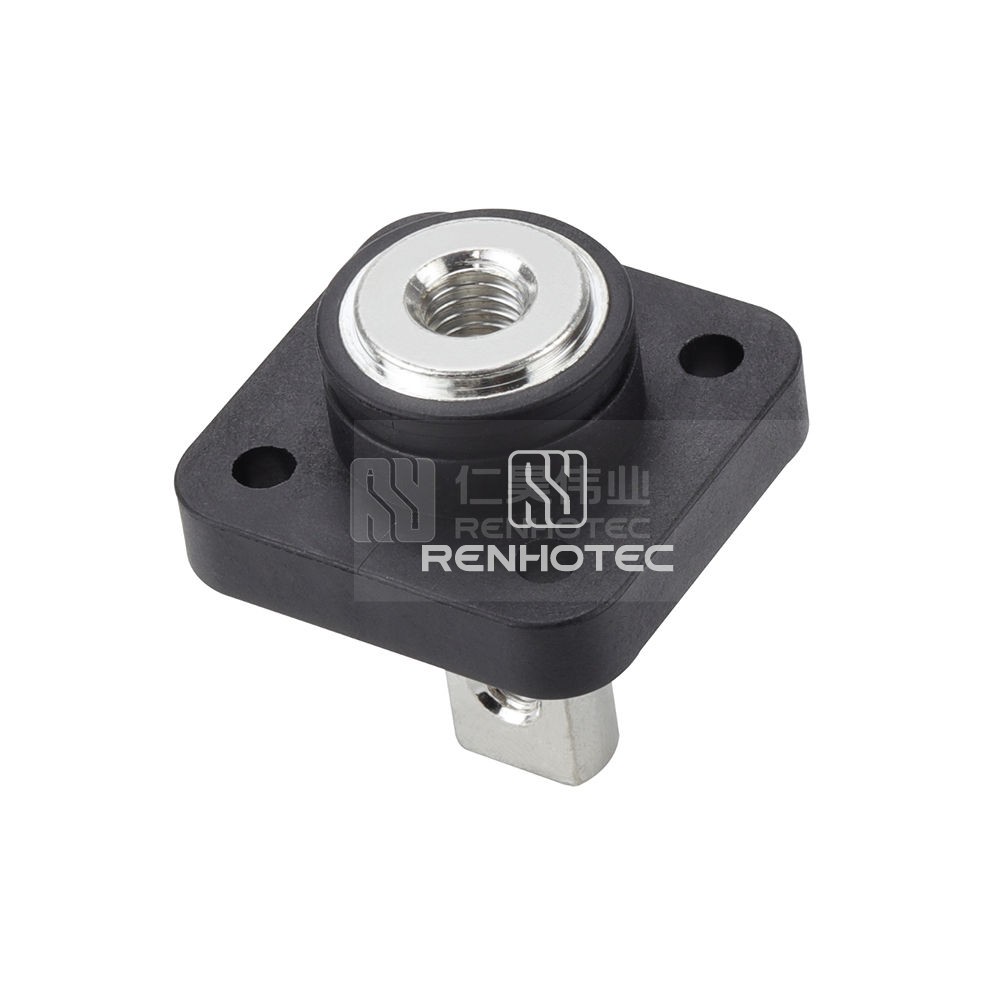

Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Black product image

IF-FM8M5-3543-150A-B

Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Black

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Body StyleStudded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead
    Contact TerminationBusbar/Screw
    Termination ThreadM8
    ColorBlack
    Materials
    Insulating MaterialPA66
    Contact MaterialBrass
    Contact FinishTin
    Electrical
    Rated Voltage600V
    Rated Current150A
    Environmental
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0

    Product excerpt

    These Single Stud Type Junction Blocks offer a sturdy 150A internal screw design with M8 busbar and M5 flange mounting in a sleek black finish. Ideal for secure electrical connections with a robust design for various applications.
