Products > Terminal Blocks > Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Red With Cap

IF-FM8M5-3543-150A-C-R

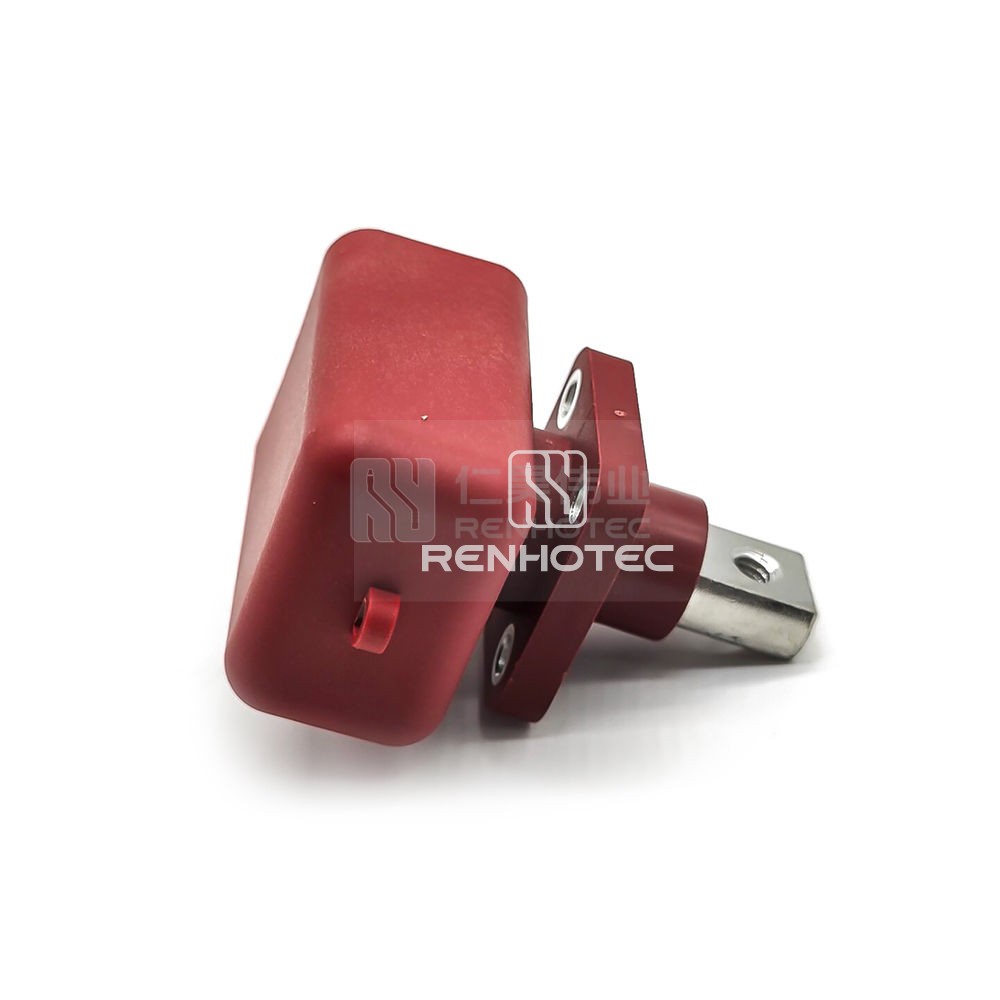

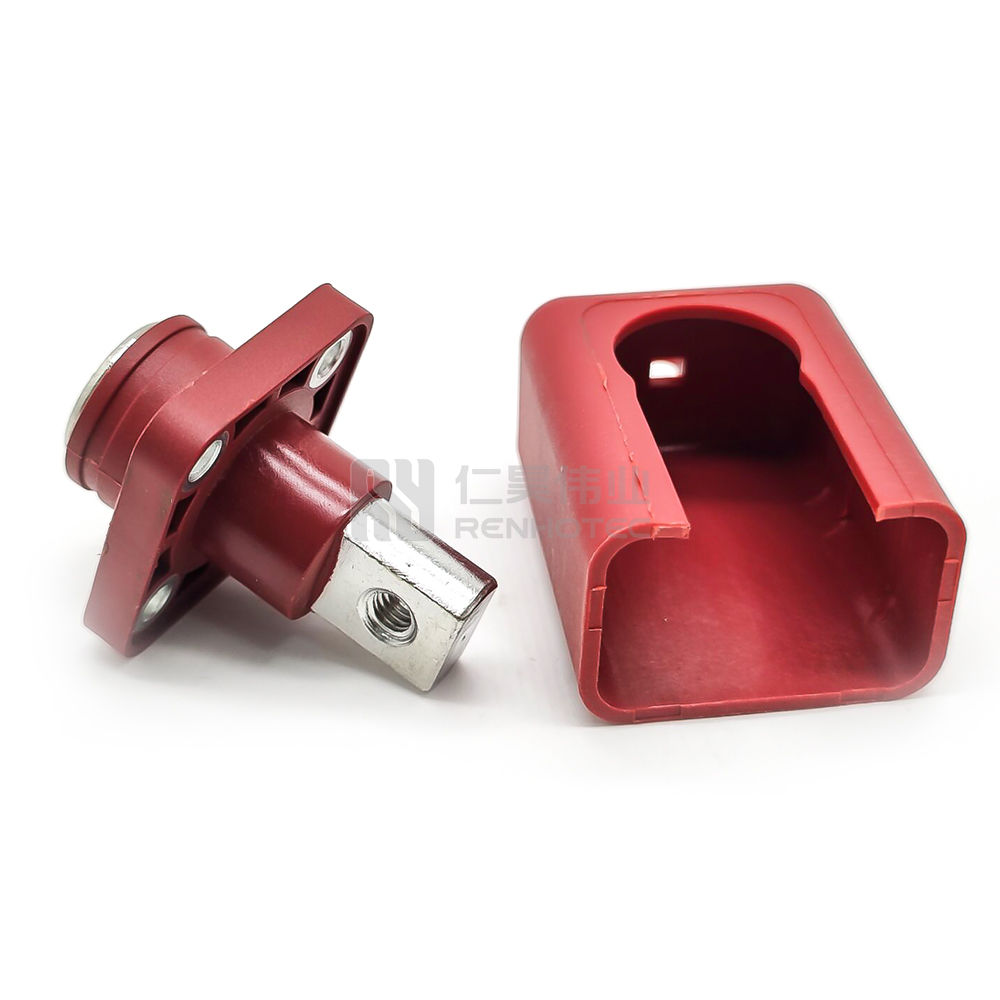

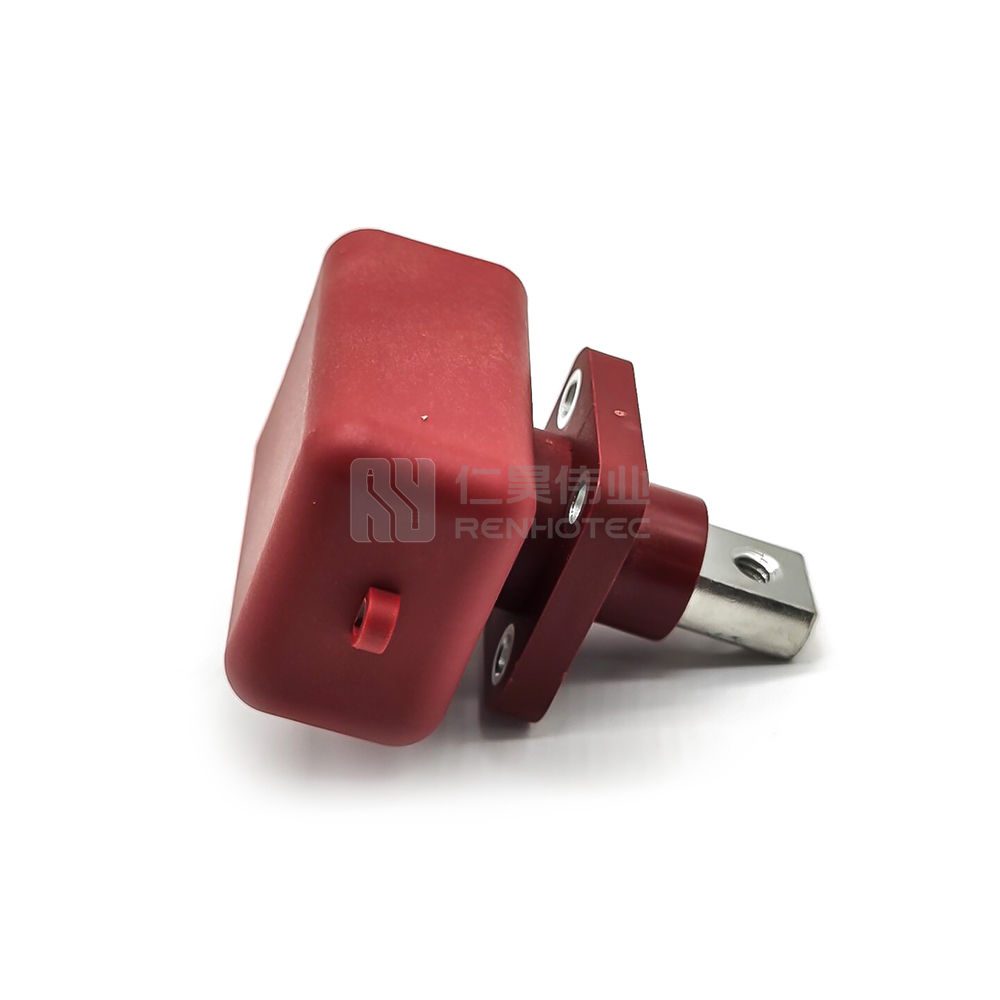

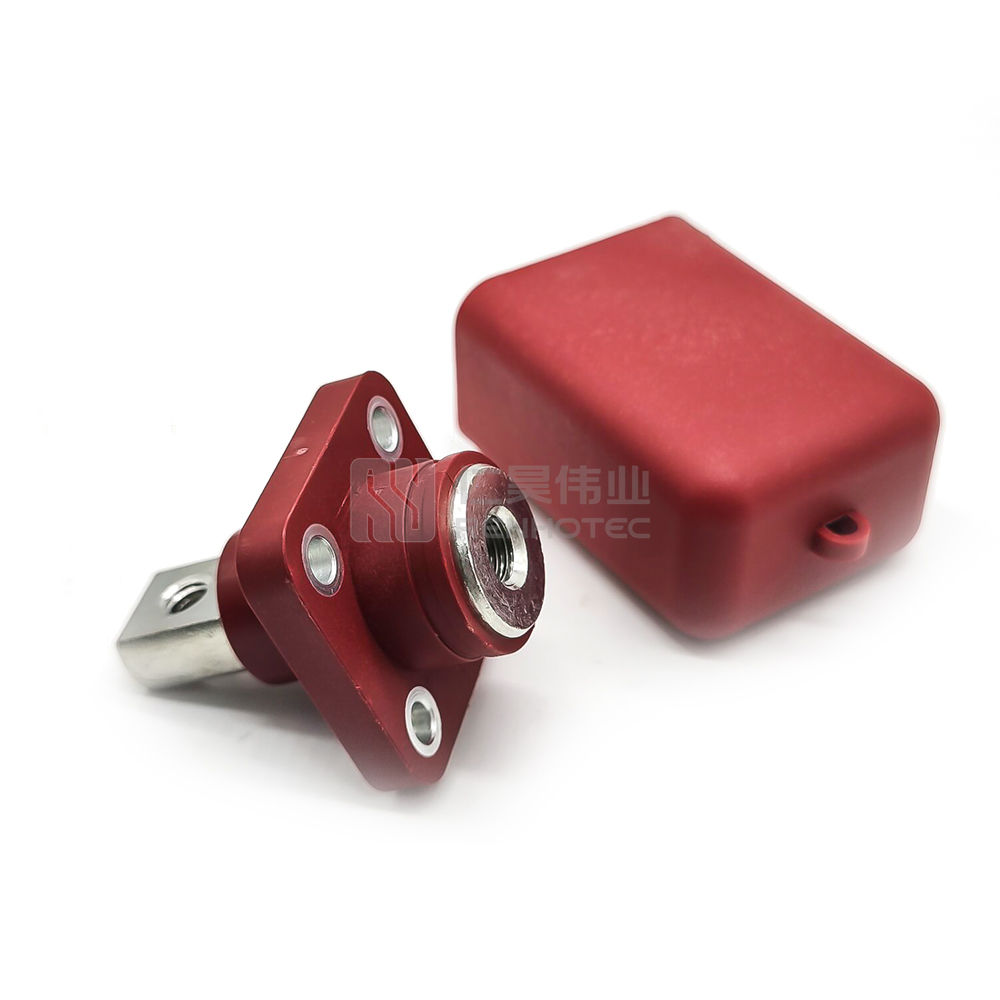

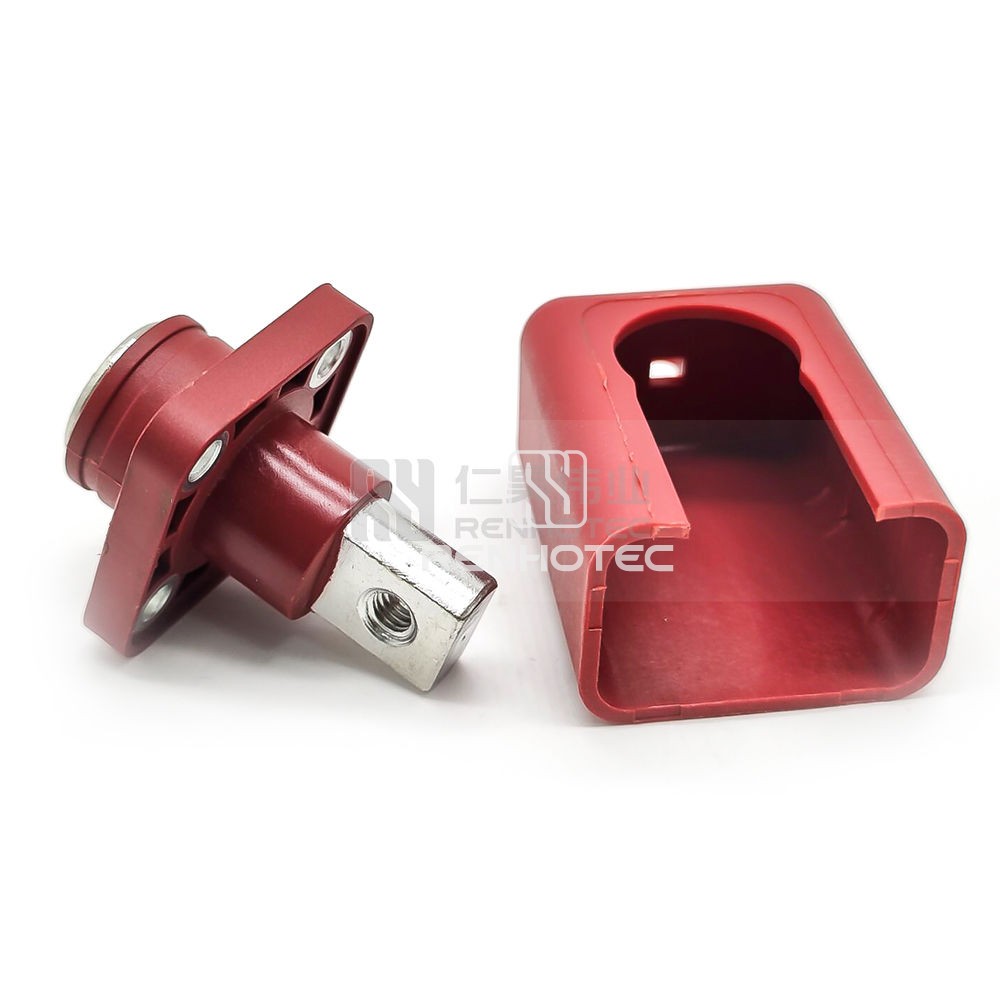

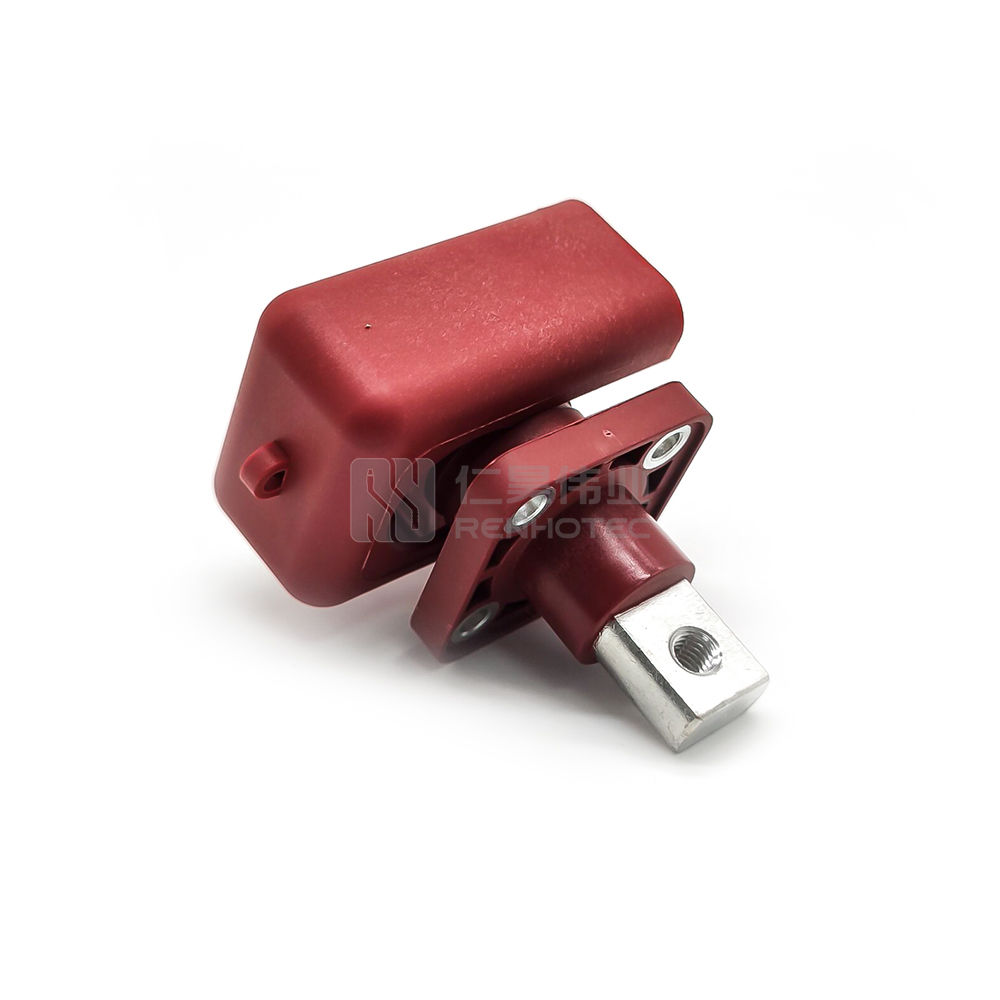

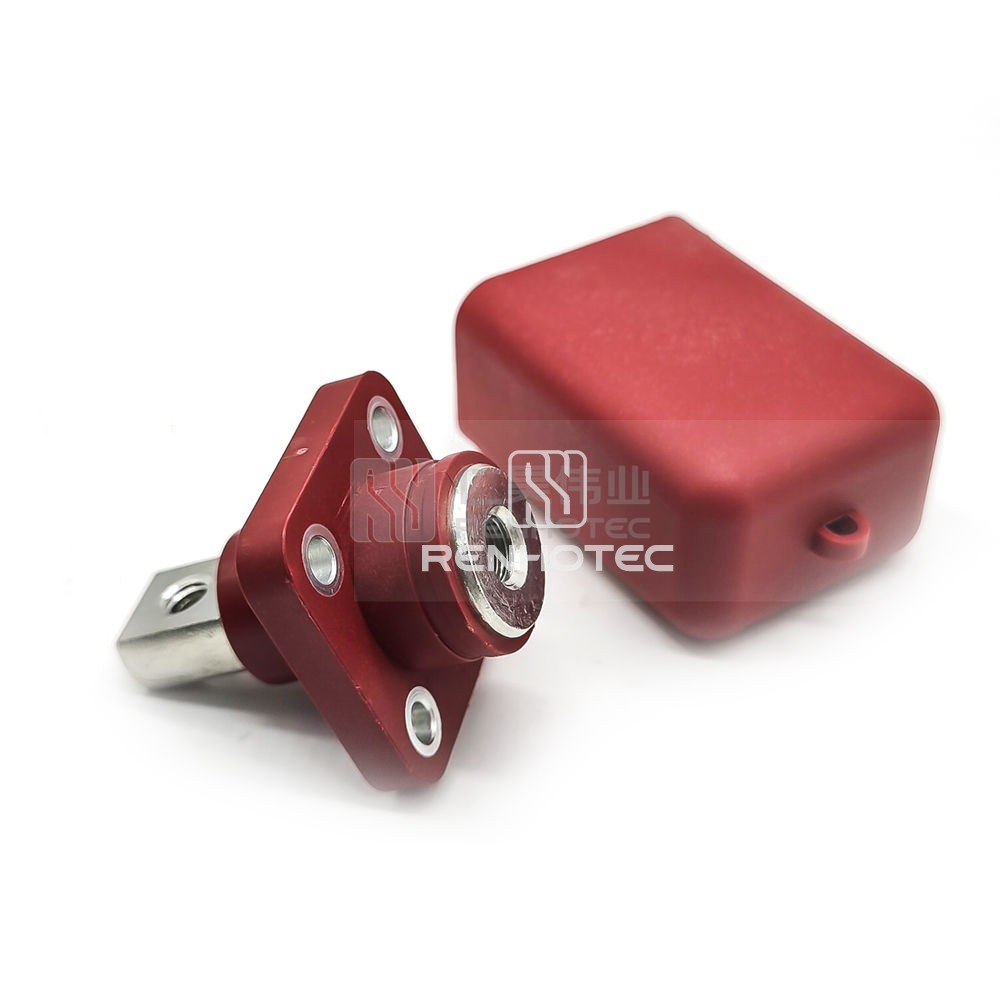

Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Red With Cap

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Efficiently designed for secure electrical connections, the Single Stud Type Junction Blocks offer 150A capacity with an internal M8 screw and M5 flange mounting, enhancing stability. The vibrant red color adds easy identification, and the included cap provides extra protection. Ideal for various electrical applications.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Body StyleStudded
    Contact TerminationBusbar/Screw
    ColorRed
    FeaturesWith Cover

    Mechanical

    Termination ThreadM8
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Electrical

    Rated Voltage600V
    Rated Current150A

    Material

    Contact MaterialBrass
    Contact FinishTin
    Insulating MaterialPA66

    Environmental

    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
