Products > Terminal Blocks > Single Stud Type Junction Blocks 200A Internal Screw (M8) Busbar with M6 Flange Mounting Red

IF-FM8M6-3547E-200A-R

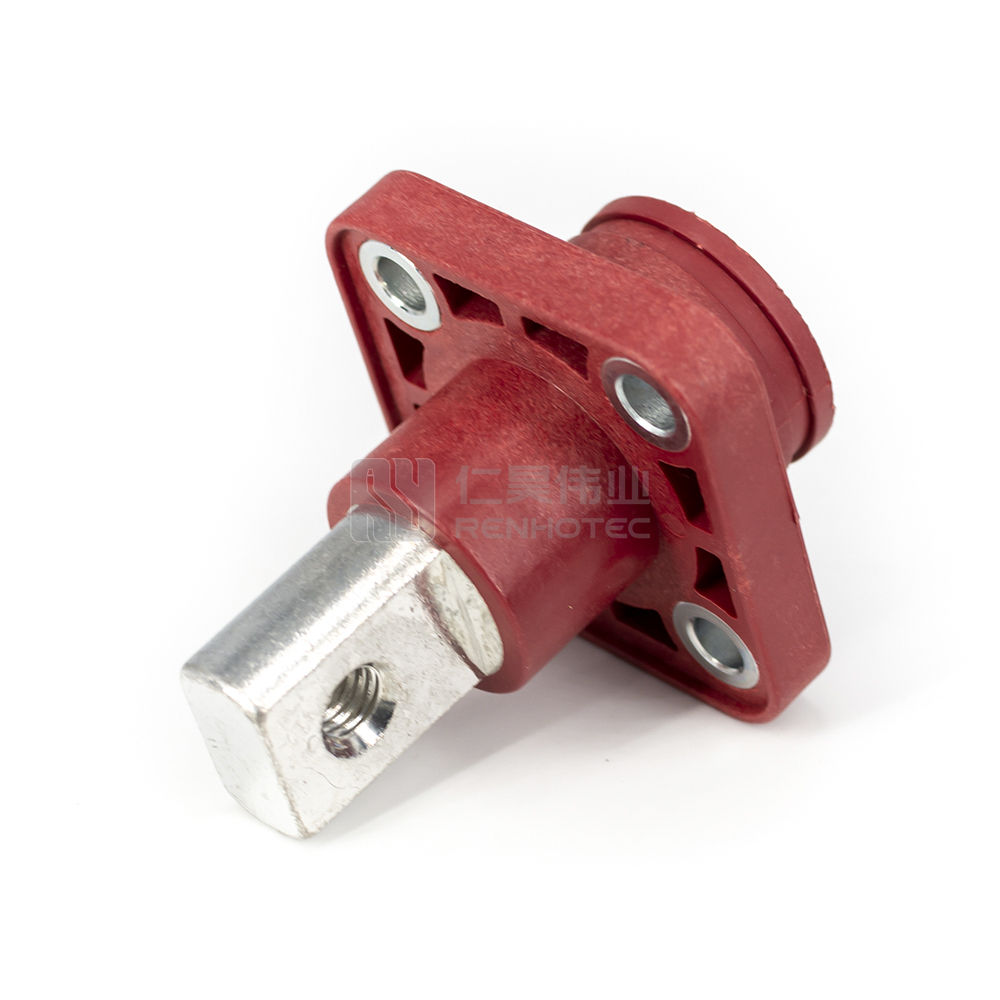

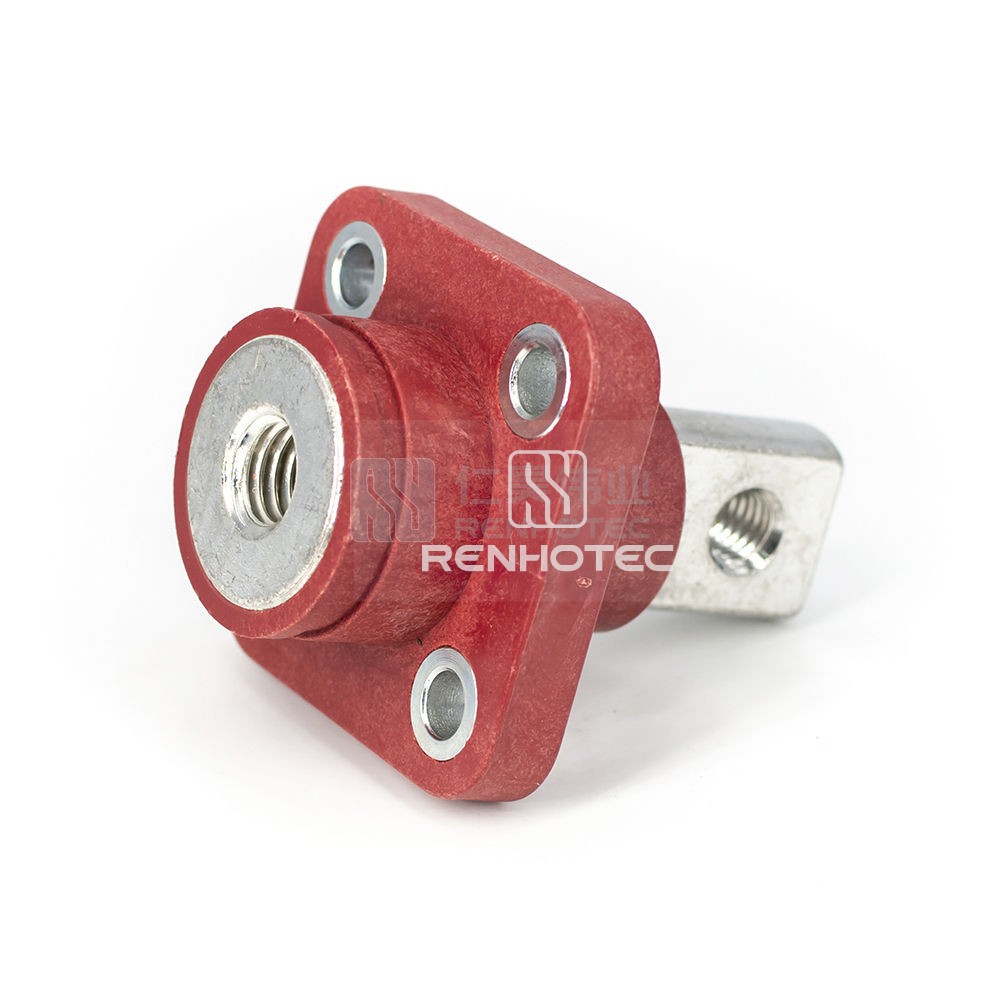

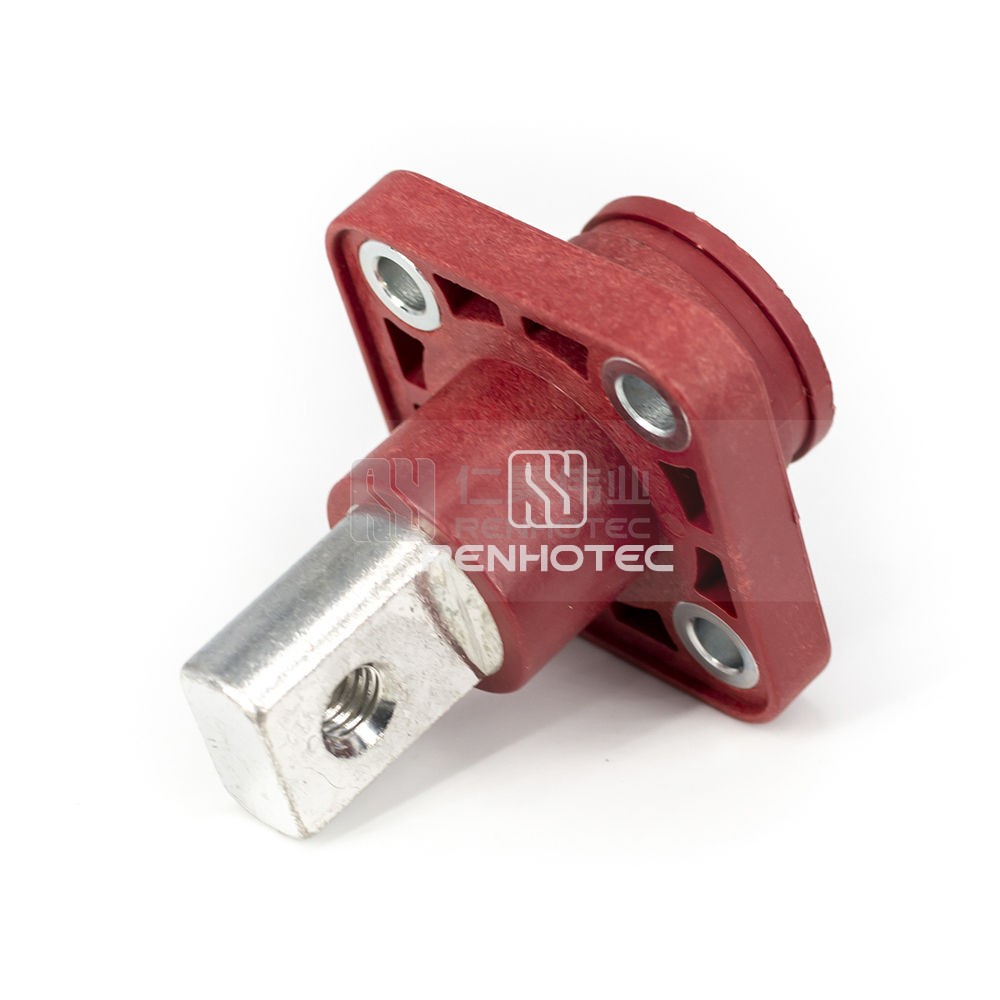

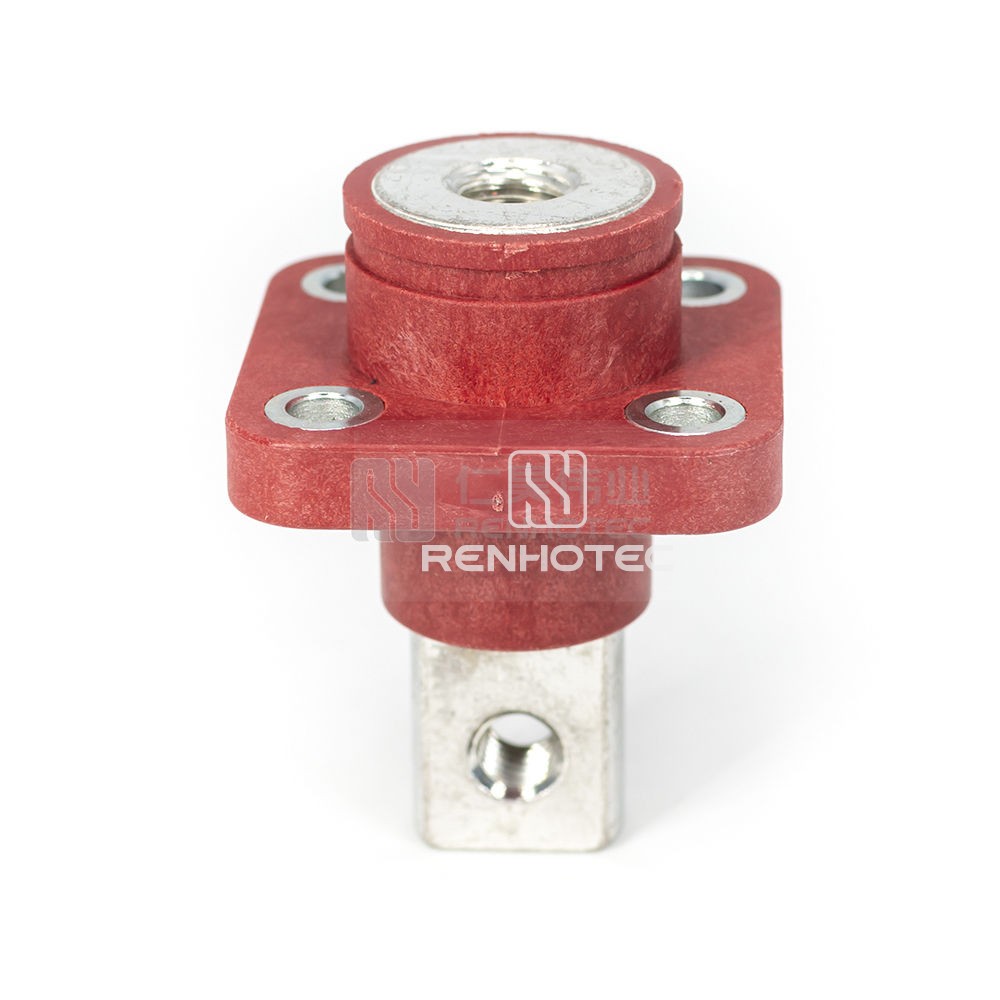

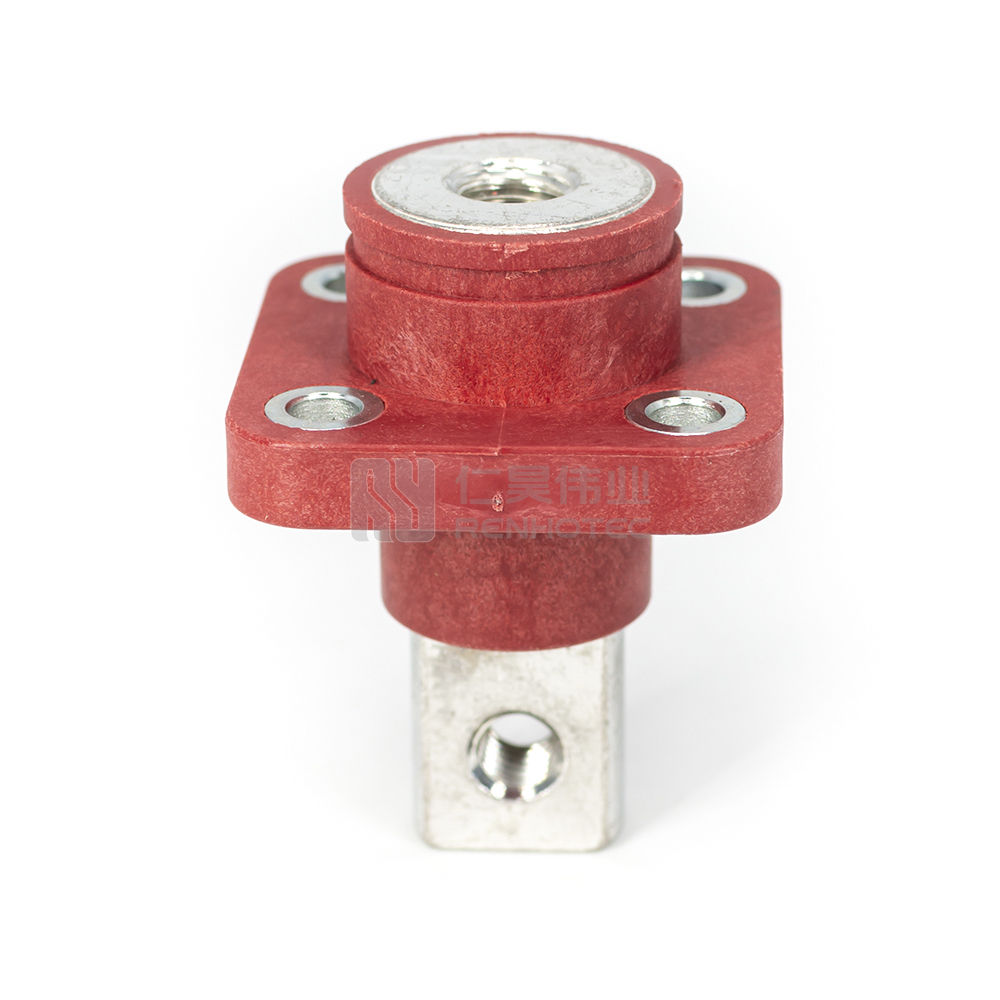

Single Stud Type Junction Blocks 200A Internal Screw (M8) Busbar with M6 Flange Mounting Red

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Enhance your electrical connections with this Single Stud Type Junction Block featuring a 200A capacity and internal screw design. Its M8 busbar with M6 flange mounting in red color ensures secure installations. Ideal for various applications requiring reliable and robust electrical connections.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Body StyleStudded
    Contact TerminationBusbar/Screw
    ColorRed

    Mechanical

    Termination ThreadM8
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Electrical

    Rated Voltage600V
    Rated Current200A

    Material

    Contact MaterialBrass
    Contact FinishTin
    Insulating MaterialPA66

    Environmental

    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
