Products > Terminal Blocks > Single Stud Type Junction Blocks 200A Internal Screw (M8) Busbar with M6 Flange Mounting Red With Cap

IF-FM8M6-3547E-200A-C-R

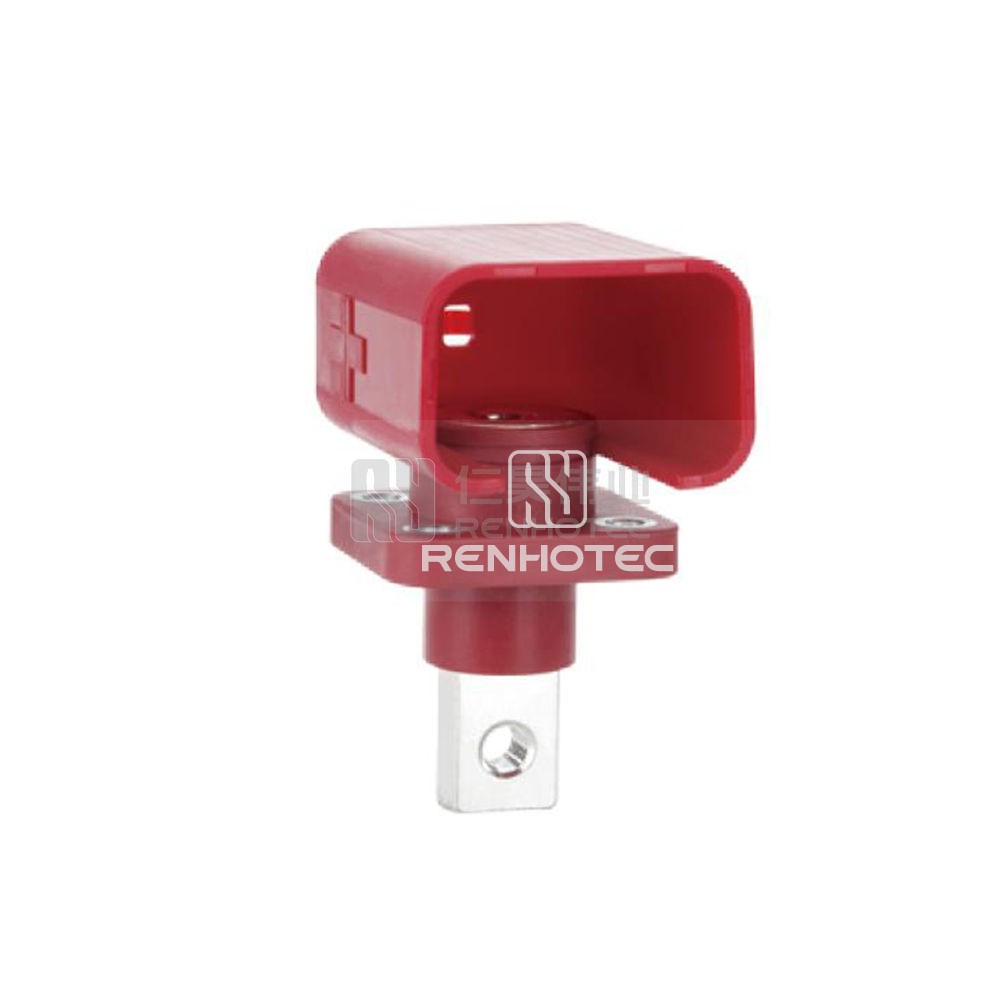

Single Stud Type Junction Blocks 200A Internal Screw (M8) Busbar with M6 Flange Mounting Red With Cap

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    This high-quality Single Stud Type Junction Block features a 200A capacity, internal screw (M8) for secure connections, and M6 Flange Mounting for easy installation. The red color adds visibility, and the included cap provides protection. Ideal for various electrical applications requiring a reliable junction solution.

    1. General
    2. Mechanical
    3. Electrical
    4. Material
    5. Environmental

    General

    Body StyleStudded
    Contact TerminationBusbar/Screw
    ColorRed
    FeaturesWith Cover

    Mechanical

    Termination ThreadM8
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Electrical

    Rated Voltage600V
    Rated Current200A

    Material

    Contact MaterialBrass
    Contact FinishTin
    Insulating MaterialPA66

    Environmental

    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
