Products > RF Cable Assembly > SMA Female Bulkhead to RP-TNC Male RF Cable Assembly with 50 Ohm RG178 Coax
R02-S01-10092-50

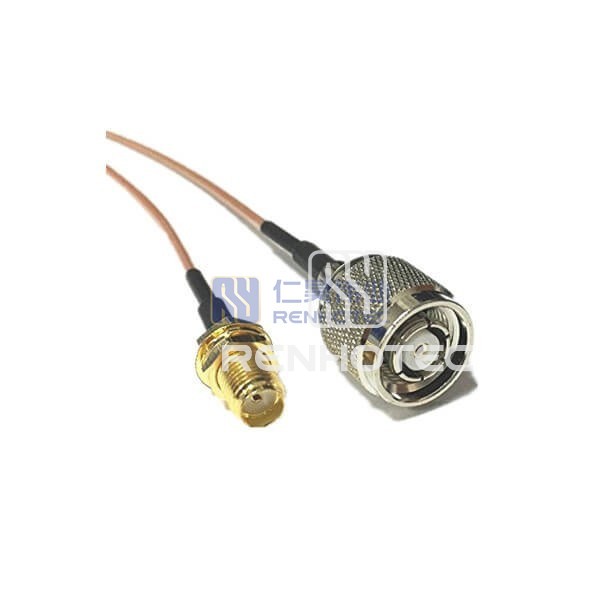

SMA Female Bulkhead to RP-TNC Male RF Cable Assembly with 50 Ohm RG178 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality SMA Female Bulkhead to RP-TNC Male RF Cable Assembly with 50 Ohm RG178 Coax. Ideal for reliable RF signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | SMA to TNC |
| 1st Connector Series | SMA Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | TNC Plug |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Mechanical | |
|---|---|
| Suitable Cable | RG178 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
