Products > RF Cable Assembly > SMA Female Flange to IPEX Female Cable Assembly with 50Ohm 1.13 Cable
R02-S01-10009-20

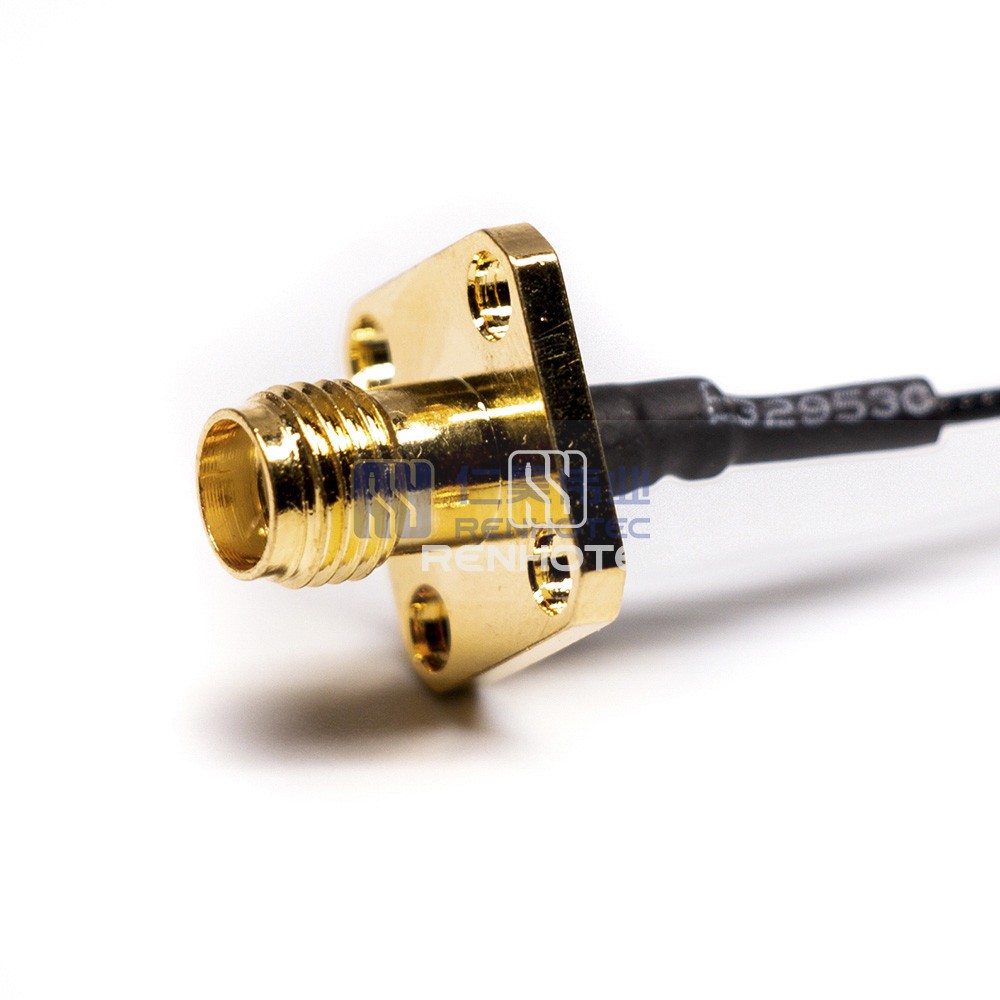

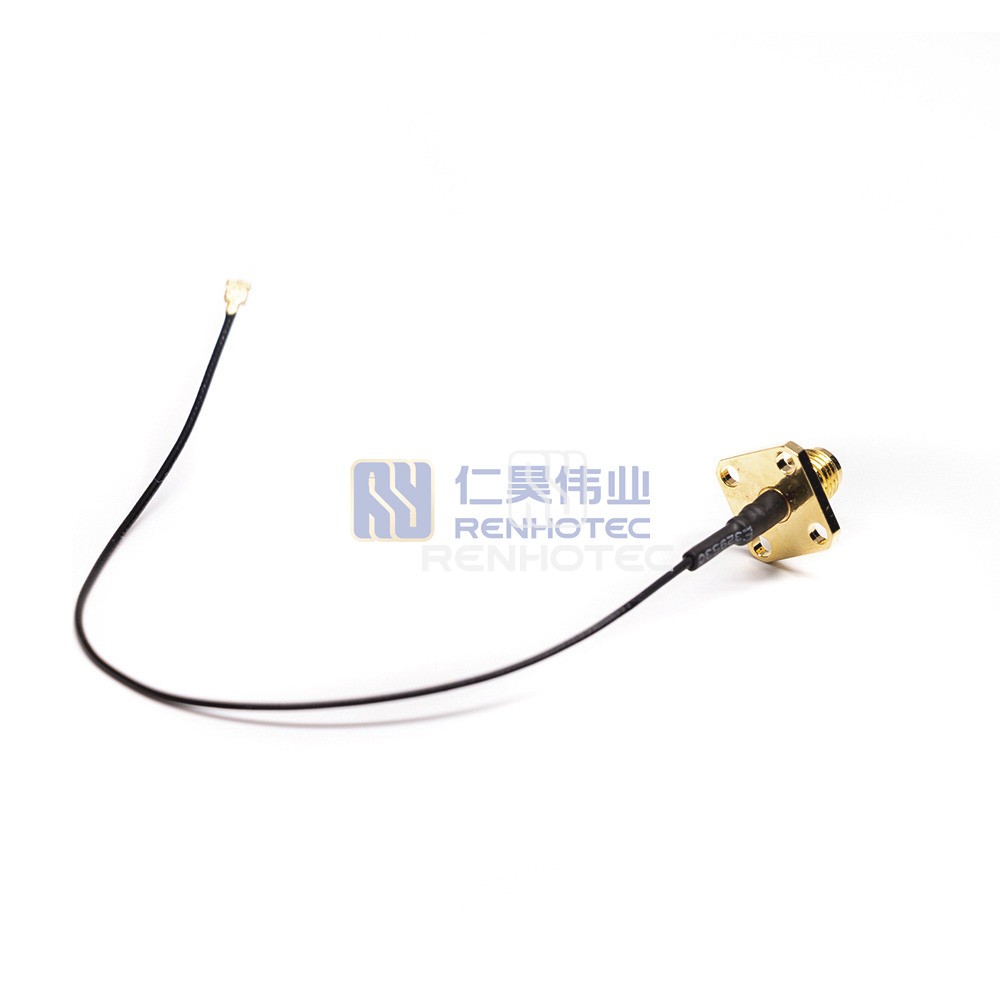

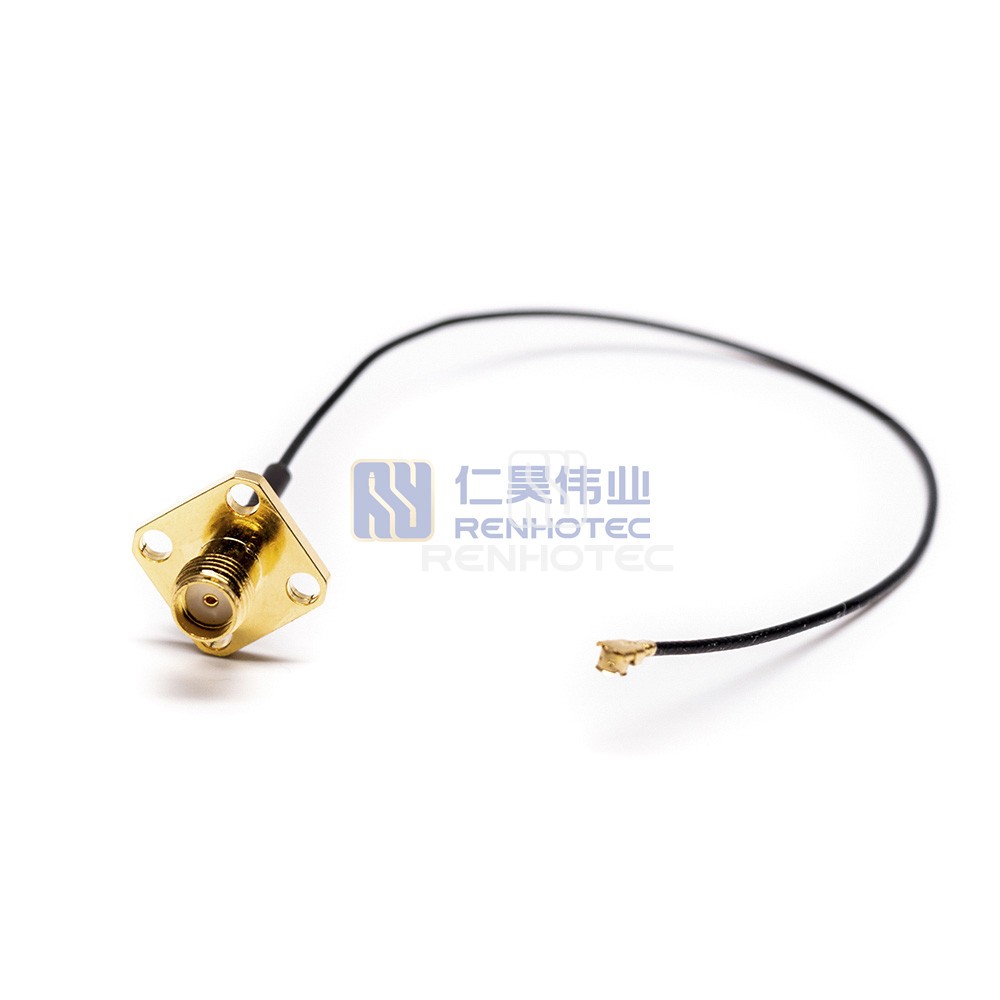

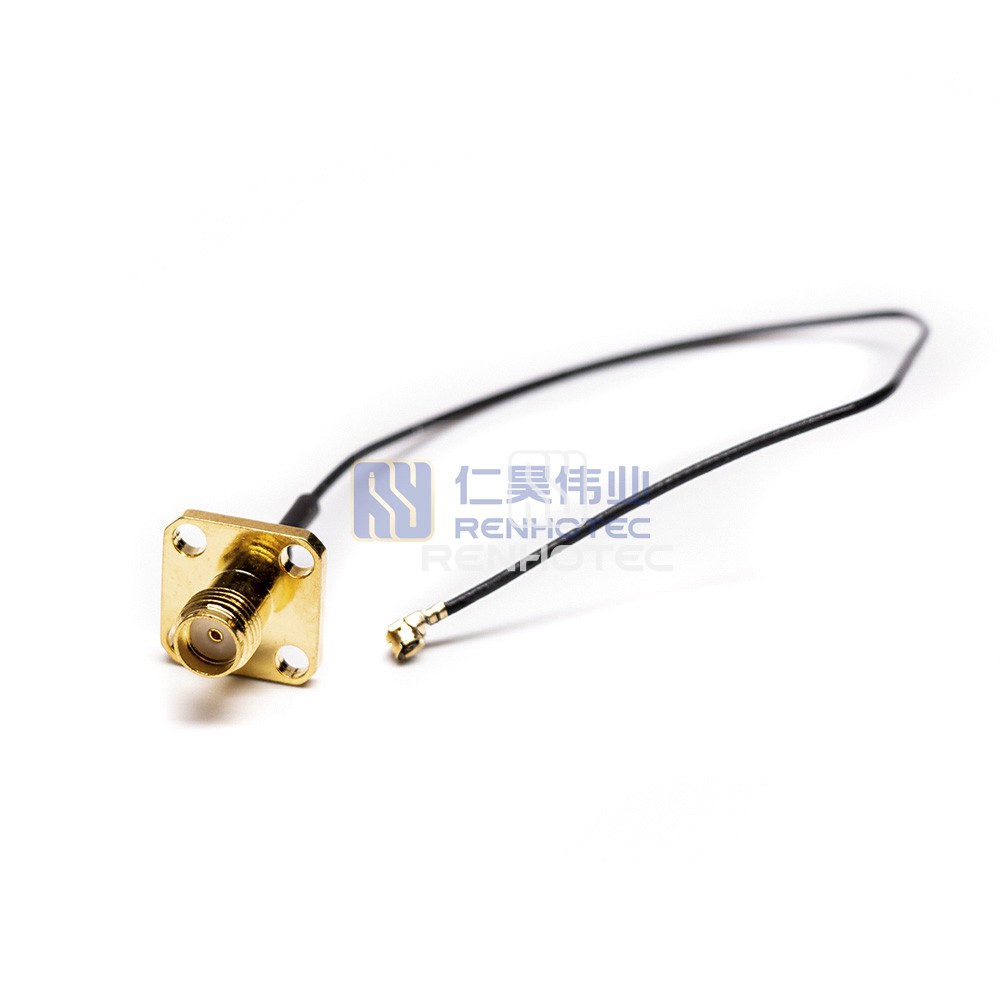

SMA Female Flange to IPEX Female Cable Assembly with 50Ohm 1.13 Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality SMA Female Flange to IPEX Female Cable Assembly with 50Ohm 1.13 Cable for reliable and efficient connectivity. Suitable for various applications. SKU: R02-S01-10009-20.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | SMA to IPEX |
| 1st Connector Series | SMA Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | IPEX Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Right Angle |
| Features | Flange |
| Mechanical | |
|---|---|
| Suitable Cable | 1.13 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
