SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm - R02-S01-10109-20
SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm - R02-S01-10109-20

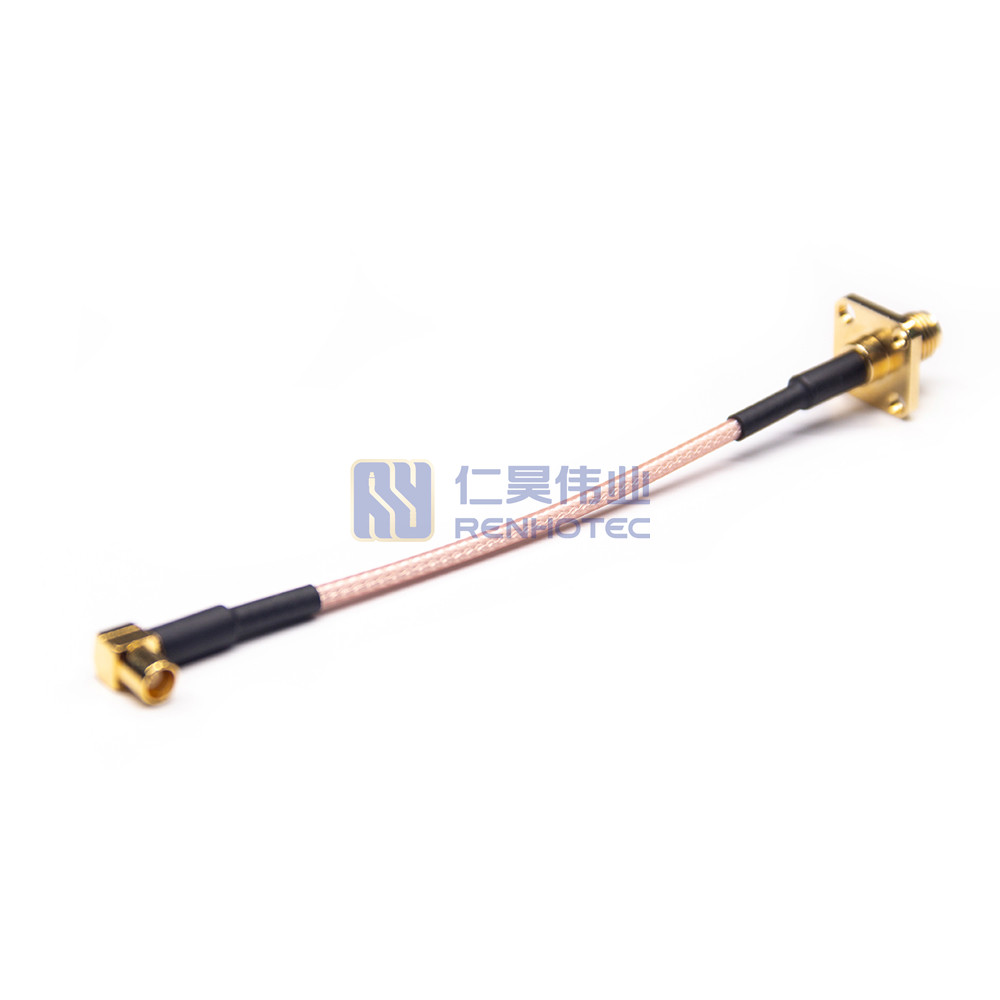

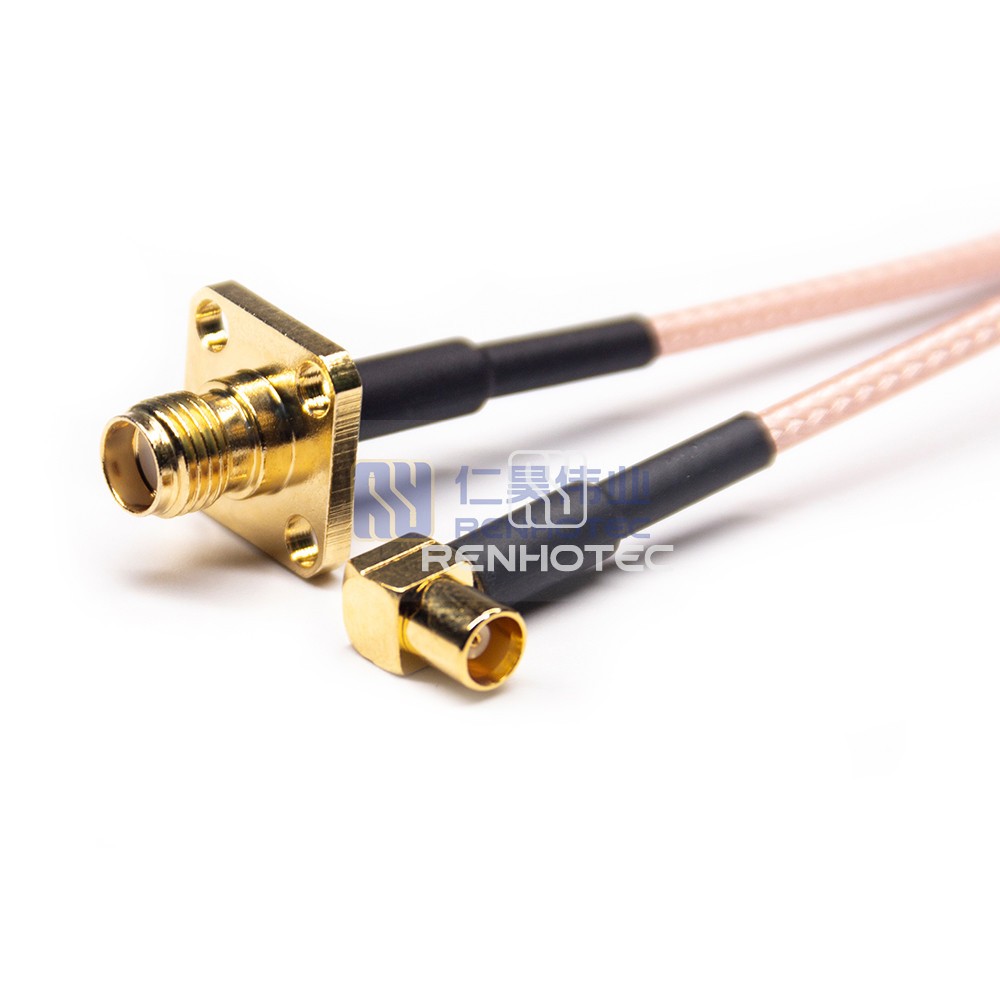

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

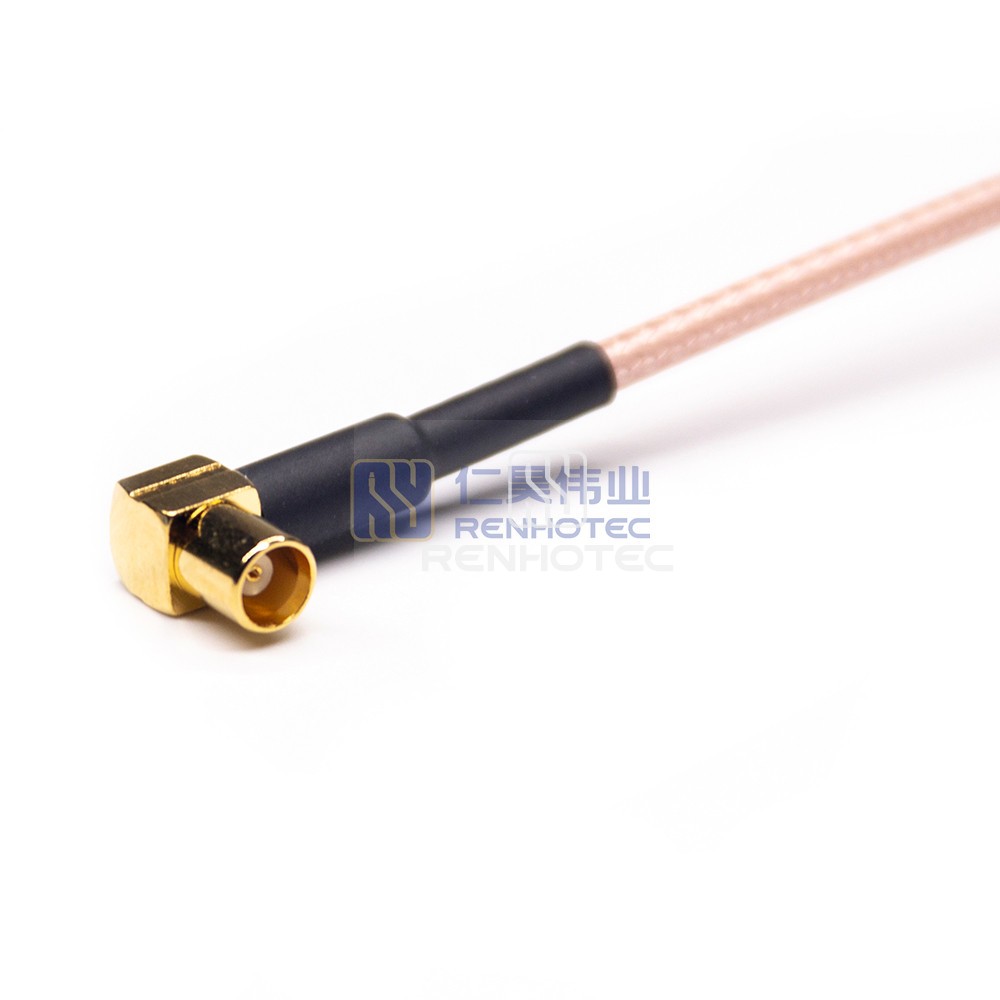

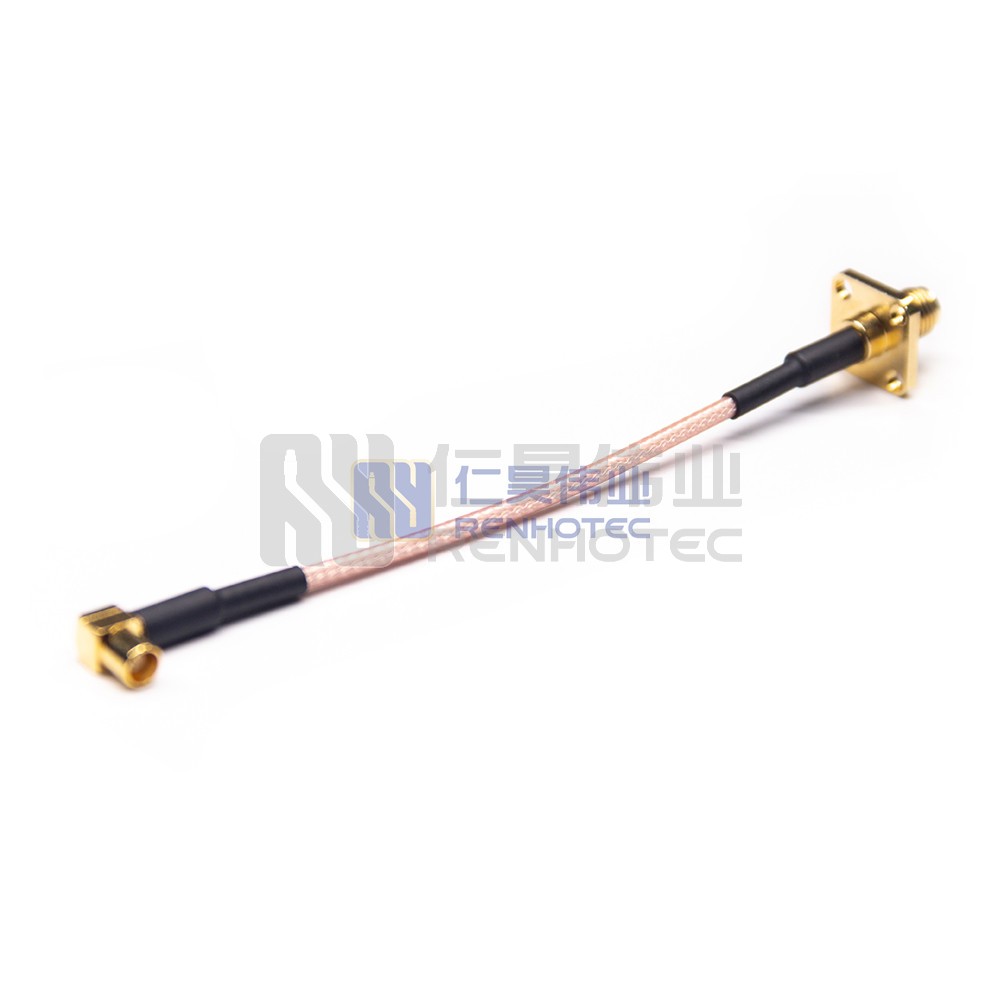

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

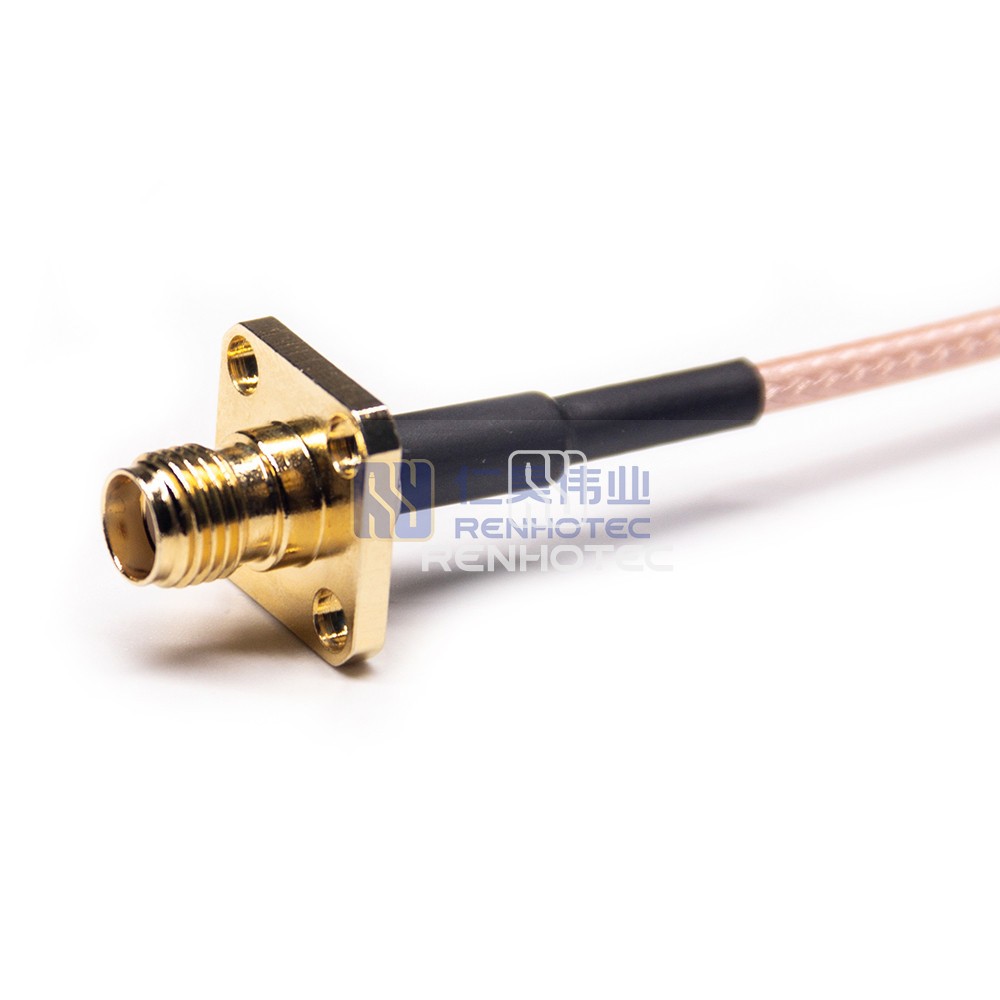

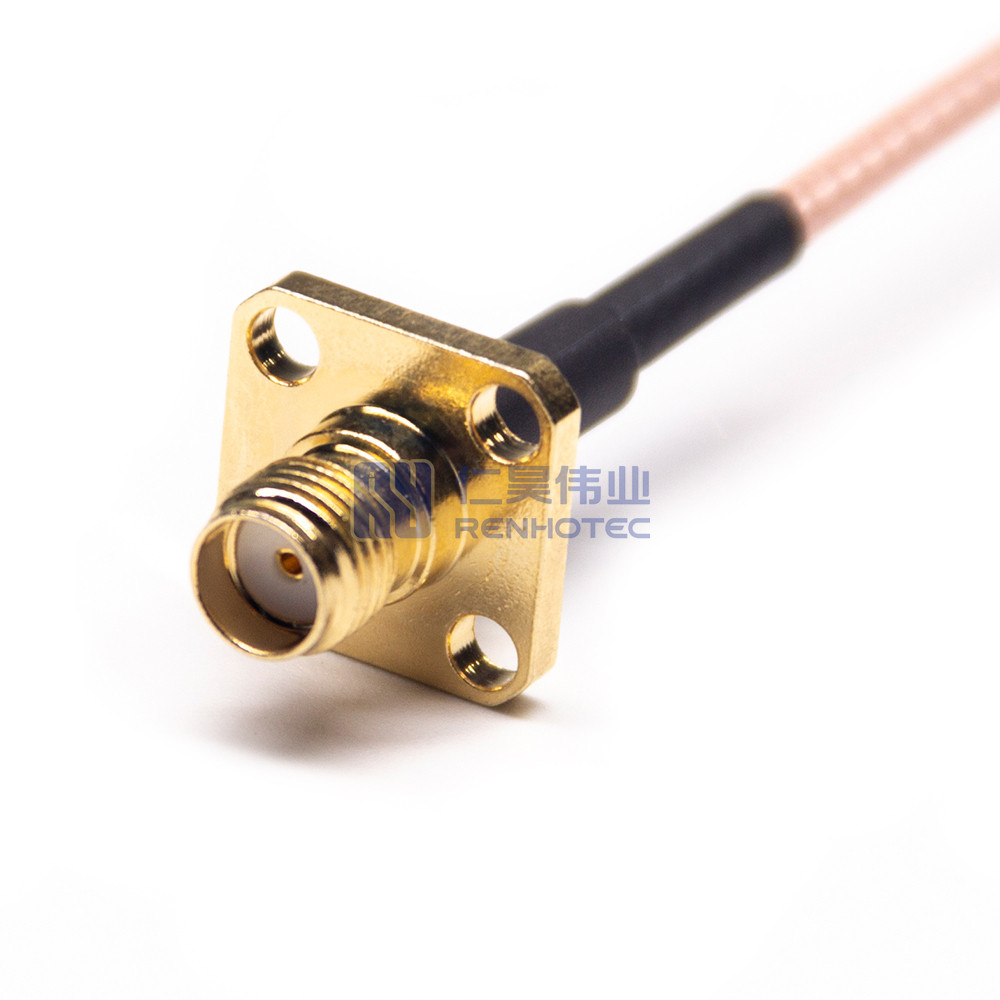

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

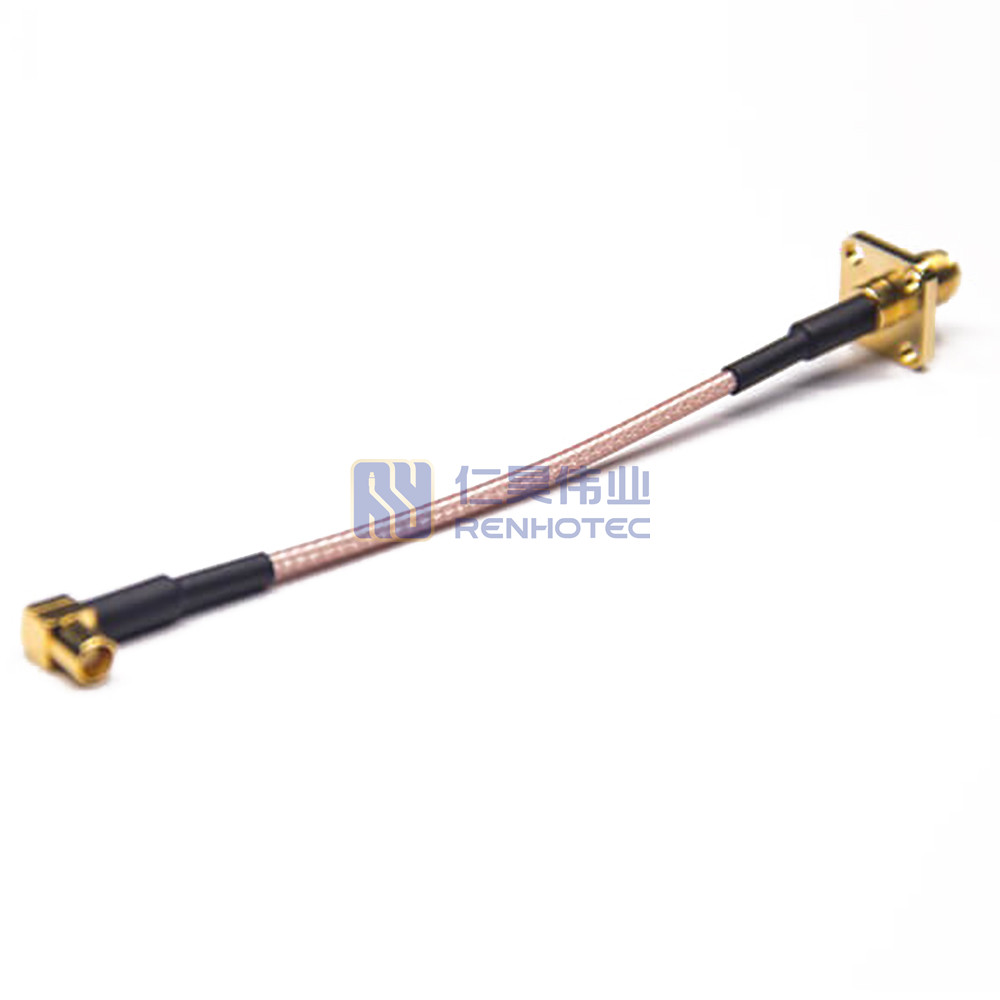

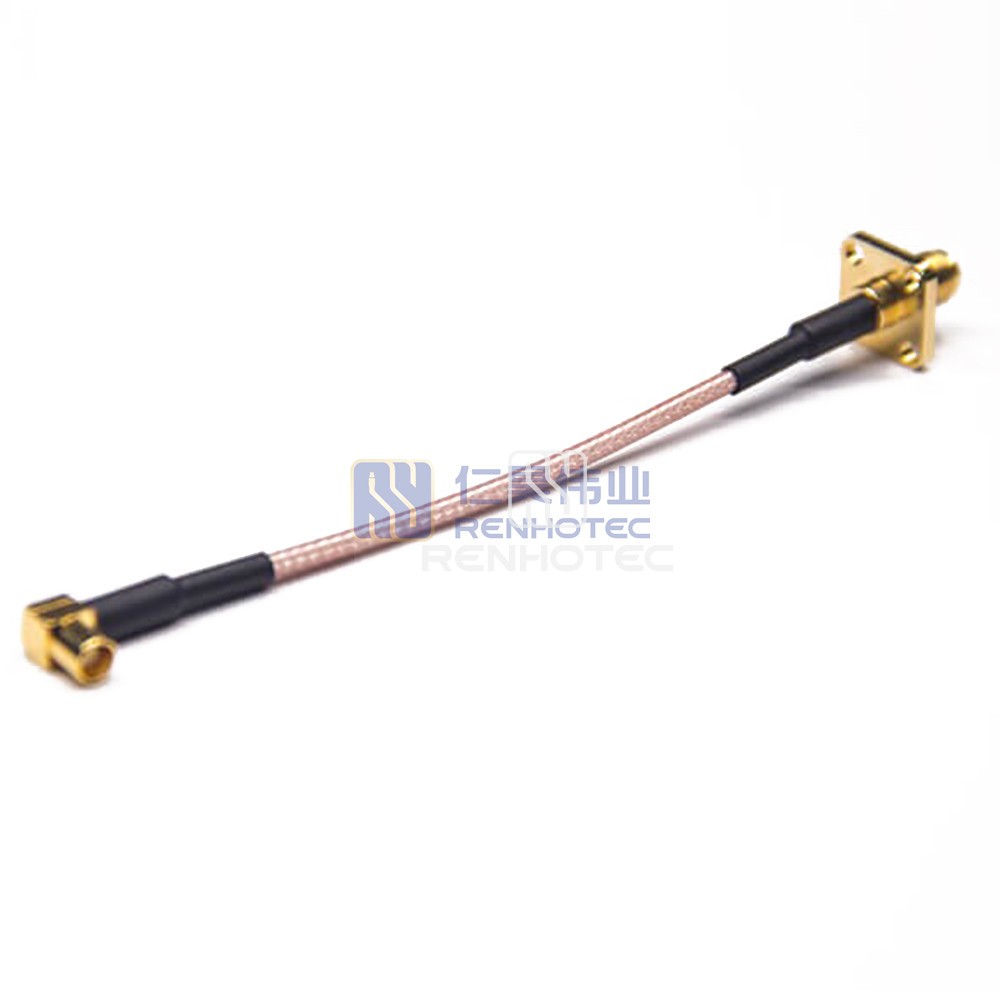

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

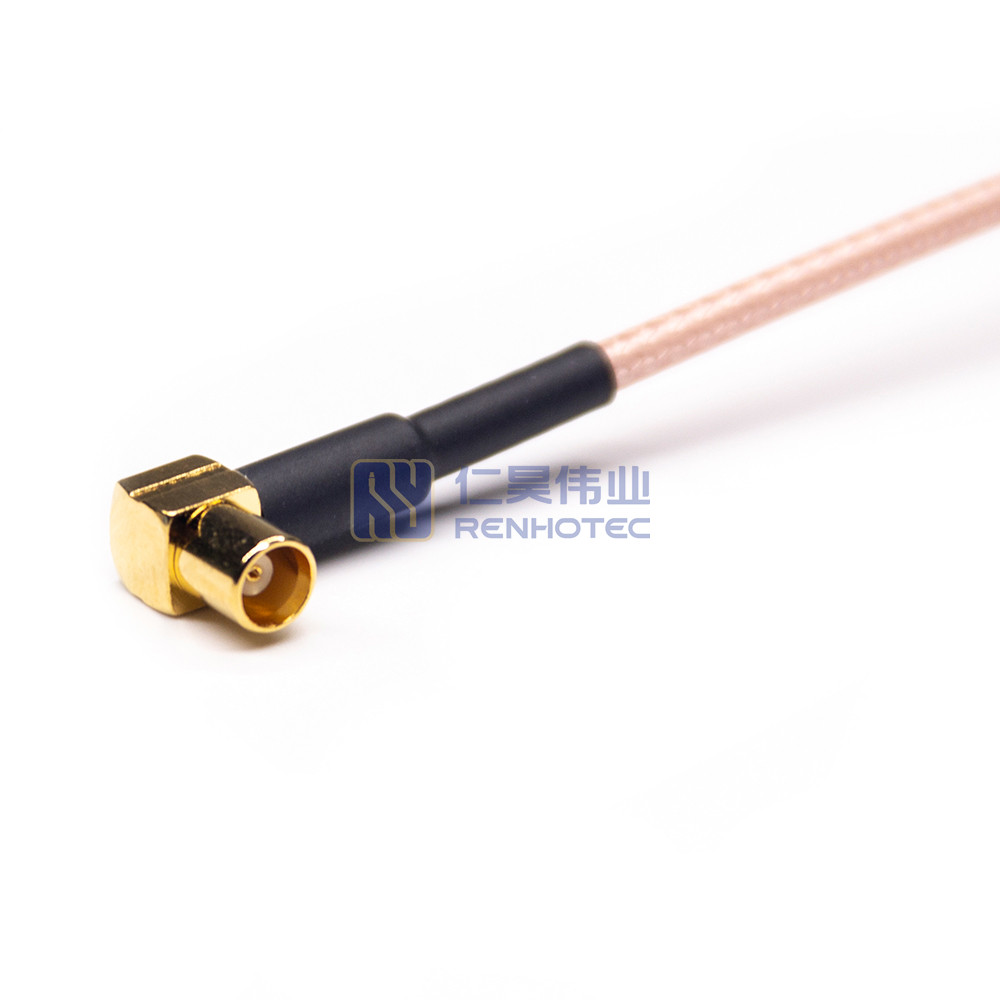

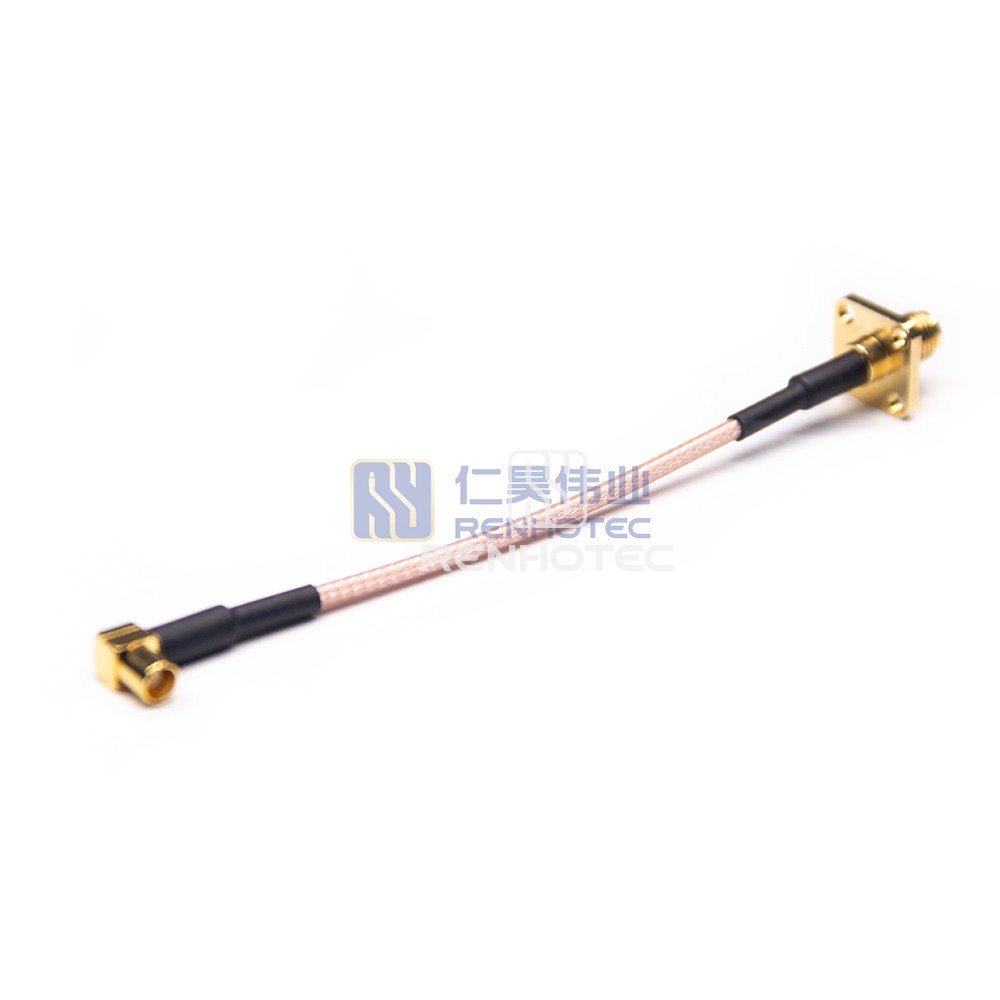

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

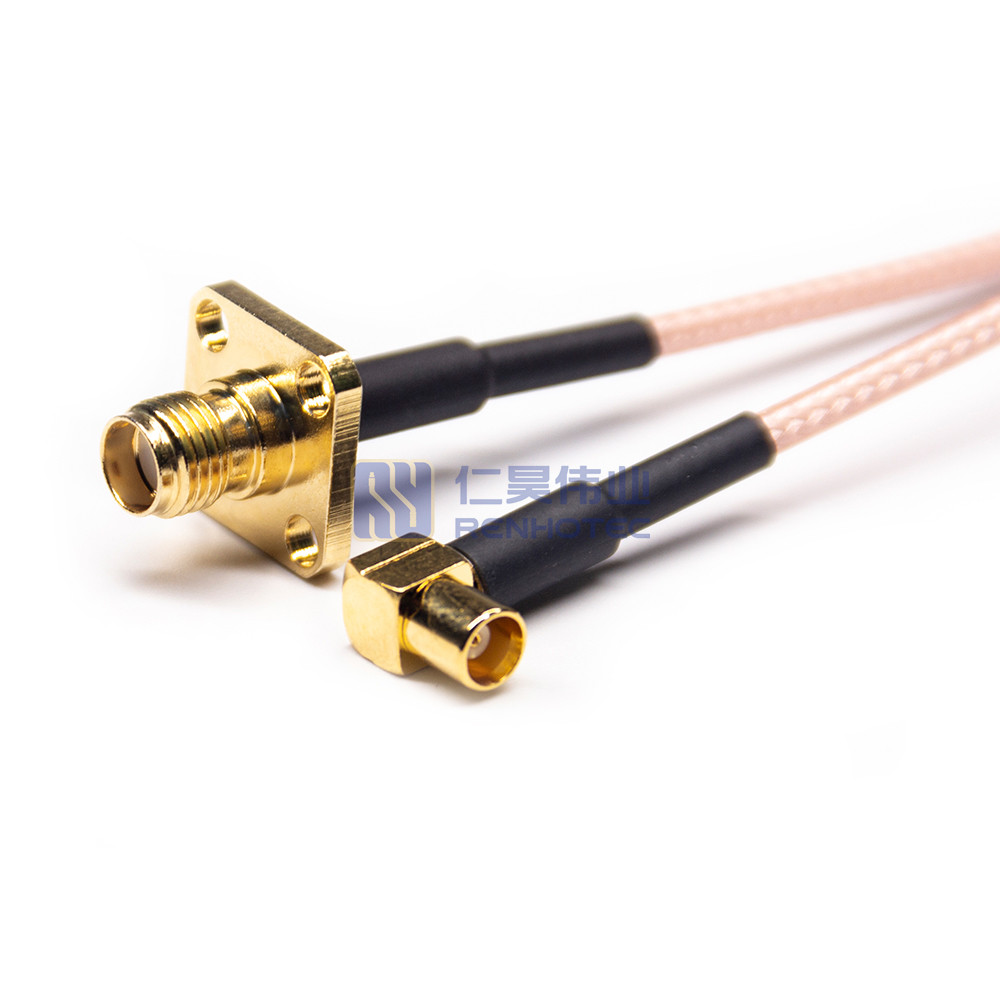

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

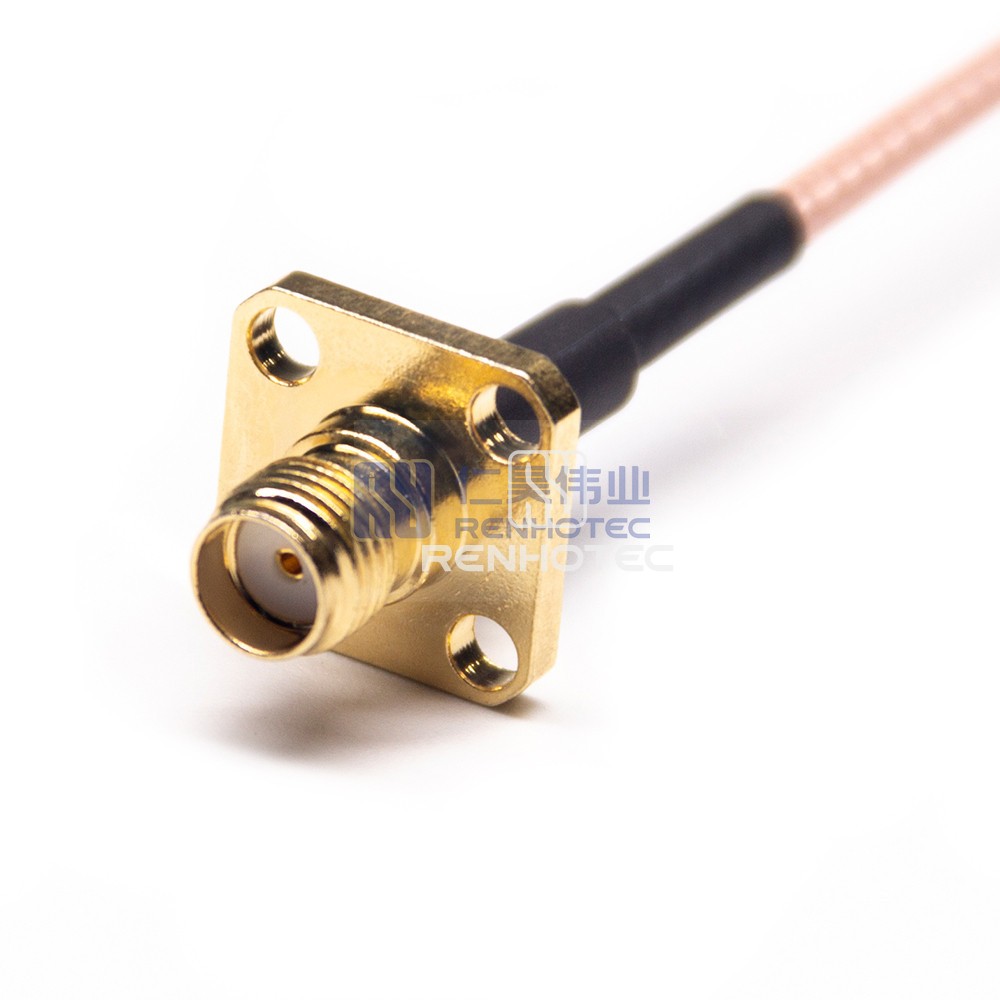

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

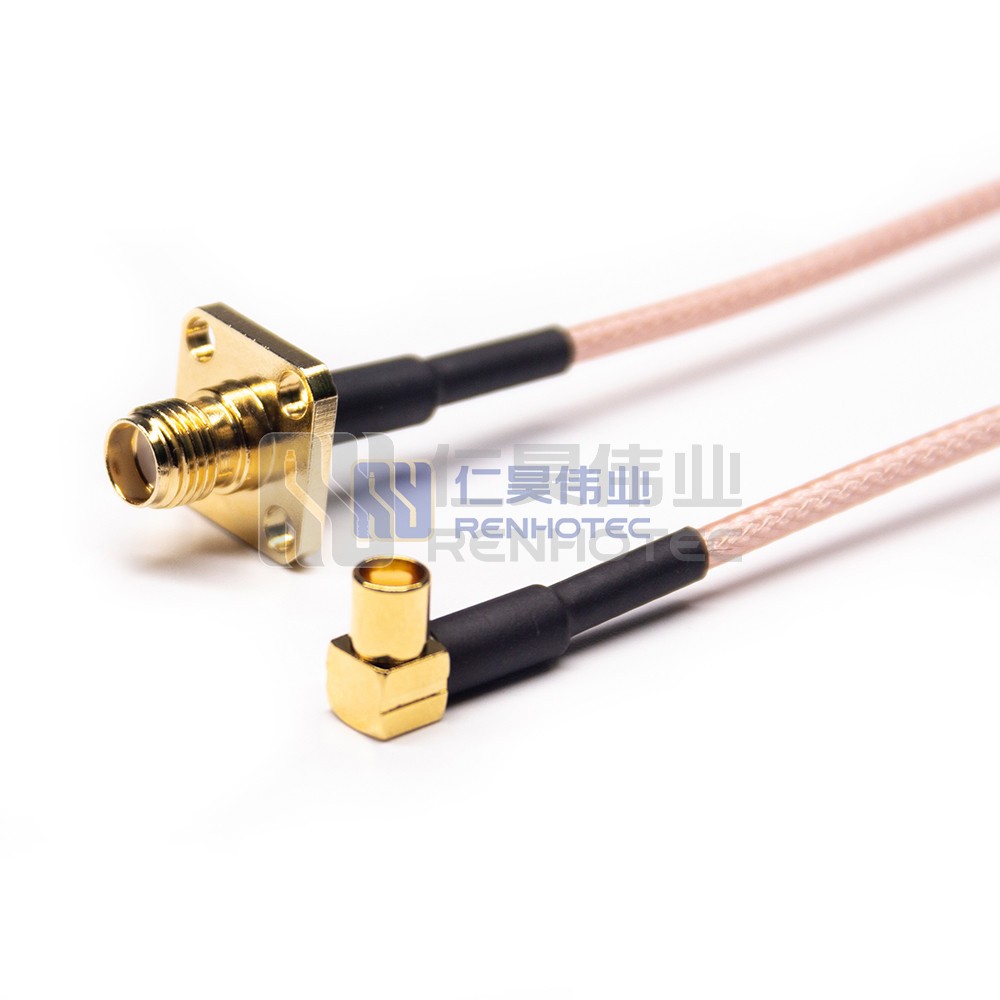

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm product image

R02-S01-10109-20

SMA Jack to Right Angle MCX Jack RF Cable Assemblies RG316 Cable 50ohm

  • Technical data
  • Overview
  • Certification
  • Download
General
1st Connector SeriesSMA Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Jack
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
Suitable CableRG316
Electrical
Impedance50 Ohms
Frequency Range0-6Ghz
Environmental
Operating Temperature-40°C ~ + 85°C

Product excerpt

High-quality SMA Jack to Right Angle MCX Jack RF Cable Assemblies with RG316 Cable, designed for optimal signal transmission. Impedance of 50ohm. Ideal for various RF applications.
