Products > RF Cable Assembly > SMA Male Right Angle to Bulkhead Waterproof N Female Pigtail Cable Assembly with 50 Ohm RG316 Coax
R02-S01-10060-30
SMA Male Right Angle to Bulkhead Waterproof N Female Pigtail Cable Assembly with 50 Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt

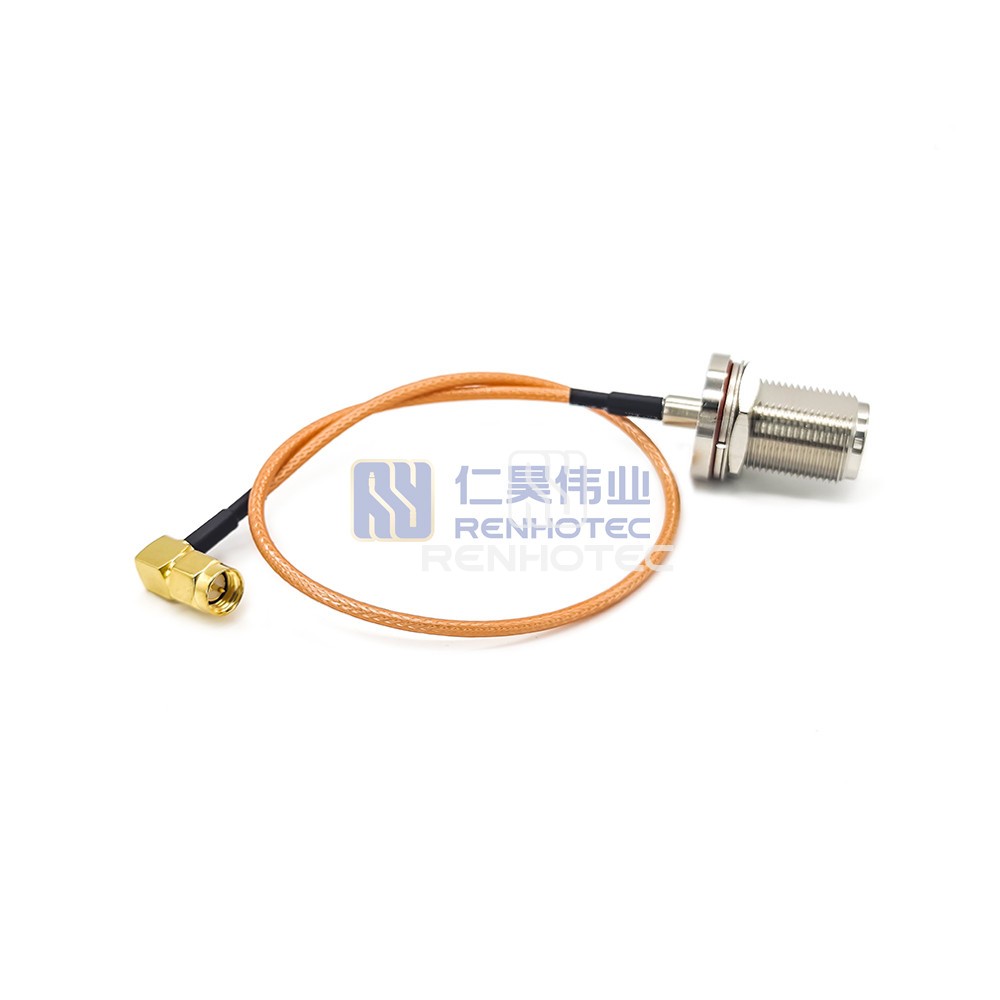

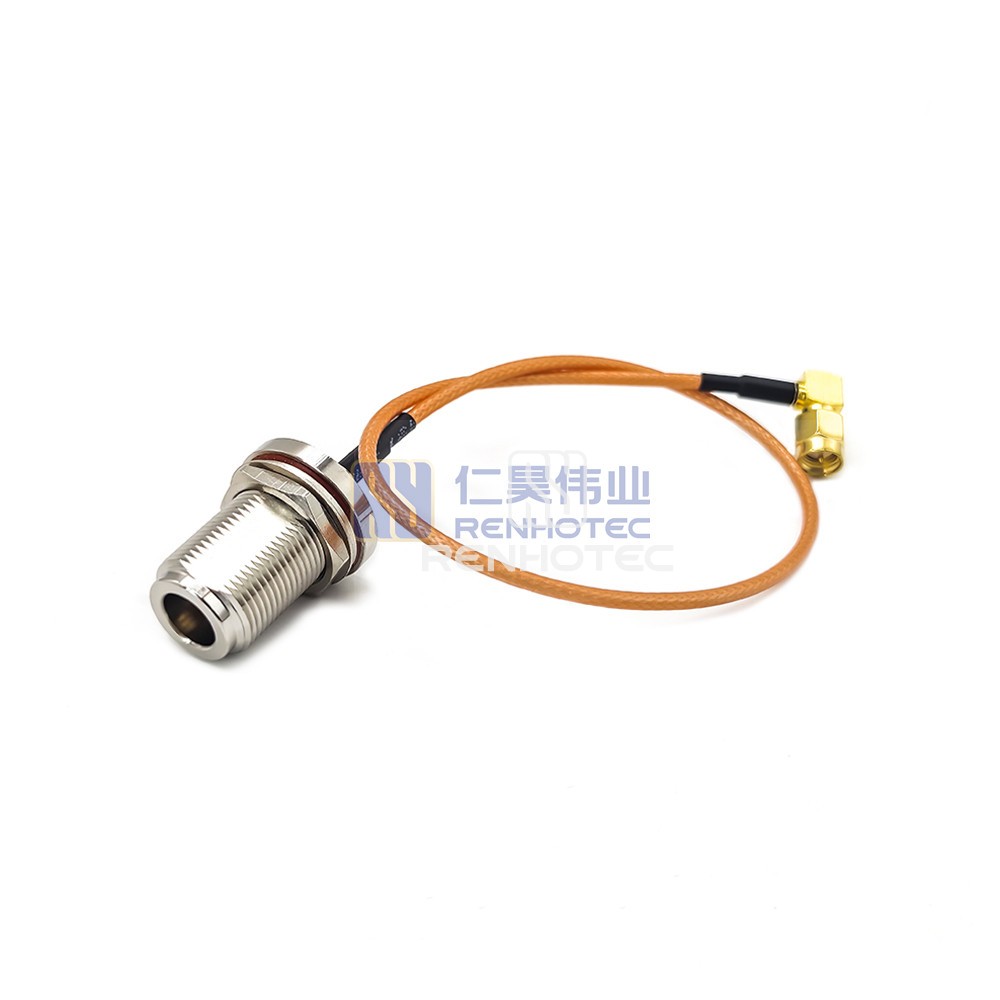

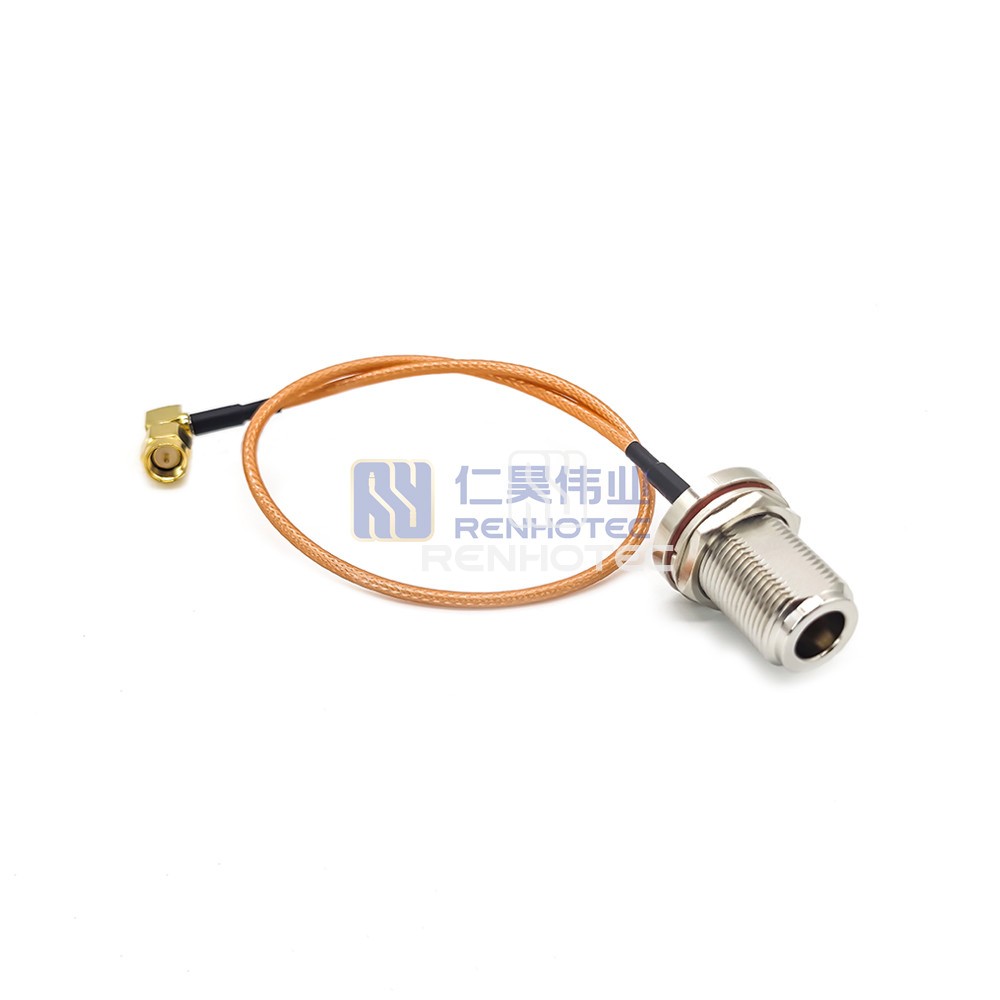

High-quality SMA Male Right Angle to Bulkhead Waterproof N Female Pigtail Cable Assembly made with 50 Ohm RG316 Coax. Ideal for reliable RF connections in demanding environments.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | SMA to N |

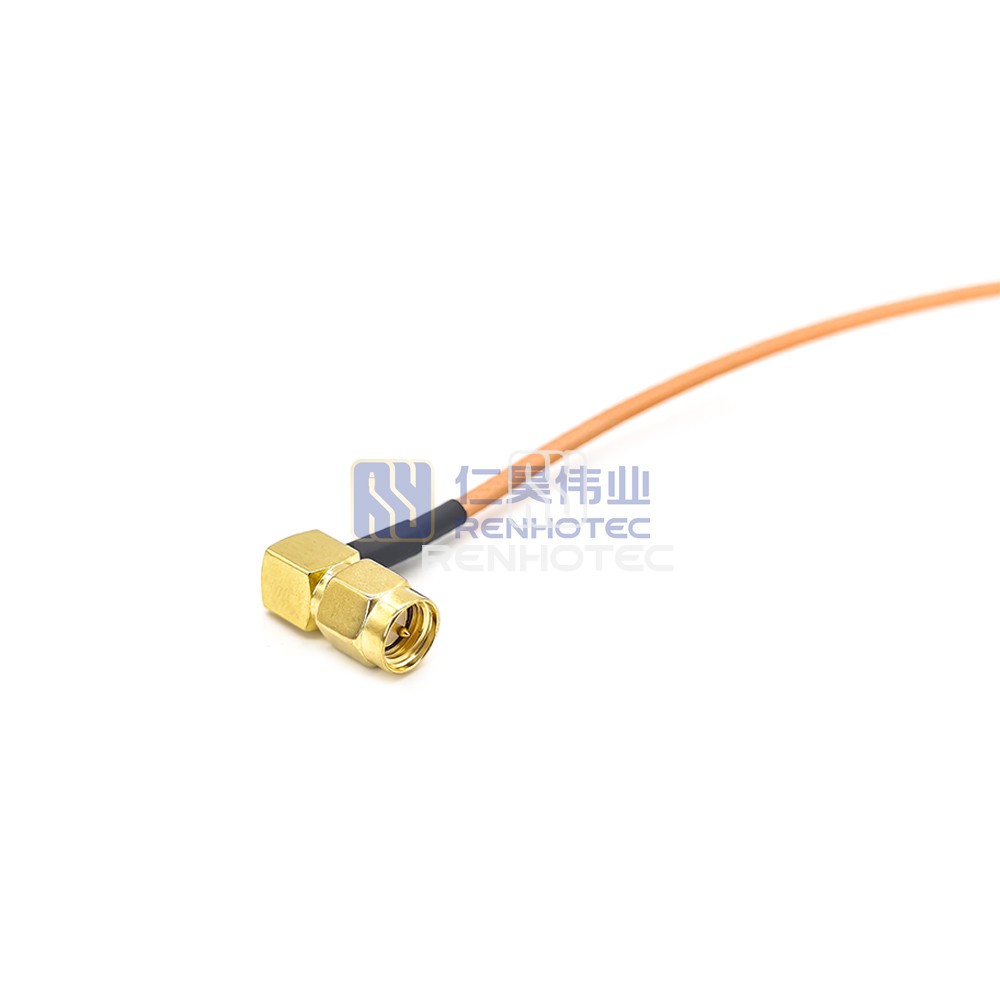

| 1st Connector Series | SMA Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Right Angle |

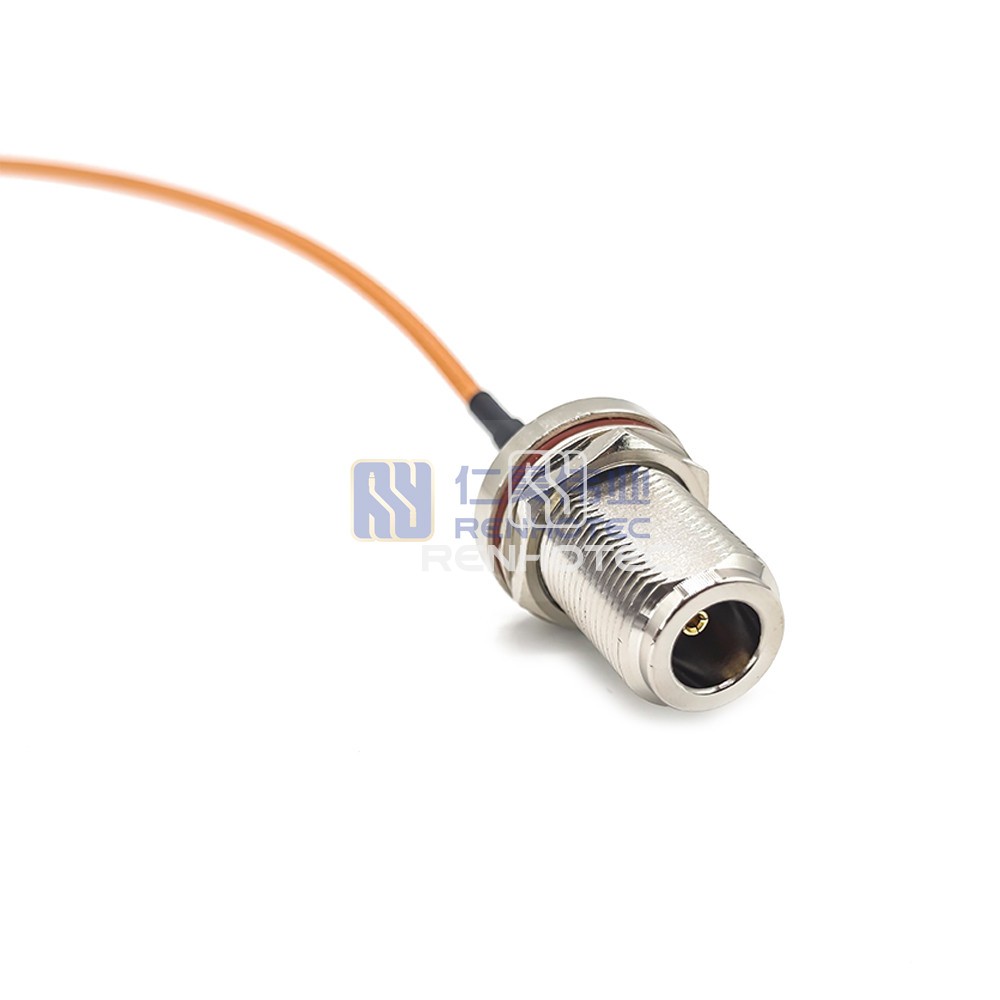

| 2nd Connector Series | N Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Features | Waterproof |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
