Products > RF Cable Assembly > SMA Male Right Angle to SMA Female Flange Cable Assembly with 50Ohm RG316 Cable

R02-S01-10093-100

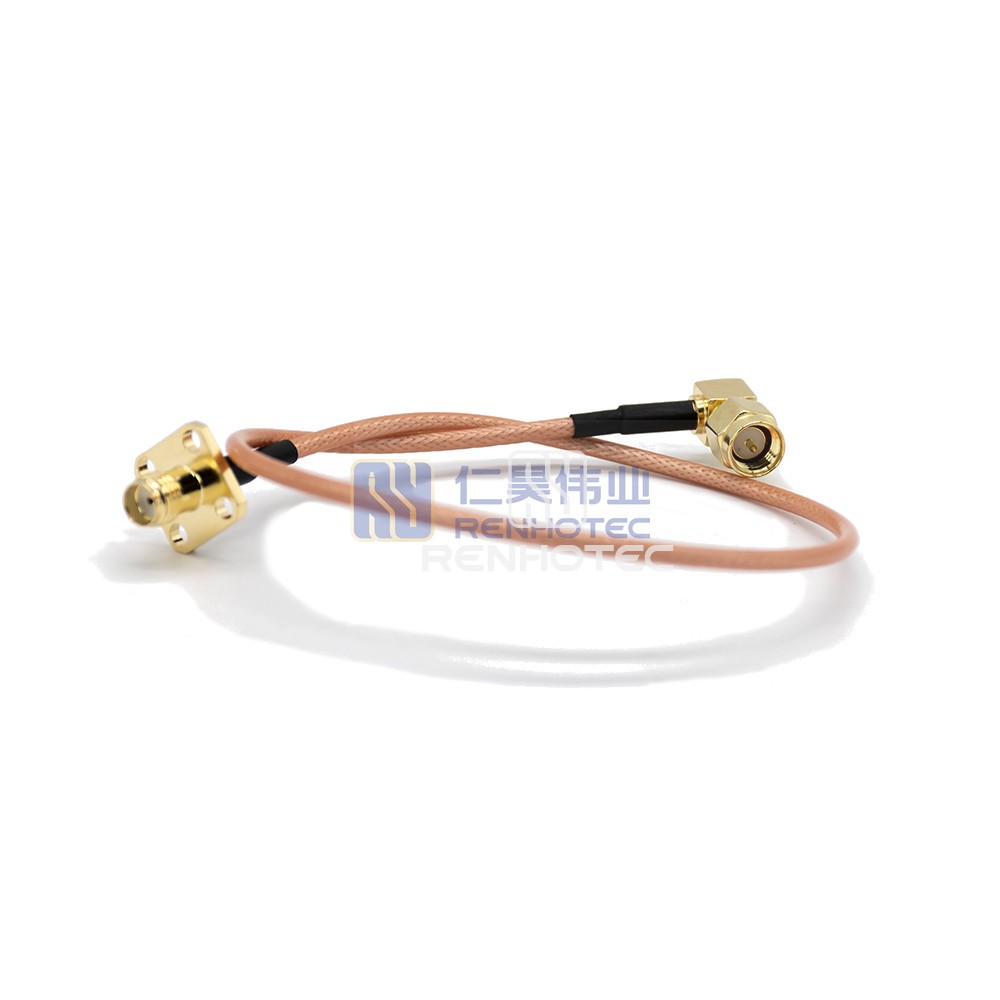

SMA Male Right Angle to SMA Female Flange Cable Assembly with 50Ohm RG316 Cable

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Connect your SMA male device to an SMA female flange with this high-quality 50Ohm RG316 cable assembly. The right angle design provides flexibility and convenience in your connection setup.

    1. General
    2. Mechanical
    3. Electrical
    4. Environmental

    General

    Conversion StyleSMA to SMA
    1st Connector SeriesSMA Plug
    1st Contact TypeMale Pin
    1st Connector OrientationRight Angle
    2nd Connector SeriesSMA Jack
    2nd Contact TypeFemale Pin
    2nd Connector OrientationStraight
    FeaturesFlange

    Mechanical

    Suitable CableRG316

    Electrical

    Impedance50 Ohms
    Frequency Range0-6Ghz

    Environmental

    Operating Temperature-40°C ~ + 85°C
