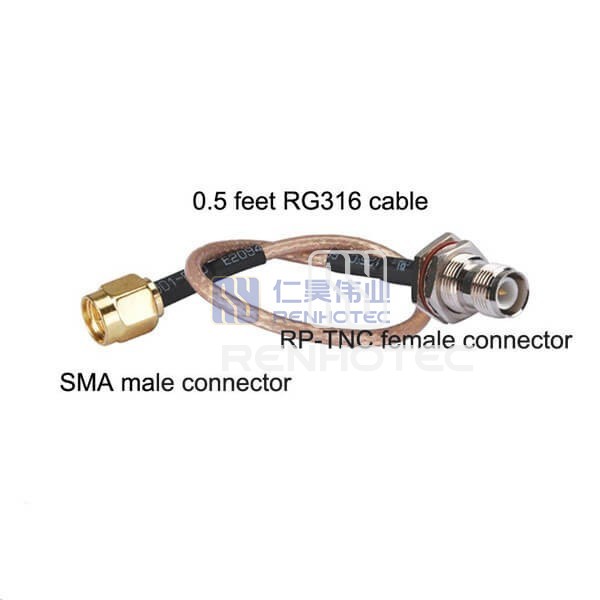

Products > RF Cable Assembly > SMA Male to RP-TNC Female Bulkhead RF Cable Assembly with 50 Ohm RG316 Coax
R02-S01-10064-15
SMA Male to RP-TNC Female Bulkhead RF Cable Assembly with 50 Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
Connect your devices with ease using the SMA Male to RP-TNC Female Bulkhead RF Cable Assembly. This 50 Ohm RG316 Coax cable ensures reliable and high-quality connectivity for your RF applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | SMA to TNC |

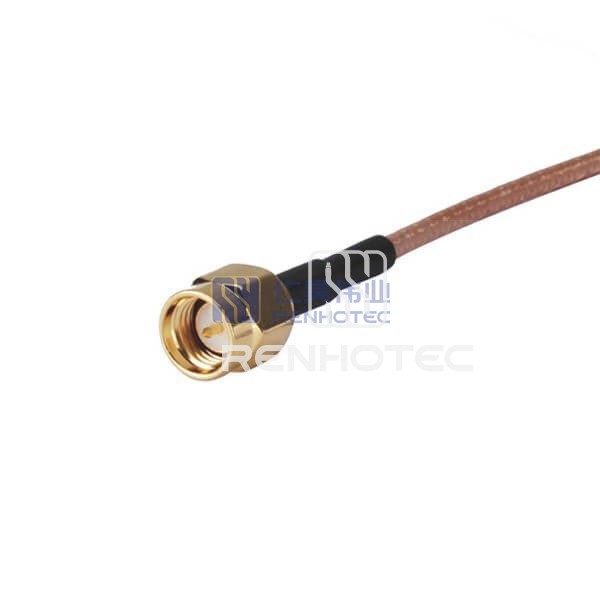

| 1st Connector Series | SMA Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |

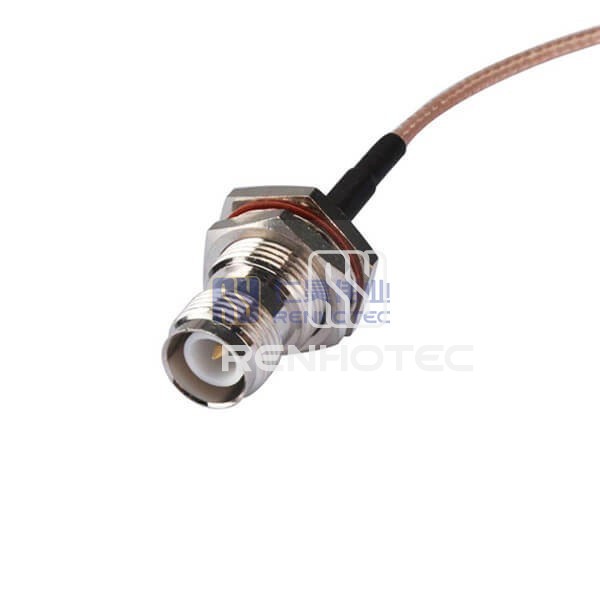

| 2nd Connector Series | TNC Jack |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Straight |
| Features | Waterproof |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
