R02-S01-10085-20

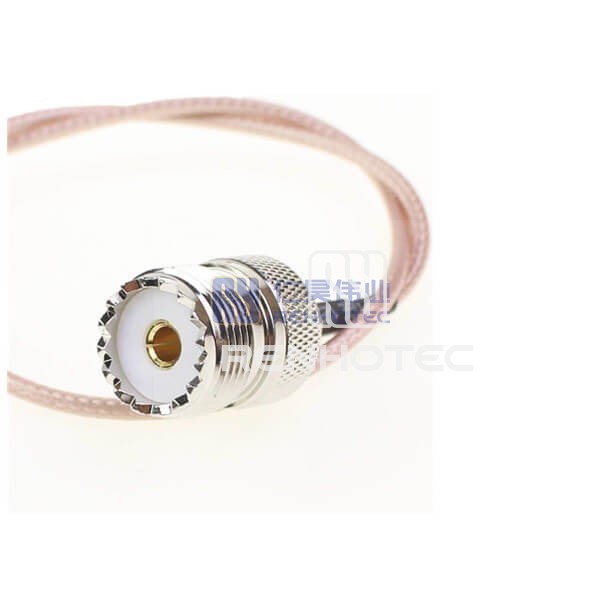

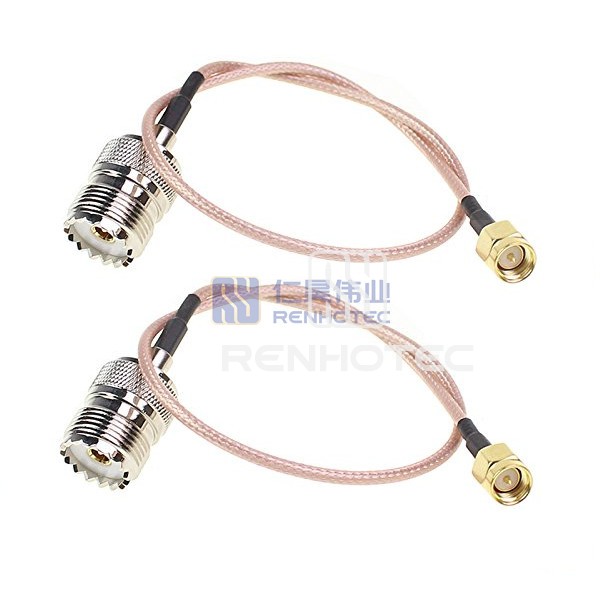

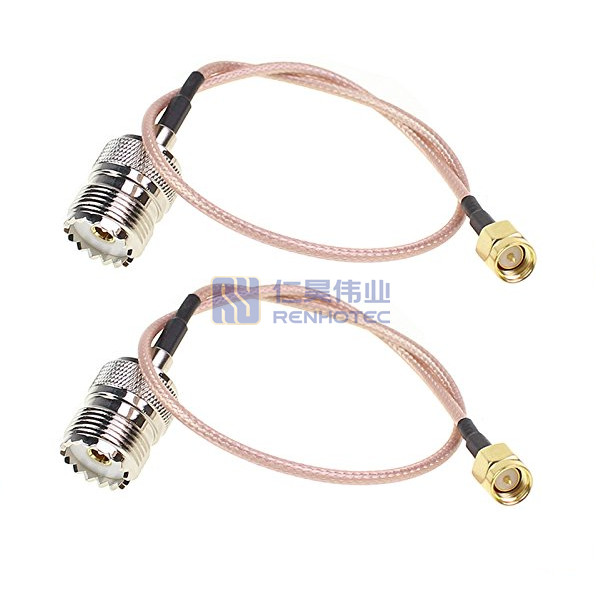

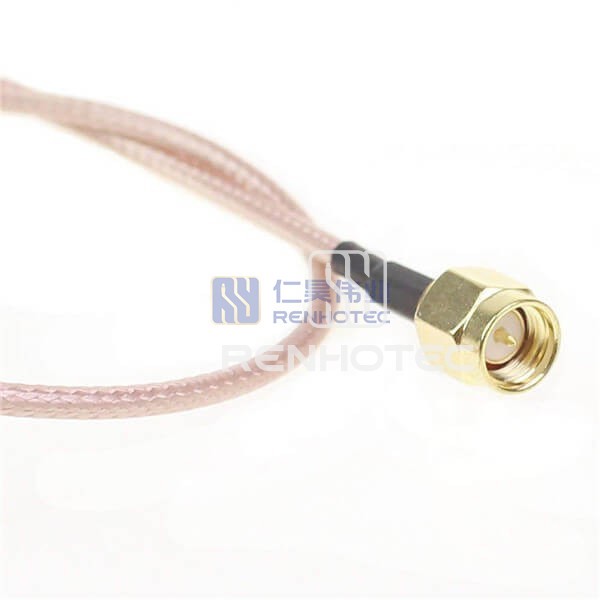

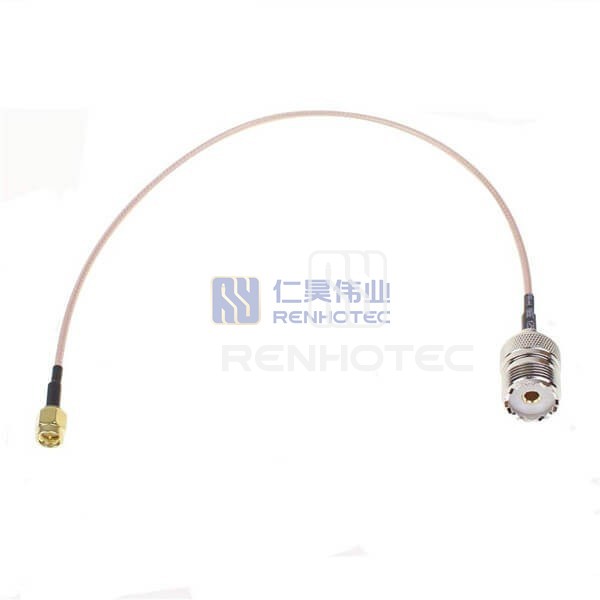

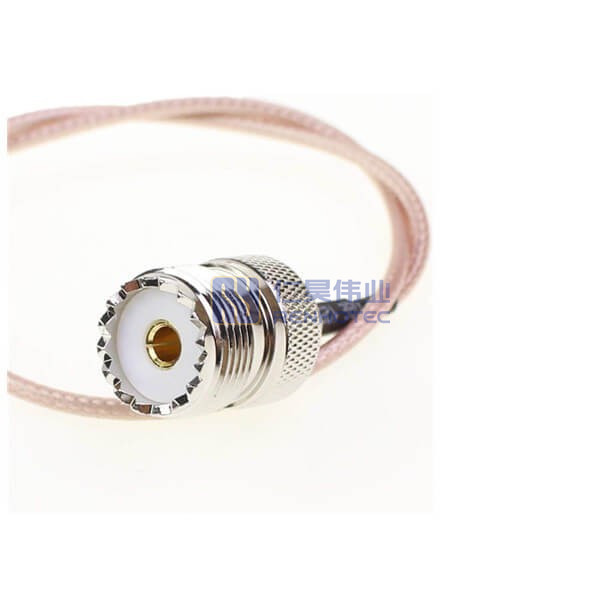

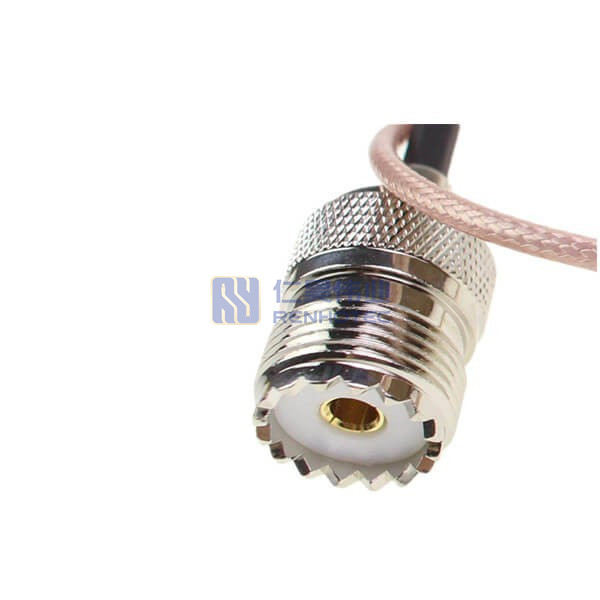

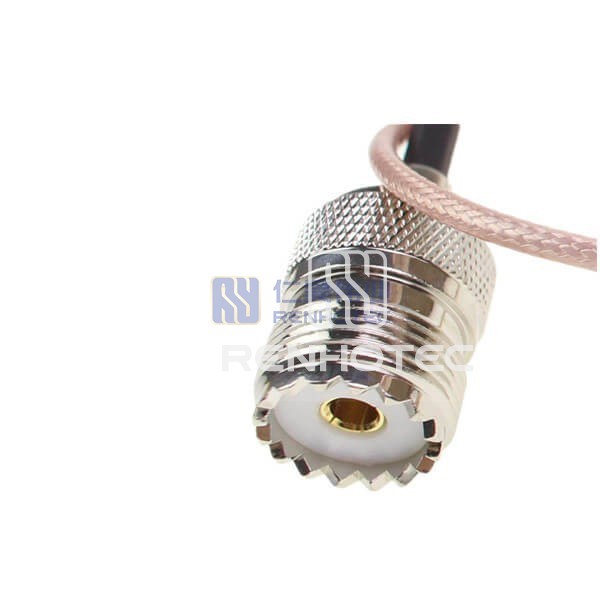

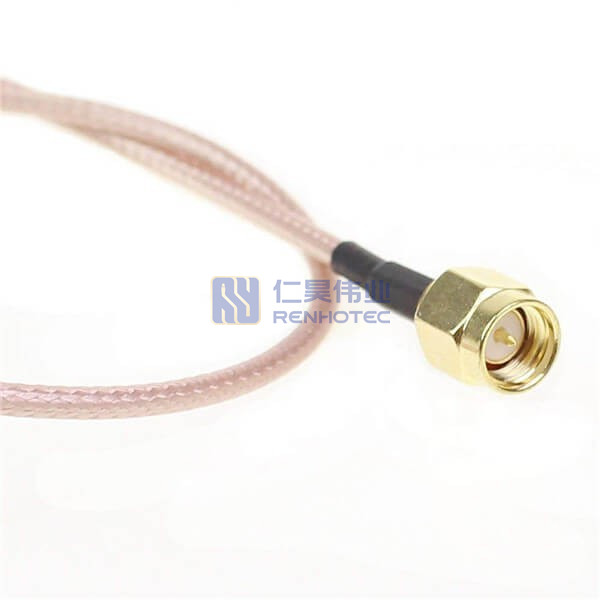

SMA Male to UHF Female Cable Assembly with 50Ohm RG316 Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality SMA Male to UHF Female Cable Assembly made with 50Ohm RG316 Cable. Ideal for reliable connections in various applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | SMA to UHF |
| 1st Connector Series | SMA Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | UHF Jack |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Straight |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
