SMA Right Angle Jack to MMCX Plug RF Cable Assemblies RG316 Cable 50ohm - R02-S01-10072-10
SMA Right Angle Jack to MMCX Plug RF Cable Assemblies RG316 Cable 50ohm - R02-S01-10072-10

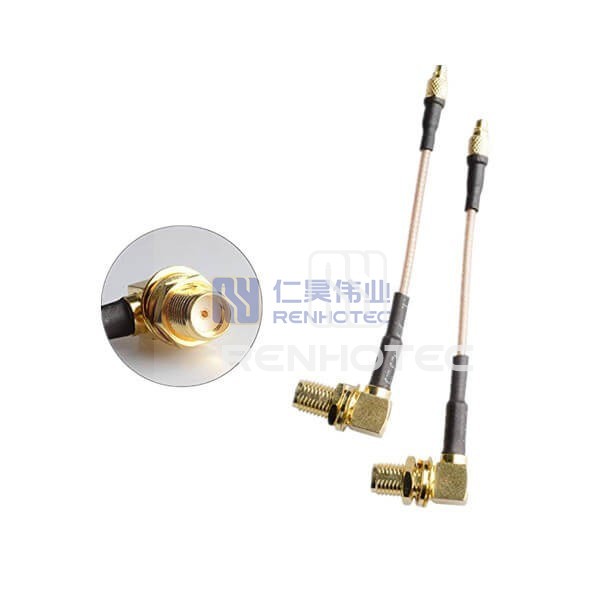

SMA Right Angle Jack to MMCX Plug RF Cable Assemblies RG316 Cable 50ohm product image

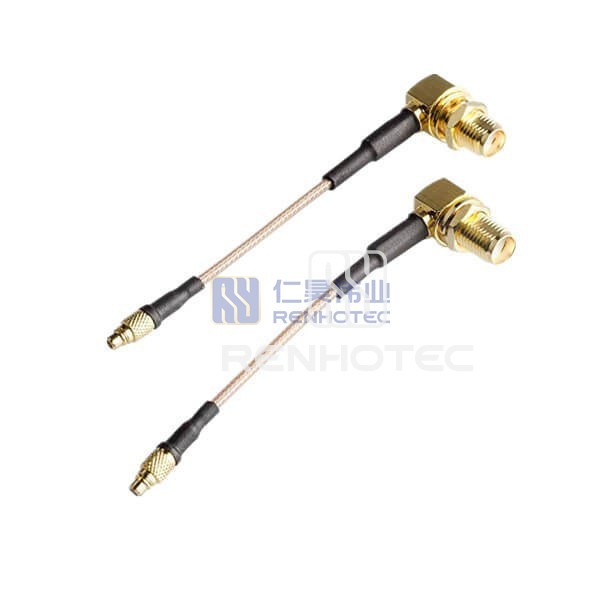

SMA Right Angle Jack to MMCX Plug RF Cable Assemblies RG316 Cable 50ohm product image

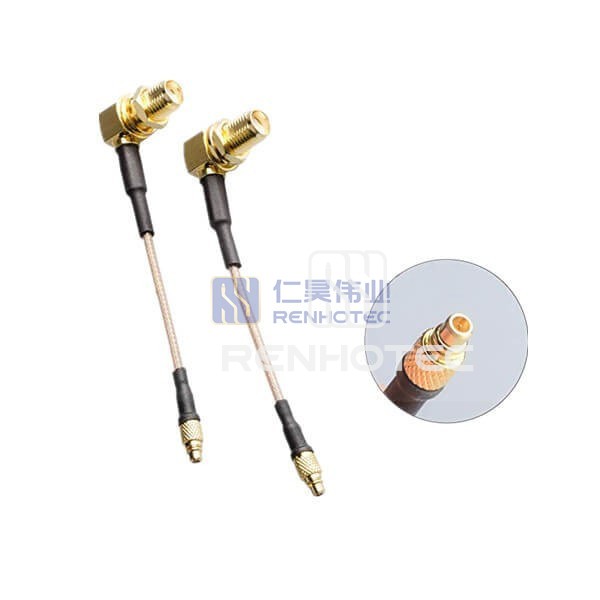

SMA Right Angle Jack to MMCX Plug RF Cable Assemblies RG316 Cable 50ohm product image

R02-S01-10072-10

SMA Right Angle Jack to MMCX Plug RF Cable Assemblies RG316 Cable 50ohm

  • Technical data
  • Overview
  • Certification
  • Download
General
1st Connector SeriesSMA Jack
1st Contact TypeFemale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesMMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationStraight
Suitable CableRG316
Electrical
Impedance50 Ohms
Frequency Range0-6Ghz
Environmental
Operating Temperature-40°C ~ + 85°C

Product excerpt

High-quality SMA right angle jack to MMCX plug RF cable assemblies with RG316 cable, suitable for 50-ohm connections.
