Products > RF Cable Assembly > Straight BNC Plug to Right Angle RP SMA Plug RF Pigtail Cable with RG316 Cable 50ohm
R02-B01-10110-30

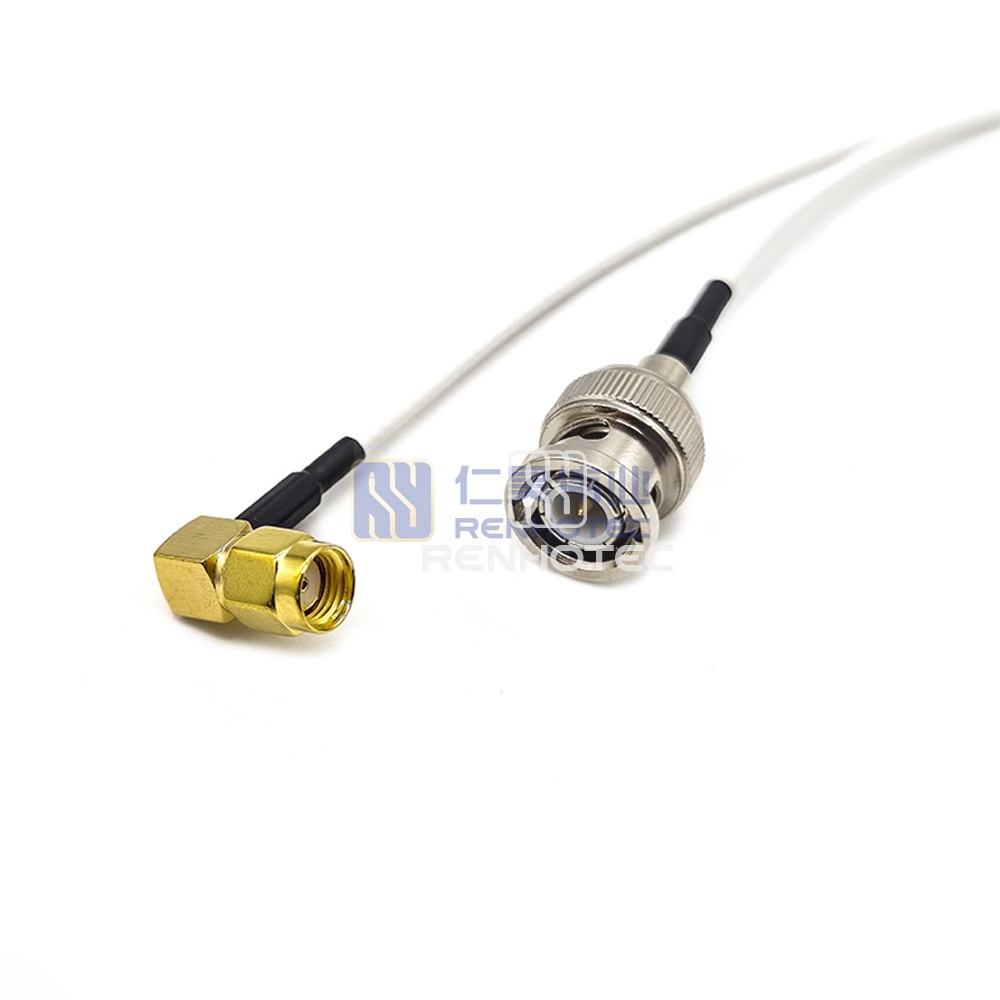

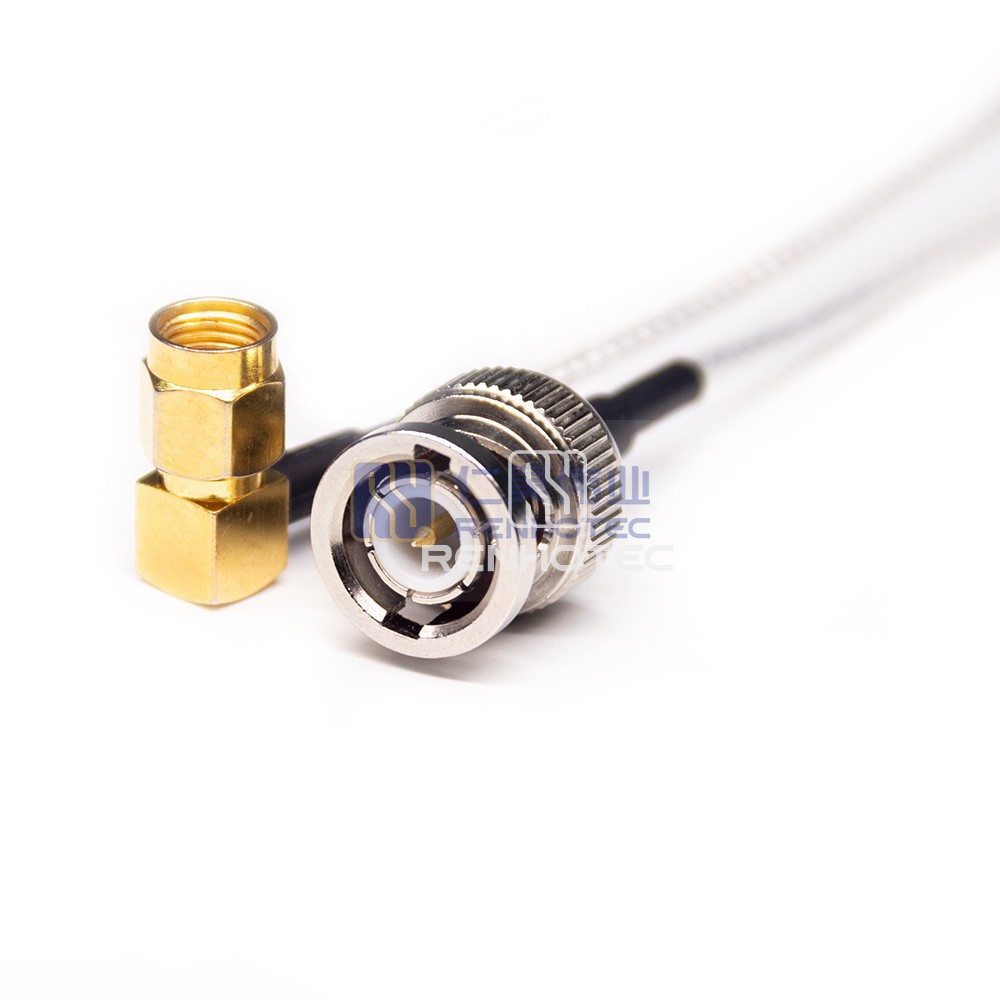

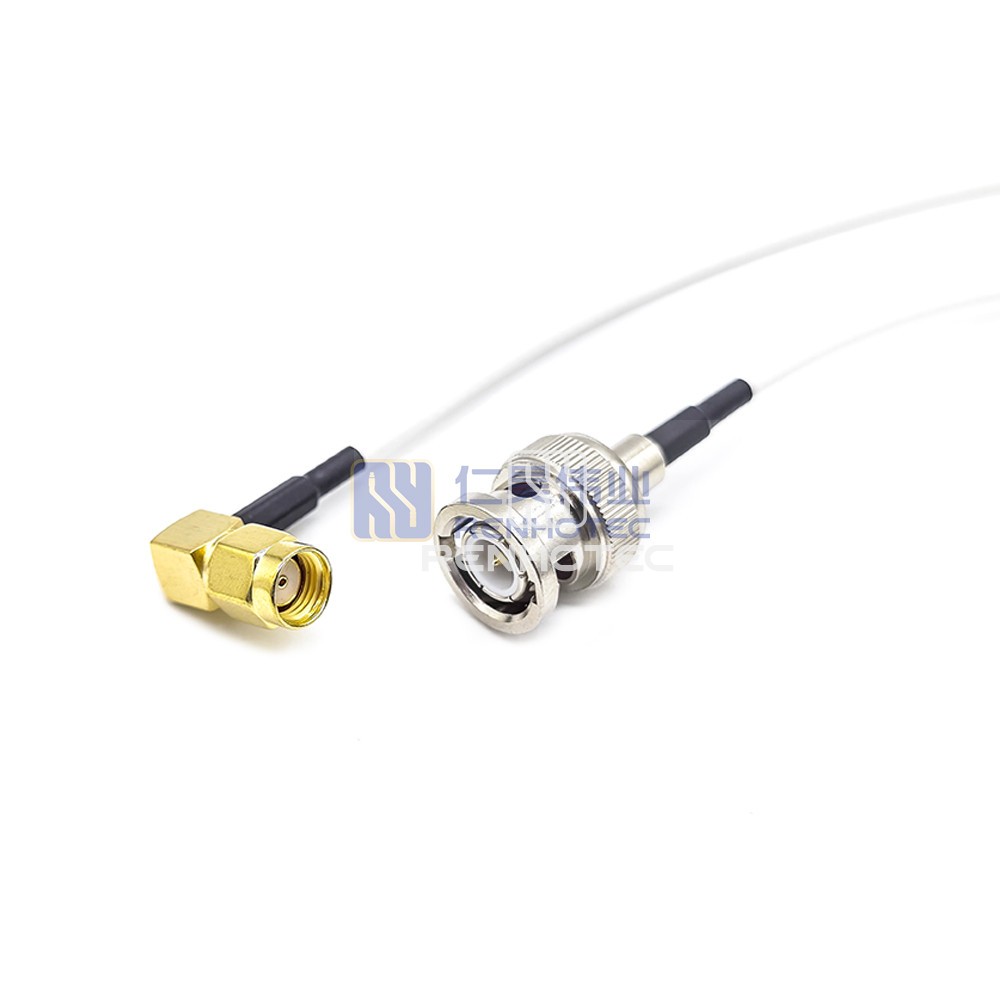

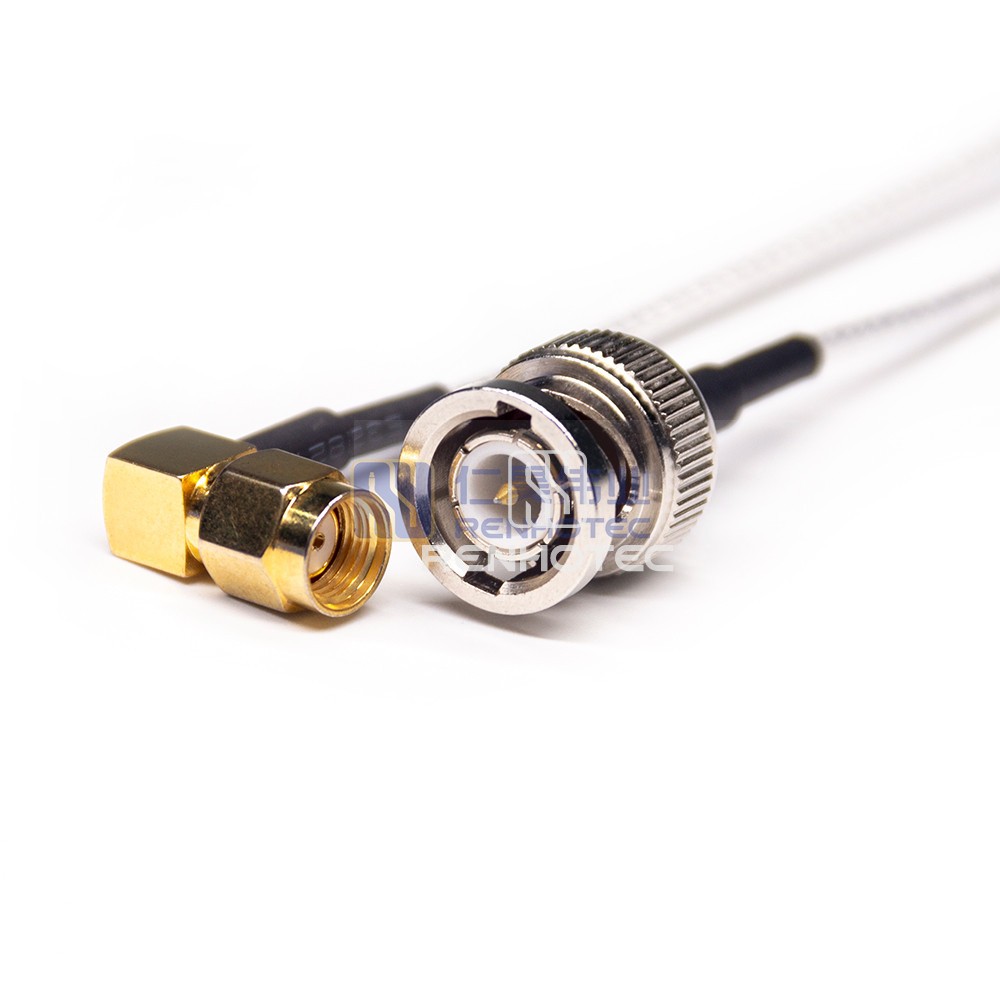

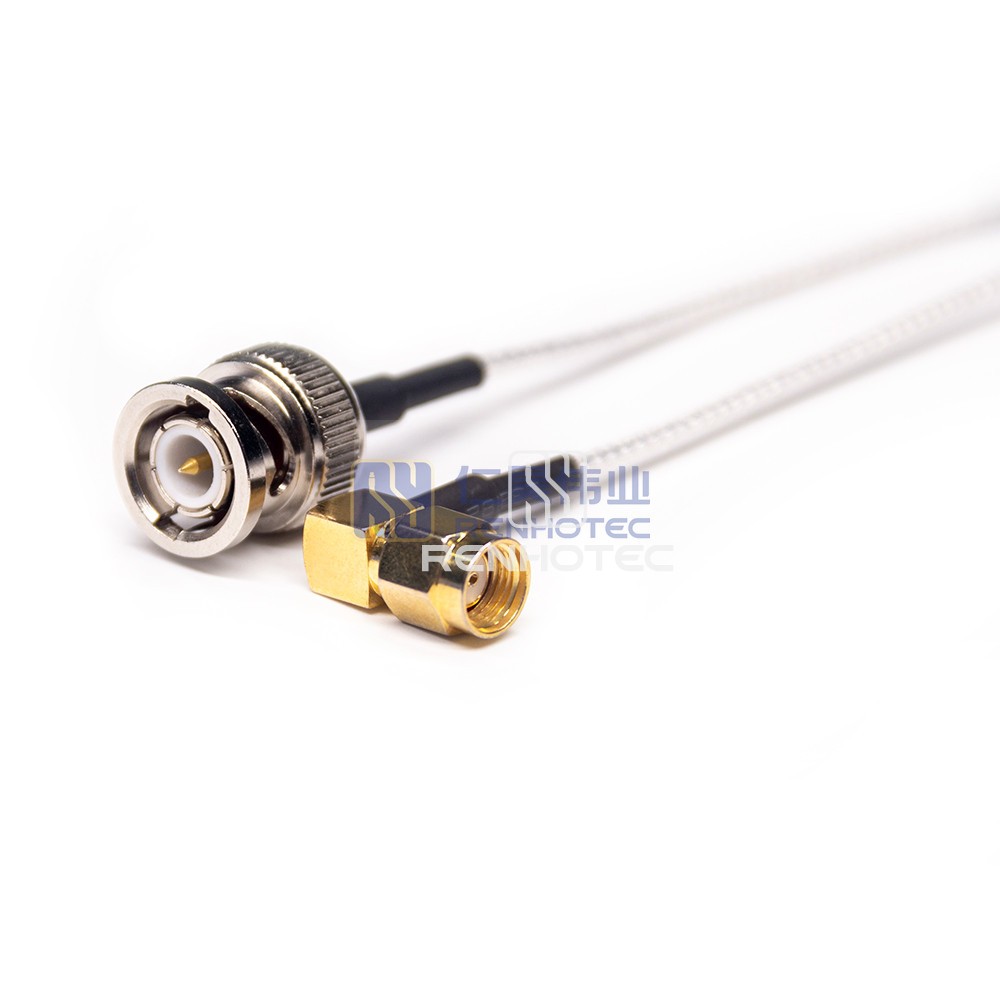

Straight BNC Plug to Right Angle RP SMA Plug RF Pigtail Cable with RG316 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
Connect your devices with ease using this Straight BNC Plug to Right Angle RP SMA Plug RF Pigtail Cable featuring RG316 Cable with 50ohm impedance. Ideal for flexible and reliable RF signal transmission.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | BNC to SMA |
| 1st Connector Series | BNC Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | SMA Plug |
| 2nd Contact Type | Female Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | RG316 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
