Products > MIL Spec Connector > Threaded MS3100A14S-2P 4Pin Male Wall Mounting Receptacle Solder Cup

MS3100A14S-2P

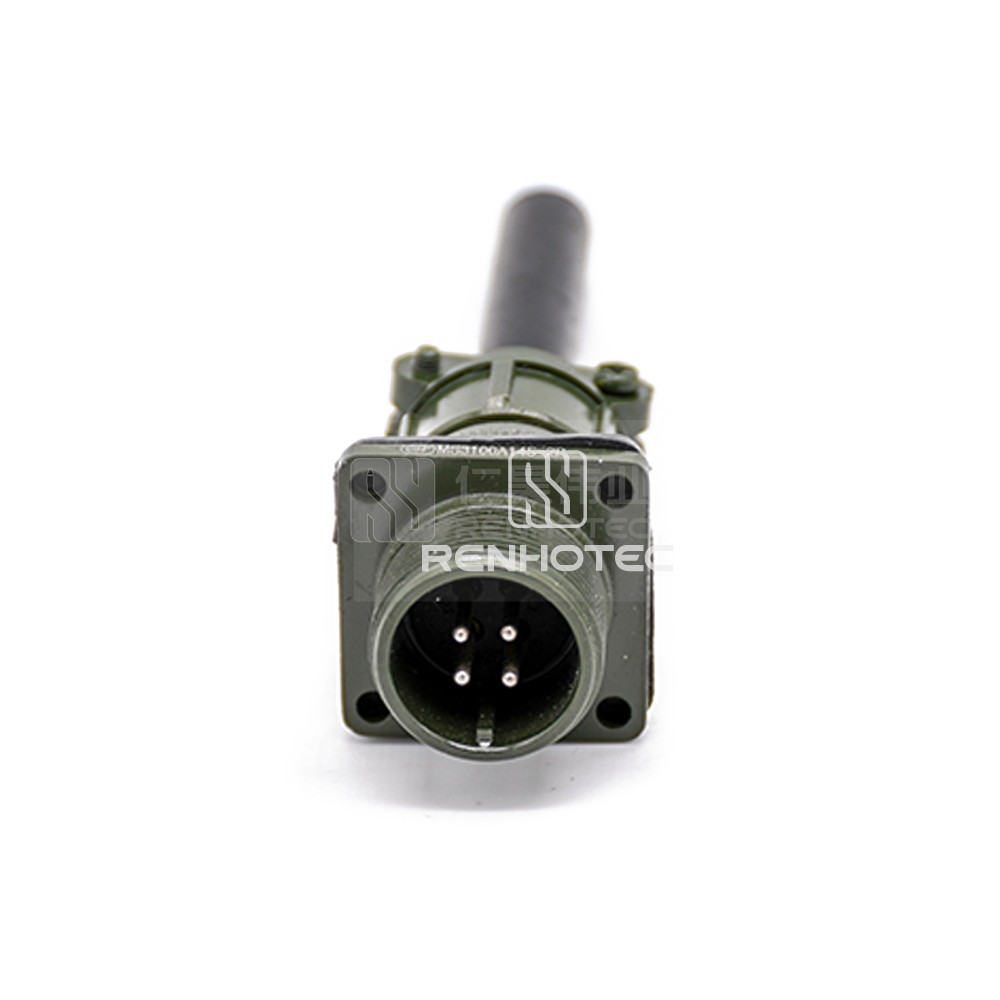

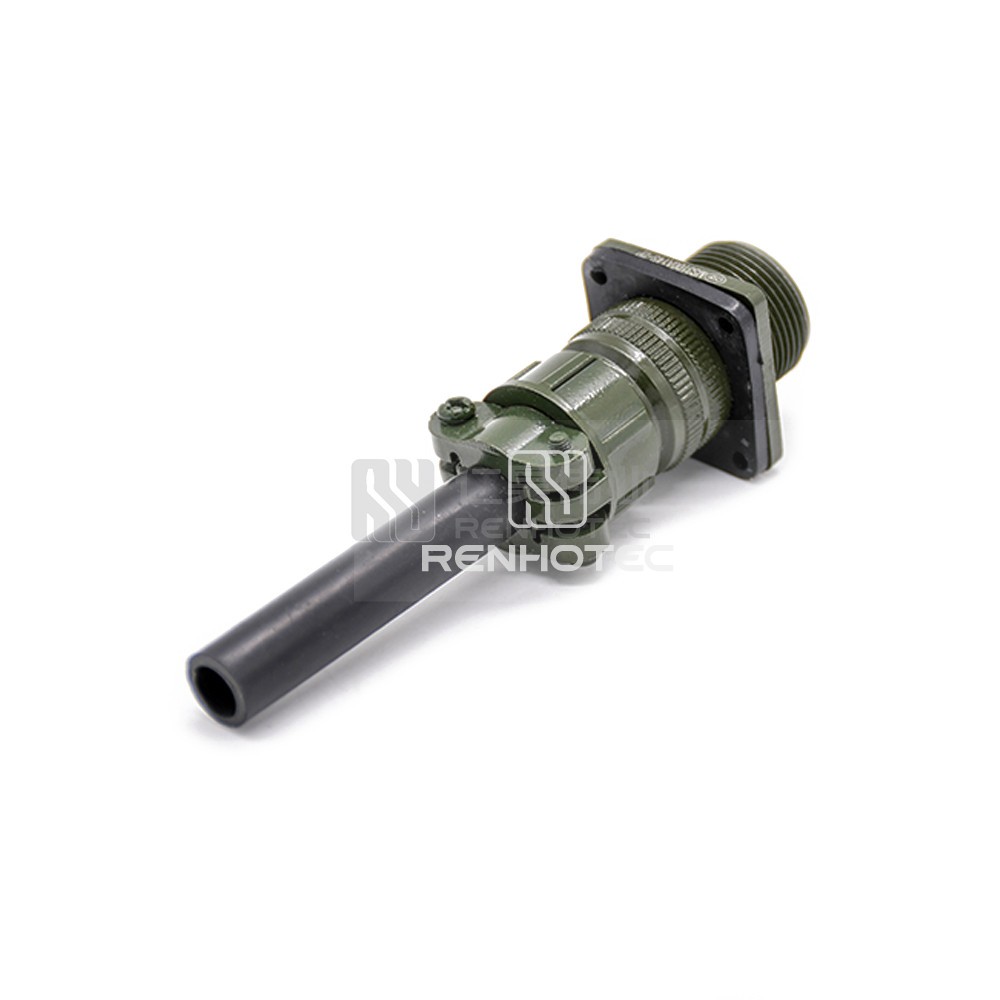

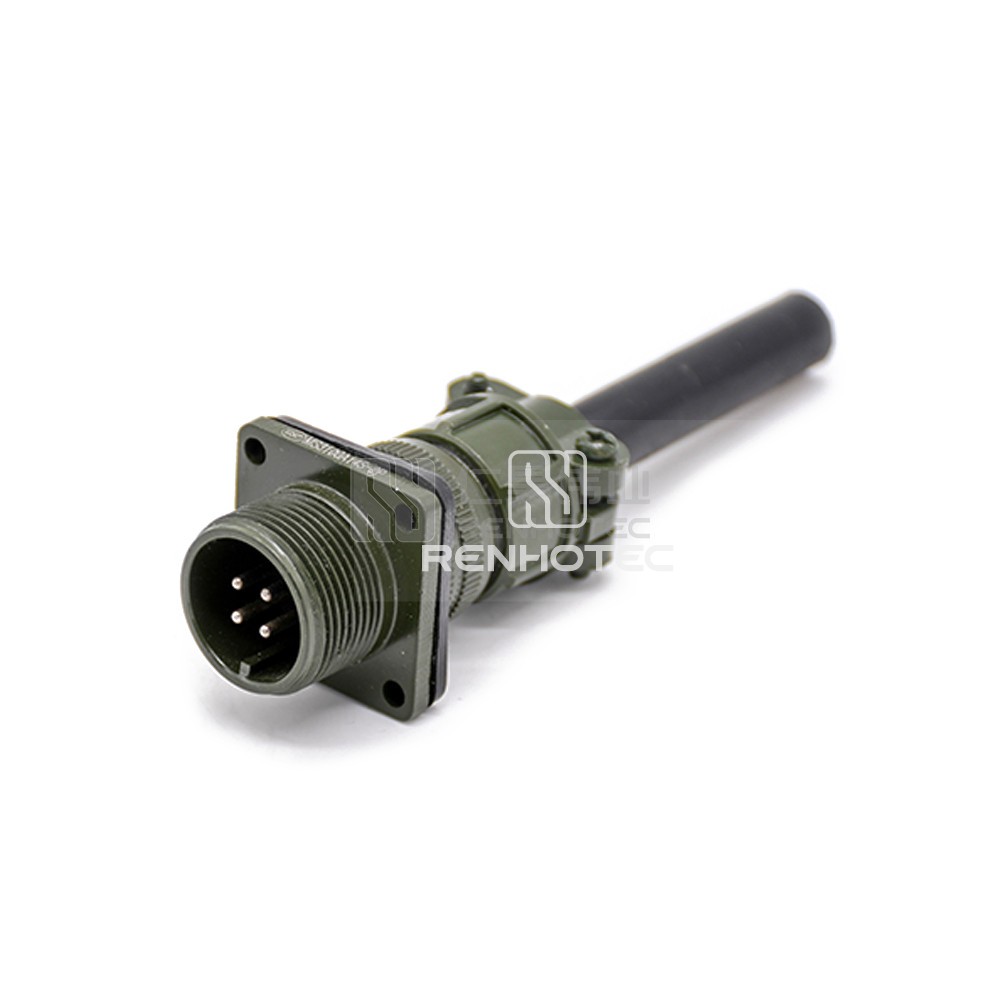

Threaded MS3100A14S-2P 4Pin Male Wall Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This Threaded MS3100A14S-2P 4Pin Male Wall Mounting Receptacle Solder Cup is a durable and reliable solution for secure wall mounting of electrical connections. Easy to install with solder cup connections.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    Contact Arrangements14S-2
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size14S

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Mounting FeatureFlange
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
