Products > MIL Spec Connector > Threaded MS3101A18-10P 4Pin Male Cable Connecting Receptacle Solder Cup

MS3101A18-10P

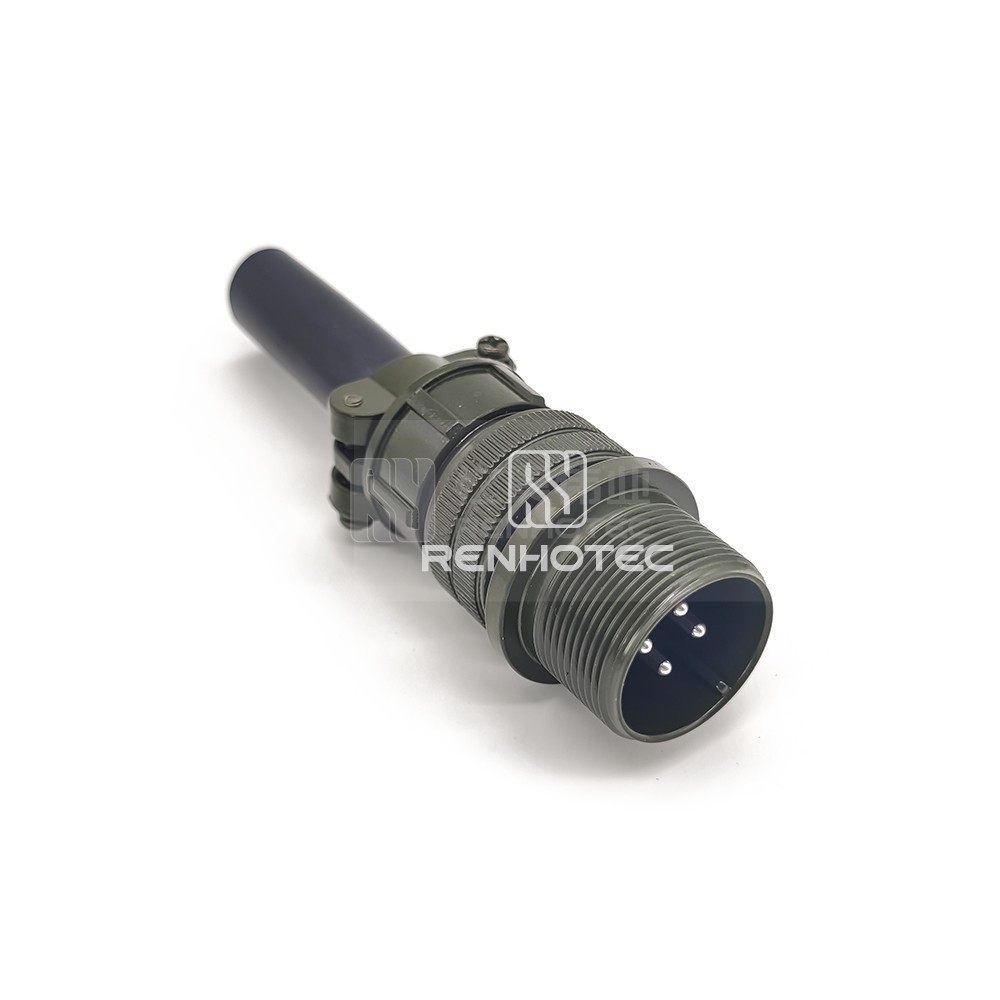

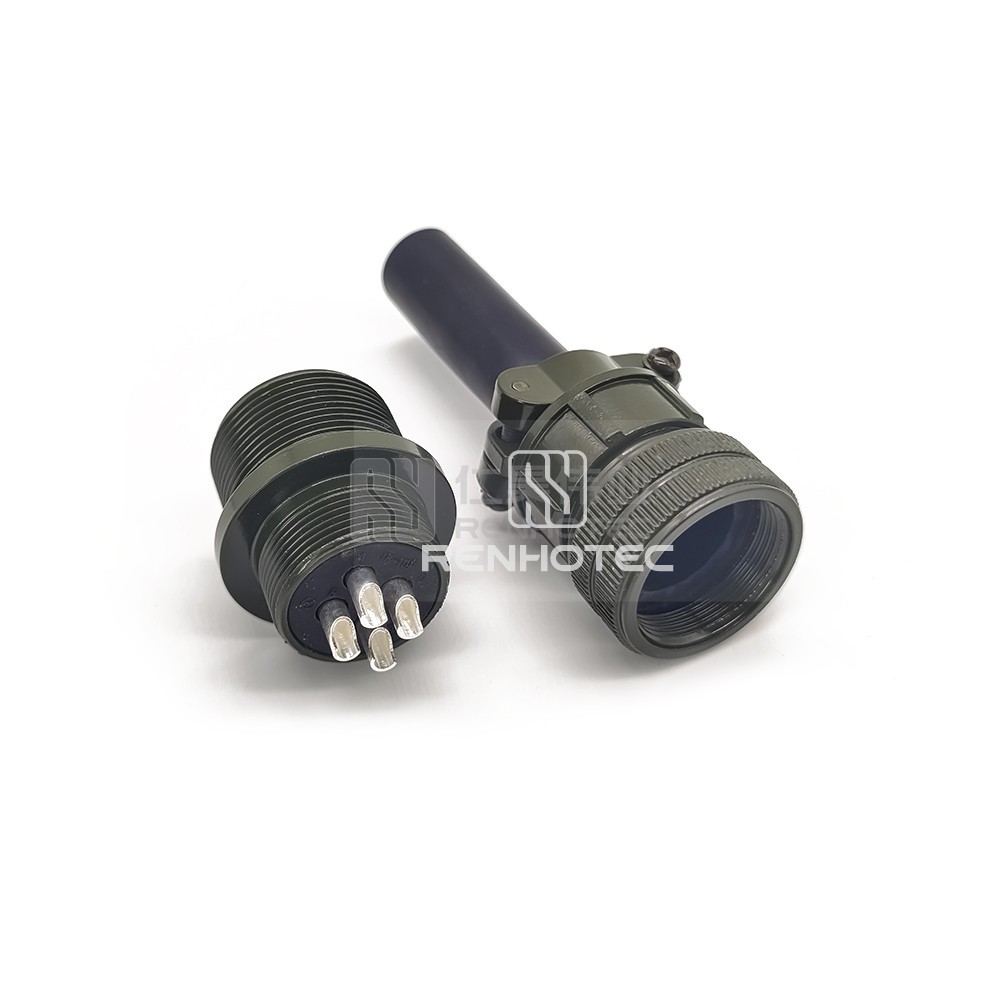

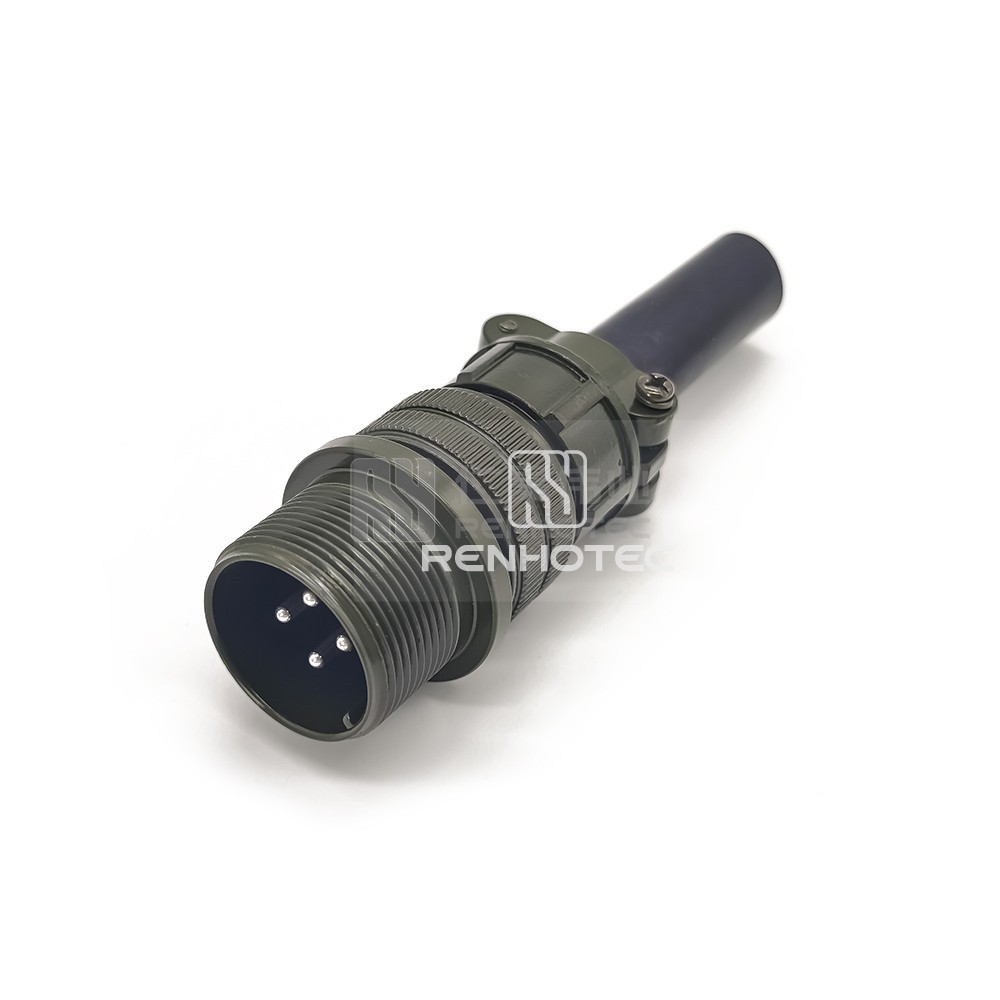

Threaded MS3101A18-10P 4Pin Male Cable Connecting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality 4-pin male cable connecting receptacle solder cup designed for durability and reliability. Threaded MS3101A18-10P ensures secure connections for your electronic projects.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    Contact Arrangements18-10
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size18

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range14-12AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current30A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    MS5015 Test Report Download
