MS3101A18-11S

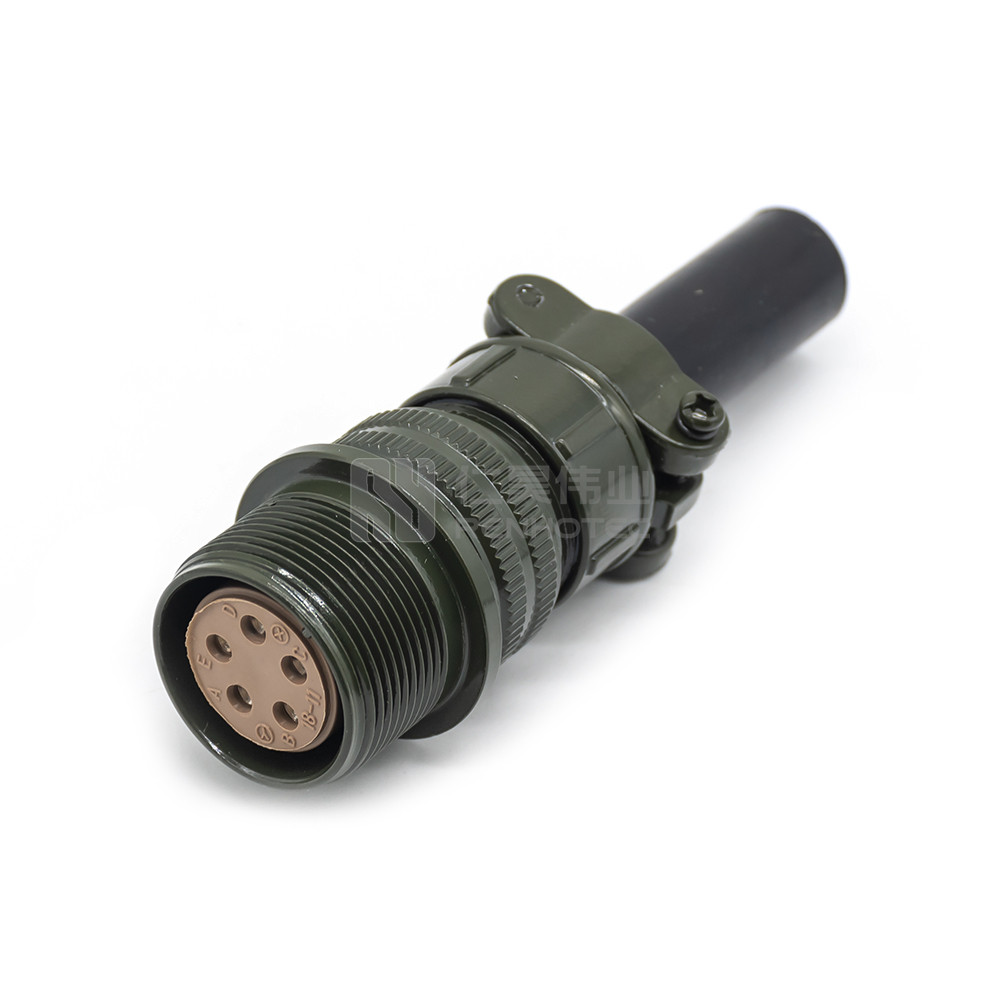

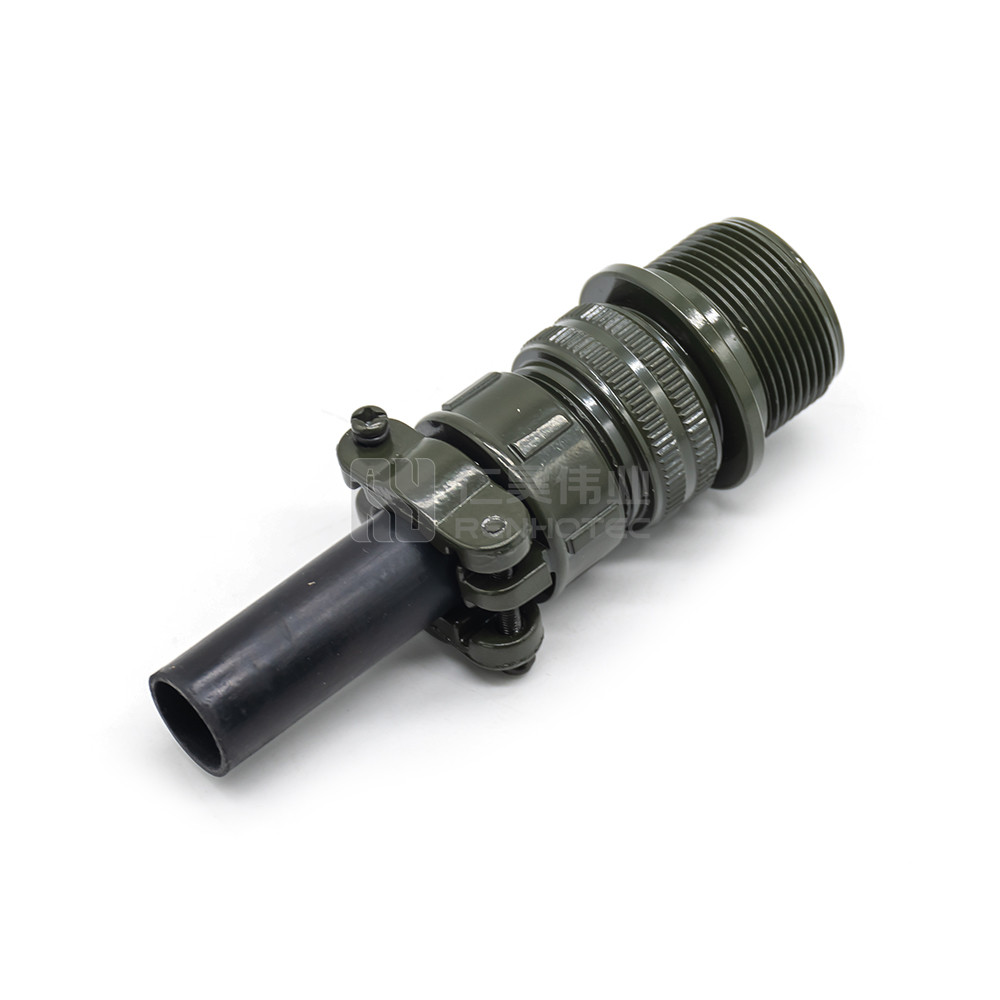

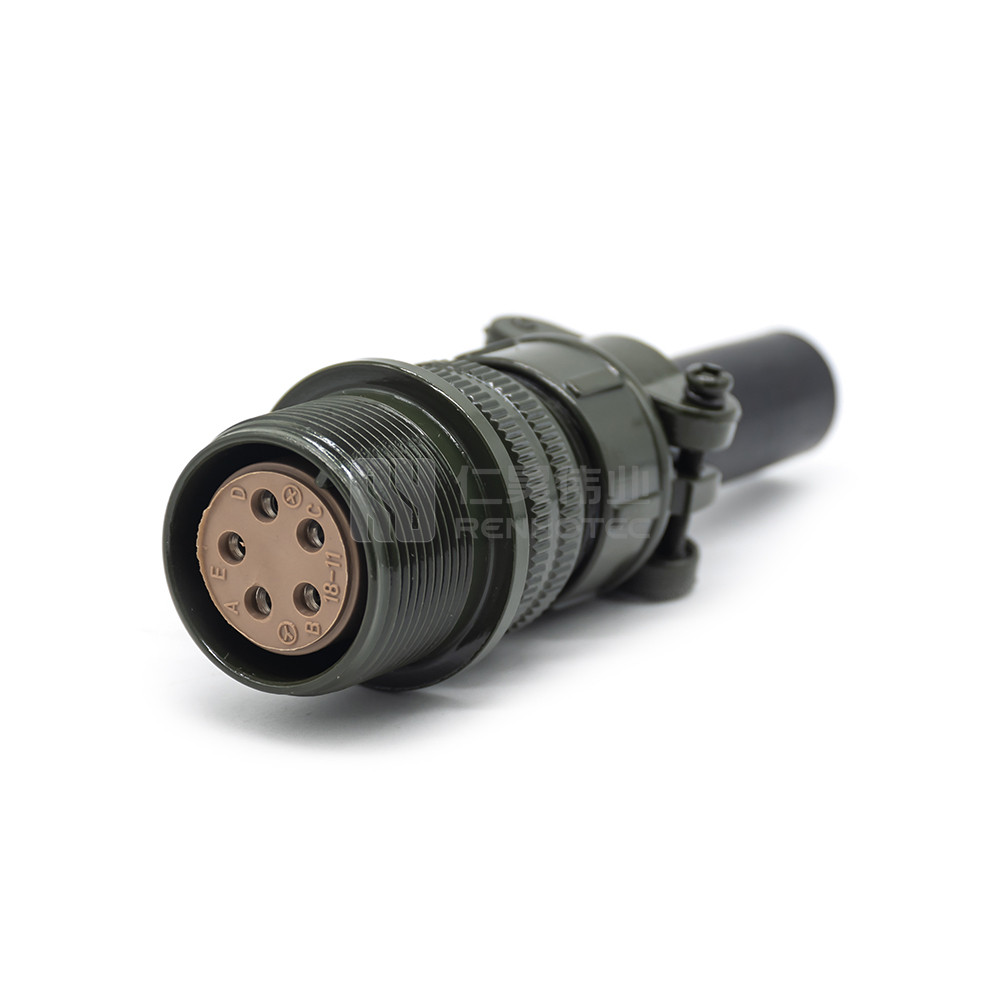

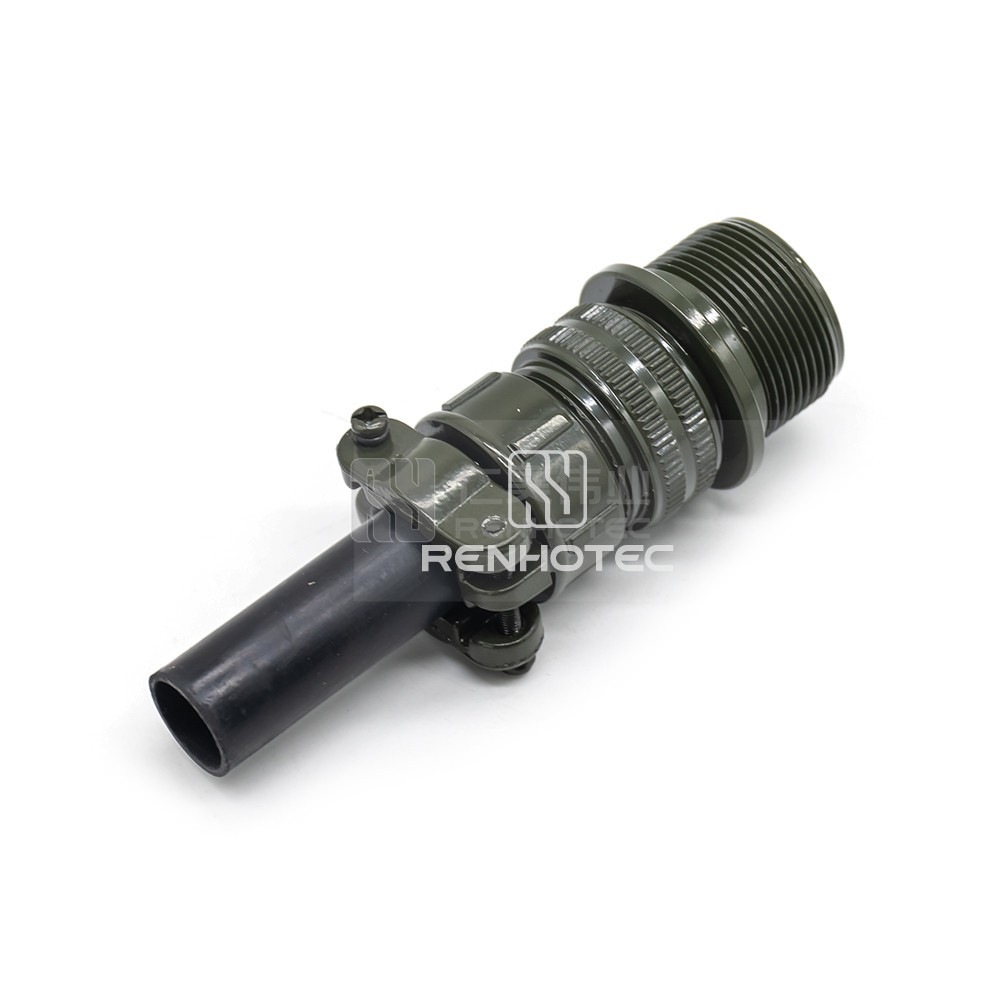

Threaded MS3101A18-11S 5Pin Female Cable Connecting Receptacle Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This 5-pin female cable connecting receptacle solder cup is designed for secure and reliable connections. Perfect for soldering applications in various electronic and electrical projects.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions5
Contact Arrangements18-11
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishSilver
Mechanical
Fastening TypeThreaded
Mounting TypeCable Type
Wire Gauge or Range14-12AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size18
Electrical
ShieldingUnshielded
Rated Current30A
Rated Voltage500V
