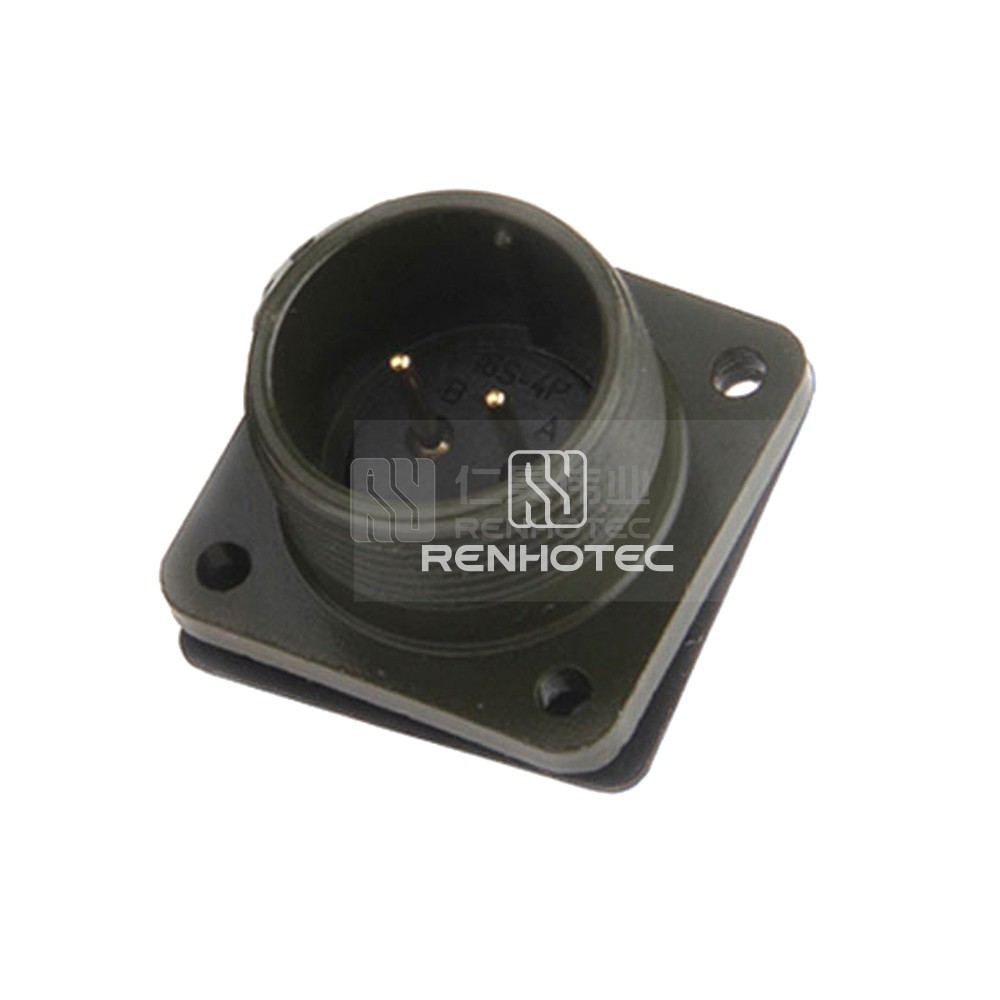

This threaded MS3102A16S-4P 2-pin male box mounting receptacle with solder cup is designed for secure electrical connections. Ideal for industrial and commercial applications.
General
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 2 |
Contact Arrangements | 16S-4 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 16S |
Mechanical
Fastening Type | Threaded |
Mounting Type | Panel Mount |
Mounting Feature | Flange |
Wire Gauge or Range | 14-12AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Electrical
Shielding | Unshielded |
Rated Current | 30A |
Rated Voltage | 500V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
MS5015 Test Report | Download |
