MS3102A20-27S

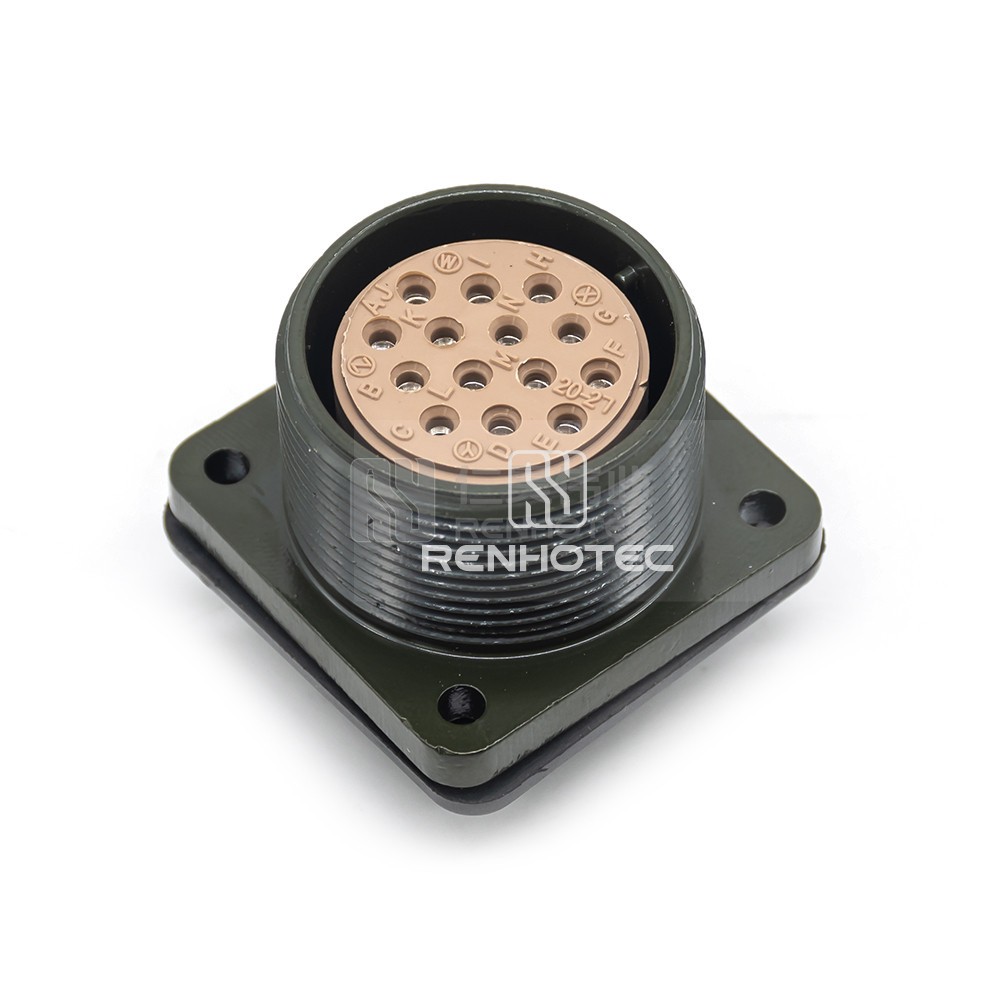

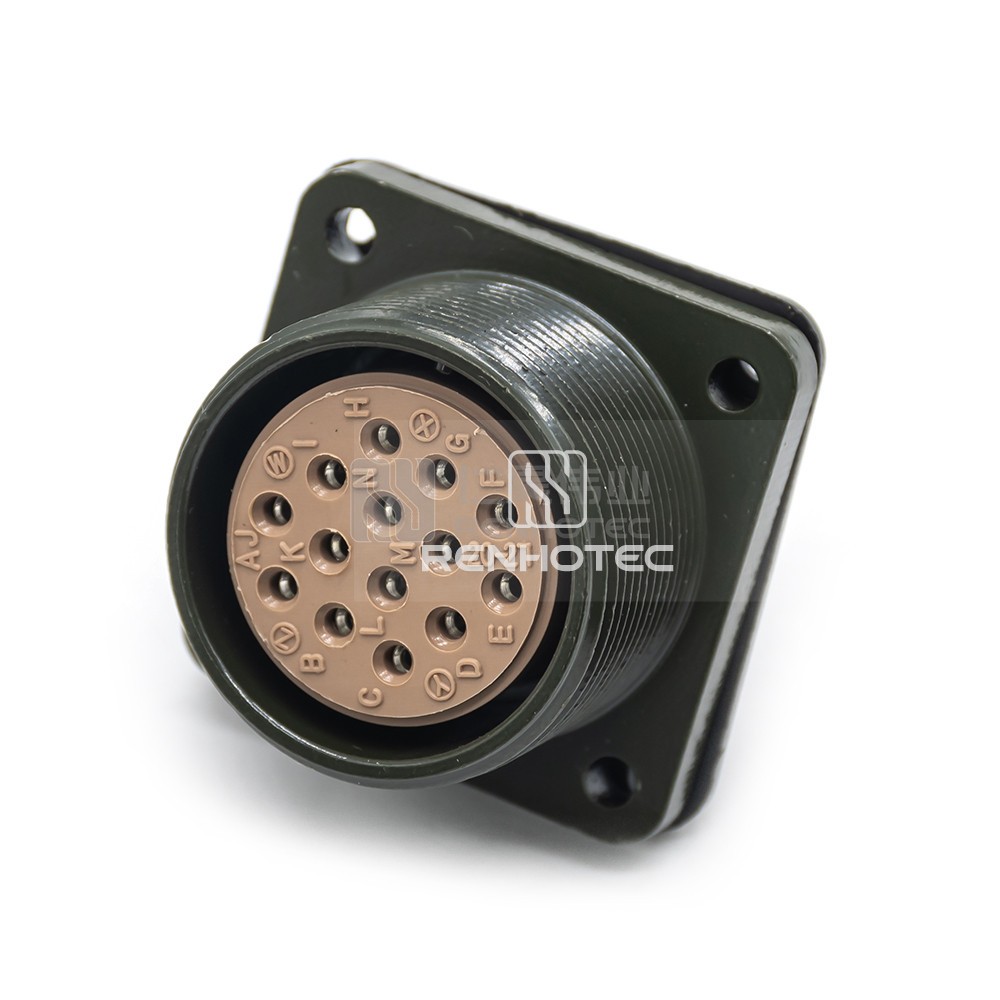

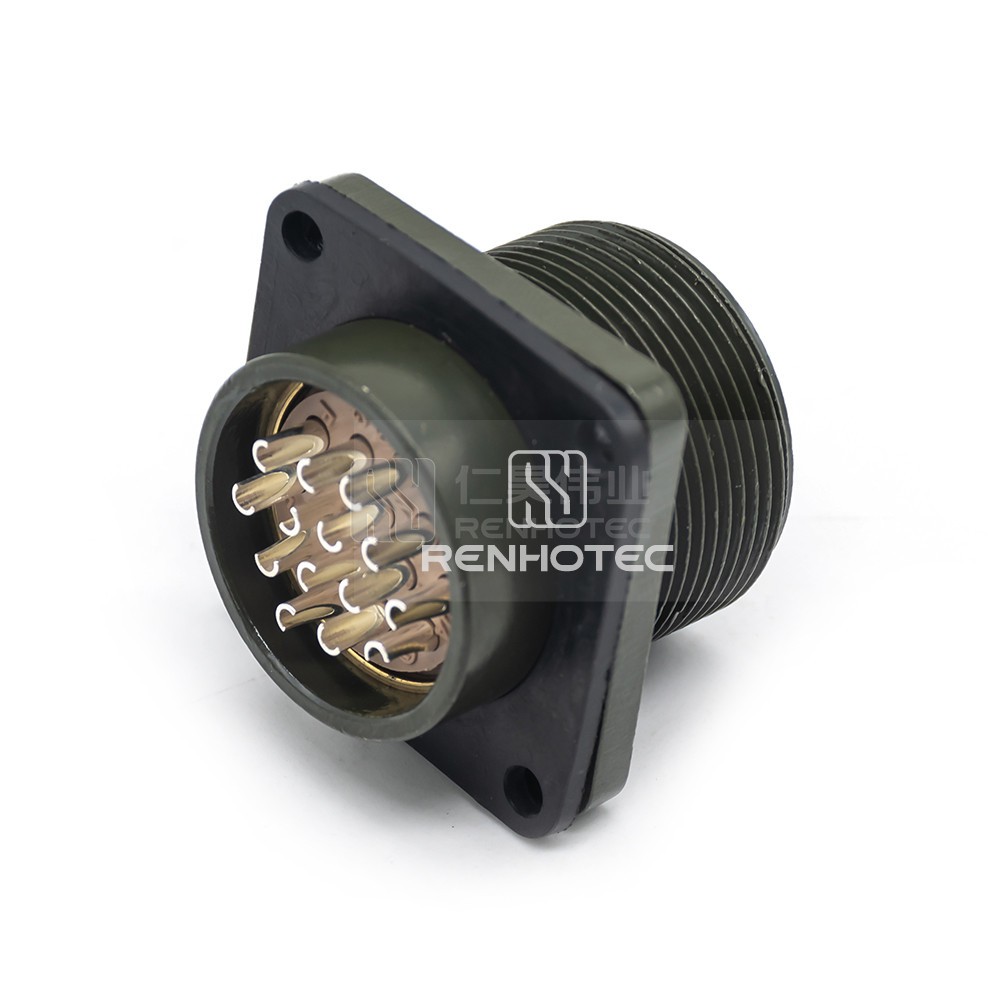

Threaded MS3102A20-27S 14Pin Female Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    The Threaded MS3102A20-27S 14Pin Female Box Mounting Receptacle Solder Cup is a high-quality connector designed for secure and reliable connections. It features a threaded design for easy installation and 14 pins for versatile connectivity. The solder cup construction ensures a durable and long-lasting performance.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions14
    Contact Arrangements20-27
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size20

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
