MS3102A22-23P

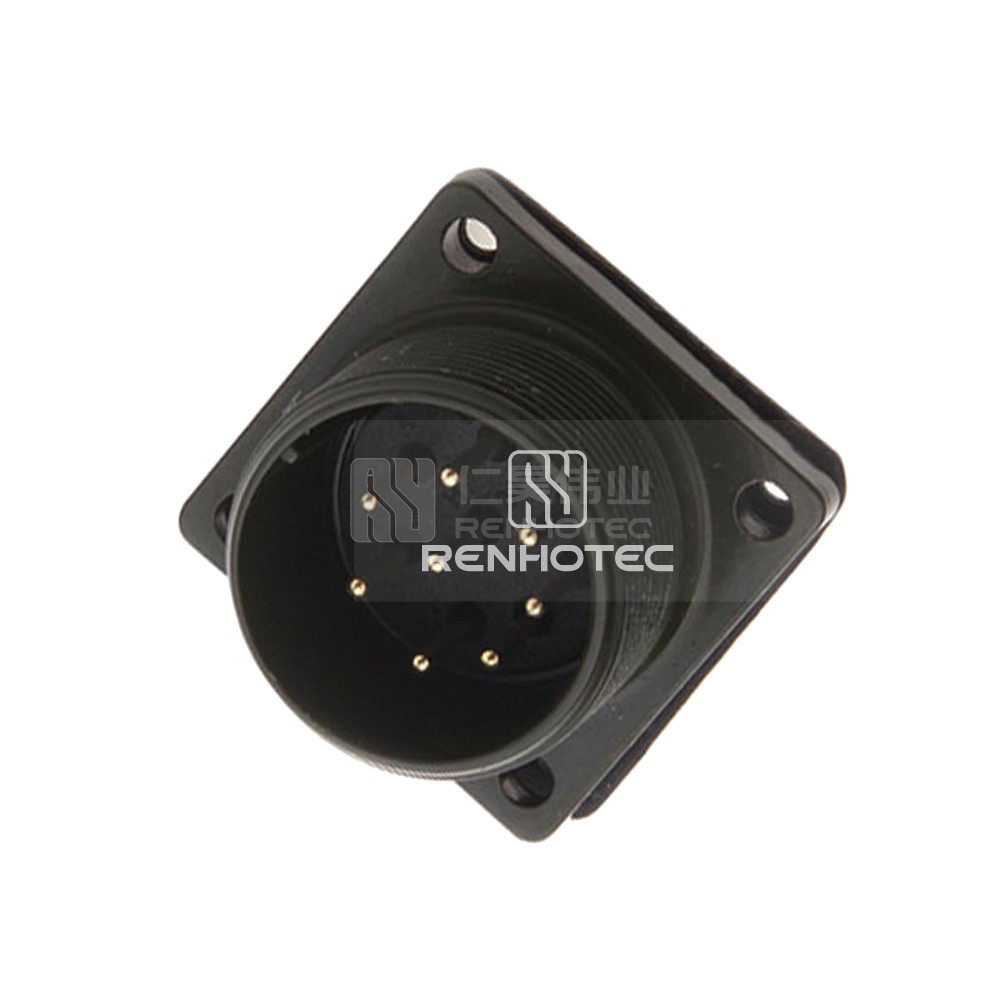

Threaded MS3102A22-23P 8Pin Male Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    High-quality threaded 8-pin male box mounting receptacle with solder cup terminals. Ideal for secure and reliable connections in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions8
    Contact Arrangements22-23
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size22

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range14-12AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current30A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    MS5015 Test Report Download
