Products > MIL Spec Connector > Threaded MS3102A24-28P 24Pin Male Box Mounting Receptacle Solder Cup

MS3102A24-28P

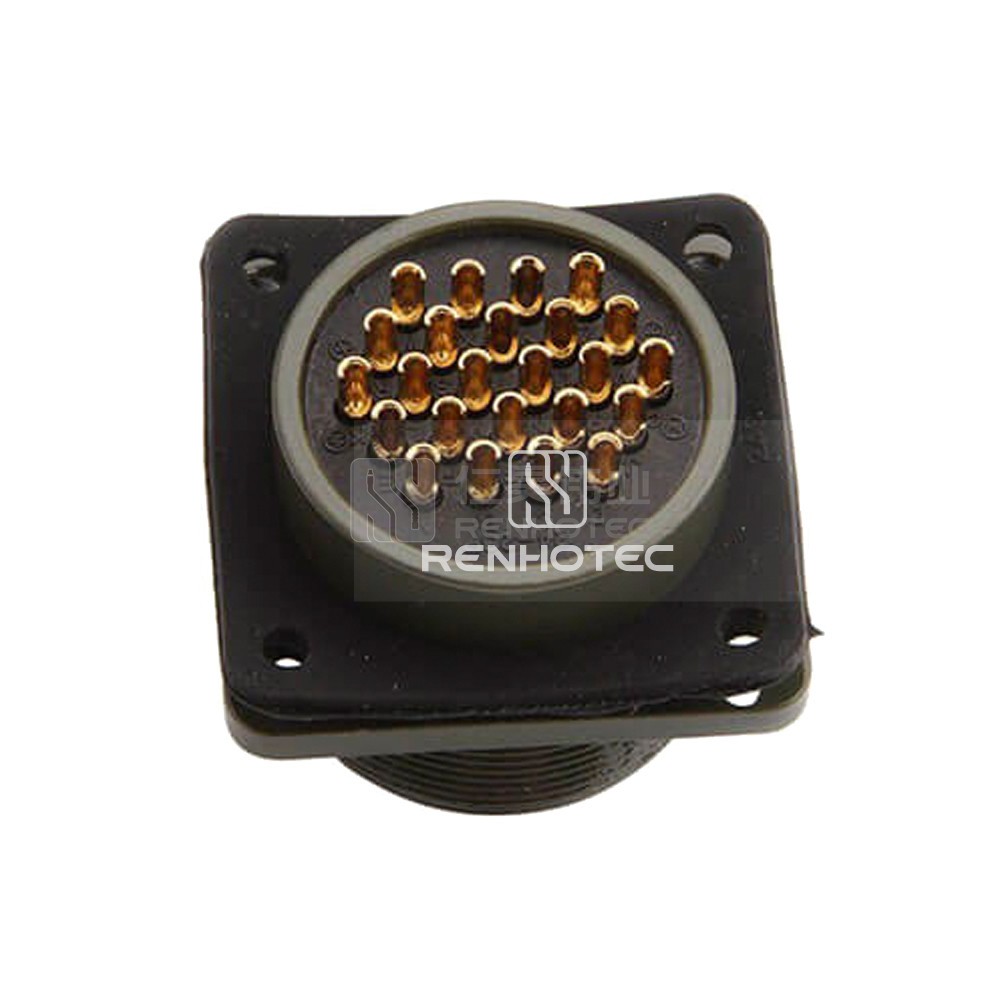

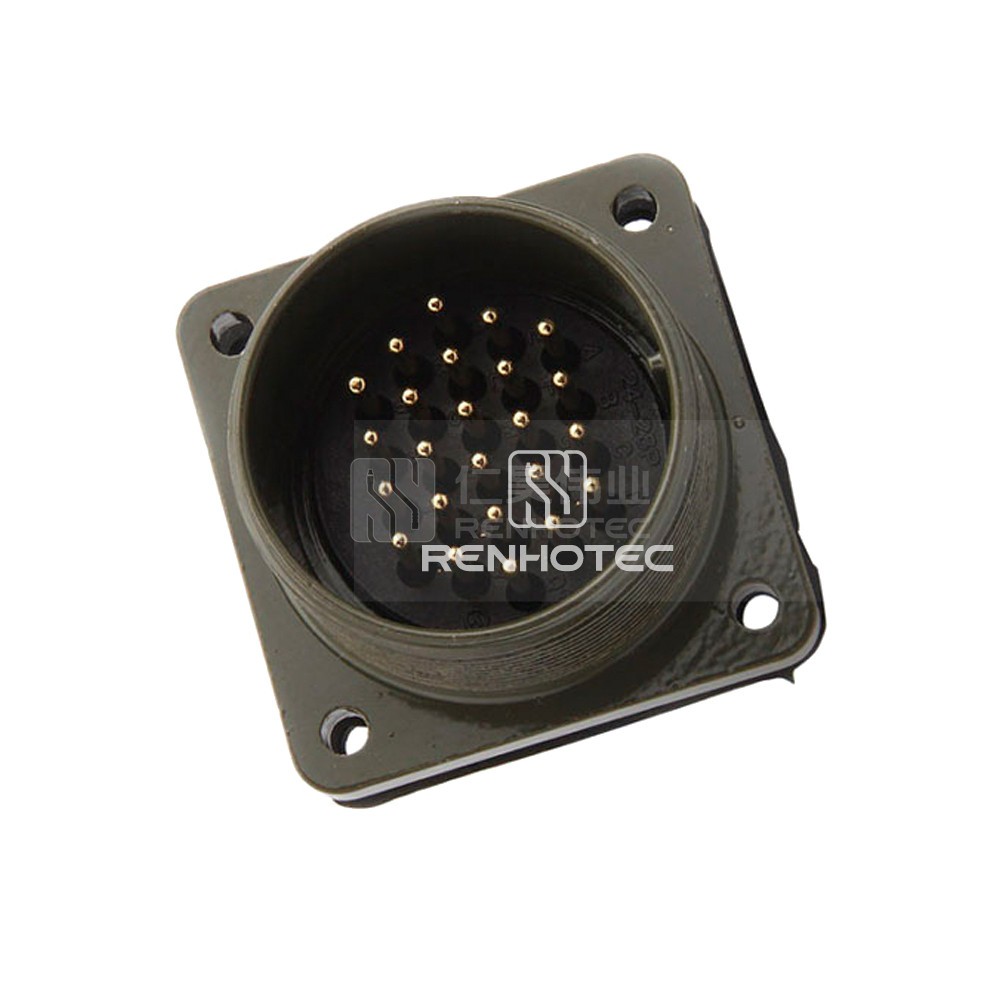

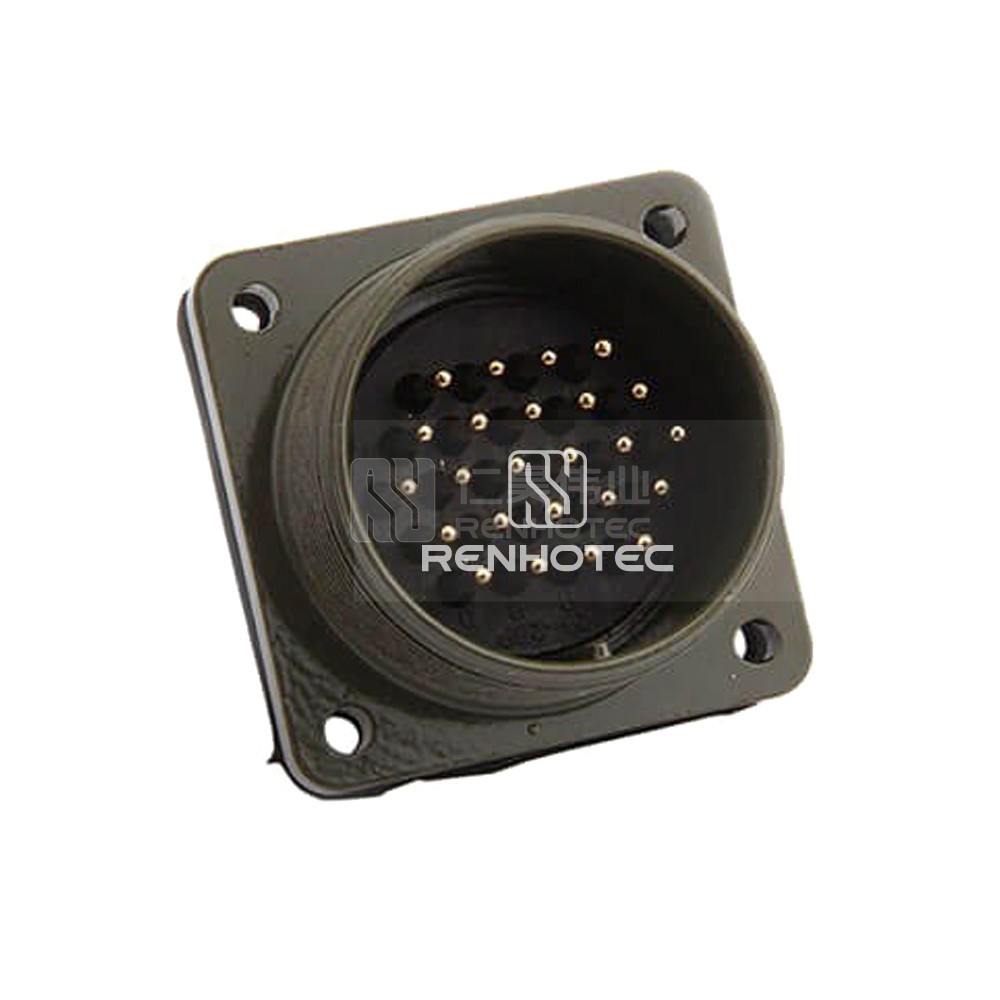

Threaded MS3102A24-28P 24Pin Male Box Mounting Receptacle Solder Cup

High-quality Threaded MS3102A24-28P 24-pin male box mounting receptacle with solder cup contacts. Ideal for secure and reliable connections in electronic applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions24
    Contact Arrangements24-28
    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size24

    Mechanical

    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    MS5015 Test Report Download
