MS3102A28-12P

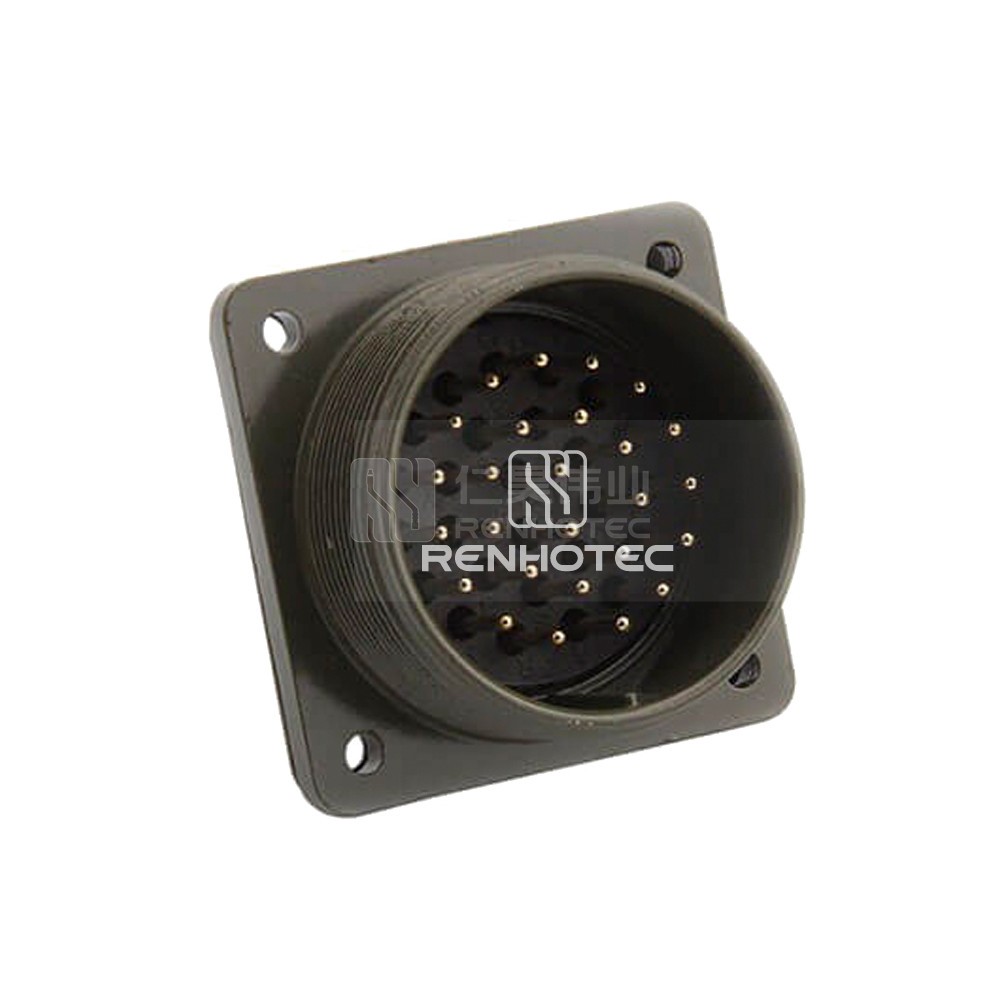

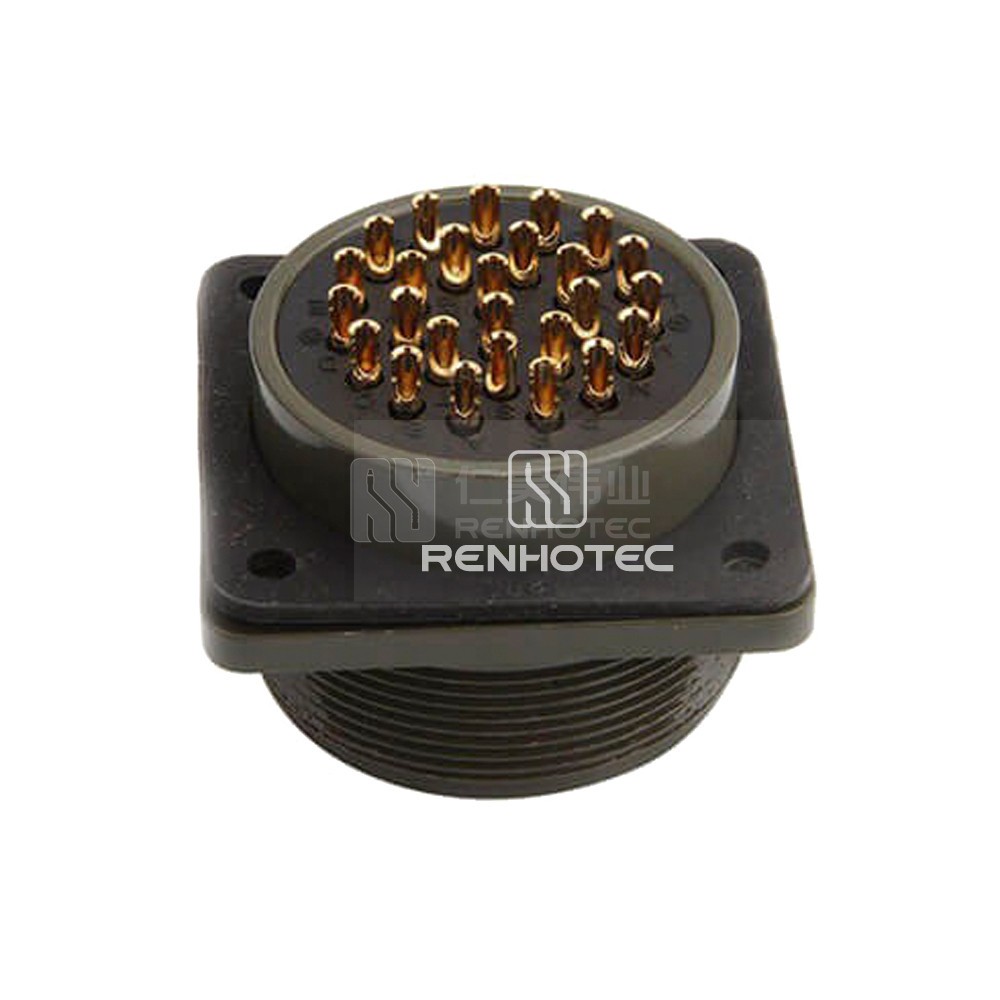

Threaded MS3102A28-12P 26Pin Male Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Buy high-quality Threaded MS3102A28-12P 26Pin Male Box Mounting Receptacle Solder Cup for reliable connections. Designed for easy mounting and solder cup termination.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions26
    Contact Arrangements28-12
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size28

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureFlange
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
