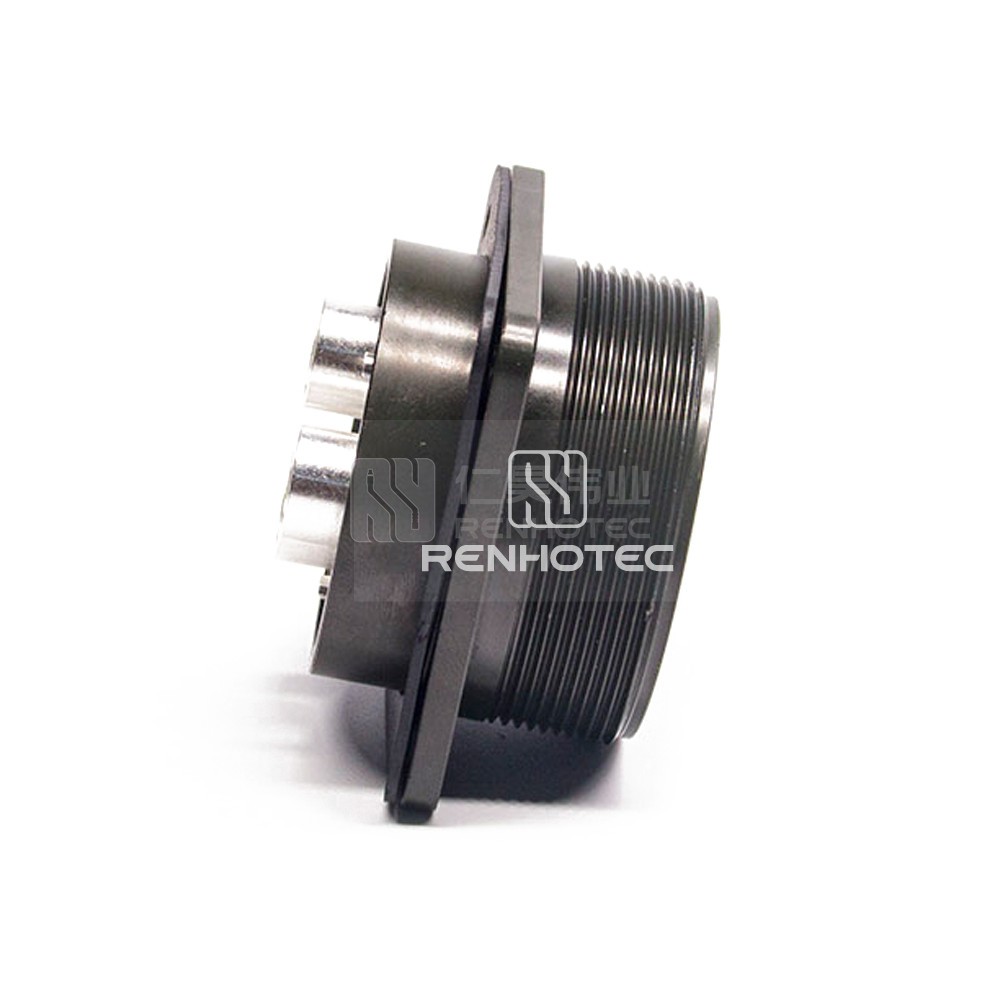

product image

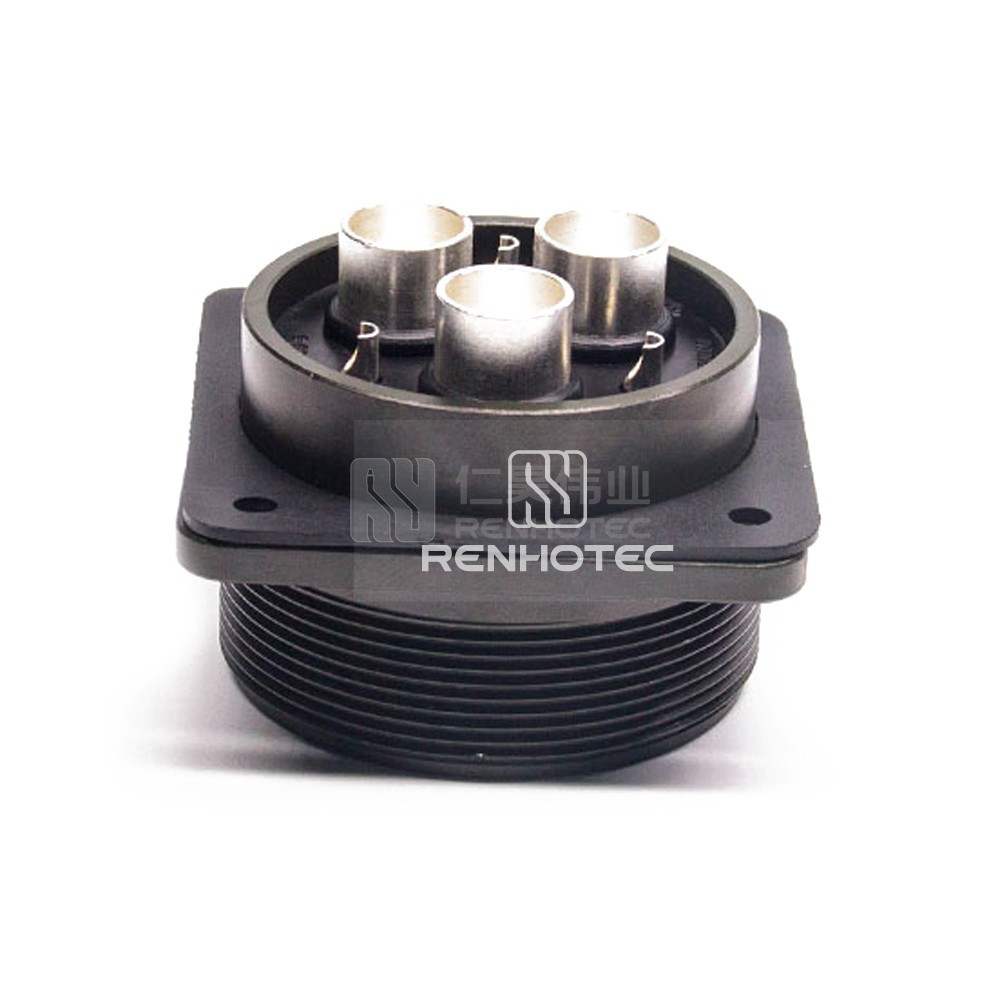

product image

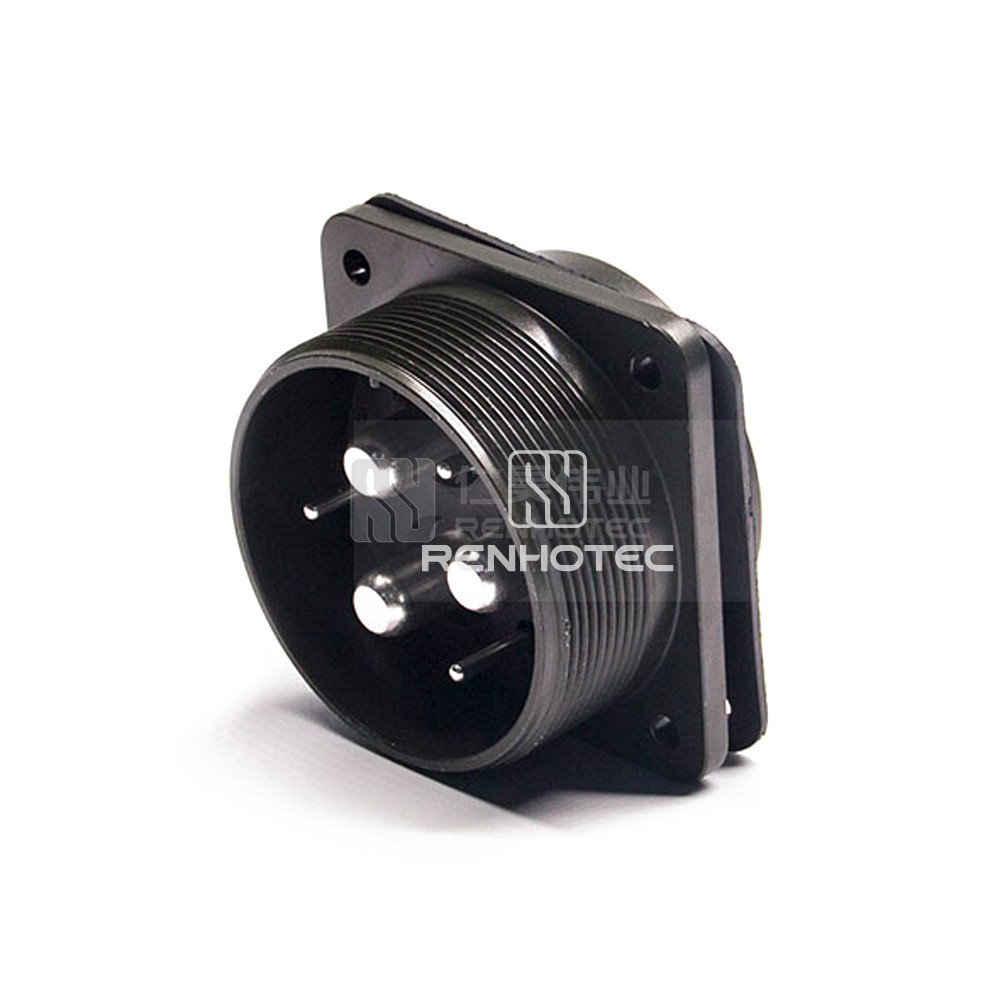

product image

MS3102A36-3P

Threaded MS3102A36-3P 6Pin Male Box Mounting Receptacle Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

High-quality 6-pin male box mounting receptacle solder cup designed for reliable connections. Threaded MS3102A36-3P model ensures secure installation and long-lasting performance. Ideal for various industrial applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeMale Pin
Number of Positions6
Contact Arrangements36-3
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishSilver
Mechanical
Fastening TypeThreaded
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or Range14-12AWG/2-0AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size36
Electrical
ShieldingUnshielded
Rated Current120A/30A
Rated Voltage500V
