Products > MIL Spec Connector > Threaded MS3102A36-5P 4Pin Male Box Mounting Receptacle Solder Cup

MS3102A36-5P

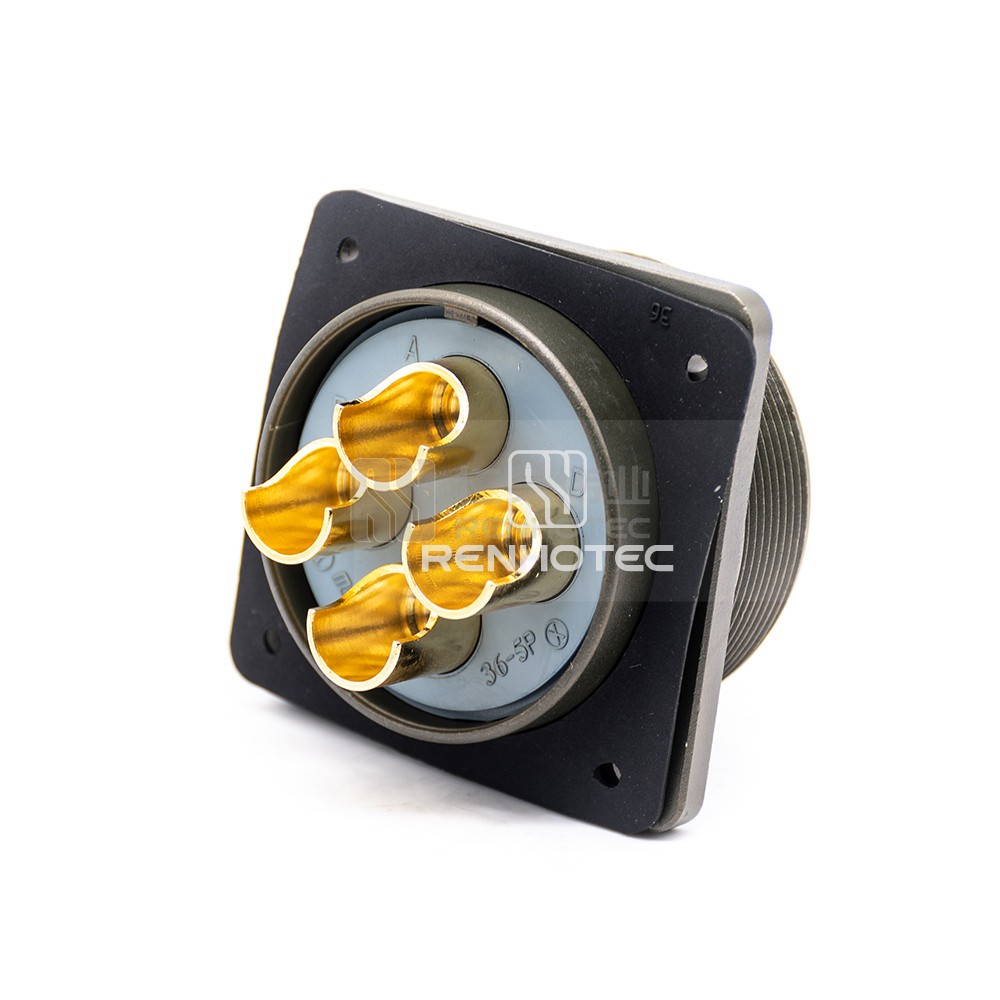

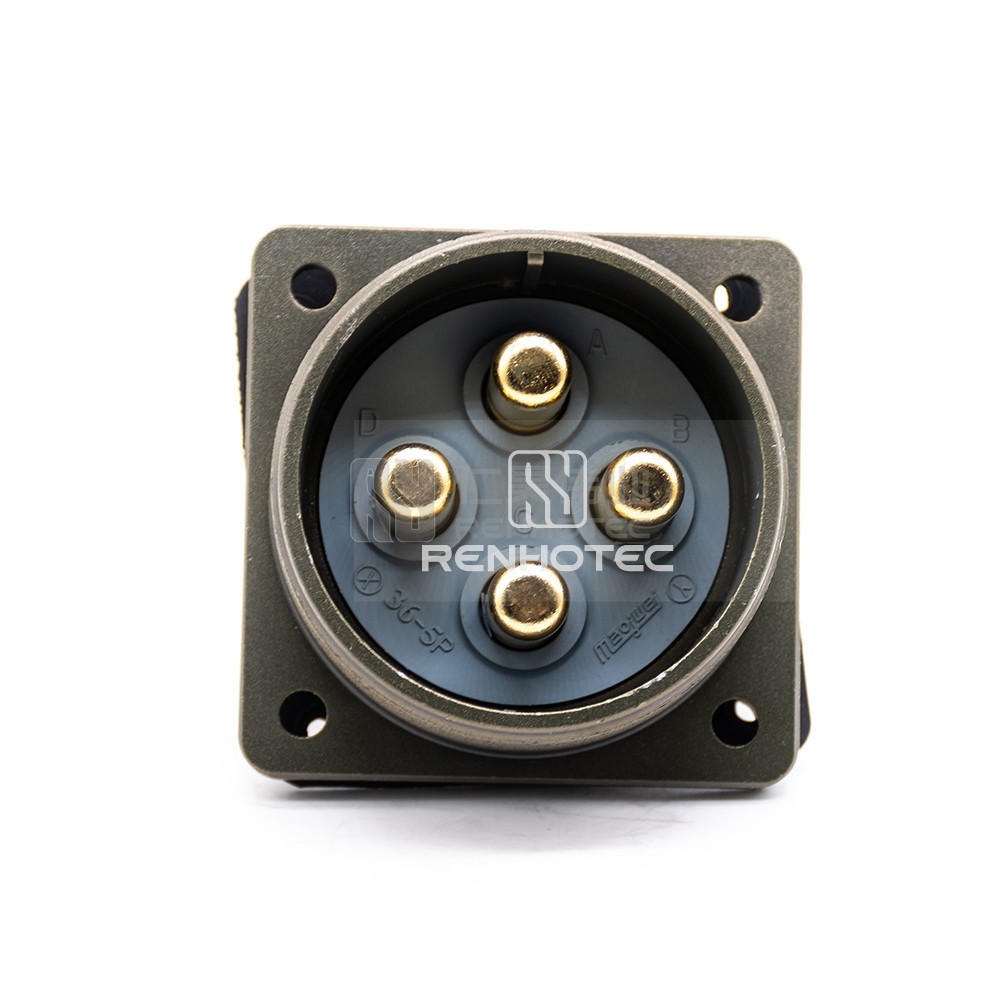

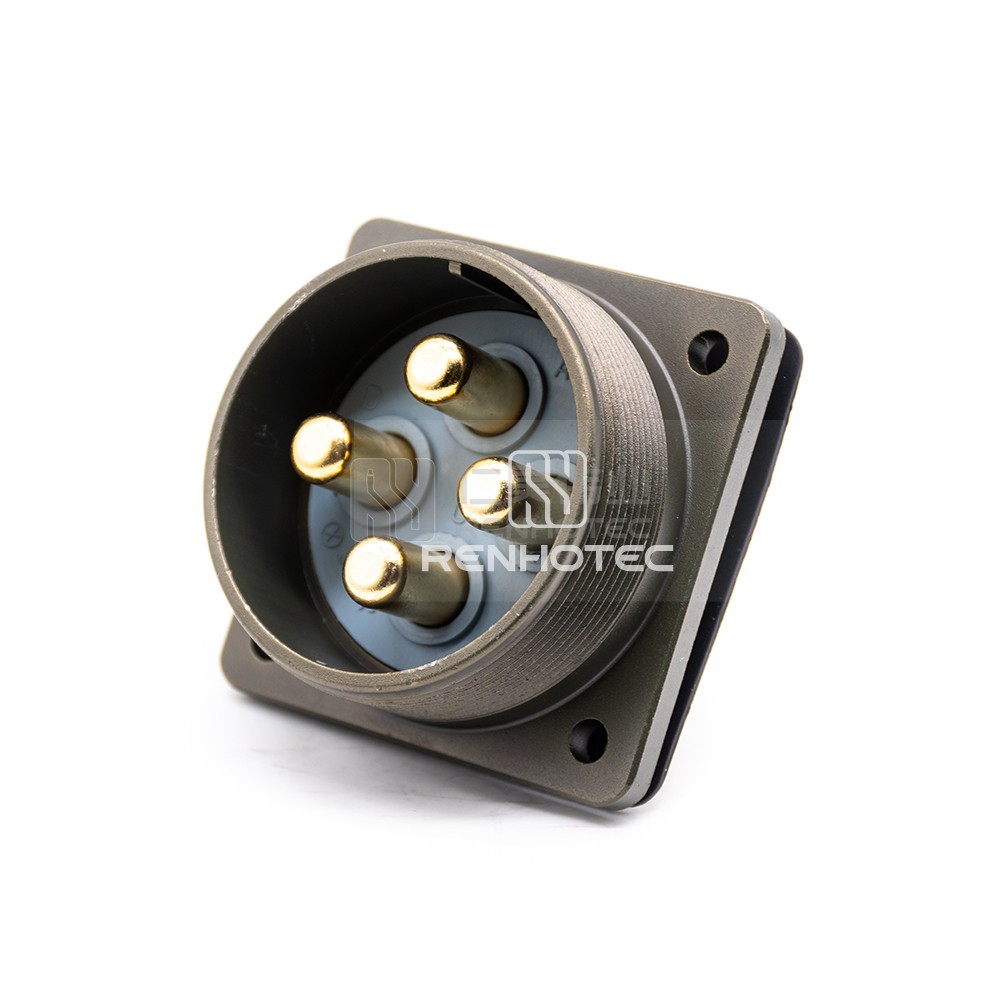

Threaded MS3102A36-5P 4Pin Male Box Mounting Receptacle Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality threaded MS3102A36-5P 4-pin male box mounting receptacle with solder cup for secure and reliable connections. Perfect for various industrial applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    Contact Arrangements36-5
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size36

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range2-0AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP55
    Operating Temperature-55°C ~ + 125°C

    Electrical

    ShieldingUnshielded
    Rated Current120A
    Rated Voltage500V
