Products > MIL Spec Connector > Threaded MS3106A16S-1S 7Pin Female Straight Plug Solder Cup

MS3106A16S-1S

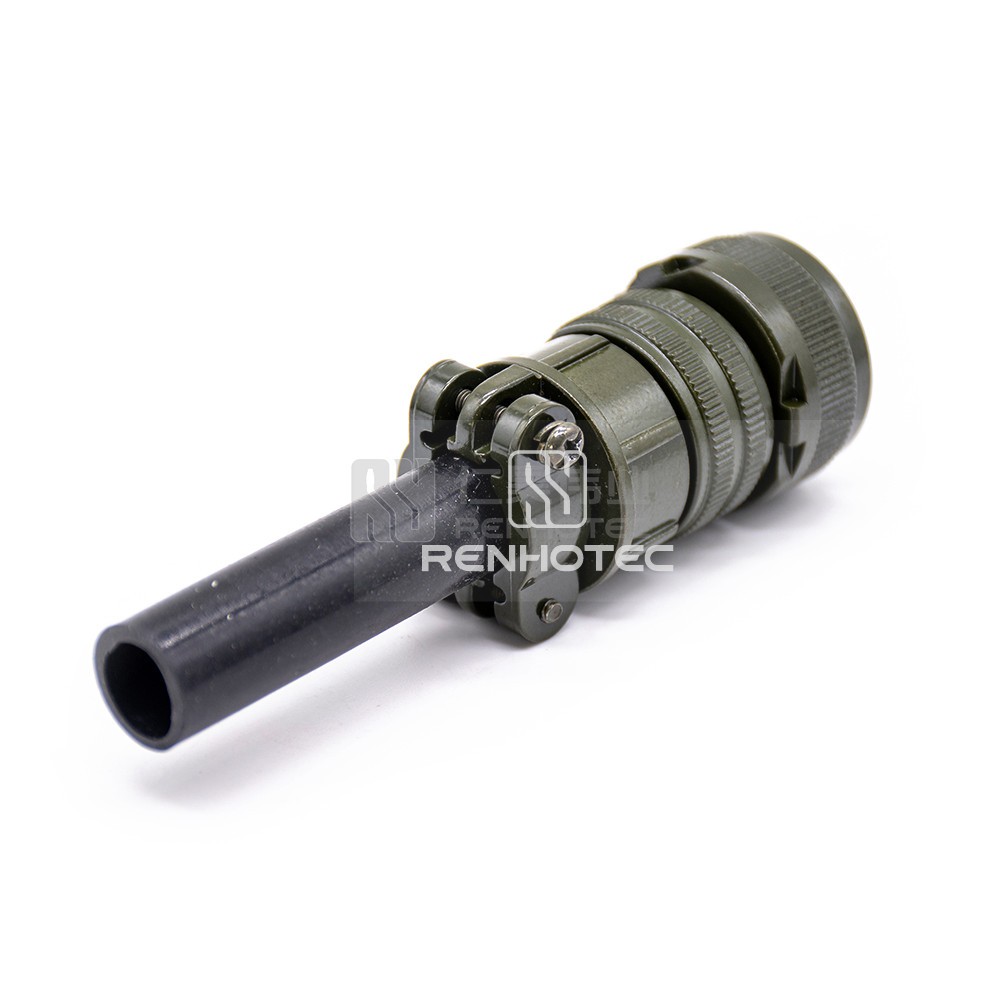

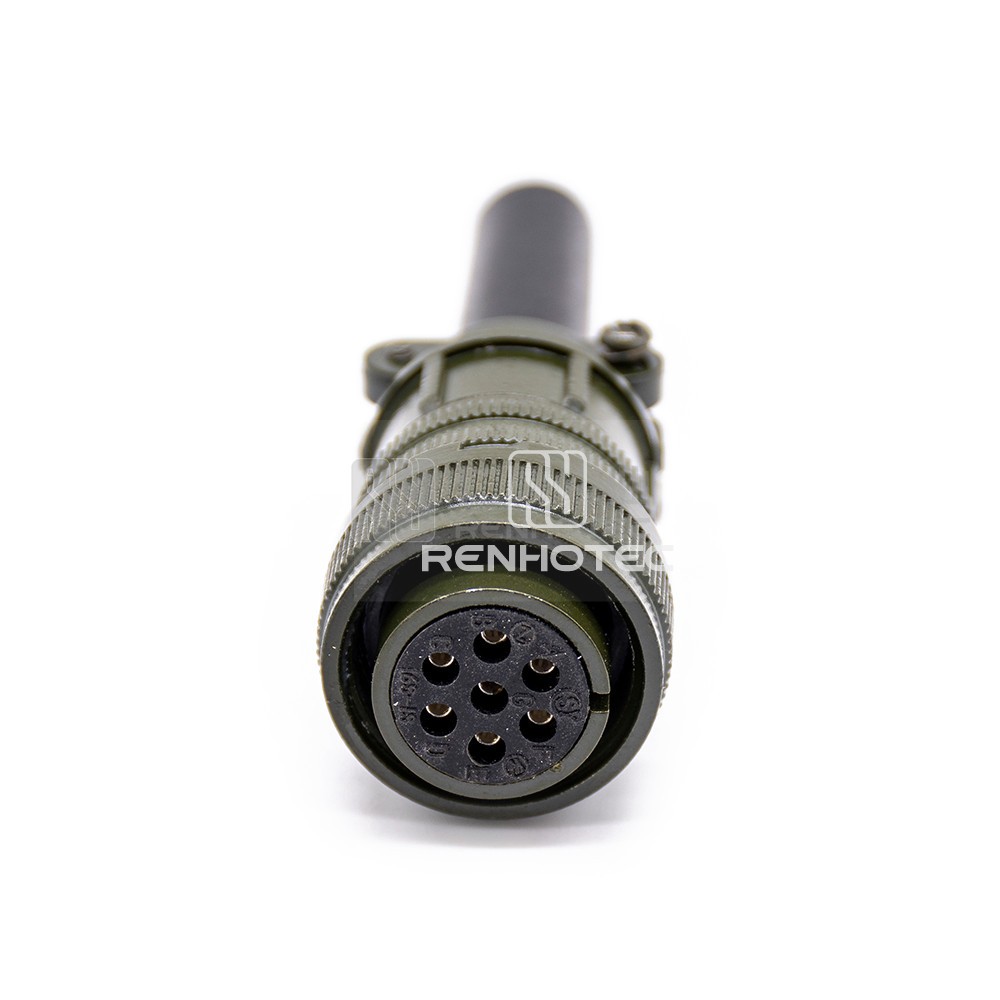

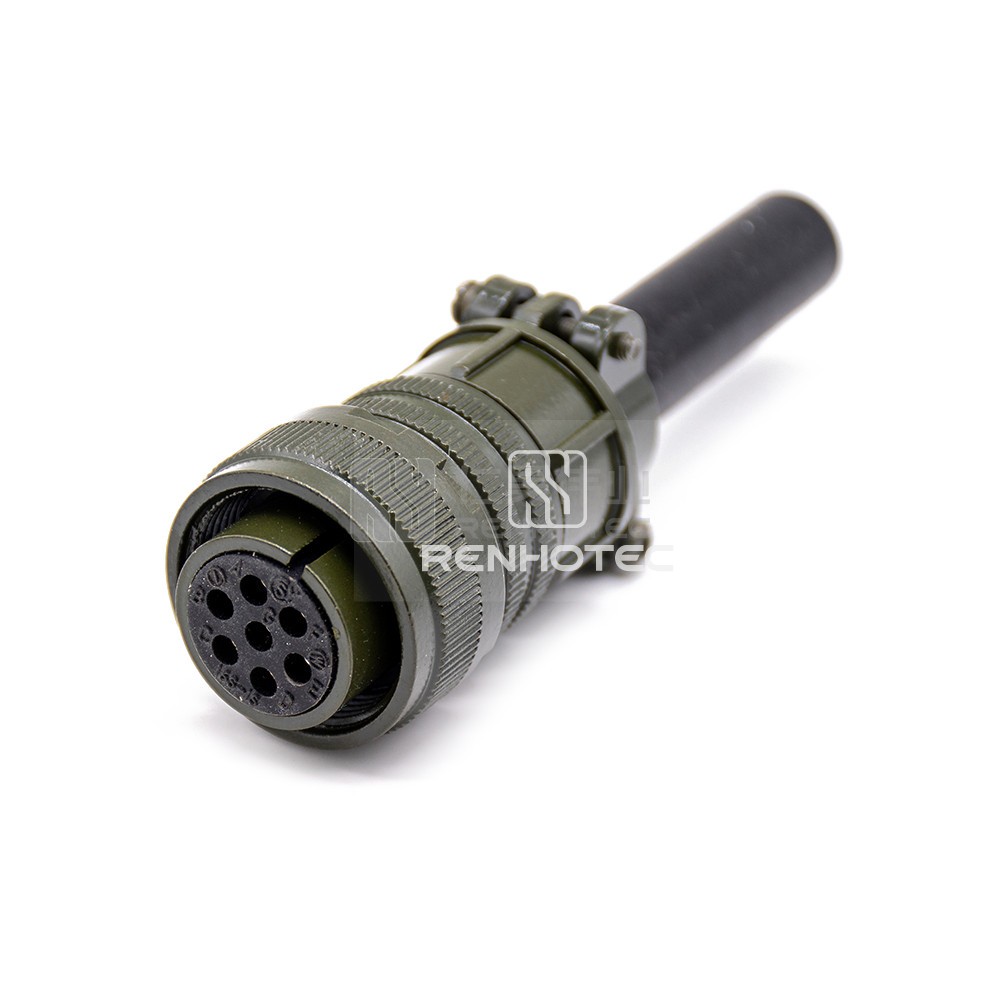

Threaded MS3106A16S-1S 7Pin Female Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality straight plug solder cup with 7 pins and threaded design, ideal for secure connections in electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions7
    Contact Arrangements16S-1
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size16S

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
