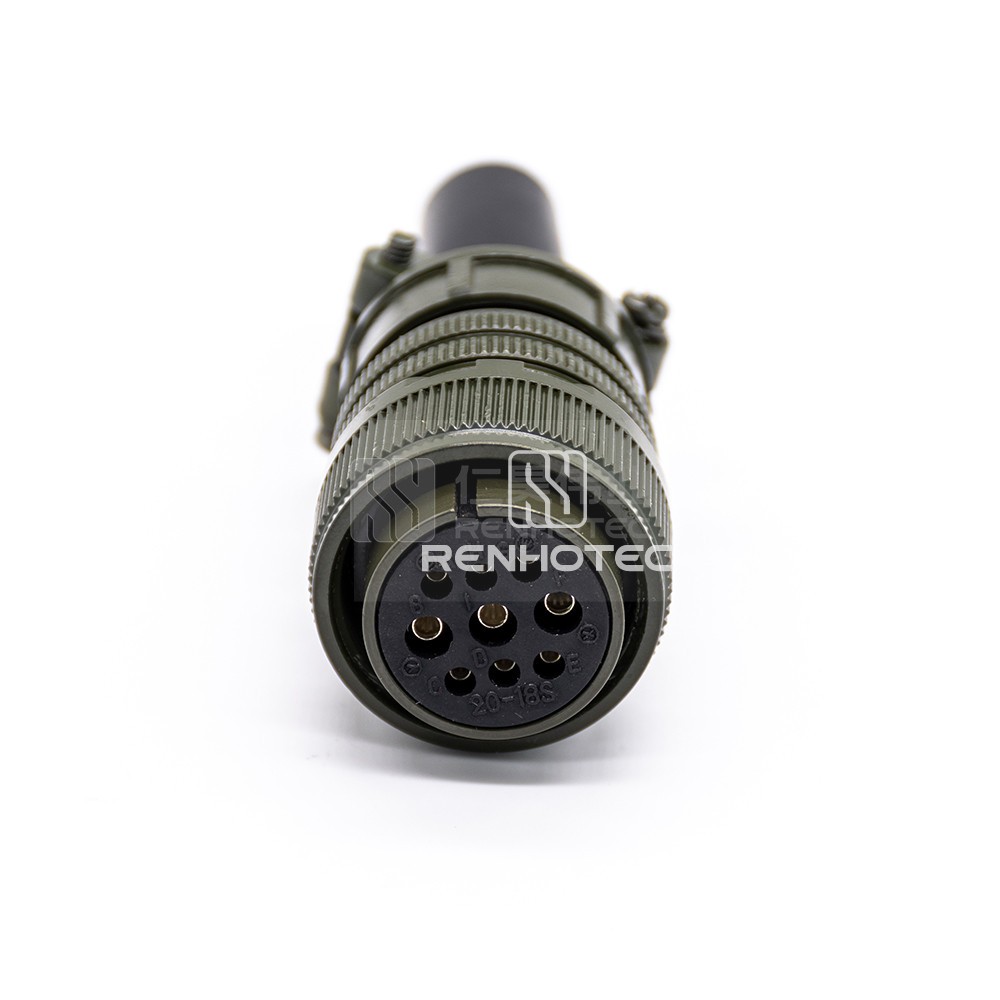

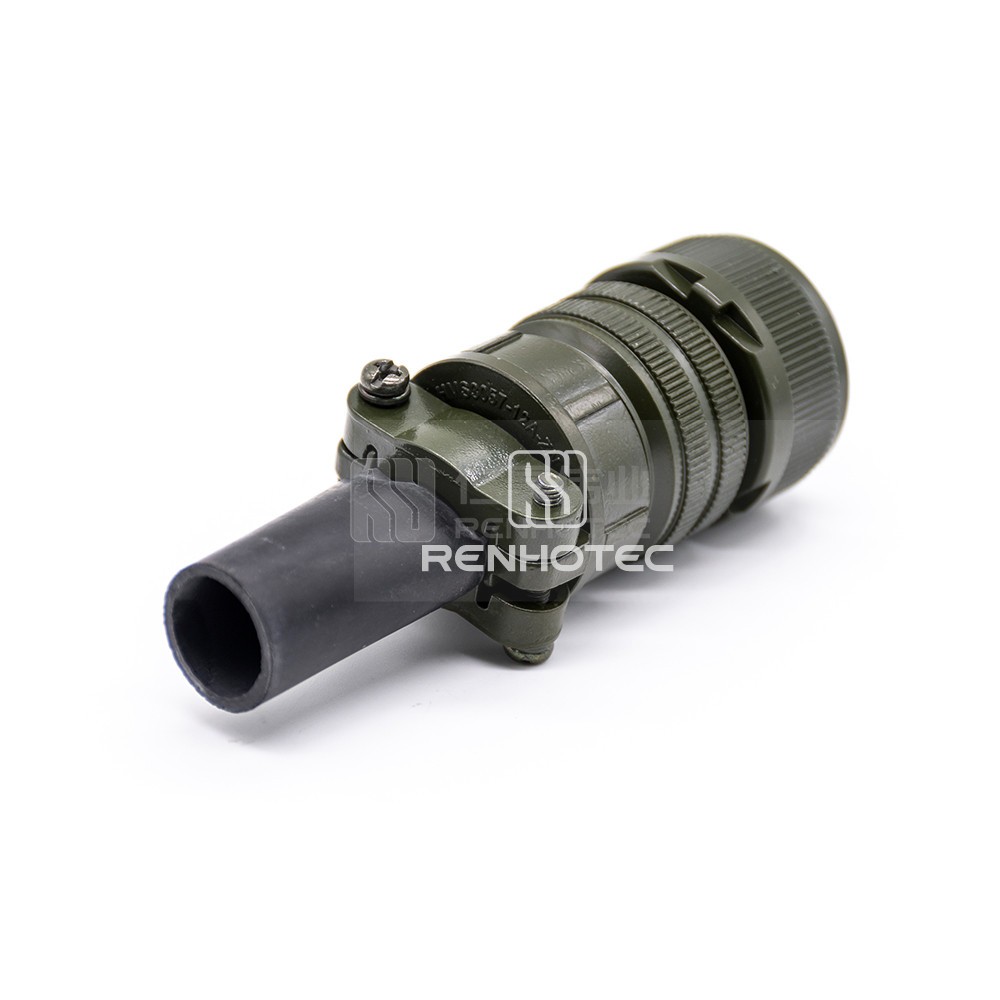

High-quality Threaded MS3106A20-18S 9Pin Female Straight Plug Solder Cup for secure connections in various applications. Features solder cup design for easy installation.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 9 |
Contact Arrangements | 20-18 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 20 |
Mechanical
Fastening Type | Threaded |
Mounting Type | Cable Type |
Wire Gauge or Range | 20-12AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Silver |
Environmental
Ingress Protection | IP55 |
Operating Temperature | -55°C ~ + 125°C |
Electrical
Shielding | Unshielded |
Rated Current | 30A/15A |
Rated Voltage | 500V |
