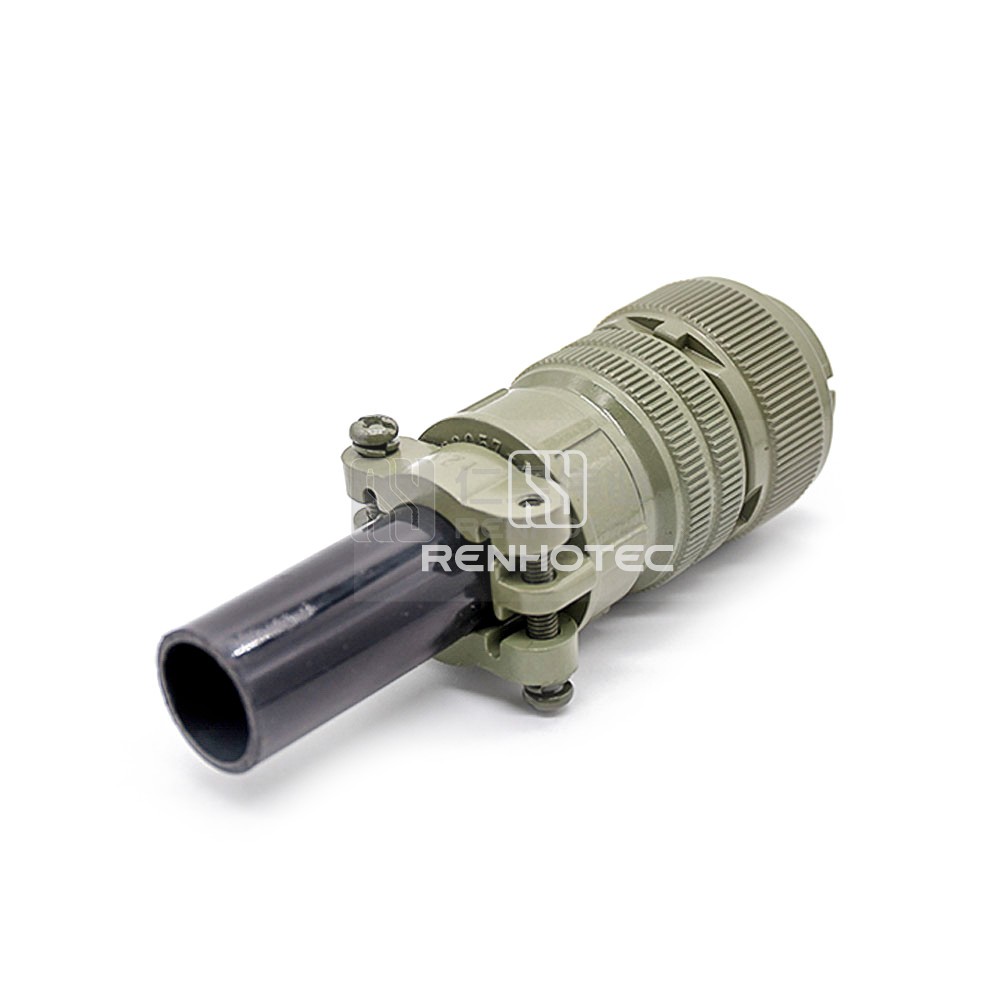

product image

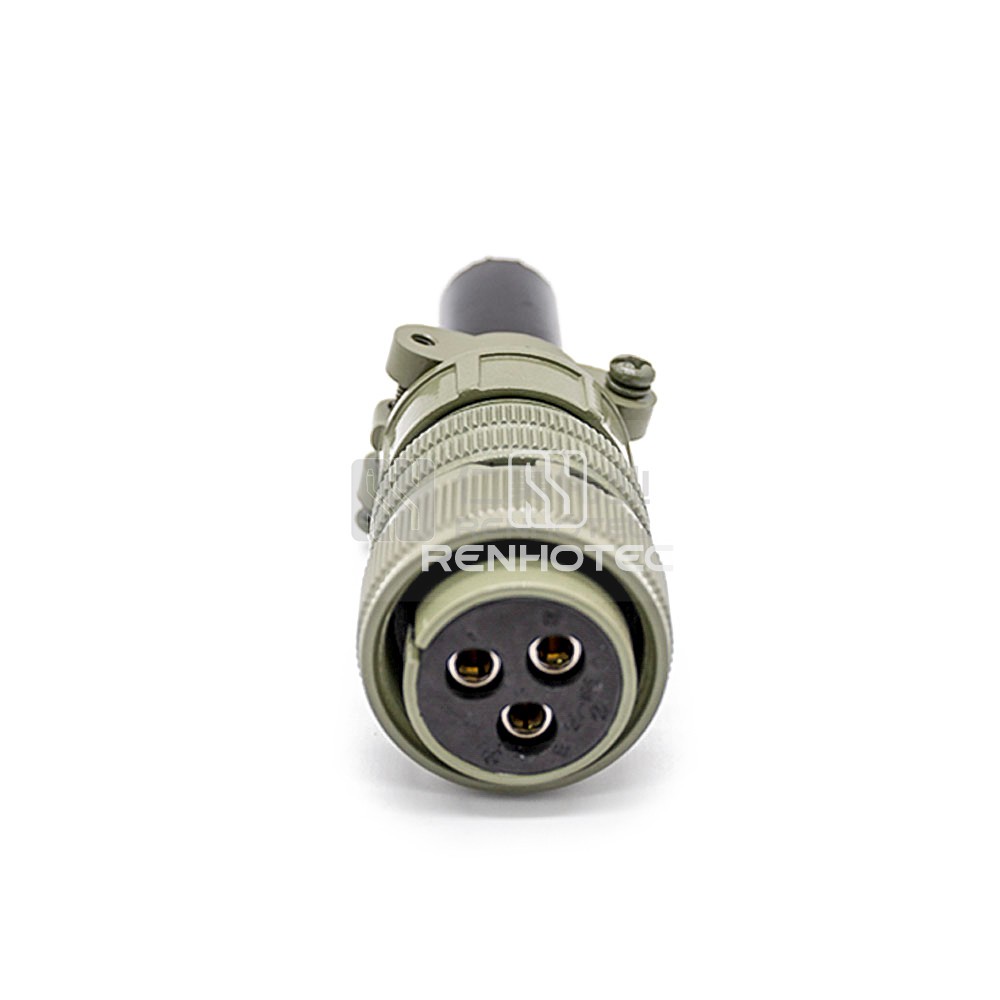

product image
product image

MS3106A20-19S

Threaded MS3106A20-19S 3Pin Female Straight Plug Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This Threaded MS3106A20-19S 3Pin Female Straight Plug features a solder cup design, making it easy to securely connect wires. Ideal for professional or electrical projects.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeFemale Pin
Number of Positions3
Contact Arrangements20-19
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishSilver
Mechanical
Fastening TypeThreaded
Mounting TypeCable Type
Wire Gauge or Range10-8AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size20
Electrical
ShieldingUnshielded
Rated Current50A
Rated Voltage500V
